Picture of ammeter selector switch iCMA - 10 A
SKU:

15126

ammeter selector switch iCMA - 10 A

$303.29
Available for Shipping : 10-Dec-2024
Product Selector
ammeter selector switch iCMA - 10 A
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
User guide
Product Page Link
Product Data Sheet

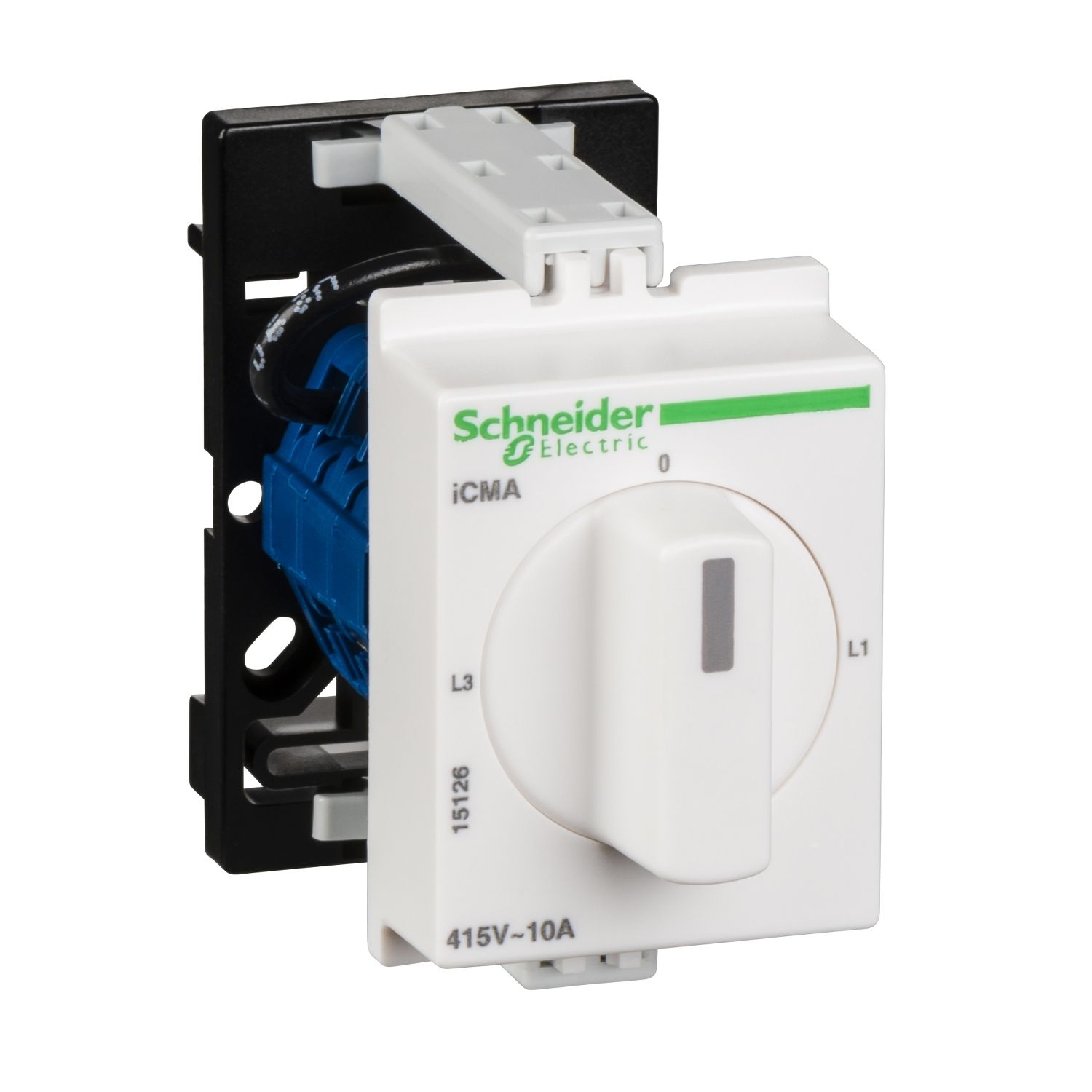

The 4 modules selector switches are designed for DIN rail installation in enclosures or cubicles. The ammeter selector switch uses a single ammeter (by means of current transformers) for successive measurement of the currents of a three-phase circuit. Electrical durability of 1,000,000 operations, and mechanical durability of 2,000,000 operations for an utilization category type AC21A-3. This product is calibrated for 10A circuit rating. 4 contacts for phase 1, 2, 3 or none. Complient to standards IEC/EN 60947-3. Ingress Protection IP66 on front, and IP20 on the back at terminal level. Product dimensions are 60mm in height, 36mm in width and 75mm in depth.

Products specifications

Attribute name Attribute value
Main
[Ue] rated operational voltage < 440 V AC 50/60 Hz
Device short name iCMA
Device application ammeter selector
Range Acti9
Product name Acti9 iCM
Product or component type selector switch
Range of product Acti9
Complementary
Depth 75 mm
Market segment small commercial, residential
Width 36 mm
Compatibility code CMA
Mechanical durability 2000000 cycles
[Ie] rated operational current 10 A
Control type rotary handle 4 positions
Electrical durability 1000000 cycles
Mounting mode clip-on
Marking 0 - L1 - L2 - L3
Connections - terminals captive screw-jumper terminals - <= 1.5 mm²
9 mm pitches 4
Mounting support DIN rail
[Ith] conventional free air thermal current 10 A
Height 60 mm
Environment
IP degree of protection IP20 terminals: , IP66 front face:
Ambient air temperature for storage -25-80 °C
Standards IEC 60947-3
Ambient air temperature for operation -20-55 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.0 cm
Package 1 Width 8.0 cm
Package 1 Length 7.5 cm
Package 1 Weight 77.0 g
Unit Type of Package 2 2
Number of Units in Package 2 80
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 6.691 kg
