19063

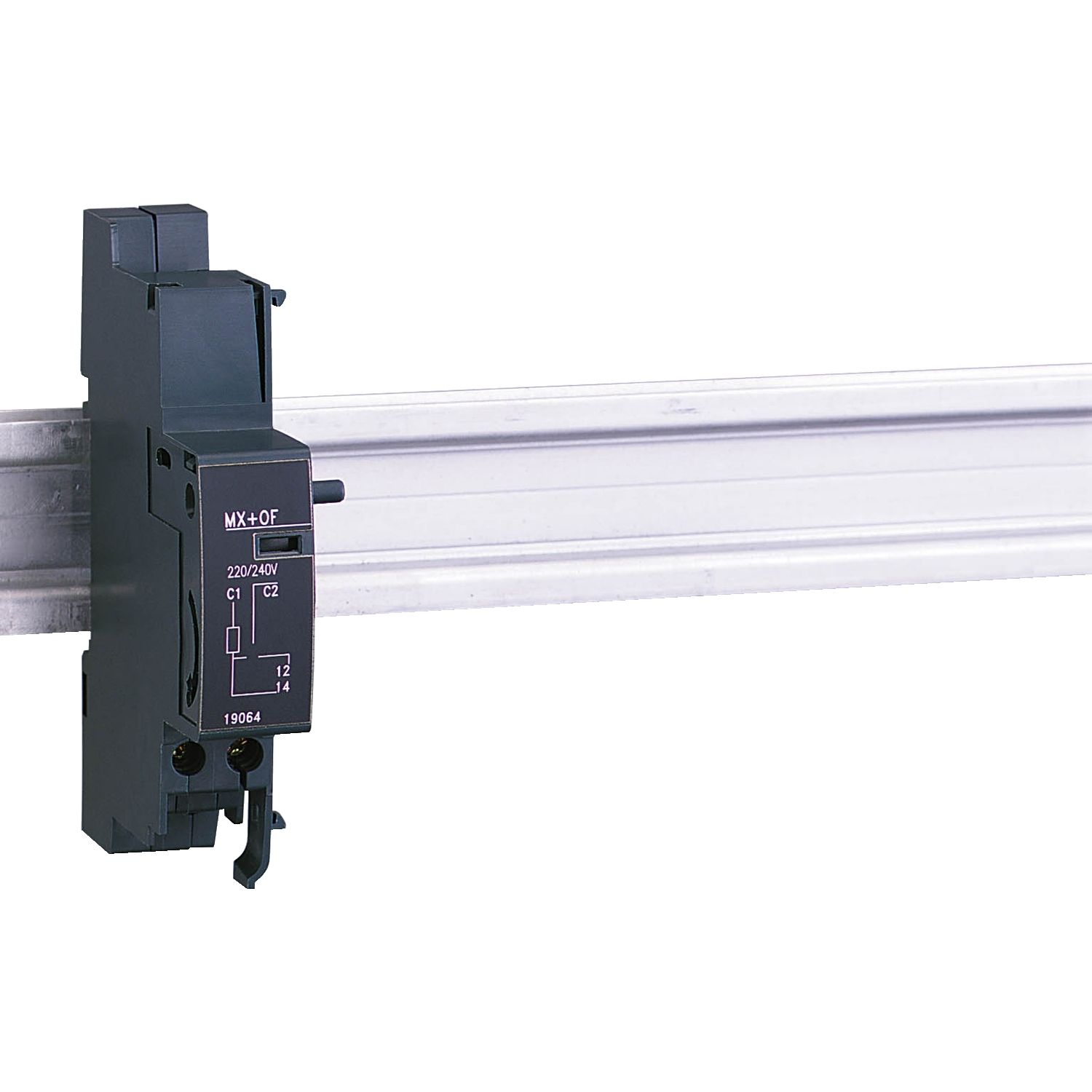

Shunt trip release with OC contact, Acti9 NG125, MX+OF, 12VAC, 12VDC

$143.57
Available for Shipping : 10-Dec-2024
Shunt trip release with OC contact, Acti9 NG125, MX+OF, 12VAC, 12VDC
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name MX + OF
Product compatibility NG125
Signal contacts composition 1 C/O
Range Acti9
Product or component type shunt trip release with OC contact
9 mm pitches 2
Range of product NG125
[Uc] control circuit voltage 12 V DC, 12 V AC 50/60 Hz
Complementary
Tightening torque 1-1 N.m
Depth 77 mm
Market segment small commercial
Width 34 mm
[Uimp] rated impulse withstand voltage 8 kV conforming to EN/IEC 60947-5-1
Local signalling action indicator
Compatibility code MX + OF
Electrical durability 10000 cycles conforming to EN/IEC 60947-5-1
Mounting mode fixed
[Ui] rated insulation voltage 690 V AC 50/60 Hz conforming to EN/IEC 60947-5-1
Connections - terminals plate terminal - 2 cable(s) 1.5-1.5 mm² - flexible with ferrule, plate terminal - 2 cable(s) 2.5-2.5 mm² - rigid, plate terminal - 2 cable(s) 2.5-2.5 mm² - flexible, plate terminal - 1 cable(s) 0.5-1.5 mm² - flexible with ferrule, plate terminal - 1 cable(s) 0.5-1.5 mm² - flexible, plate terminal - 1 cable(s) 0.5-2.5 mm² - rigid
Wire stripping length 10 mm
Net weight 0.123 kg
Range compatibility Acti 9 Acti9 NG125, Acti 9 Acti9 NG125NA, Acti 9 Acti9 NG125LMA, Acti 9 Vigi NG125
Mounting support 35 mm symmetrical DIN rail
Height 110 mm
Environment
Overvoltage category II
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-85 °C
Pollution degree 3 conforming to EN/IEC 60947-5-1
IP degree of protection IP4 conforming to EN/IEC 60947-5-1, IP20 B conforming to EN/IEC 60947-5-1
Tropicalisation 2 conforming to EN/IEC 60947-5-1
Standards EN/IEC 60947-5-1
Ambient air temperature for operation -25-60 °C
Product certifications KEMA, ASEFA, LCIE, ASTA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.4 cm
Package 1 Width 7.7 cm
Package 1 Length 11 cm
Package 1 Weight 123 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 11.5 cm
Package 2 Width 8.5 cm
Package 2 Length 23.5 cm
Package 2 Weight 811 g
Unit Type of Package 3 3
Number of Units in Package 3 54
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 7.786 kg
