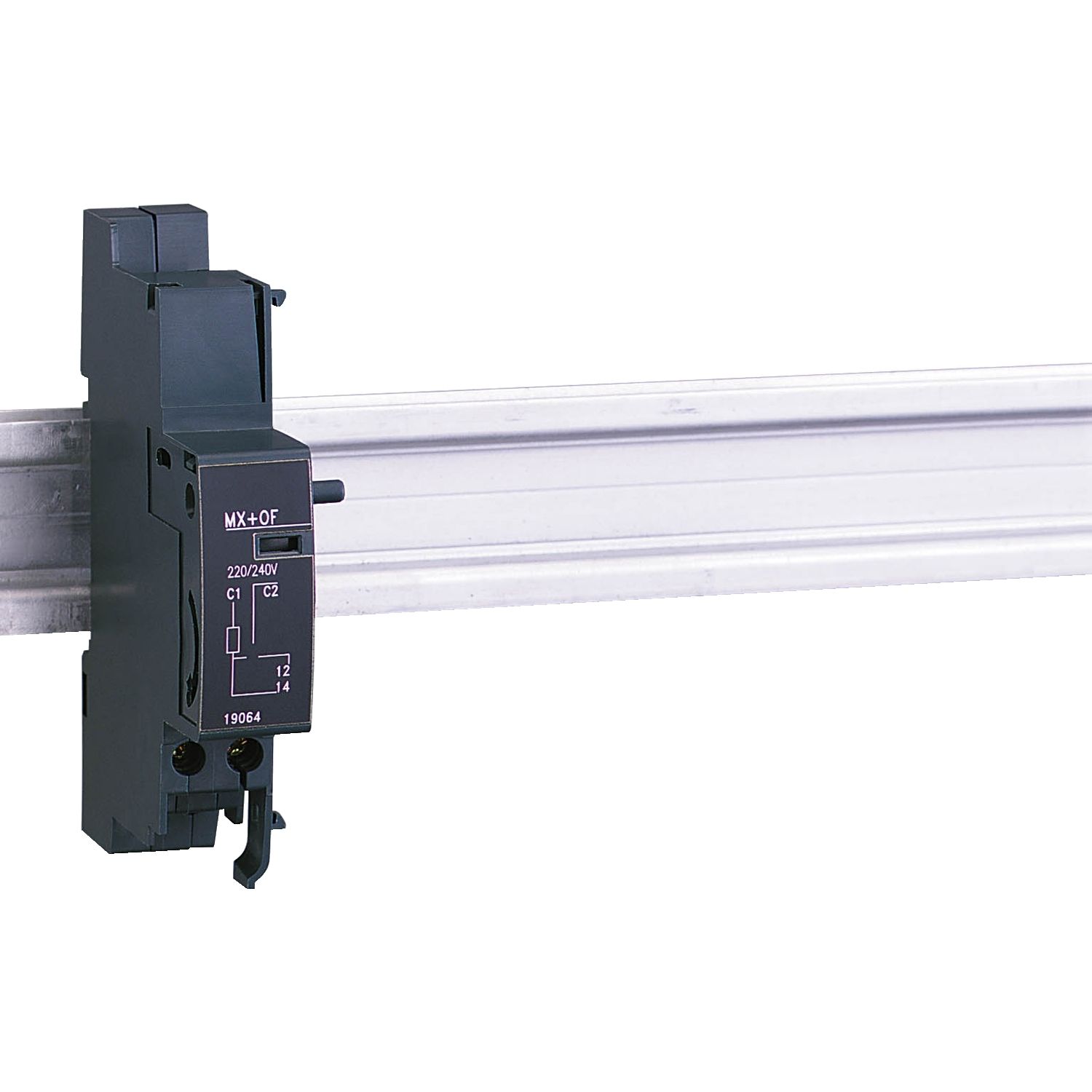

Picture of Shunt trip release with OC contact, Acti9 NG125, MX+OF, 24VAC, 24VDC
SKU:

19066

Shunt trip release with OC contact, Acti9 NG125, MX+OF, 24VAC, 24VDC

$143.57 INC GST
Available for Shipping : 12-Feb-2025
Shunt trip release with OC contact, Acti9 NG125, MX+OF, 24VAC, 24VDC
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Product Page Link
Product Data Sheet
This Acti9 MX+OF electrical auxiliary is a shunt trip release device with open/close auxiliary contact. It is dedicated to NG125. This device includes an open/close contact OF to indicate the open or closed position of the circuit breaker. It is provided with a self-interrupting contact. The width in 9mm pitches is 4. The product trips the associated device when it is powered on. The rated operational current is 6A up to 240VAC, 3A for more than 240VAC, 2A up to 48VDC and 1A at 130VDC. The Uc control circuit voltage is 24VAC or 24VDC. It can be mounted on a DIN rail for modular installation. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product complies with IEC/EN 60947-5-1 standards.

Products specifications

Attribute name Attribute value
Main
Device short name MX + OF
Product compatibility NG125
Signal contacts composition 1 C/O
Range Acti9
Product or component type shunt trip release with OC contact
9 mm pitches 2
Range of product NG125
[Uc] control circuit voltage 24 V DC, 24 V AC 50/60 Hz
Complementary
Tightening torque 1-1 N.m
Depth 78 mm
Market segment small commercial
Width 32 mm
[Uimp] rated impulse withstand voltage 8 kV conforming to EN/IEC 60947-5-1
Local signalling action indicator
Compatibility code MX + OF
Electrical durability 10000 cycles conforming to EN/IEC 60947-5-1
Mounting mode fixed
[Ui] rated insulation voltage 690 V AC 50/60 Hz conforming to EN/IEC 60947-5-1
Connections - terminals plate terminal - 2 cable(s) 1.5-1.5 mm² - flexible with ferrule, plate terminal - 2 cable(s) 2.5-2.5 mm² - rigid, plate terminal - 2 cable(s) 2.5-2.5 mm² - flexible, plate terminal - 1 cable(s) 0.5-1.5 mm² - flexible with ferrule, plate terminal - 1 cable(s) 0.5-1.5 mm² - flexible, plate terminal - 1 cable(s) 0.5-2.5 mm² - rigid
Wire stripping length 10 mm
Net weight 0.132 kg
Range compatibility Acti 9 Acti9 NG125, Acti 9 Acti9 NG125NA, Acti 9 Acti9 NG125LMA, Acti 9 Vigi NG125
Mounting support 35 mm symmetrical DIN rail
Height 105 mm
Environment
Overvoltage category II
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-85 °C
Pollution degree 3 conforming to EN/IEC 60947-5-1
IP degree of protection IP4 conforming to EN/IEC 60947-5-1, IP20 B conforming to EN/IEC 60947-5-1
Tropicalisation 2 conforming to EN/IEC 60947-5-1
Standards EN/IEC 60947-5-1
Ambient air temperature for operation -25-60 °C
Product certifications EAC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.200 cm
Package 1 Width 7.800 cm
Package 1 Length 10.500 cm
Package 1 Weight 124.000 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 11.200 cm
Package 2 Width 8.500 cm
Package 2 Length 23.500 cm
Package 2 Weight 807.000 g
Unit Type of Package 3 3
Number of Units in Package 3 54
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 7.740 kg
