SKU:

29349

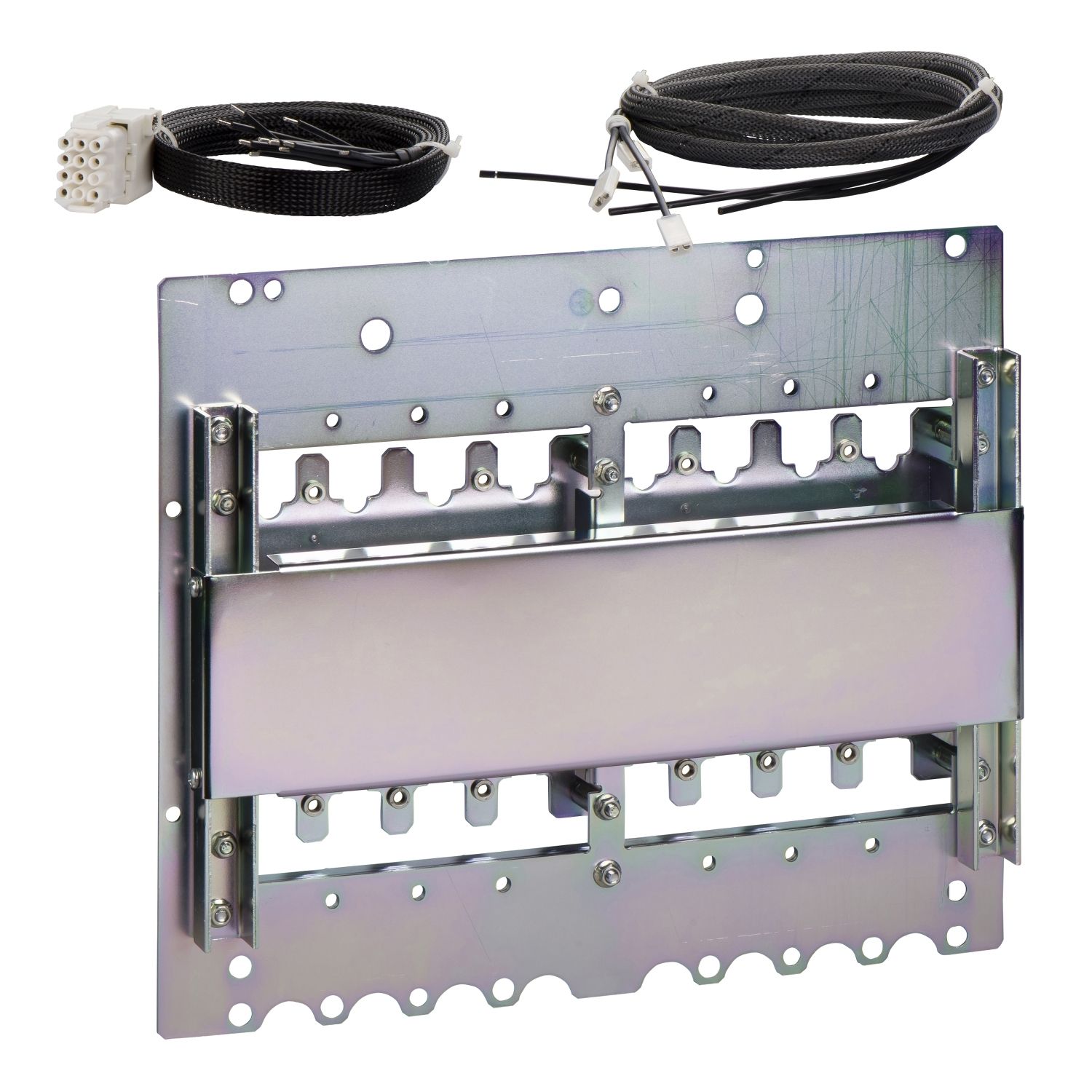

mechanical interlocking, TransferPacT interlock accessory for ComPacT NSX100…250

Old price: $1,080.20 INC GST

Price: $883.60 INC GST

Qty:

Available for Shipping : 08-Dec-2025

mechanical interlocking, TransferPacT interlock accessory for ComPacT NSX100…250

Control unit accessory.

Component of control unit.

Free instrallation with the panel.

Compatible with manual source changeover in TransferPacT family.

Be the first to review this product

Manufacturer: Schneider Electric

Delivery date: 08-Dec-2025

Instruction sheet

Catalog

Product Page Link

Product Data Sheet

It is a mechanical interlocking system for two Compact NSX 100/160/250 devices with a base plate. The authorized positions are one device OFF (closed) and the other ON (opened), or the two devices OFF (closed). Interlocking is carried out on the base plate by a mechanism located behind the devices. The base plate can be installed horizontally or vertically on a mounting rail.

Products specifications

Attribute name	Attribute value
Main
[Us] rated supply voltage	440 V AC at 60 Hz, 48...415 V AC at 50/60 Hz, 24...250 V DC
Device application	interlocking
Range	ComPacT
Product or component type	plate
Accessory / separate part category	interlocking accessory
Range compatibility	circuit breaker, ComPact ComPact NSX circuit breaker
Range of product	ComPact NSX100...250
Complementary
Product compatibility	Compact NSX100...250
Range compatibility	Compact NSX
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	31.0 cm
Package 1 Width	11.0 cm
Package 1 Length	38.0 cm
Package 1 Weight	4.076 kg
Unit Type of Package 2	2
Number of Units in Package 2	21
Package 2 Height	50.0 cm
Package 2 Width	80.0 cm
Package 2 Length	120.0 cm
Package 2 Weight	103.0 kg
