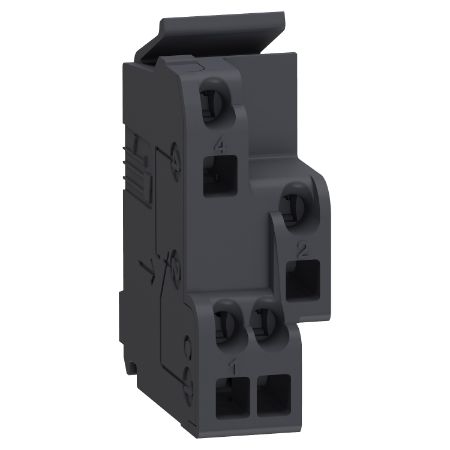

Picture of Standard auxiliary contact, circuit breaker status OF/SD/SDE/SDV, 1 changeover contact type, screwless spring terminals
SKU:

29450

Standard auxiliary contact, circuit breaker status OF/SD/SDE/SDV, 1 changeover contact type, screwless spring terminals

$170.05
Available for Shipping : 14-Nov-2024
Product Selector
Standard auxiliary contact, circuit breaker status OF/SD/SDE/SDV, 1 changeover contact type, screwless spring terminals
  • ComPacT NS and ComPacT NSX are ranges of circuit breakers for built-in power & energy metering
  • The solution covers ratings from 100 A to 3200 A
  • MicroLogic electronic control unit provides electrical measurement and analysis functions
  • Optimized range of auxiliaries and accessories, field installable
  • Flexible installation, in any position, in a switchboard or wall-mounted
  • New transparent front cover with visible auxiliaries
  • New toggle with ergonomic touch
  • Wireless auxiliary contact OF/SD in Zigbee
  • Sustainability with Green packaging and Green partnerships
  • Linked to Smart Panels, improves uptime with complete monitoring solution
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Instruction sheet
Catalogue
Declaration of conformity
User guide
Product Page Link
Product Data Sheet
It is a single standard auxiliary contact that provides all the different indications remotely for ComPact NSX, ComPact NS, PowerPact Multistandard and EasyPact CVS circuit breakers. Remote status information are ON/OFF (OF), trip indication (SD) and fault-trip indication (SDE) for all circuit breakers types. The remote status information for trip indication due to an earth fault (SDV) is used for ComPact NSX and PowerPact Multistandard. The contacts are installed in the device in dedicated slots. This auxiliary contact is a common point changeover type contact with 1 normally open contact and 1 normally closed contact. The rated current is 6A and the minimum load is 100mA at 24 VDC for utilization categories are AC12/AC15/DC12/DC14. Screwless connections with spring terminals provide a fast and reliable connection. The section of connected cables is between 0.5 mm² (AWG20) and 1.5 mm² (AWG16). It complies with IEC 60947-5-1 standard.

Products specifications

Attribute name Attribute value
Main
Device short name SDV, SDE, SD, OF
Device application breaker status monitoring
Range ComPacT
Range of product ComPact NS1600b...3200, ComPact NS630b...1600, ComPact NSX400...630 DC PV, ComPact NSX400...630 DC, ComPact NSX100...250 DC PV, ComPact NSX100...250 DC, ComPact NSX400...630, ComPact NSX100...250
Signal contacts composition 1 NO/NC
Product or component type auxiliary contact
Range compatibility ComPact ComPact NSX DC, PowerPact PowerPact Multistandard, EasyPact EasyPact CVS, ComPact ComPact NSX, ComPact Compact INV, ComPact ComPacT INS, ComPact ComPact NS1600b...3200, ComPact ComPact NS630b...1600
Complementary
Minimum load 100 mA at 24 V DC
[Ie] rated operational current DC-14: 0.03 A at 250 V DC, DC-14: 0.05 A at 110 V DC, DC-14: 0.2 A at 48 V DC, DC-14: 1 A at 24 V DC 50/60 Hz, DC-12: 0.3 A at 250 V DC 50/60 Hz, DC-12: 0.6 A at 110 V DC 50/60 Hz, DC-12: 2.5 A at 48 V DC 50/60 Hz, DC-12: 6 A at 24 V DC 50/60 Hz, AC-15: 0.1 A at 660/690 V AC 50/60 Hz, AC-15: 1.5 A at 480 V AC 50/60 Hz, AC-15: 2 A at 380/440 V AC 50/60 Hz, AC-15: 4 A at 220/240 V AC 50/60 Hz, AC-15: 5 A at 110 V AC 50/60 Hz, AC-15: 6 A at 48 V AC 50/60 Hz, AC-15: 6 A at 24 V AC 50/60 Hz, AC-12: 6 A at 660/690 V AC 50/60 Hz, AC-12: 6 A at 480 V AC 50/60 Hz, AC-12: 6 A at 380/440 V AC 50/60 Hz, AC-12: 6 A at 220/240 V AC 50/60 Hz, AC-12: 6 A at 110 V AC 50/60 Hz, AC-12: 6 A at 48 V AC 50/60 Hz, AC-12: 6 A at 24 V AC 50/60 Hz
Auxiliary contacts type standard
Mounting mode clip-on
Auxiliary connection terminal spring 0.5-1.5 mm² (AWG 20...AWG 16)
Fault type general electric fault
Local signalling fault trip for electrical fault, trip indicator for relay trip indicator, ON/OFF indication for open/close
Accessory / separate part category spare part for Compact NS1600b...3200, spare part for Compact NS630b...1600
[Ith] conventional free air thermal current 5 A
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.400 cm
Package 1 Width 7.000 cm
Package 1 Length 7.000 cm
Package 1 Weight 16.900 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 4.500 cm
Package 2 Width 16.000 cm
Package 2 Length 16.000 cm
Package 2 Weight 177.000 g
Unit Type of Package 3 3
Number of Units in Package 3 300
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 5.785 kg
