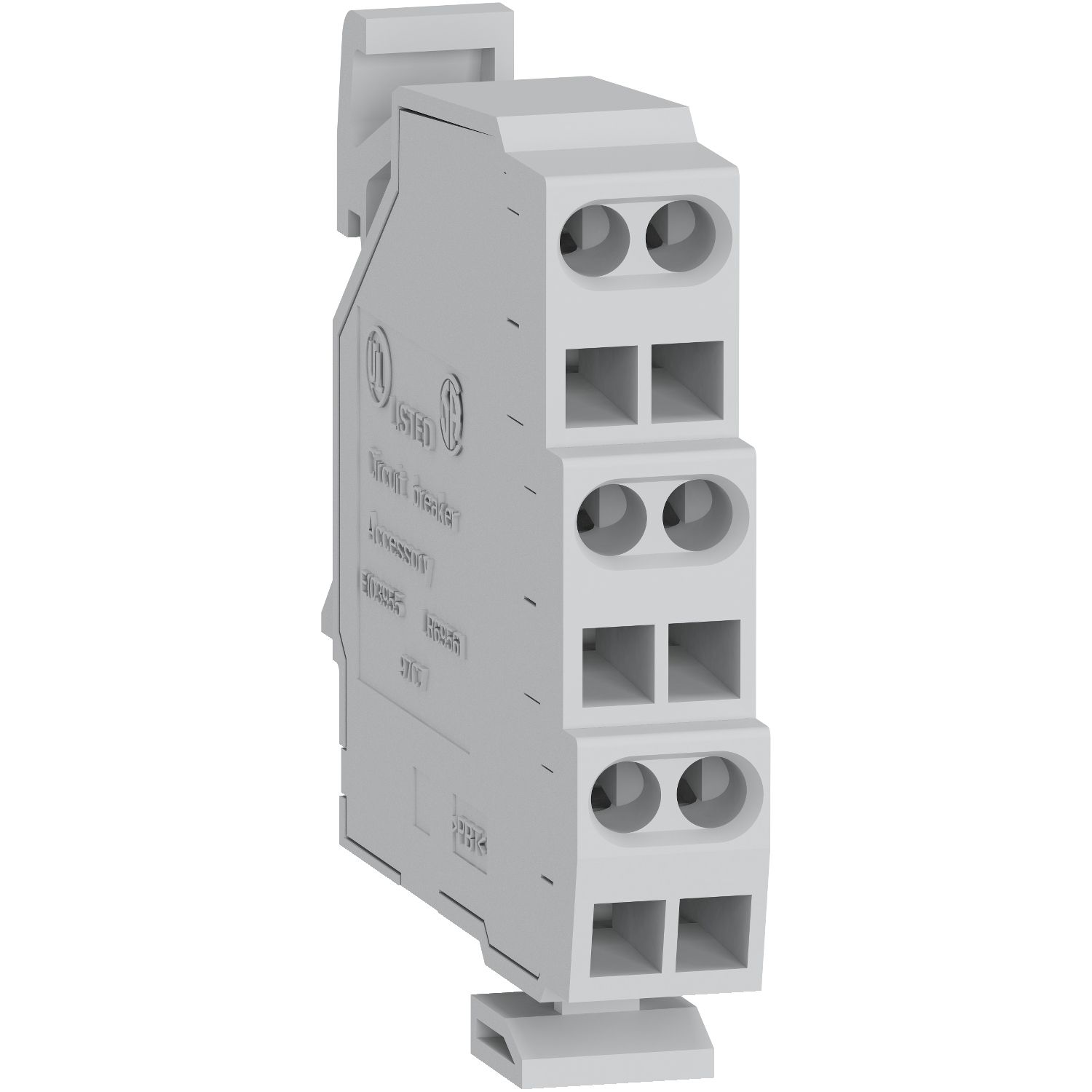

Picture of Chassis position contact, MasterPact NT/NW, ComPacT NS, drawout, CE/CD/CT position, low level, 3A/240VAC, spare part
SKU:

33171

Chassis position contact, MasterPact NT/NW, ComPacT NS, drawout, CE/CD/CT position, low level, 3A/240VAC, spare part

Old price: $235.95 INC GST
$188.76 INC GST
Available for Shipping : 08-Dec-2025
Chassis position contact, MasterPact NT/NW, ComPacT NS, drawout, CE/CD/CT position, low level, 3A/240VAC, spare part
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Catalog
Declaration of conformity
Instruction sheet
User guide
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name carriage switch
Device application monitoring
Signal contacts composition 1 NO/NC
Range MasterPacT
Product or component type auxiliary contact
Range compatibility ComPact ComPact NS630b...1600, Masterpact MasterPact NW DC, Masterpact MasterPact NW, Masterpact MasterPact NT
Range of product ComPact NS630b...1600
Complementary
Minimum load 2 mA at 15 V
[Ie] rated operational current AC-12: 5 A at 380 V AC 50/60 Hz, AC-12: 5 A at 240 V AC 50/60 Hz, AC-12: 5 A at 24/48 V AC 50/60 Hz, DC-12: 2.5 A at 24/48 V DC, DC-12: 0.8 A at 125 V DC, DC-12: 0.3 A at 250 V DC
Auxiliary contacts type low level
Mounting mode drawout
Accessory / separate part category spare part for Compact NS630b...1600, spare part for MasterPact NW DC, spare part for MasterPact NW, spare part for MasterPact NT
Auxiliary contacts operation test position, disconnected position, connected position
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 0.900 cm
Package 1 Width 4.700 cm
Package 1 Length 5.000 cm
Package 1 Weight 17.900 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 6.000 cm
Package 2 Width 12.000 cm
Package 2 Length 17.700 cm
Package 2 Weight 360.000 g
Unit Type of Package 3 3
Number of Units in Package 3 400
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 7.500 kg
