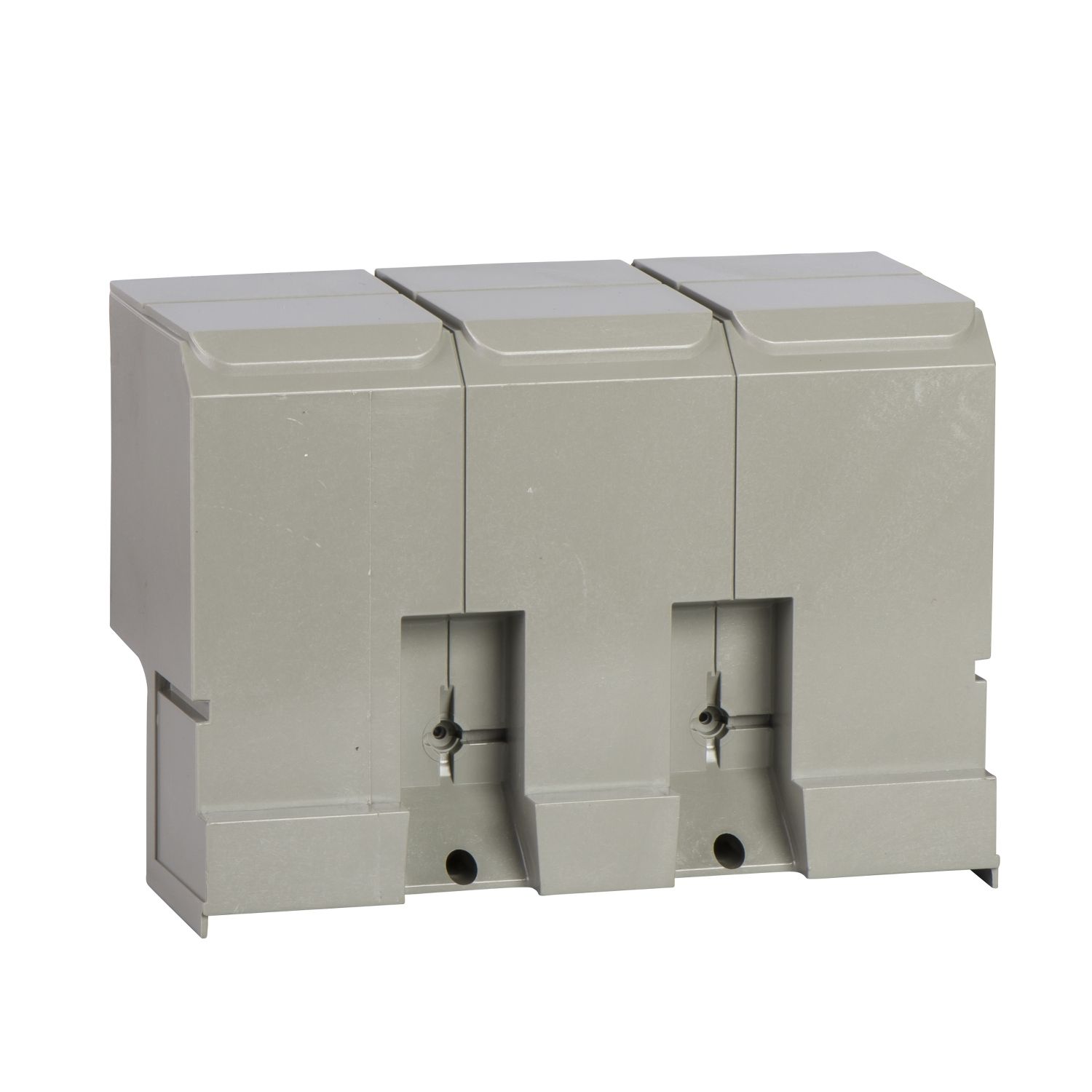

Picture of long terminal shield, fixed MasterPact NT and ComPact NS630b to NS1600, IP40, 3 poles
SKU:

33628

long terminal shield, fixed MasterPact NT and ComPact NS630b to NS1600, IP40, 3 poles

Old price: $190.30 INC GST
$156.05 INC GST
Available for Shipping : 24-Mar-2026
long terminal shield, fixed MasterPact NT and ComPact NS630b to NS1600, IP40, 3 poles
  • ComPacT NS is a range of circuit breakers for built-in power & energy metering
  • The solution covers ratings from 630 A to 3200 A
  • MicroLogic electronic control unit provides electrical measurement and analysis functions
  • ComPacT NS offers an optimized range of auxiliaries and accessories, field installable
  • Flexible installation, in any position, in a switchboard or wall-mounted
  • New transparent front cover with visible auxiliaries
  • New toggle with ergonomic touch and optional LED blinking in trip position
  • Wireless auxiliary contact OF/SD in Zigbee
  • Sustainability with Green packaging and Green partnerships
  • Linked to Smart Panels, improves uptime with complete monitoring solution
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 24-Mar-2026
Catalog
User guide
Instruction sheet
Product Page Link
Product Data Sheet
This is an insulation accessory for 3 poles fixed ComPacT NS 630b to 1600 and MasterPact NT circuit breakers. This long connection shield protects against direct contact with power circuit It insulates power connection points, particularly when cables with lugs are used. It can be mounted upstream and downstream of fixed devices. It allows to reach the clearance distance requested by IEC 60947-2 standard. It provides IP40 degree of protection and IK07 mechanical impact protection.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part type insulation accessories
Quantity per set 1
Poles description 3P
Range ComPacT
Product or component type long terminal shield
Range compatibility ComPact ComPact NS630b...1600, Masterpact MasterPact NT
Range of product ComPact NS630b...1600
Complementary
Compatibility code terminal shields
Accessory / separate part category spare part for Compact NS630b...1600
IP degree of protection IP40
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10 cm
Package 1 Width 15 cm
Package 1 Length 21 cm
Package 1 Weight 368 g
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 1.872 kg
Unit Type of Package 3 3
Number of Units in Package 3 32
Package 3 Height 50 cm
Package 3 Width 80 cm
Package 3 Length 120 cm
Package 3 Weight 26.976 kg
