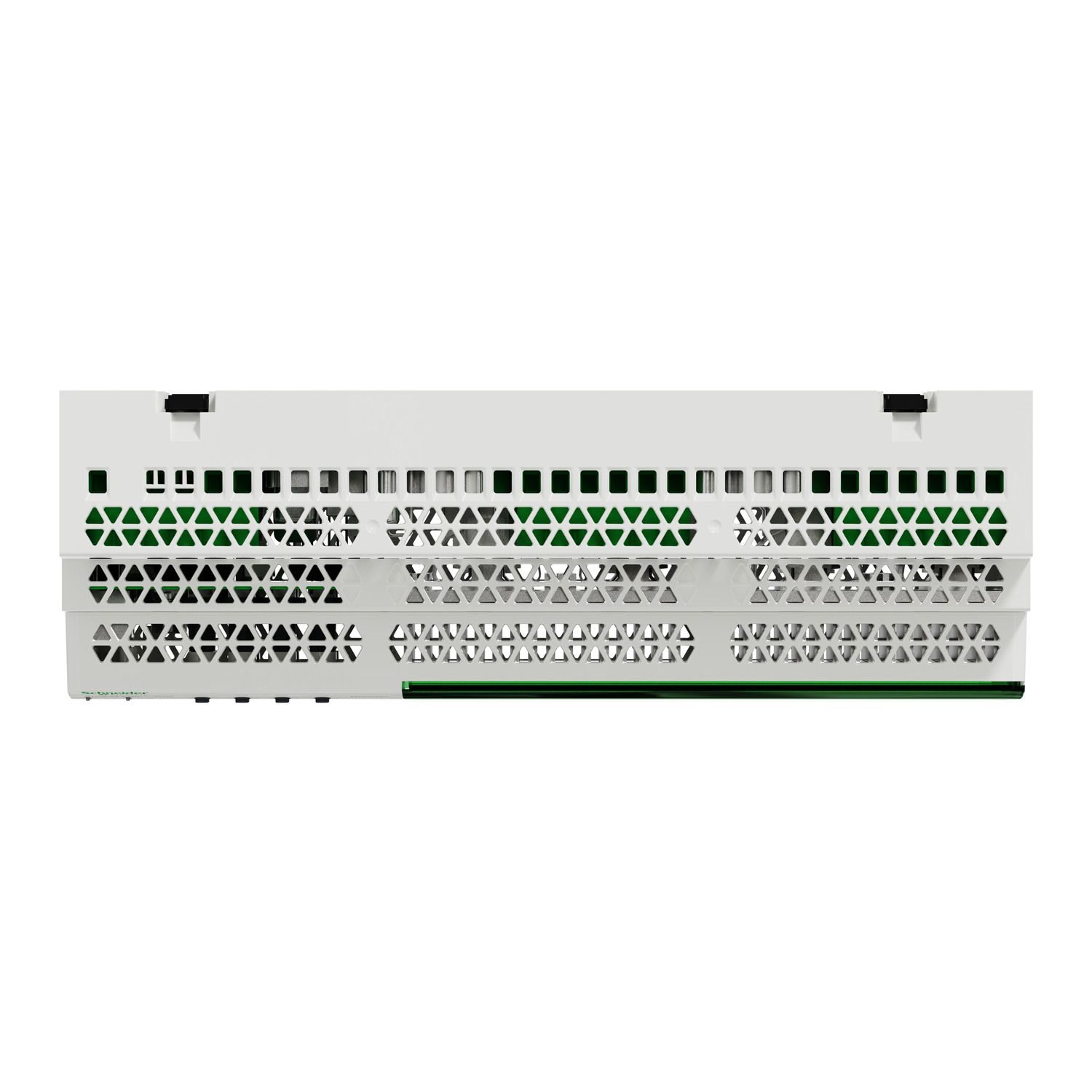

Picture of Dimmer, SpaceLogic C-Bus, 4 channel, 2A per channel, DIN rail mount, inbuilt switchable C-Bus power supply, white

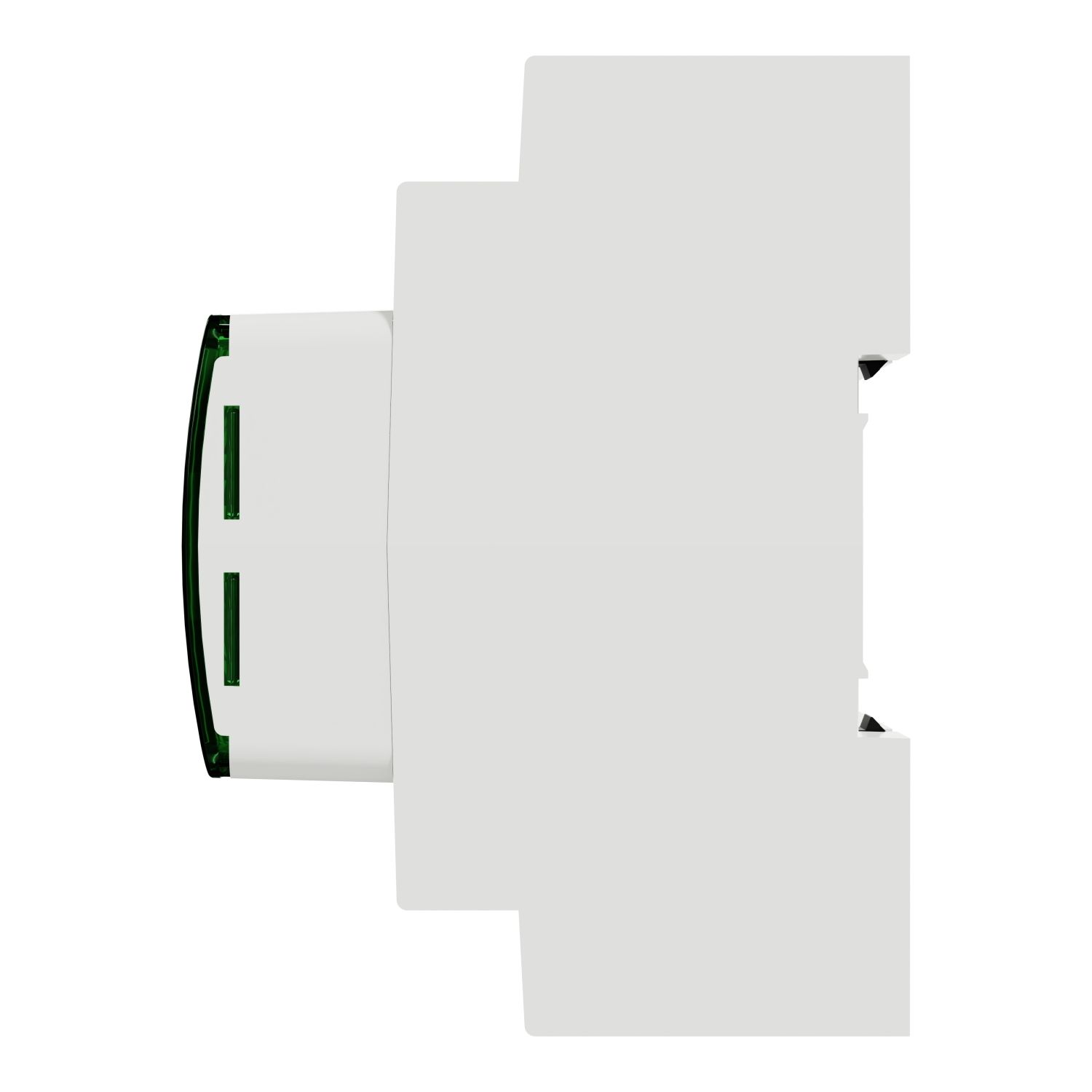

Picture of Dimmer, SpaceLogic C-Bus, 4 channel, 2A per channel, DIN rail mount, inbuilt switchable C-Bus power supply, white

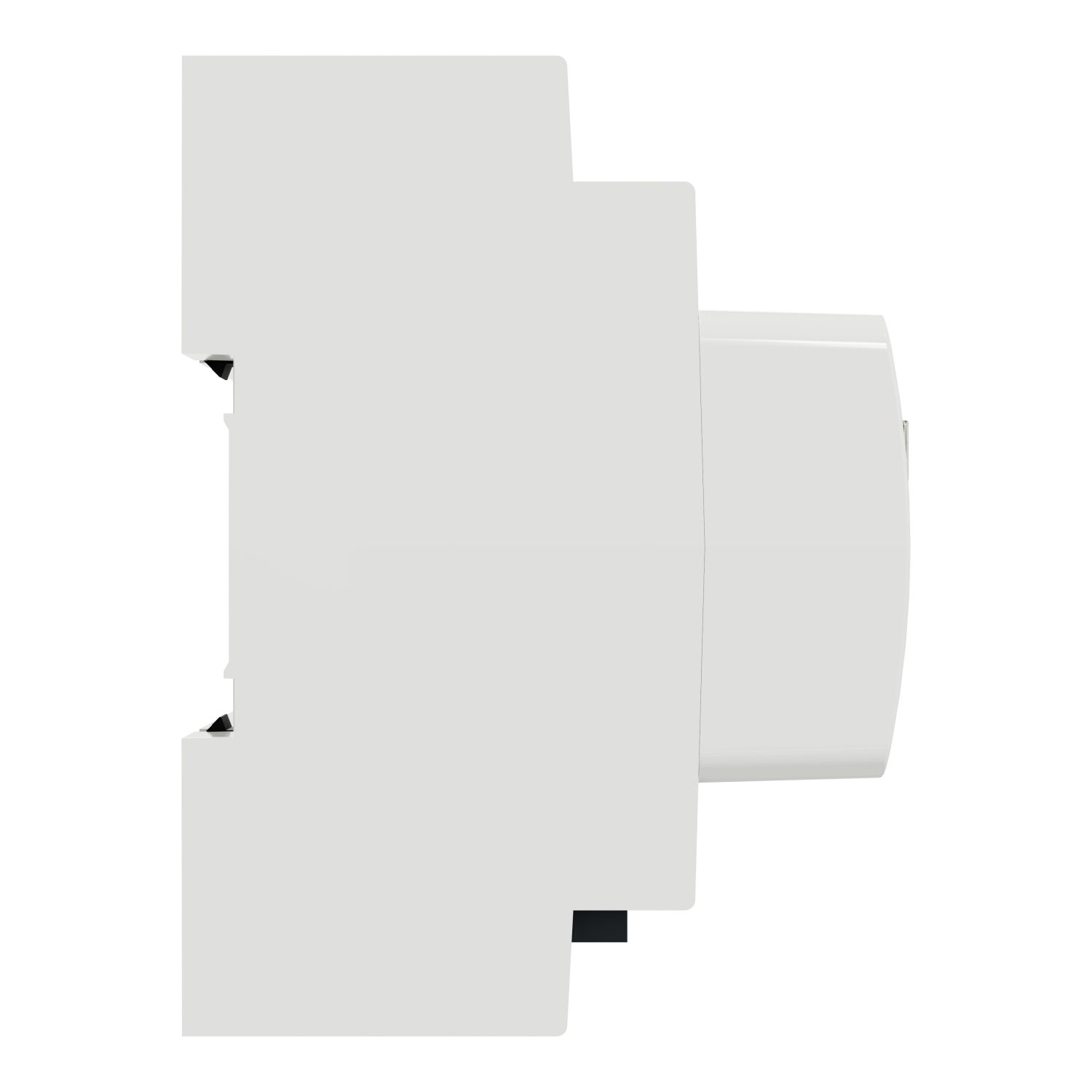

Picture of Dimmer, SpaceLogic C-Bus, 4 channel, 2A per channel, DIN rail mount, inbuilt switchable C-Bus power supply, white

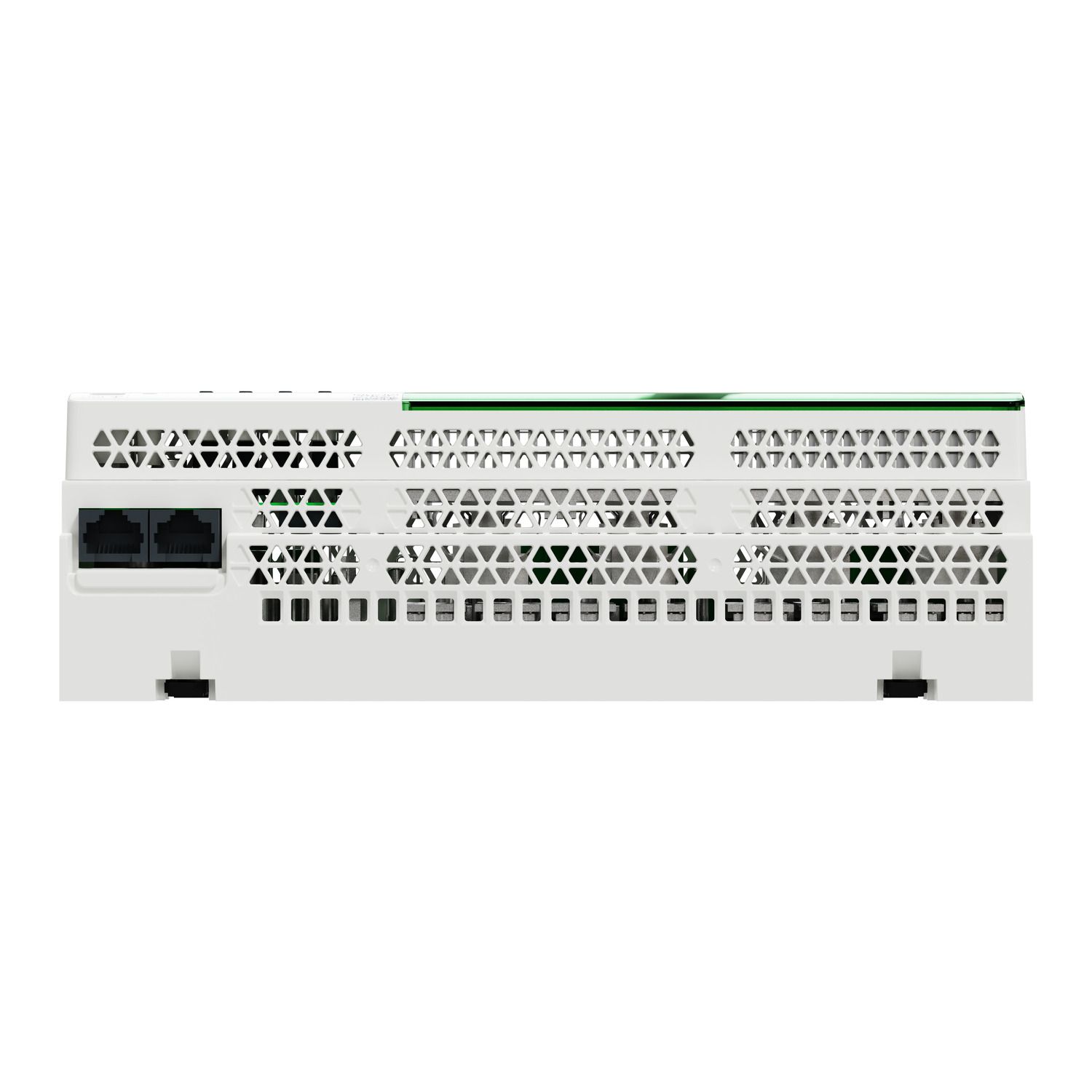

Picture of Dimmer, SpaceLogic C-Bus, 4 channel, 2A per channel, DIN rail mount, inbuilt switchable C-Bus power supply, white

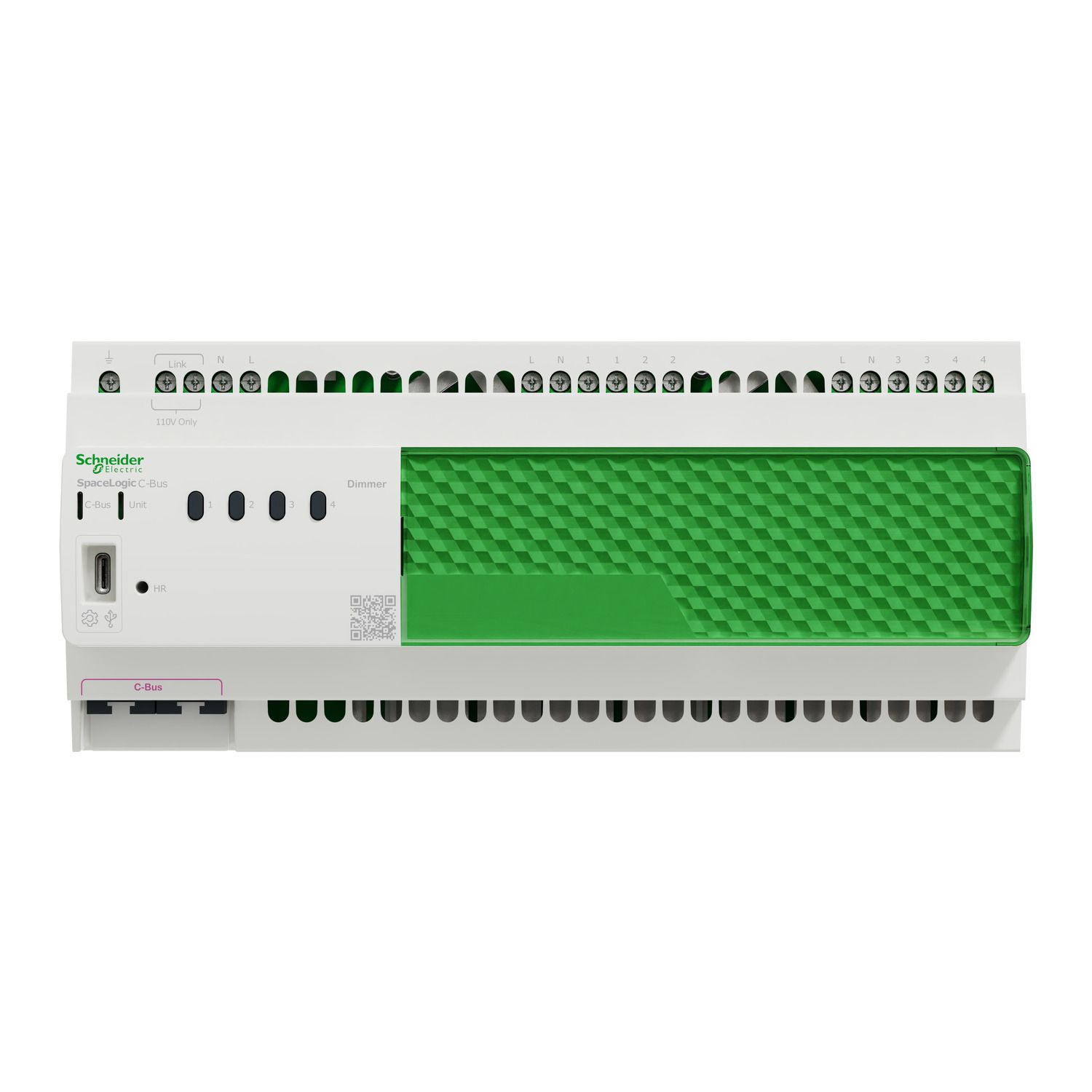

Picture of Dimmer, SpaceLogic C-Bus, 4 channel, 2A per channel, DIN rail mount, inbuilt switchable C-Bus power supply, white

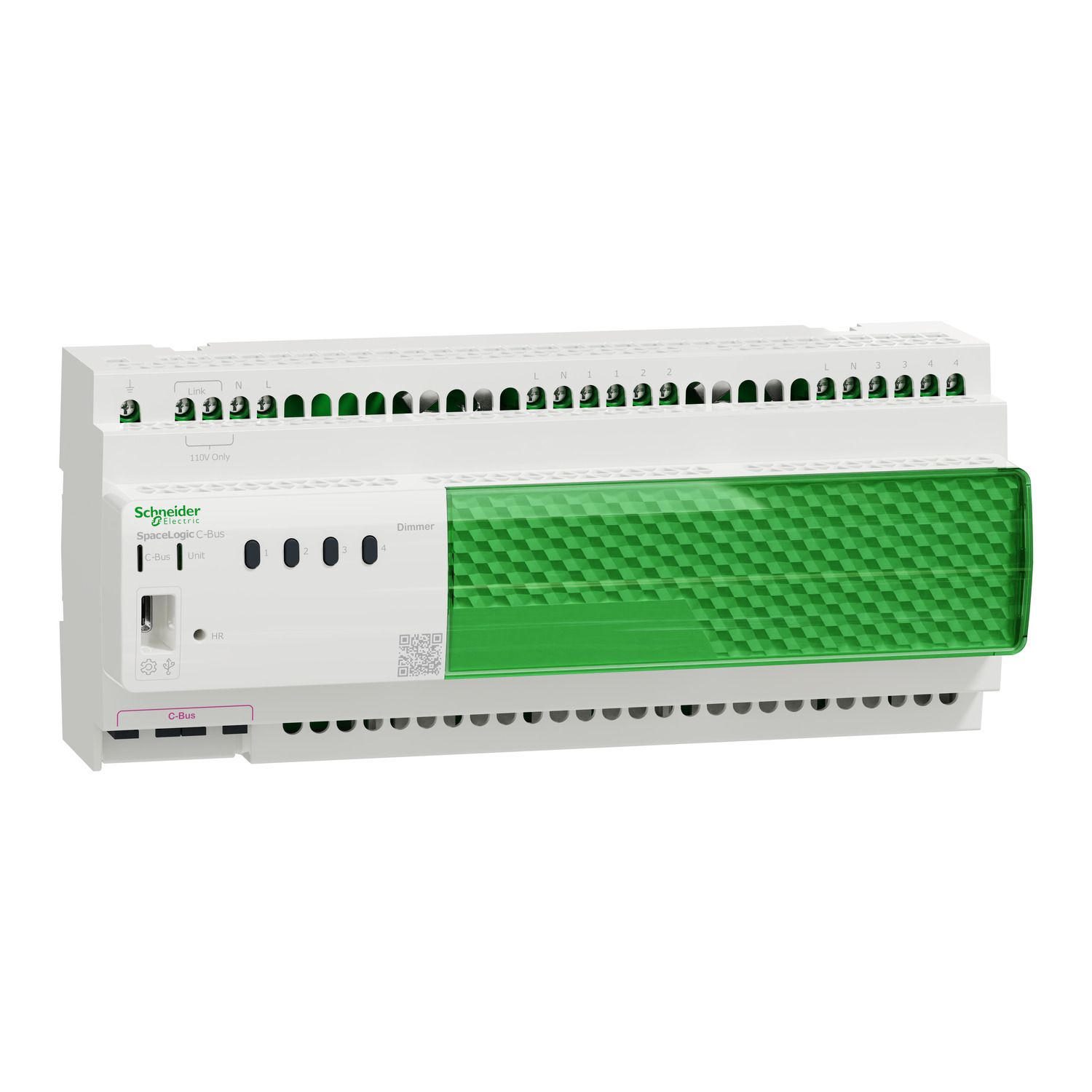

Picture of Dimmer, SpaceLogic C-Bus, 4 channel, 2A per channel, DIN rail mount, inbuilt switchable C-Bus power supply, white

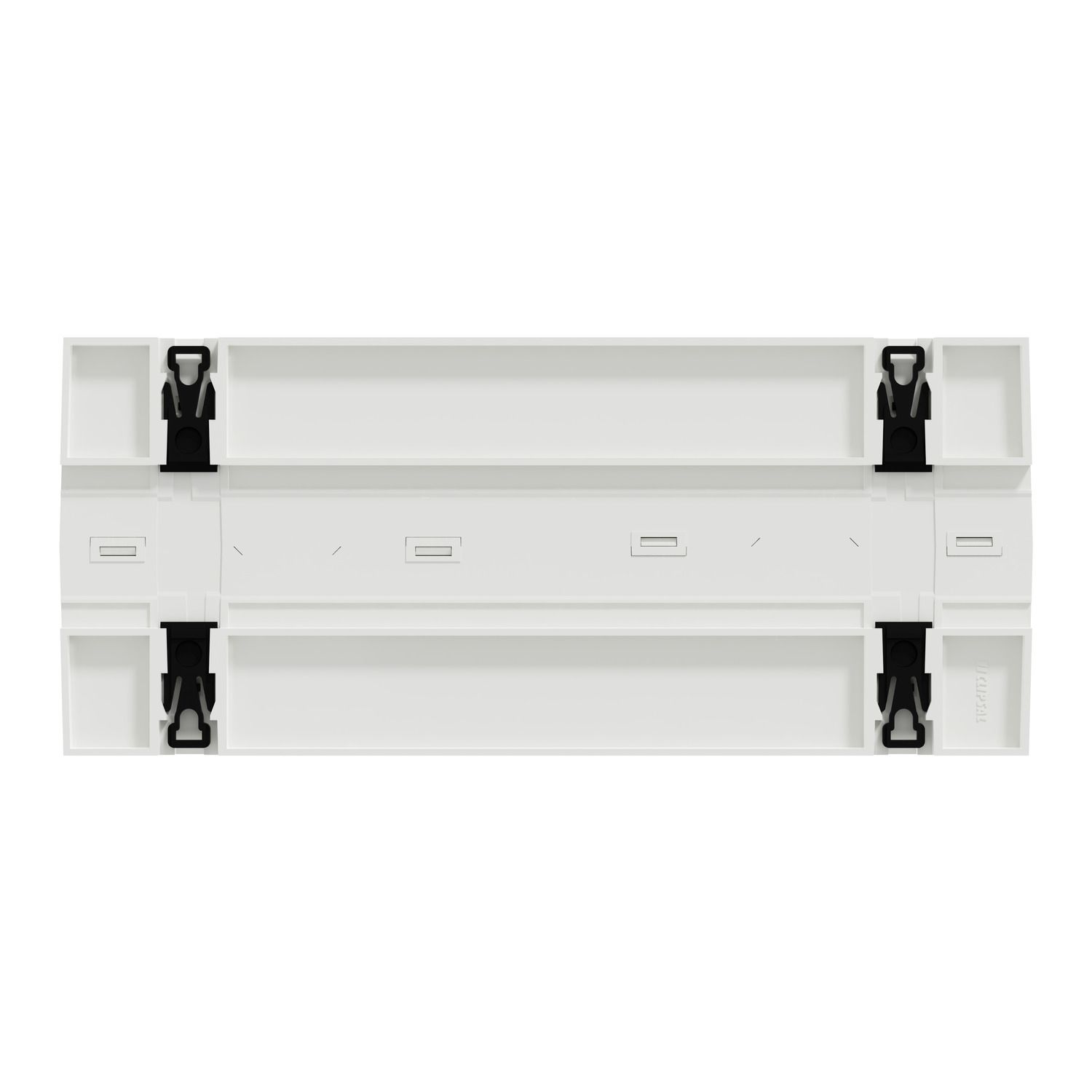

Picture of Dimmer, SpaceLogic C-Bus, 4 channel, 2A per channel, DIN rail mount, inbuilt switchable C-Bus power supply, white
Picture of Dimmer, SpaceLogic C-Bus, 4 channel, 2A per channel, DIN rail mount, inbuilt switchable C-Bus power supply, white
SKU:

5504D2D

Dimmer, SpaceLogic C-Bus, 4 channel, 2A per channel, DIN rail mount, inbuilt switchable C-Bus power supply, white

$986.93
Dimmer, SpaceLogic C-Bus, 4 channel, 2A per channel, DIN rail mount, inbuilt switchable C-Bus power supply, white
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 10-Oct-2024
Declaration of conformity
Image of product
Image of product
Image of product
Quick start guide
User guide
Image of product
Product environmental
End of life manual
Image of product
Image of product
Brochure
Product Page Link
Product Data Sheet
This Schneider Electric SpaceLogic C-Bus digital dimmer is a phase cut dimmer. It is a 4 channel 2A dimmer The digital dimmer has both trailing edge and leading edge dimming mode which can be adjustable per channel to suit the load types connected. It has inbuilt selectable C-Bus power supply. The digital dimmers require SpaceLogic C-Bus Commission software for commissioning. Its Ue operating voltage of 110-230 VAC with 50-60 Hz. It is compatible with dimmable LED lamps and luminaires, incandescent/ halogen lamps, halogen lamps with electronic transformers, halogen lamps with dimmable iron core transformers. It has a 12M compact size and is mounted horizontally on DIN rail The dimensions are (W) 216mm x (H) 92mm x (D) 63mm. The colour of this dimmer is white. Made of thermoplastic material. The operating temperature is from -5°C up to +55°C with derating with 10% to 93% relative humidity. The digital dimmer provides fully customizable dimmer channel lamp profiles and dimming curves unique to each channel. It offers advanced diagnostic and status information and built-in protections for device longevity

Products specifications

Attribute nameAttribute value
Main
Main colour tintwhite
Device applicationlight control
Load current2 A per channel
Device presentationcomplete device
RangeSpaceLogic C-Bus
Dimmer typeleading edge, trailing edge
Load typeincandescent lamps, halogen lamp with standard ferromagnetic transformer, halogen lamp with standard electronic transformer, halogen lamp, dimmable LED
Power supply output current8 A
Provided equipment1 400 mm patch cable
Product or component typedimmer
Product brandSchneider Electric
Complementary
Number of channels4
Height92 mm
Depth63 mm
Width216 mm
Connector type2 RJ45 connectors for C-Bus
Net weight0.844 kg
Mounting supportDIN rail
Device mountingDIN rail
Network frequency57...63 Hz, 47...53 Hz
Communication network typeC-Bus
Environment
Relative humidity10-93 % non-condensing
Ambient air temperature for storage-20-60 °C
Ambient air temperature for operation-5-55 °C
Product certificationsCE, UKCA, RCM
StandardsRoHS, REACH
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height9.7 cm
Package 1 Width10.1 cm
Package 1 Length22.3 cm
Package 1 Weight783 g
Unit Type of Package 22
Number of Units in Package 210
Package 2 Height22.1 cm
Package 2 Width24.7 cm
Package 2 Length52.2 cm
Package 2 Weight8.04 kg
