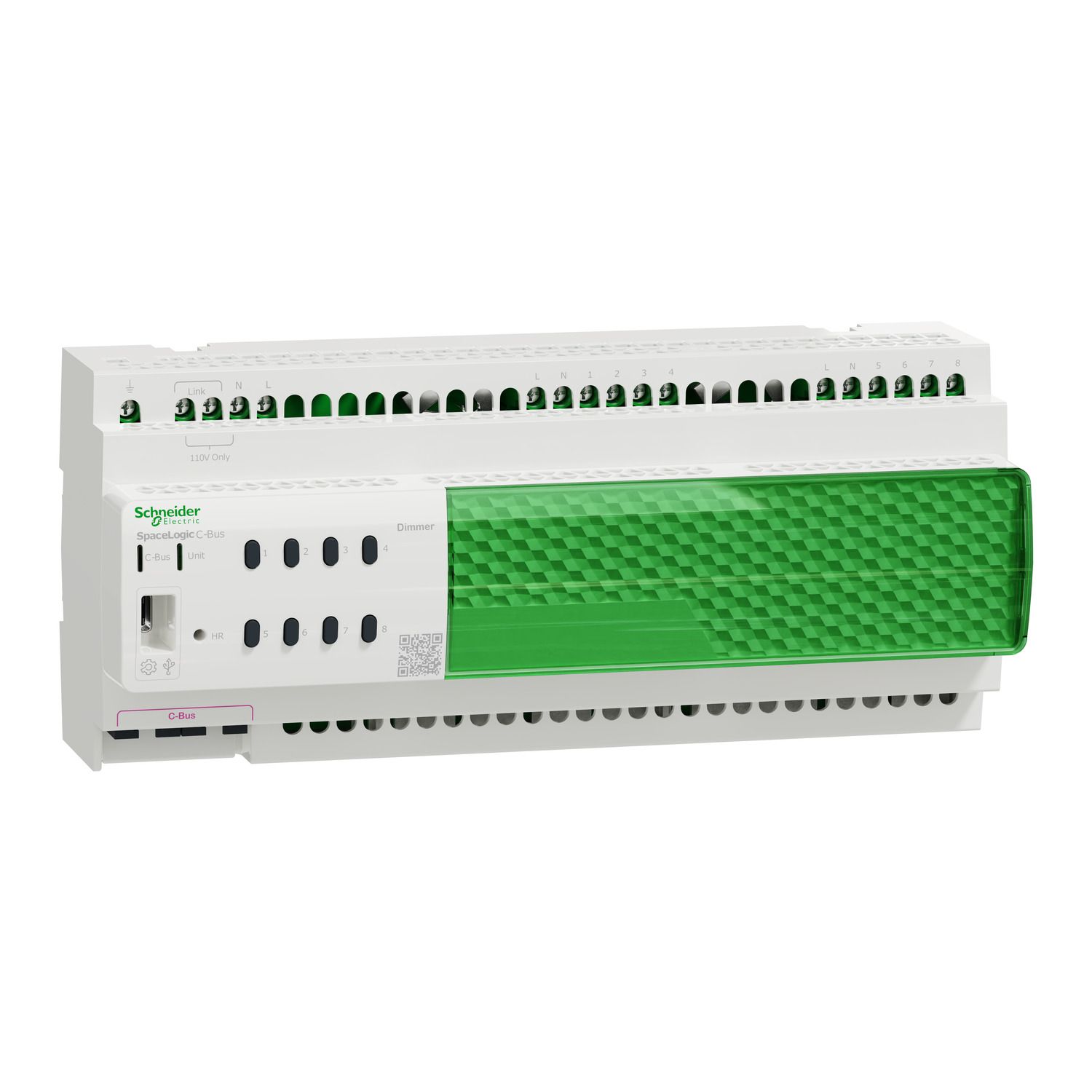

Picture of Dimmer, SpaceLogic C-Bus, 8 channel, 1A per channel, DIN rail mount, inbuilt switchable C-Bus power supply, white

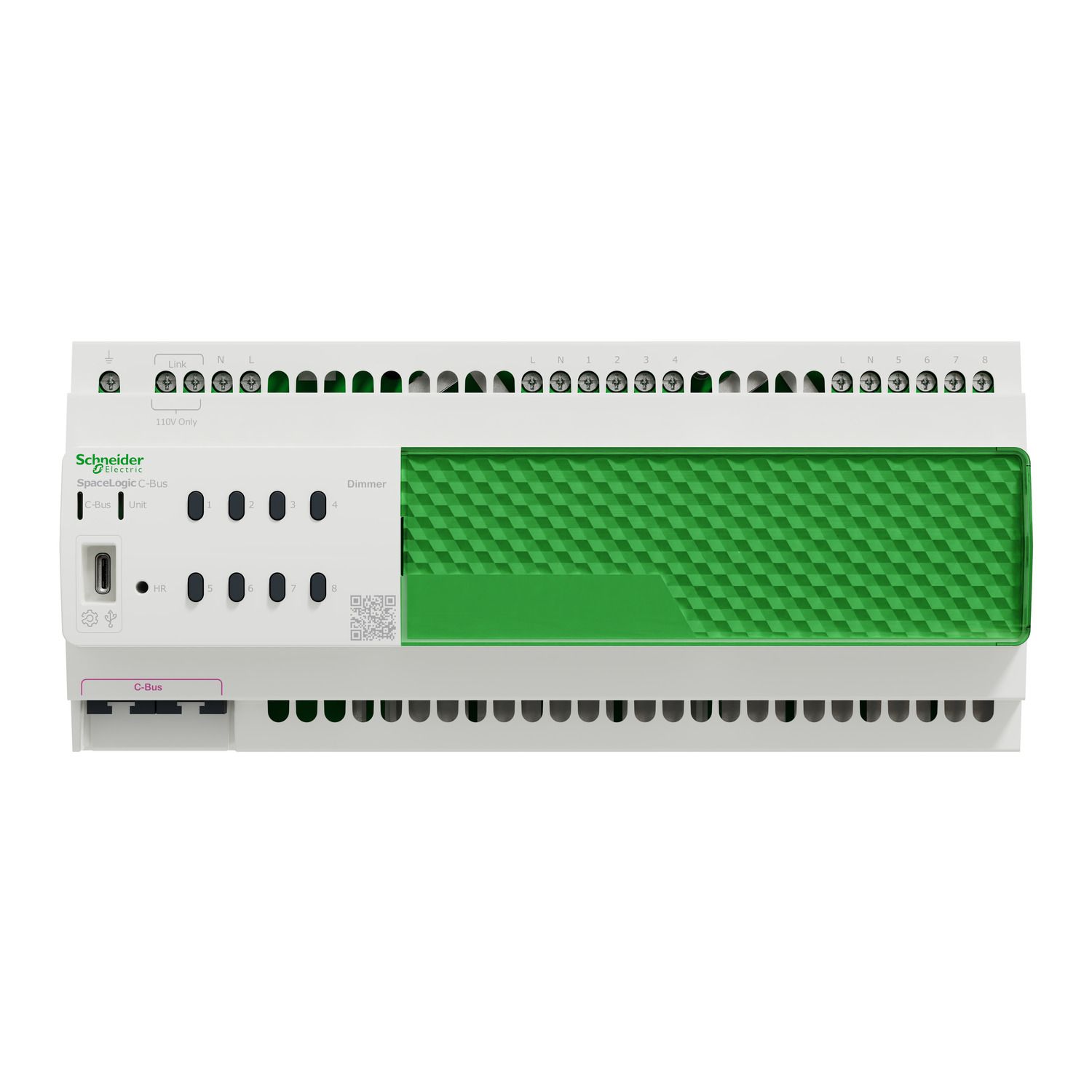

Picture of Dimmer, SpaceLogic C-Bus, 8 channel, 1A per channel, DIN rail mount, inbuilt switchable C-Bus power supply, white

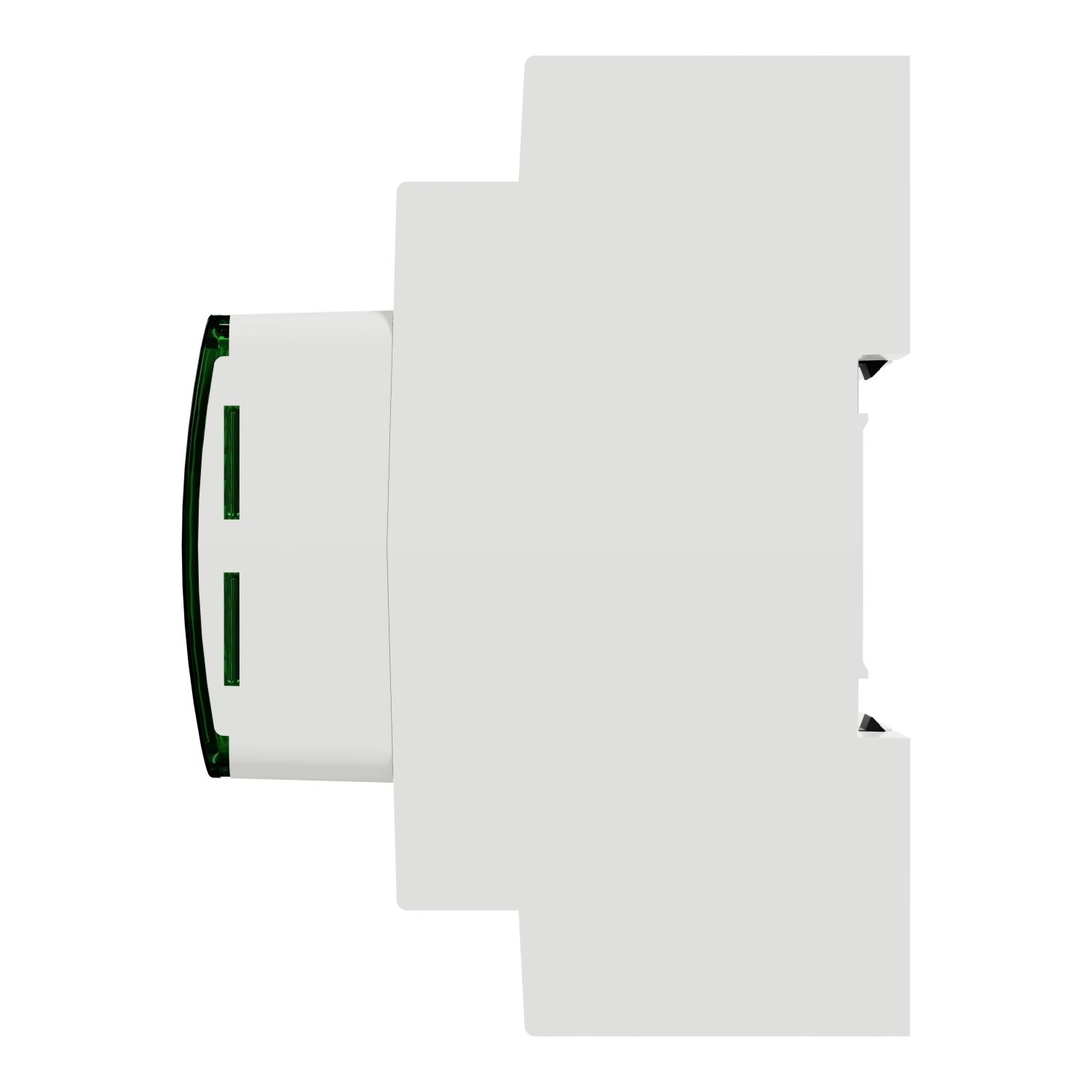

Picture of Dimmer, SpaceLogic C-Bus, 8 channel, 1A per channel, DIN rail mount, inbuilt switchable C-Bus power supply, white

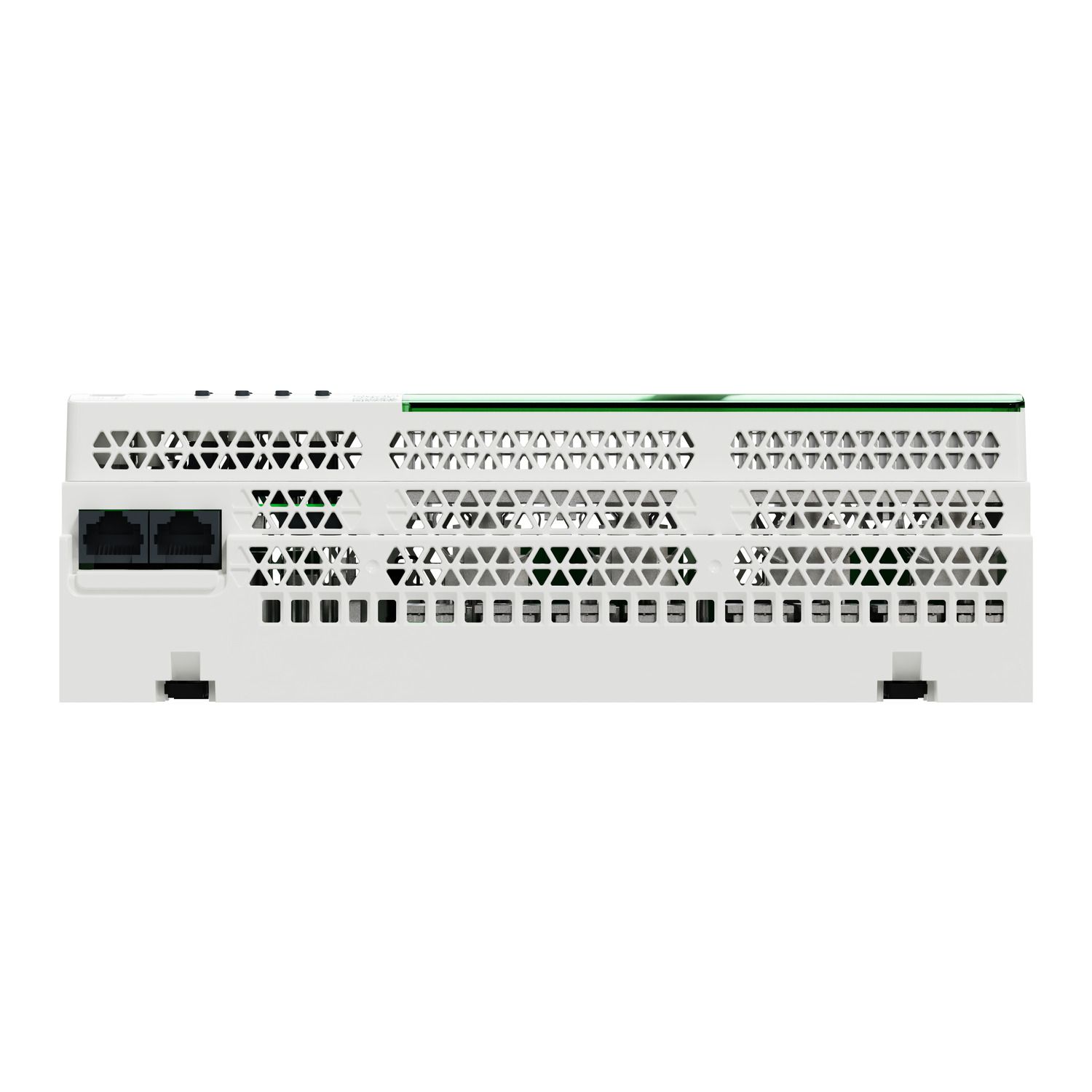

Picture of Dimmer, SpaceLogic C-Bus, 8 channel, 1A per channel, DIN rail mount, inbuilt switchable C-Bus power supply, white

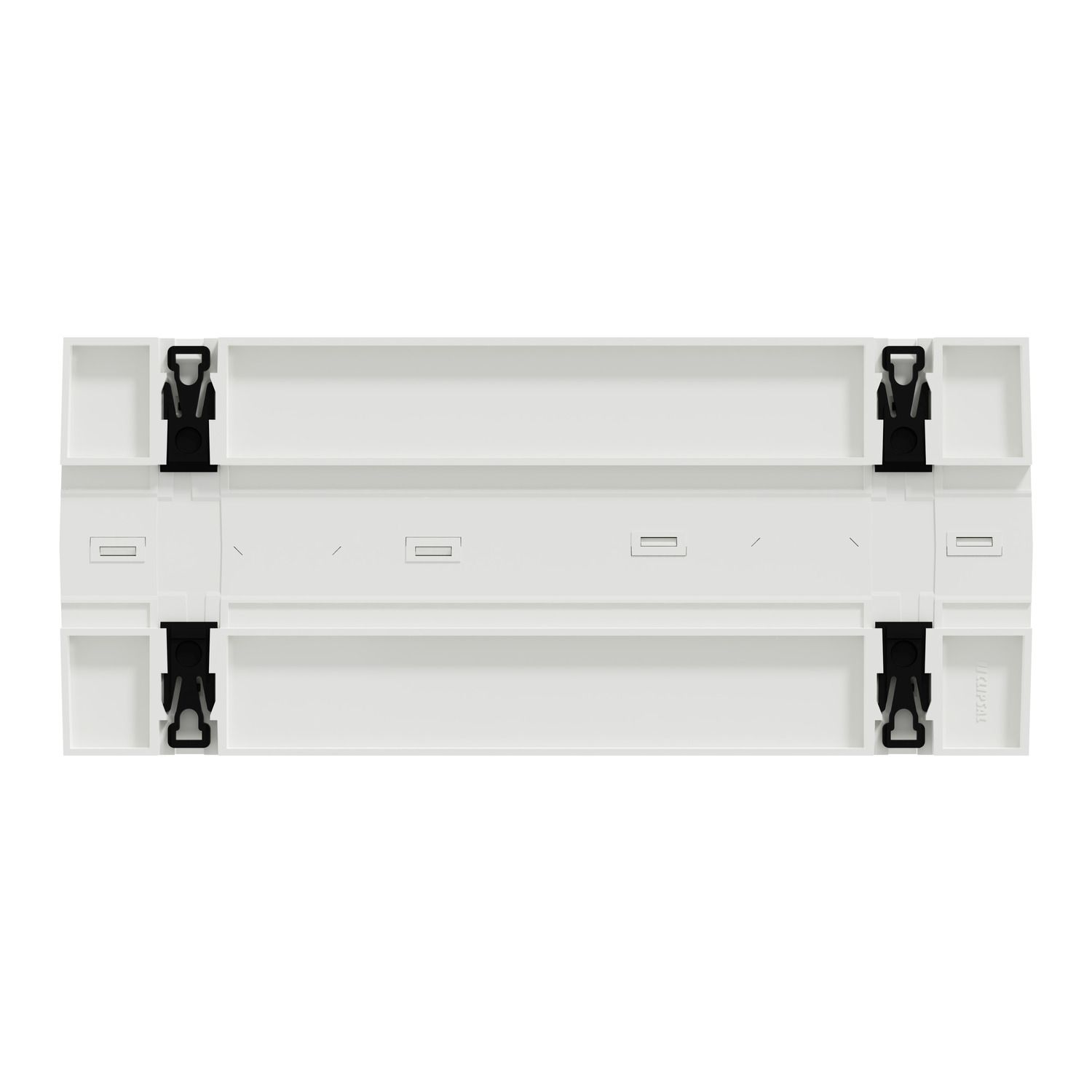

Picture of Dimmer, SpaceLogic C-Bus, 8 channel, 1A per channel, DIN rail mount, inbuilt switchable C-Bus power supply, white

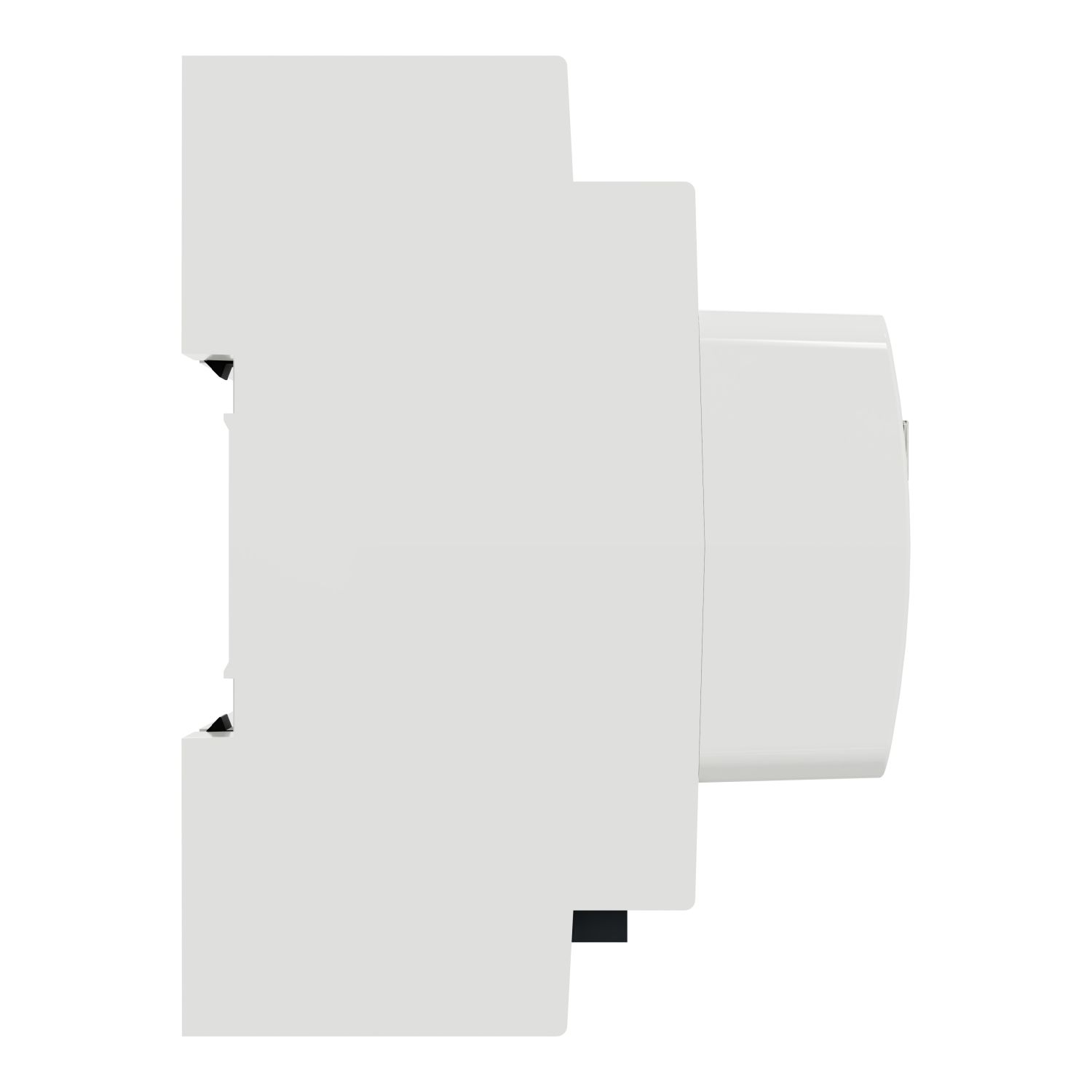

Picture of Dimmer, SpaceLogic C-Bus, 8 channel, 1A per channel, DIN rail mount, inbuilt switchable C-Bus power supply, white

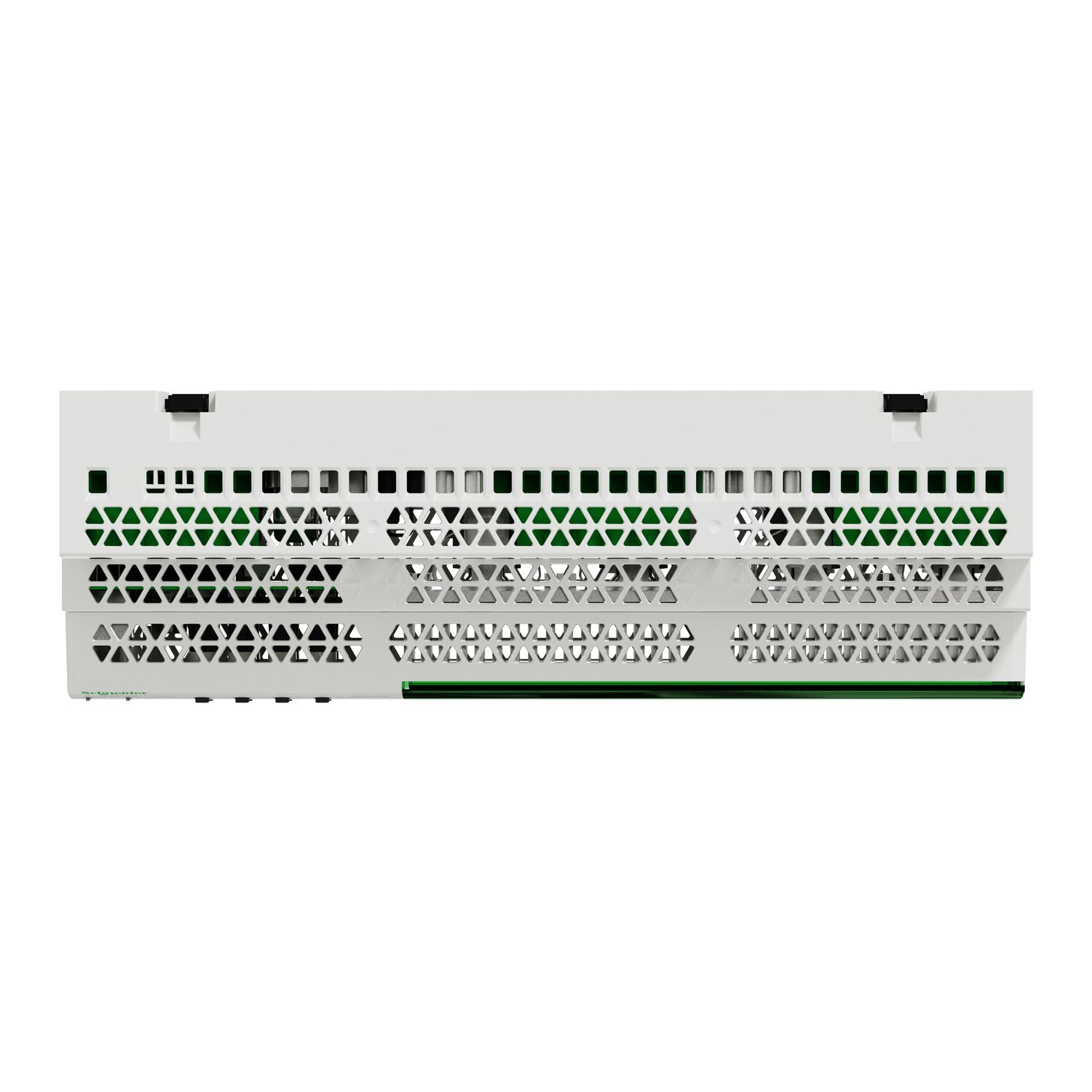

Picture of Dimmer, SpaceLogic C-Bus, 8 channel, 1A per channel, DIN rail mount, inbuilt switchable C-Bus power supply, white
Picture of Dimmer, SpaceLogic C-Bus, 8 channel, 1A per channel, DIN rail mount, inbuilt switchable C-Bus power supply, white
SKU:

5508D1D

Dimmer, SpaceLogic C-Bus, 8 channel, 1A per channel, DIN rail mount, inbuilt switchable C-Bus power supply, white

$1,386.06
Dimmer, SpaceLogic C-Bus, 8 channel, 1A per channel, DIN rail mount, inbuilt switchable C-Bus power supply, white
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Image of product
Declaration of conformity
Instruction sheet
Image of product
Image of product
User guide
Image of product
End of life manual
Product environmental
Image of product
Image of product
Brochure
Quick start guide
Product Page Link
Product Data Sheet
This Schneider Electric SpaceLogic C-Bus digital dimmer is a phase cut dimmer. It is a 8 channel 1A dimmer The digital dimmer has both trailing edge and leading edge dimming mode which can be adjustable per channel to suit the load types connected. It has inbuilt selectable C-Bus power supply. The digital dimmers require SpaceLogic C-Bus Commission software for commissioning. Its Ue operating voltage of 110-230 VAC with 50-60 Hz. It is compatible with dimmable LED lamps and luminaires, incandescent/ halogen lamps, halogen lamps with electronic transformers, halogen lamps with dimmable iron core transformers. It has a 12M compact size and is mounted horizontally on DIN rail The dimensions are (W) 216mm x (H) 92mm x (D) 63mm. The colour of this dimmer is white. Made of thermoplastic material. The operating temperature is from -5°C up to +55°C with derating with 10% to 93% relative humidity. The digital dimmer provides fully customizable dimmer channel lamp profiles and dimming curves unique to each channel. It offers advanced diagnostic and status information and built-in protections for device longevity
