SKU:

8800311030

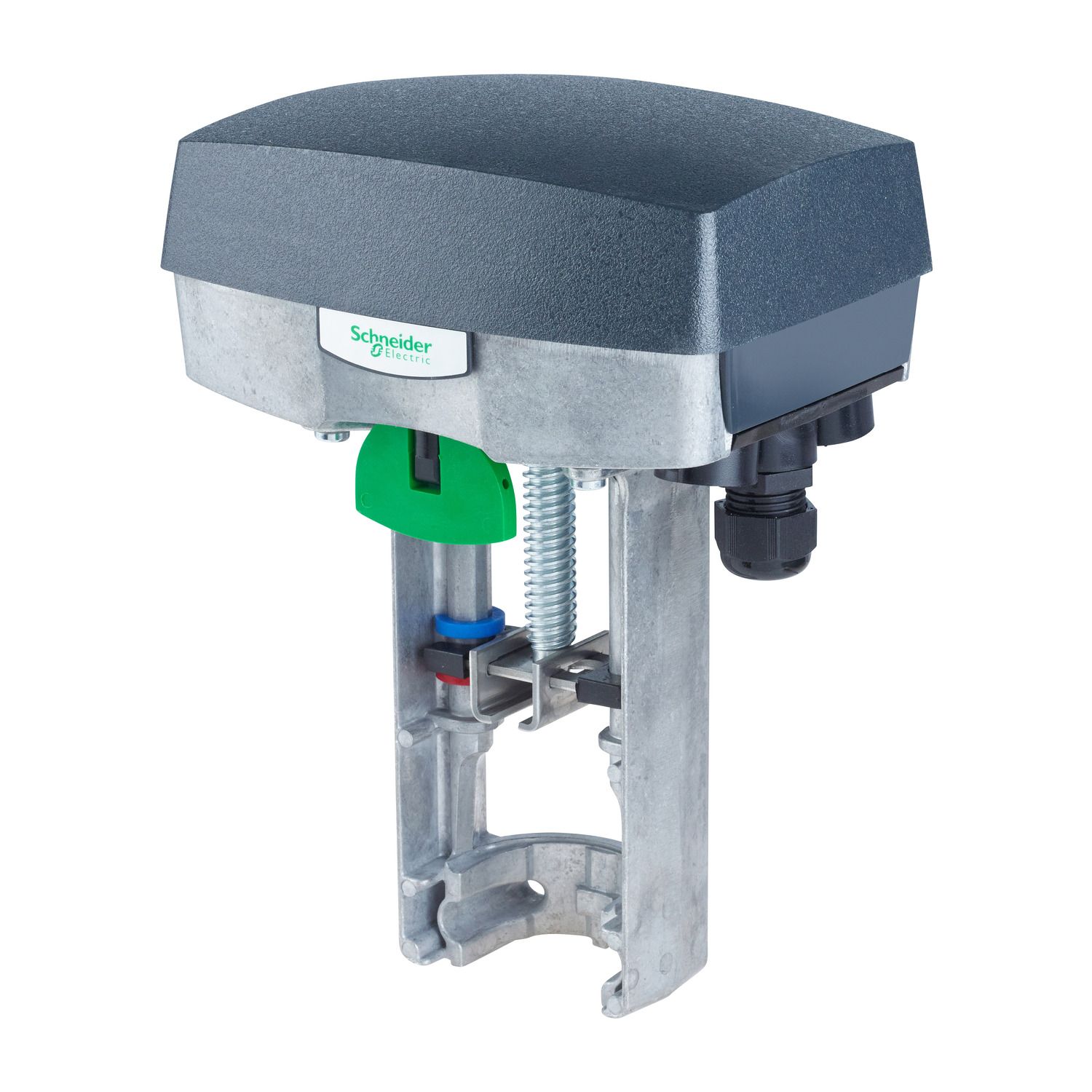

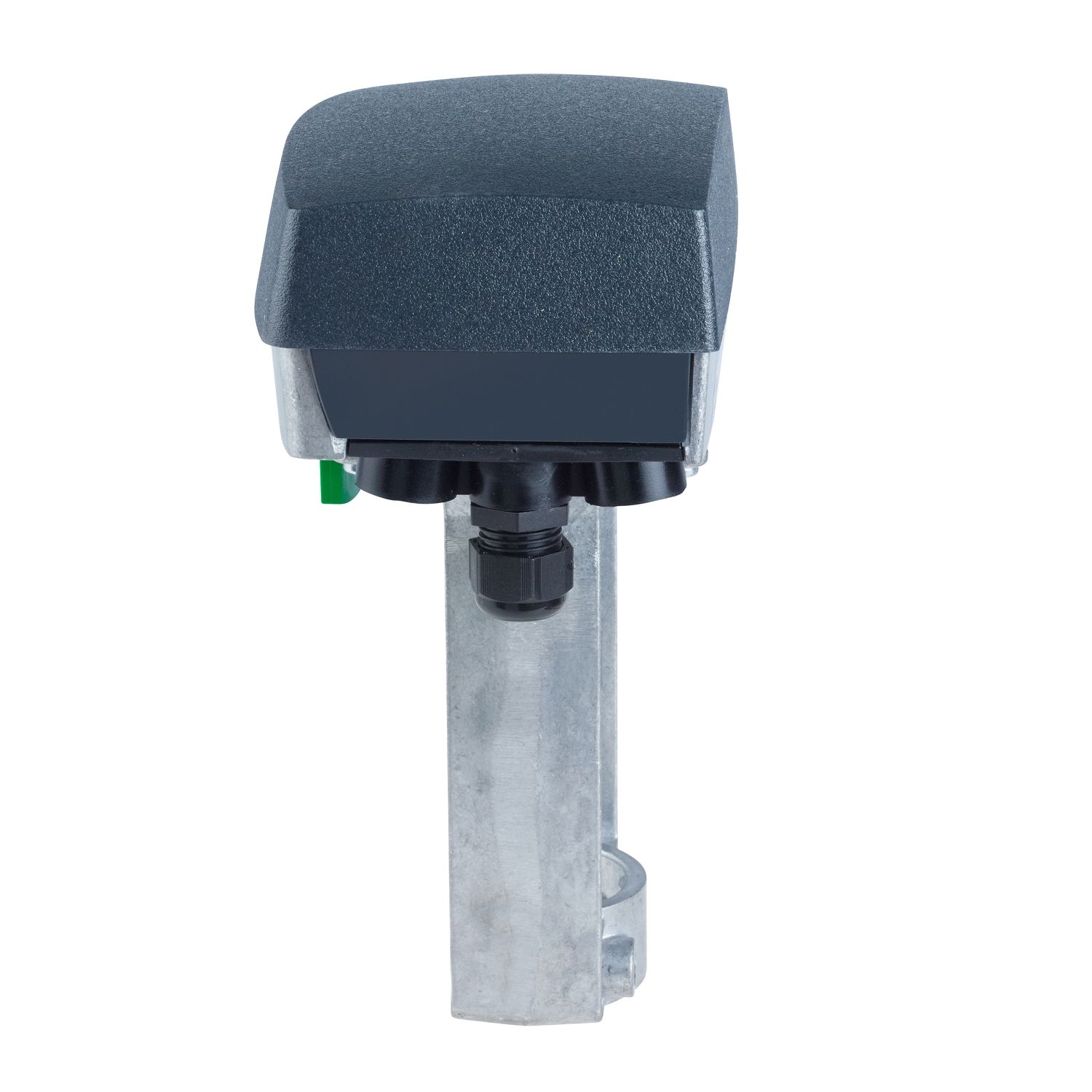

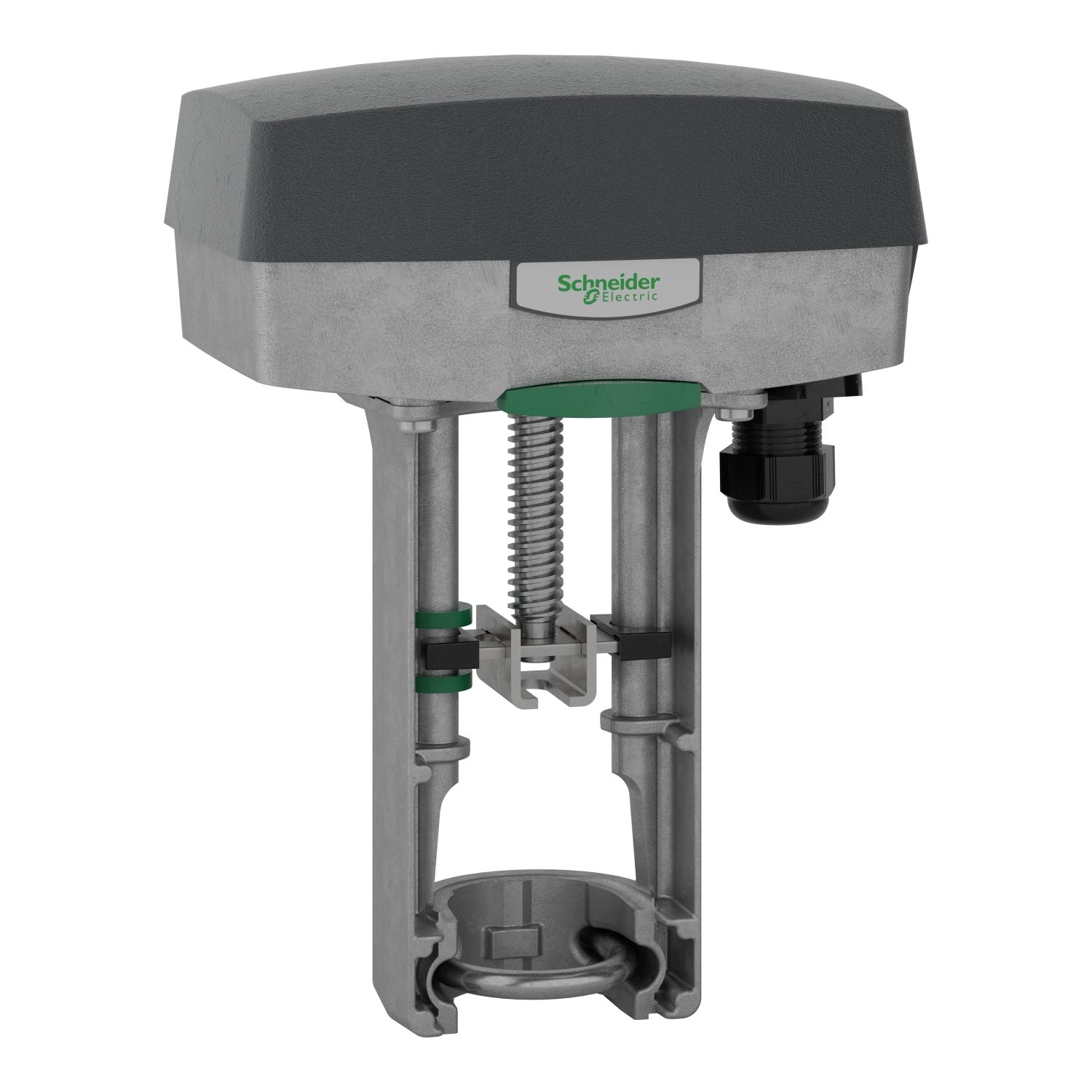

SpaceLogic M800-S2 Actuator, Non-Spring Return, 24Vac/dc, 800N, 2 SPDT Aux Relay, IP54

Please Contact Sales to buy this Product. click here

SpaceLogic M800-S2 Actuator, Non-Spring Return, 24Vac/dc, 800N, 2 SPDT Aux Relay, IP54

Field selectable configuration

2-10V position feedback as standard

Aux end switch relays (2 x SPDT) fitted as standard

Manual override operation automatically cuts power to the PCBA

Zero point check upon power interruption

Replaceable circuit board

High resolution / positional accuracy

one touch stroke calibration

Selectable input signals: ..1 Vdc, 2..1 Vdc, ..5 Vdc, 2-6 Vdc, 5-1 Vdc, 6-1 Vdc

Flow curve adaptation from EQ to Linear

Be the first to review this product

Manufacturer: Schneider Electric

Estimated Delivery Date: 26-Sep-2024

Declaration of conformity

Catalogue

Product Page Link

Product Data Sheet

The SpaceLogic is a family actuators for the control of 2-way and 3-way globe valves. It has a very fine resolution PCBA board which provides good rangeability of the valve. The manual override allows the actuator to be overriden and valve position adjusted without disconnecting the power supply. It may be configured for different flow characteristics, inverse signal or sequence control. Supply voltage: 24 Vac +25% / -35%. Analog Control Input selectable Voltages: …1 V, 2…1 v, …5 V, 5…1 V, 2…6 V, 6…1 V. Force: 800 N, IP 54 Protection class. S2 Output - Auxiliary end point switch (optional): 2 x SPDT. EMC 214/3/EU, LVD 214/35/EU. Conduit connection 3 x M2 screwed.
