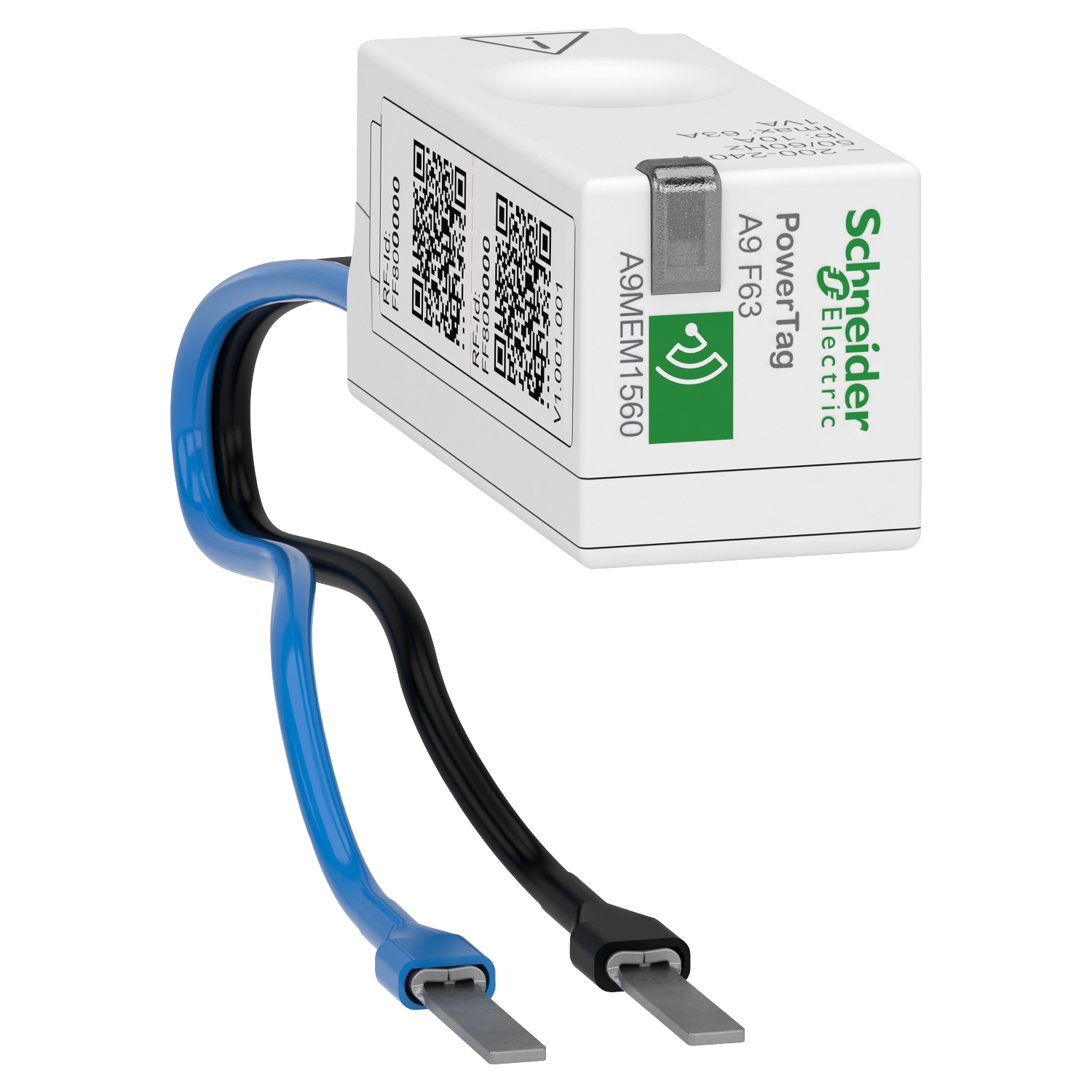

Picture of PowerLogic, Energy sensor, PowerTag Flex 230V 63A 1P+N top and bottom position
SKU:

A9MEM1560

PowerLogic, Energy sensor, PowerTag Flex 230V 63A 1P+N top and bottom position

$185.00
Product Selector
PowerLogic, Energy sensor, PowerTag Flex 230V 63A 1P+N top and bottom position
  • Energy sensor that provides accurate real-time measurements and energy values
  • Wireless communication, needs to be associated with a concentrator to treat the data collected
  • Accurate energy sensor with Class 1 accuracy according to IEC 61557-12
  • Small and cost effective, either mounted on the top or the bottom of the protective devices up to 63 A
  • PowerTag Energy 1P+N has a flex design
  • With 18 mm pitch between phase and neutral
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Product environmental
Instruction sheet
End of life manual
User guide
Catalogue
Declaration of conformity
Brochure
Product Page Link
Product Data Sheet
This PowerTag Energy F63 1P+N is a wireless communication energy sensor. With its Flex design, it is dedicated to 1P+N devices, rating less than or equal 63A. It has to be associated with a concentror or a gateway to provide circuit monitoring and diagnosis down to load level. It is designed specifically for Energy Management, Load Monitoring and Power Availability applications. It incorporates accurate real-time measurements of active energy, active power, current, voltage and power factor. In case of power outage, it sends a voltage loss alarm and the current-per-phase value before being de-energized. PowerTag Energy 63A complies with IEC 61557-12 standard. It is a PMD-I/DD/K55/1. The Performance category is Class 1. The Imax Maximum current is 63A. The Ib Base current is 10A. The Saturation current is 130A. The Ist Starting current is 40mA. The Un rated voltage is Phase-to-neutral 200VAC to 240VAC +/- 20%. The maximum consumption is below or equal to 1VA. It can be either mounted on the top or the bottom of the protective device. The product color is white (RAL9003). The weight is 16g. The degree of protection is IP20 and IK05 The operating temperature is between -25°C to +60°C. The Storage temperature is between -40°C to +85°C.
