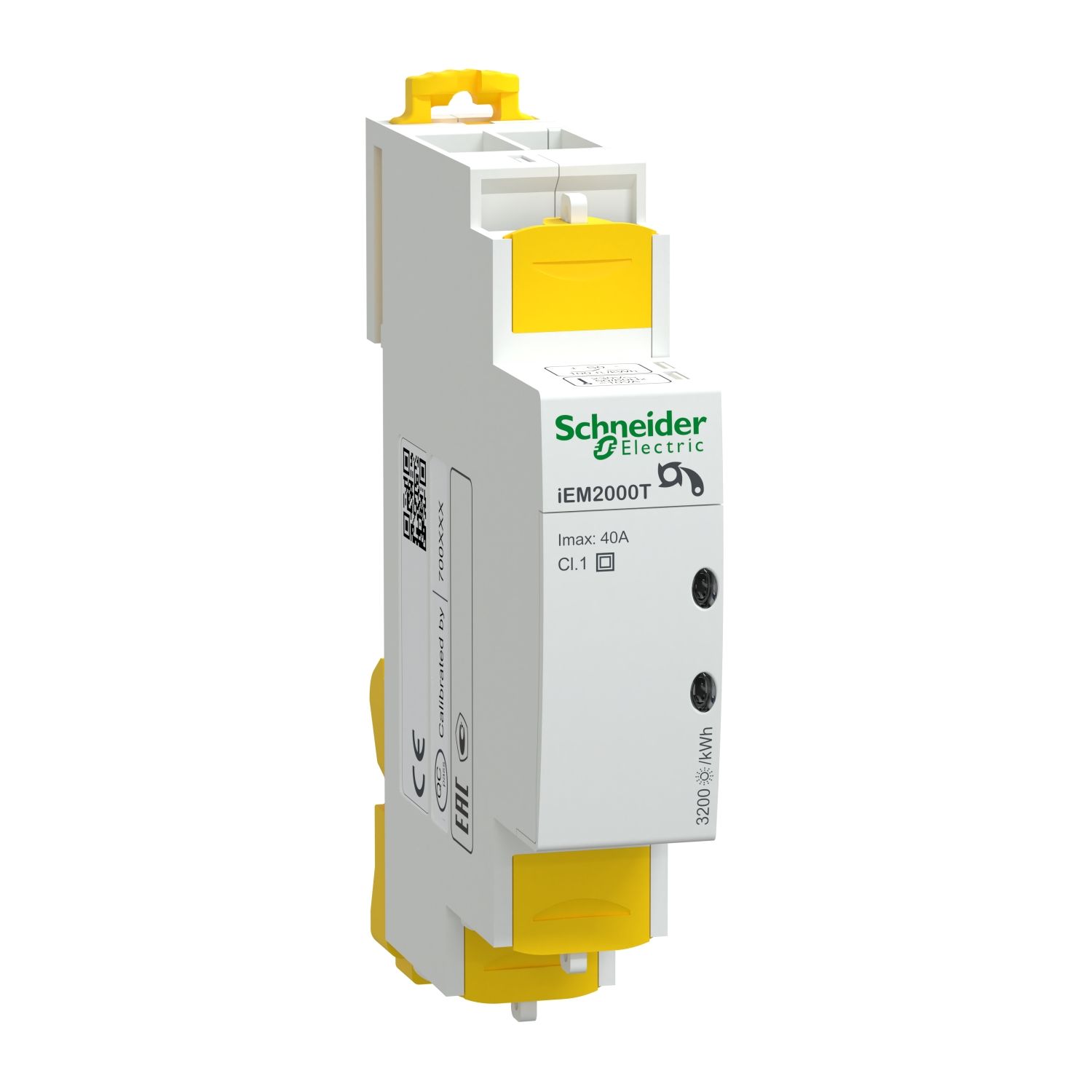

Picture of Acti9, Modular single phase power meter iEM2000T - 230V - 40A without display
SKU:

A9MEM2000T

Acti9, Modular single phase power meter iEM2000T - 230V - 40A without display

$398.82
Available for Shipping : 10-Dec-2024
Product Selector
Acti9, Modular single phase power meter iEM2000T - 230V - 40A without display
  • Energy Meter for different applications
  • Compact size
  • Compact size 18mm width requires smaller foot print in panel
  • Energy pulse output for remote monitoring
  • Identify energy savings opportunties with precision accuracy of Class 1.0
  • Collect and analyze energy consumption data
  • Class 1.0 for energy costing
  • Direct connect upto of 40Amps single phase
  • Single phase DIN rail mount energy meter
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Instruction sheet
Catalogue
CAD
Product Page Link
Product Data Sheet
The Acti9 iEM2000 series energy meters offer an attractive range of single-phase DIN rail-mounted energy meters fitted for sub-billing or partial meter applications. This product family can be used to monitor power consumption for each floor, office sector, or unit and allocate energy cost for building management. This version do not include a display. Providing Class 1 active energy accuracy per IEC 62053-21 standard, the meter will measure Active Energy. Suitable for a 230VAC network, with a supply voltage range of 184 to 276 VAC at 50Hz or 60Hz. Direct connect current measurement up to 40A with 32 samples per cycle only in a Single Phase and Neutral configuration. Communication is assured by 1 pulse output. Product dimensions are as follows: width 18 mm, depth 67 mm, height 95 mm and product weight 73 g. Compatible with power management software to take advantage of the IoT digital power installation.

Products specifications

Attribute name Attribute value
Main
Device short name iEM2000T
Range Acti9
Market segment industry cost management: cost allocation: panelboard, healthcare cost management: cost allocation: panelboard, data center cost management: cost allocation: panelboard, buildings multi-site cost management: cost allocation: panelboard, buildings large building cost management: cost allocation: panelboard, buildings medium building cost management: cost allocation: panelboard, buildings small building cost management: cost allocation: panelboard, industry cost management: billing: panelboard, healthcare cost management: billing: panelboard, data center cost management: billing: panelboard, buildings multi-site cost management: billing: panelboard, buildings large building cost management: billing: panelboard, buildings medium building cost management: billing: panelboard, buildings small building cost management: billing: panelboard
Product name Acti9 iEM2000
Product or component type energy meter
Complementary
[Ib] basic current 5 A
Device application sub billing
Tightening torque remote transfer: 0.8-0.8 N.m, power circuit: 1.2-1.2 N.m
Display type without display
Compatibility code iEM2000T
Mounting mode clip-on
Impulse duration 120 ms
Number of inputs 0-0
Max current 40 A
Frequency measurement range 48-62 Hz
Communication port protocol -
Type of measurement active power
Product certifications CE
Number of outputs 1 pulse energy monitoring:
Output voltage 5...35 V DC@20 mA
Communication port support -
Rated voltage 230-230 V +/- 20 %
Maximum power consumption in VA 10 VA at 240 V AC
Accuracy class class 1 active energy conforming to IEC 62053-21
Market segment small commercial, residential
Analogue input type direct input
[In] rated current 40 A
Poles description 1P + N
Technology type electronic
Connections - terminals remote transfer: tunnel type terminals (top) 1 4-4 mm² cable(s) , power circuit: tunnel type terminals (bottom) 1 10-10 mm² cable(s)
Local signalling yellow indicator light: metering and activity 3200 p/kWh, green indicator light: power ON
Measurement current 0.25-40 A
Display digits 0
Mounting support DIN rail
Standards IEC 62053-21, IEC 61557-12
Sampling rate 32 samples/cycle
Network frequency 50 Hz, 60 Hz
Environment
IP degree of protection IP20 casing: , IP40 front panel: conforming to IEC 60529
Relative humidity 0-95 % at 55-55 °C
Ambient air temperature for storage -40-70 °C
Colour white
Height 96.5 mm
Ambient air temperature for operation -20-55 °C, -25-65 °C
Operating altitude < 2000 m
Depth 69 mm
Width 18 mm
Net weight 0.073 kg
9 mm pitches 2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.5 cm
Package 1 Width 8.0 cm
Package 1 Length 10.0 cm
Package 1 Weight 112.0 g
Unit Type of Package 2 2
Number of Units in Package 2 38
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 4.982 kg
