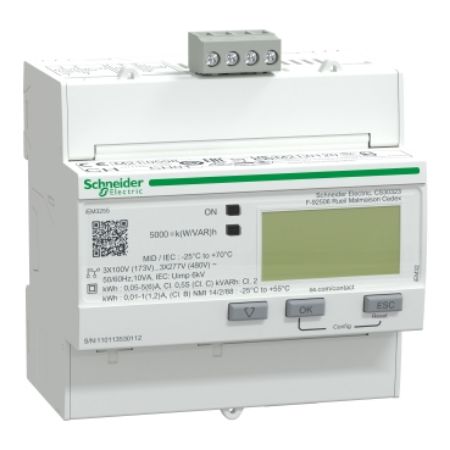

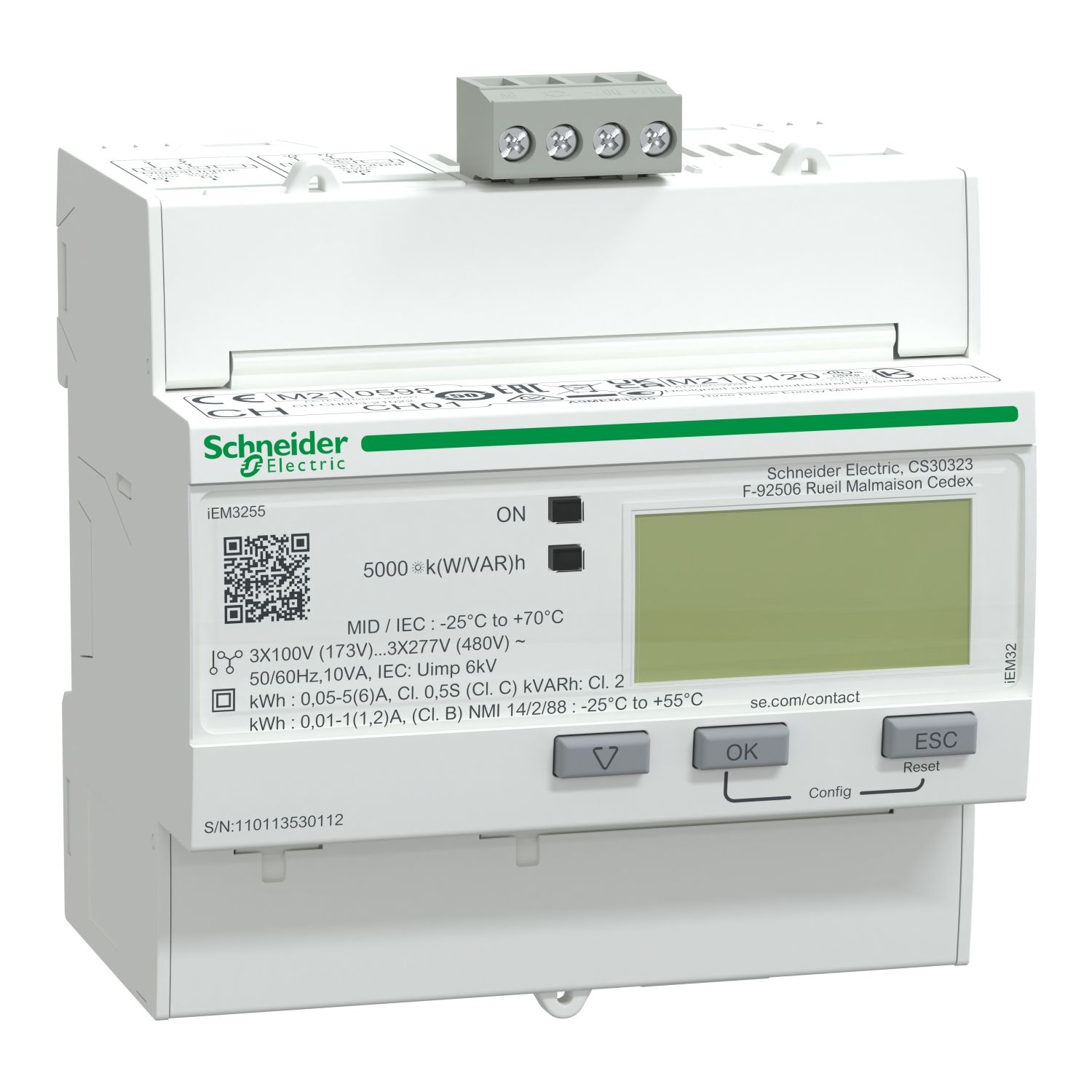

Acti9, IEM3255 energy meter - CT - Modbus - 1 digital I - 1 digital O - multi-tariff - MID

$767.36
Available for Shipping : 14-Nov-2024
Product Selector
Acti9, IEM3255 energy meter - CT - Modbus - 1 digital I - 1 digital O - multi-tariff - MID
  • Feature-rich power and energy meters
  • Simple energy monitoring compatible with Building management systems
  • Compact size of 18mm*5 modules width
  • Modbus 485 communication port and digital output for remote monitoring
  • Identify energy savings opportunties with precision accuracy of Class 0.5S
  • Collect and analyze energy consumption data
  • MID Class C for sub-billing
  • 1Amps or 5Amps CT operated in three phase network
  • Three phase DIN rail mount power and energy meter
  • Large LCD display for easy reading
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
User guide
CAD
Product environmental
Instruction sheet
Catalogue
Declaration of conformity
Product Page Link
Product Data Sheet
The Acti9 iEM3000 series energy meters offer an attractive range of three-phase DIN rail-mounted energy meters with an LCD display. Additional local signaling includes green LED power-on indicator, flashing yellow LED for accuracy checking, an overload alarm and communication indicators. This meter can be used in sub-billing applications and supports 4 tariff schedules. The meter provides the following accuracy classes: Active Energy: class 0.5S per IEC 62053-22, Active Energy: class C per EN 50470-3 and Active Energy: class 0.5S per IEC 61557-12. The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. With four quadrant Energy measurement. Designed for 50Hz or 60Hz networks, supply voltage can range from 100 to 277VAC or 173 to 480VAC. The rated current goes through a 1A or 5A transfomer to be measured in this meter and will support Single Phase and Neutral, Three Phase and Three Phase and Neutral configurations. Communication protocol is Modbus with screw terminal support. There is one programmable digital input and one programmable digital output that can be used as a pulsed output. Certifications include EAC, CE, UL and MID. Product dimensions are as follows: width 3.54 in (90 mm), depth 2.72in (69 mm), height 3.74 in (95 mm) and product weight 9.17 oz (260 g). Compatible with power management software to take advantage of the IoT digital power installation.

Products specifications

Attribute name Attribute value
Main
Device short name iEM3255
Range Acti9
Market segment industry cost management: cost allocation, healthcare cost management: cost allocation, data center cost management: cost allocation, buildings multi-site cost management: cost allocation: panelboard, buildings multi-site cost management: cost allocation: sub feeder, buildings multi-site cost management: cost allocation: main incomer, buildings large building cost management: cost allocation: panelboard, buildings large building cost management: cost allocation: sub feeder, buildings large building cost management: cost allocation: main incomer, buildings medium building cost management: cost allocation: panelboard, buildings medium building cost management: cost allocation: sub feeder, buildings medium building cost management: cost allocation: main incomer, buildings small building cost management: cost allocation: panelboard, buildings small building cost management: cost allocation: sub feeder, buildings small building cost management: cost allocation: main incomer, industry cost management: billing, healthcare cost management: billing, data center cost management: billing, buildings multi-site cost management: billing: panelboard, buildings multi-site cost management: billing: sub feeder, buildings multi-site cost management: billing: main incomer, buildings large building cost management: billing: panelboard, buildings large building cost management: billing: sub feeder, buildings large building cost management: billing: main incomer, buildings medium building cost management: billing: panelboard, buildings medium building cost management: billing: sub feeder, buildings medium building cost management: billing: main incomer, buildings small building cost management: billing: panelboard, buildings small building cost management: billing: sub feeder, buildings small building cost management: billing: main incomer
Product name Acti9 iEM3000
Product or component type energy meter
Complementary
Metering type active, reactive, apparent energy (signed, four quadrant)
Device application sub billing, partial meter, multi-tariff
Display type LCD display
Compatibility code iEM3255
Mounting mode clip-on
Information displayed tariff (4)
Communication port protocol Modbus RTU at 9.6, 19.2 and 38.4 kbauds even/odd or none, insulation 4000 V
Type of measurement voltage, current, active and reactive power, active and reactive energy
Standards ANSI C12.20, EN 50470-1, BS EN 50470-1, EN 50470-3, BS EN 50470-3, UL 61010-2-30, EN 61010-2-30, IEC 61010-2-30, BS EN 61010-2-30, UL 61010-1:2010, IEC 61010-1:2010, EN 61010-1:2010, BS EN 61010-1:2010, EN 62052-31:2015, IEC 62052-31:2015, BS EN 62052-31:2015, EN 62052-23, IEC 62053-23:2020, BS EN 62052-23, EN 62052-22, IEC 62053-22:2020, BS EN 62052-22, EN 62053-21, IEC 62053-21, BS EN 62053-21, EN 62052-11:2020, IEC 62052-11:2020, BS EN 62052-11:2020, EN 61326-1, IEC 61326-1, BS EN 61326-1, EN 61557-12:2021, IEC 61557-12:2021, BS EN 61557-12:2021
Maximum value measured 99999999 MWh
Output voltage 5...40 V DC@50 mA
Communication port support screw terminal block: RS485
Rated voltage 173-480 V, 100-277 V
Accuracy class class C active energy conforming to EN 50470-3, class 0.5S active energy conforming to IEC 61557-12, class 0.5S active energy conforming to IEC 62053-22
Overvoltage category III
Market segment residential, small commercial
Analogue input type external CT 1 A or 5 A
[In] rated current 1 A, 5 A
Poles description 3P, 1P + N, 3P + N
Technology type electronic
Local signalling yellow indicator light: communications are active on the Modbus port (Modbus),  alarm: overload, yellow flashing LED: accuracy checking, green indicator light: power ON
Connections - terminals voltage circuit: screw terminals 2.5-2.5 mm² cable(s) , current circuit: screw terminals 6-6 mm² cable(s)
Measurement current 1-32767000 mA
Number of inputs 1 digital 0...5 V/11...40 V 24 V DC
Product certifications NMI conforming to NMI M 6-1, MID conforming to EN 50470-1 (sub-meter), MID conforming to EN 50470-3 (sub-meter), METAS conforming to EN 50470-1 (sub-meter), KZ conforming to EN 50470-3 (sub-meter), RCM conforming to EN 62052 (sub-meter), EAC conforming to EN 50470-3 (sub-meter), cULus conforming to EN 61010-1 (safety), cULus conforming to UL 61010-1 (safety), UKCA conforming to BS EN 61326-1 (EMC), UKCA conforming to BS EN 61557-12 (power monitor), UKCA conforming to BS EN 61010-1 (safety), CE conforming to EN/IEC 61326-1 (EMC), CE conforming to EN 61557-12 (power monitor), CE conforming to IEC 61010-1 (safety)
Mounting support DIN rail
Number of outputs 1 digital (static)
Sampling rate 32 samples/cycle
Network frequency 50 Hz, 60 Hz
Environment
IP degree of protection IP20 body: conforming to IEC 60529, IP40 front panel: conforming to IEC 60529
Relative humidity 5-95 % at 50-50 °C
Ambient air temperature for storage -40-85 °C
Colour white
Pollution degree 2
Ambient air temperature for operation -25-70 °C - IEC
Height 95 mm
Operating altitude < 2000 m
Depth 69 mm
Width 90 mm
9 mm pitches 10
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.0 cm
Package 1 Width 9.5 cm
Package 1 Length 10.5 cm
Package 1 Weight 365.0 g
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 11.426 kg
Unit Type of Package 3 3
Number of Units in Package 3 720
Package 3 Height 80.0 cm
Package 3 Width 120.0 cm
Package 3 Length 110.0 cm
Package 3 Weight 283.224 kg
