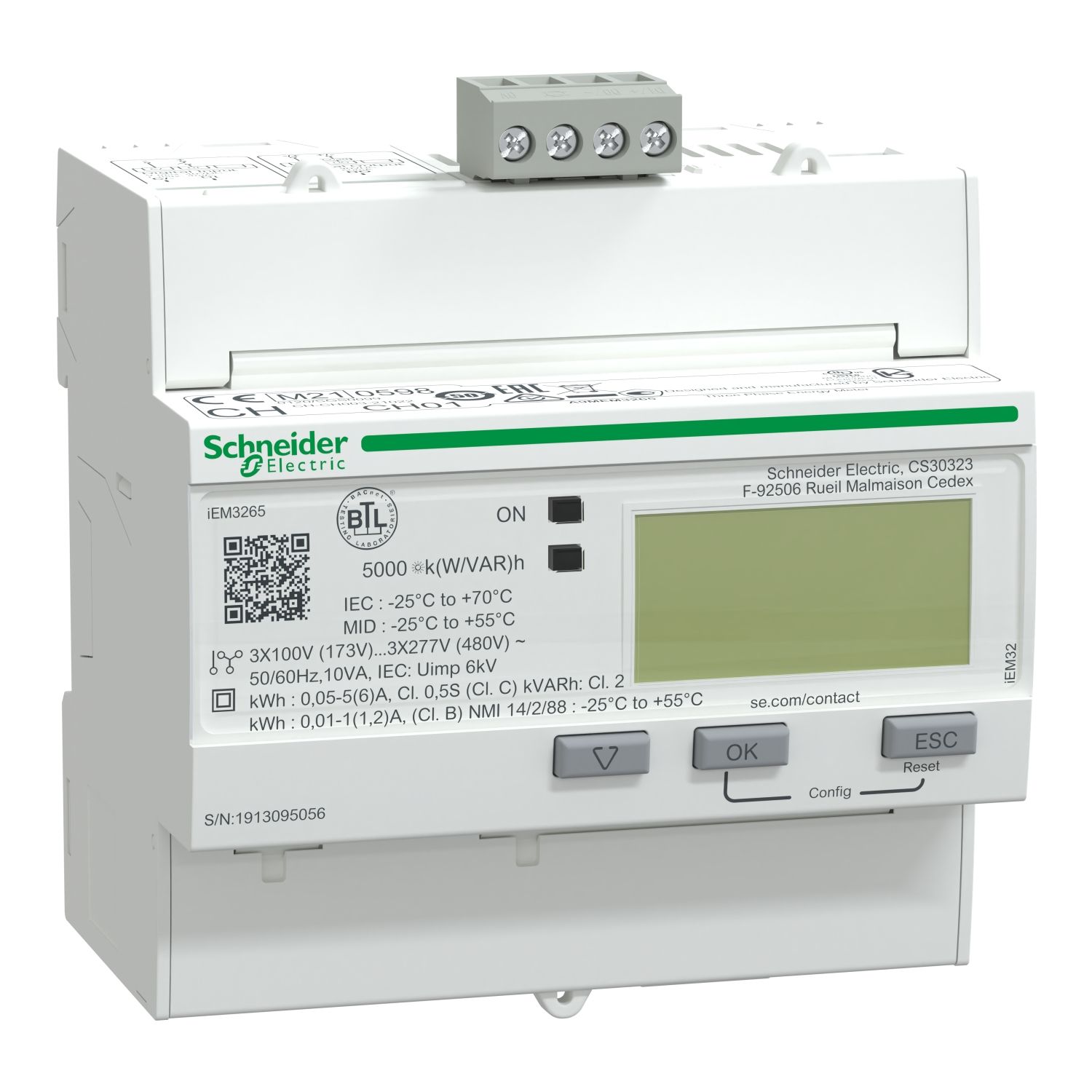

Picture of iEM3265 energy meter - CT - BACnet - 1 digital I - 1 digital O - multi-tariff - MID
SKU:

A9MEM3265

iEM3265 energy meter - CT - BACnet - 1 digital I - 1 digital O - multi-tariff - MID

$882.11
Product Selector
iEM3265 energy meter - CT - BACnet - 1 digital I - 1 digital O - multi-tariff - MID
  • Feature-rich power and energy meters
  • Simple energy monitoring compatible with Building management systems
  • Compact size of 18mm*5 modules width
  • Bacnet communication port and digital output for remote monitoring
  • Identify energy savings opportunties with precision accuracy of Class 0.5S
  • Collect and analyze energy consumption data
  • MID Class C for sub-billing
  • 1Amps or 5Amps CT operated in three phase network
  • Three phase DIN rail mount power and energy meter
  • Large LCD display for easy reading
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
User guide
End of life manual
Catalogue
Product environmental
Instruction sheet
CAD
Declaration of conformity
Product Page Link
Product Data Sheet
The Acti9 iEM3000 series energy meters offer an attractive range of three-phase DIN rail-mounted energy meters with an LCD display. Additional local signaling includes green LED power-on indicator, flashing yellow LED for accuracy checking, an overload alarm and communication indicators. This meter can be used in sub-billing applications and supports 4 tariff schedules. The meter provides the following accuracy classes: Active Energy: class 0.5S per IEC 62053-22, Active Energy: class C per EN 50470-3 and Active Energy: class 0.5S per IEC 61557-12. The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. With four quadrant Energy measurement. Designed for 50Hz or 60Hz networks, supply voltage can range from 100 to 277VAC or 173 to 480VAC. The rated current goes through a 1A or 5A transfomer to be measured in this meter and will support Single Phase and Neutral, Three Phase and Three Phase and Neutral configurations. Communication protocol is BACnet with screw terminal support. There is one programmable digital input and one programmable digital output that can be used as a pulsed output. Certifications include EAC, CE, UL and MID. Product dimensions are as follows: width 3.54 in (90 mm), depth 2.72in (69 mm), height 3.74 in (95 mm) and product weight 9.17 oz (260 g).

Products specifications

Attribute nameAttribute value
Main
Device short nameiEM3265
RangeActi9
Market segmentindustry cost management: cost allocation, healthcare cost management: cost allocation, data center cost management: cost allocation, buildings multi-site cost management: cost allocation: panelboard, buildings multi-site cost management: cost allocation: sub feeder, buildings multi-site cost management: cost allocation: main incomer, buildings large building cost management: cost allocation: panelboard, buildings large building cost management: cost allocation: sub feeder, buildings large building cost management: cost allocation: main incomer, buildings medium building cost management: cost allocation: panelboard, buildings medium building cost management: cost allocation: sub feeder, buildings medium building cost management: cost allocation: main incomer, buildings small building cost management: cost allocation: panelboard, buildings small building cost management: cost allocation: sub feeder, buildings small building cost management: cost allocation: main incomer, industry cost management: billing, healthcare cost management: billing, data center cost management: billing, buildings multi-site cost management: billing: panelboard, buildings multi-site cost management: billing: sub feeder, buildings multi-site cost management: billing: main incomer, buildings large building cost management: billing: panelboard, buildings large building cost management: billing: sub feeder, buildings large building cost management: billing: main incomer, buildings medium building cost management: billing: panelboard, buildings medium building cost management: billing: sub feeder, buildings medium building cost management: billing: main incomer, buildings small building cost management: billing: panelboard, buildings small building cost management: billing: sub feeder, buildings small building cost management: billing: main incomer
Product nameActi9 iEM3000
Product or component typeenergy meter
Complementary
Metering typeactive, reactive, apparent energy (signed, four quadrant)
Device applicationmulti-tariff, partial meter, sub billing
Display typeLCD display
Compatibility codeiEM3265
Mounting modeclip-on
Information displayedtariff (4)
Communication port protocolBACnet at 9.6, 19.2, 38.4, 57.6, 76.8 kbauds, insulation 4000 V
Type of measurementvoltage, current, active and reactive power, active and reactive energy
StandardsANSI C12.20, EN 50470-1, BS EN 50470-1, EN 50470-3, BS EN 50470-3, UL 61010-2-30, EN 61010-2-30, IEC 61010-2-30, BS EN 61010-2-30, UL 61010-1:2010, IEC 61010-1:2010, EN 61010-1:2010, BS EN 61010-1:2010, EN 62052-31:2015, IEC 62052-31:2015, BS EN 62052-31:2015, EN 62052-23, IEC 62053-23:2020, BS EN 62052-23, EN 62052-22, IEC 62053-22:2020, BS EN 62052-22, EN 62053-21, IEC 62053-21, BS EN 62053-21, EN 62052-11:2020, IEC 62052-11:2020, BS EN 62052-11:2020, EN 61326-1, IEC 61326-1, BS EN 61326-1, EN 61557-12:2021, IEC 61557-12:2021, BS EN 61557-12:2021
Maximum value measured99999999 MWh
Output voltage5...40 V DC@50 mA
Communication port supportscrew terminal block: RS485
Rated voltage173-480 V, 100-277 V
Accuracy classclass C active energy conforming to EN 50470-3, class 0.5S active energy conforming to IEC 61557-12, class 0.5S active energy conforming to IEC 62053-22
Overvoltage categoryIII
Analogue input typeexternal CT 1 A or 5 A
[In] rated current1 A, 5 A
Poles description3P + N, 1P + N, 3P
Technology typeelectronic
Local signallingalarm: overload, yellow flashing LED: accuracy checking, green indicator light: power ON
Connections - terminalsvoltage circuit: screw terminals 2.5-2.5 mm² cable(s) , current circuit: screw terminals 6-6 mm² cable(s)
Measurement current1-32767000 mA
Number of inputs1 digital 0...5 V/11...40 V 24 V DC
Product certificationsNMI conforming to NMI M 6-1, MID conforming to EN 50470-1 (sub-meter), MID conforming to EN 50470-3 (sub-meter), METAS conforming to EN 50470-1 (sub-meter), KZ conforming to EN 50470-3 (sub-meter), RCM conforming to EN 62052 (sub-meter), EAC conforming to EN 50470-3 (sub-meter), cULus conforming to EN 61010-1 (safety), cULus conforming to UL 61010-1 (safety), UKCA conforming to BS EN 61326-1 (EMC), UKCA conforming to BS EN 61557-12 (power monitor), UKCA conforming to BS EN 61010-1 (safety), CE conforming to EN/IEC 61326-1 (EMC), CE conforming to EN 61557-12 (power monitor), CE conforming to IEC 61010-1 (safety)
Mounting supportDIN rail
Number of outputs1 digital (static)
Sampling rate32 samples/cycle
Network frequency50 Hz, 60 Hz
Environment
IP degree of protectionIP20 body: conforming to IEC 60529, IP40 front panel: conforming to IEC 60529
Relative humidity5-95 % at 50-50 °C
Ambient air temperature for storage-40-85 °C
Colourwhite
Pollution degree2
Ambient air temperature for operation-25-70 °C - IEC
Height95 mm
Operating altitude< 2000 m
Depth69 mm
Width90 mm
9 mm pitches10
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height8 cm
Package 1 Width9.5 cm
Package 1 Length10.5 cm
Package 1 Weight359 g
Unit Type of Package 22
Number of Units in Package 230
Package 2 Height30 cm
Package 2 Width30 cm
Package 2 Length40 cm
Package 2 Weight11366 g
Unit Type of Package 33
Number of Units in Package 3720
Package 3 Height80 cm
Package 3 Width120 cm
Package 3 Length110 cm
Package 3 Weight281784 g
