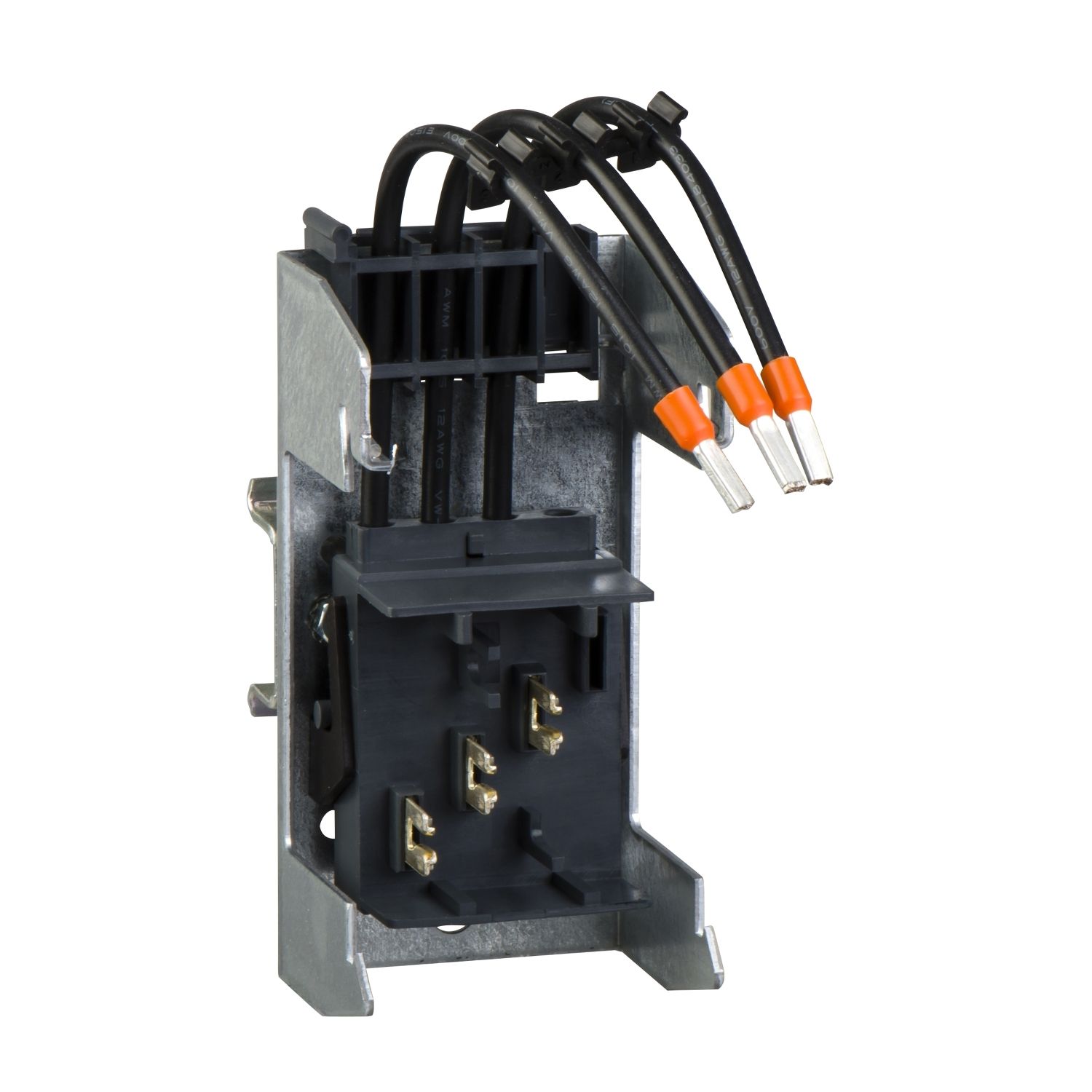

Picture of Mounting plate, Linergy HK, 3P, 25A, 4.4mm², 105x54x61mm
SKU:

AK5PA231

Mounting plate, Linergy HK, 3P, 25A, 4.4mm², 105x54x61mm

$158.28 INC GST
Available for Shipping : 22-May-2025
Mounting plate, Linergy HK, 3P, 25A, 4.4mm², 105x54x61mm
  • Plug pre-assembled busbar system for Linergy HK
  • It is a 105 mm height single plate component mounting plate incorporating tap-off with 3 phases
  • Panel easily upgradable
  • Multi-standard system of up to 160 A
  • Compactness with mounting plate version
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet
Part hot plug pre-assembled busbar system for Linergy HK. It is a 105 mm height single plate component mounting plate incorporating tap-off with 3 phases. It uses 3 18 mm points on the busbar system and it is composed of 1 W rail for component support.

Products specifications

Attribute name Attribute value
Main
I²t on activation 200000 A².s
Depth 61 mm
Width 54 mm
Poles description 3P
Number of cables 3 cable(s) 4-4 mm² at 105 °C
Range Linergy
Product name HK
Product or component type mounting plate
Range of product AK5
[Ith] conventional free air thermal current 25 A
Height 105 mm
Complementary
[Ui] rated insulation voltage 690 V conforming to IEC 60439-1
Net weight 0.145 kg
9 mm pitches 6
Environment
Standards IEC 60439
Product certifications CSA, UL, LROS (Lloyds register of shipping), DNV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.500 cm
Package 1 Width 13.500 cm
Package 1 Length 7.500 cm
Package 1 Weight 222.000 g
Unit Type of Package 2 2
Number of Units in Package 2 40
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 9.496 kg
Unit Type of Package 3 3
Number of Units in Package 3 320
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 85.884 kg
