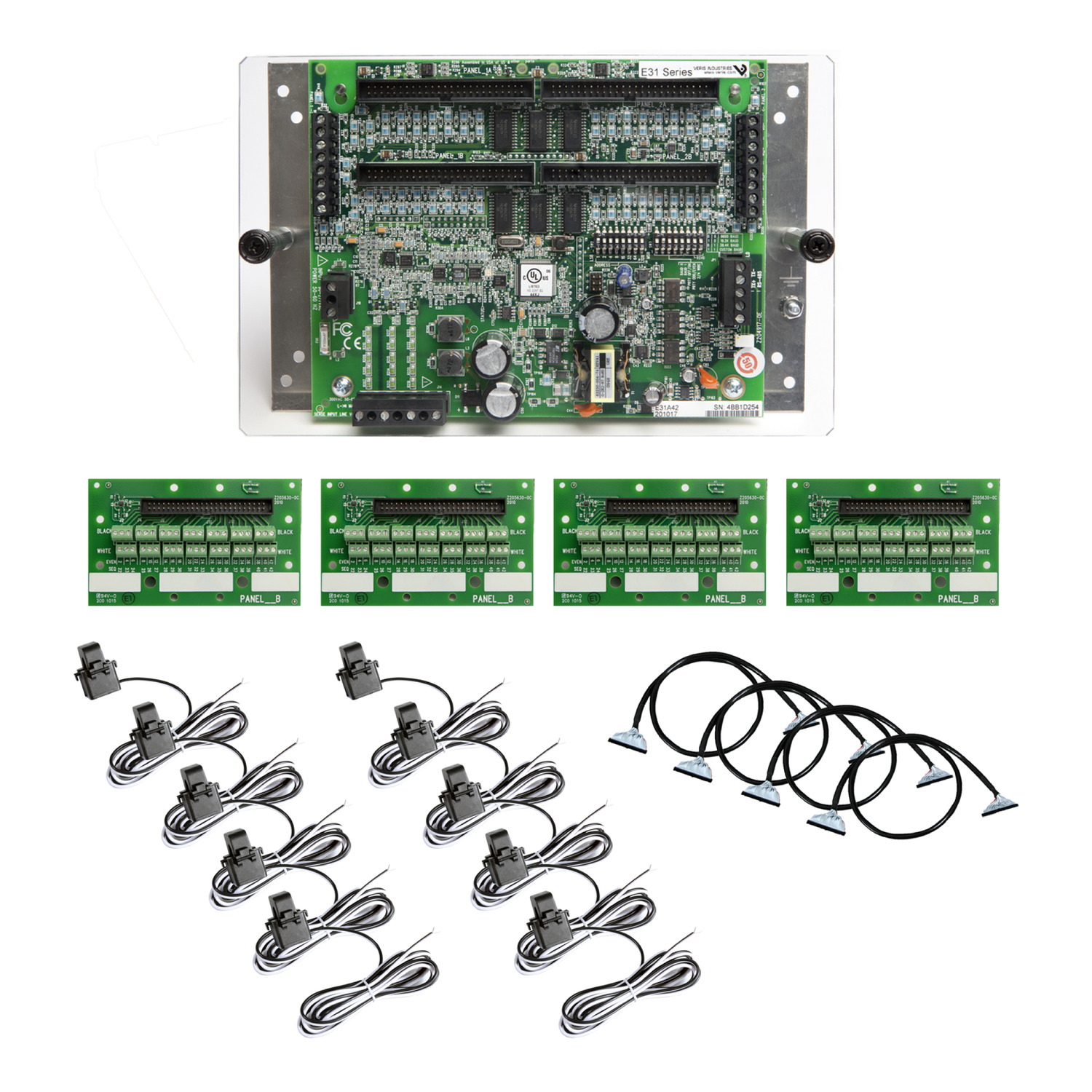

Picture of 4 adapter boards - advanced - full power and energy on all circuits
SKU:

BCPMSCA2S

4 adapter boards - advanced - full power and energy on all circuits

$18,416.80
4 adapter boards - advanced - full power and energy on all circuits
Be the first to review this product
Manufacturer: Veris Industries
Estimated Delivery Date: 17-Jan-2025
Catalogue
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet
This is an integrated solution for monitoring multi-circuits and mains by using a single meter. The meter is designed for retrofit and is used for critical power operations in data centres and energy management in buildings. It offers class 1 (1 %) power and energy system accuracy (including 50A, 100A or 200A split-core current transformers) on all branch channels. The BCPM allow the monitoring of both the branch circuits and mains values, incoming power and energy for a maximum of 84 circuits. All to provide information on the complete Power Distribution Unit. Full alarming capabilities ensure that potential issues are dealt with before they become problems. Communication enabled with a RS485 serial port and the Modbus protocol support, more communication options with the gateway H8951. The meter need to be powered by a 90V AC to 277V AC supply source. This version is for 84 circuits, but do not include branch current transformers nor ribbon. The device dimensions are 228mm in width, 146mm in height and weight 1.5 kilograms.

Products specifications

Attribute nameAttribute value
Main
Device short nameBCPMSCA
Device applicationsub billing
[Us] rated supply voltage90...277 V AC 50/60 Hz +/- 1 %
Energy managementsub billing and cost allocation
RangePowerLogic
Product namePowerLogic BCPMSC
Market segmenthealthcare cost management: cost allocation: panelboard, data center cost management: cost allocation: panelboard, healthcare cost management: billing: panelboard, data center cost management: billing: panelboard
Product or component typemulti-circuit energy meter
Power monitoringbasic instrumentation
Type of measurementactive energy, power factor, active power, frequency, current, voltage
Variantadvanced
Range of productPowerLogic
Power quality analysisvoltage sag and swell detection
Network frequency50 Hz, 60 Hz
Complementary
Analogue input typecurrent 0.333 V84 x , current 1 V
Update time1.8 s
Measurement accuracyvoltage 2 % 90…277 V, mains current 2 % 2…100 %, mains current 2 % 1…100 %, branch current 2 % 2…100 A, branch current 2 % 0.25…2 A
Provided equipment0 x current transformer, 4 x adapter board
Number of inputs0
Communication of dataunder voltage alarm, high-high current alarm, over voltage alarm, low current alarm, high current alarm, low-low current alarm
Communication port protocolModbus RTU
Number of outputs0
Sampling rate256 samples/cycle
Measurement voltage150-480 V phase to phase, 90-277 V phase to neutral
Communication port supportRS485
Environment
Operating altitude3000 m
Width288 mm
Relative humidity95-95 %
Ambient air temperature for storage-40-70 °C
Mounting modeclip-on
Net weight1.5 kg
Product certificationsUL 508
Mounting supportboard
StandardsEN 61010, ANSI C12.1, IEC 61010-1
Ambient air temperature for operation0-60 °C
Height146 mm
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height10.4 cm
Package 1 Width31.0 cm
Package 1 Length38.7 cm
Package 1 Weight2.0 kg
