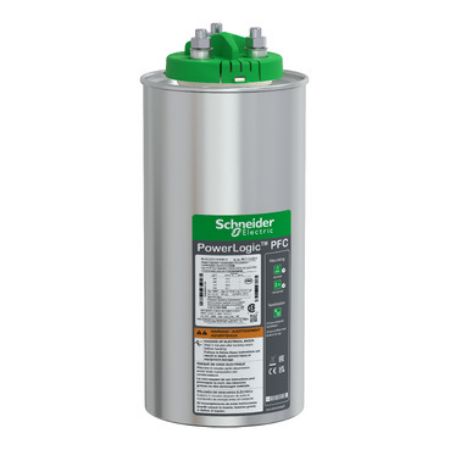

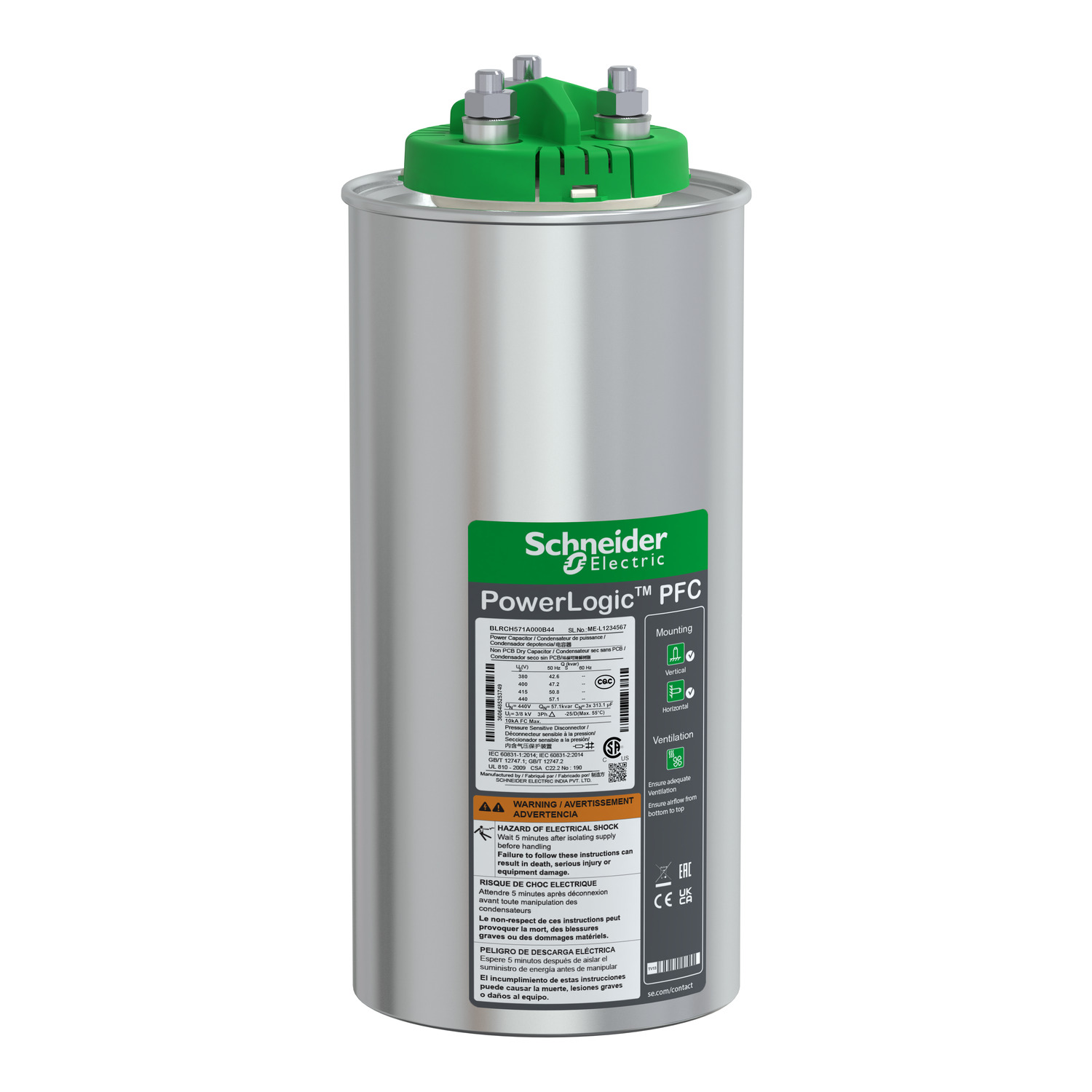

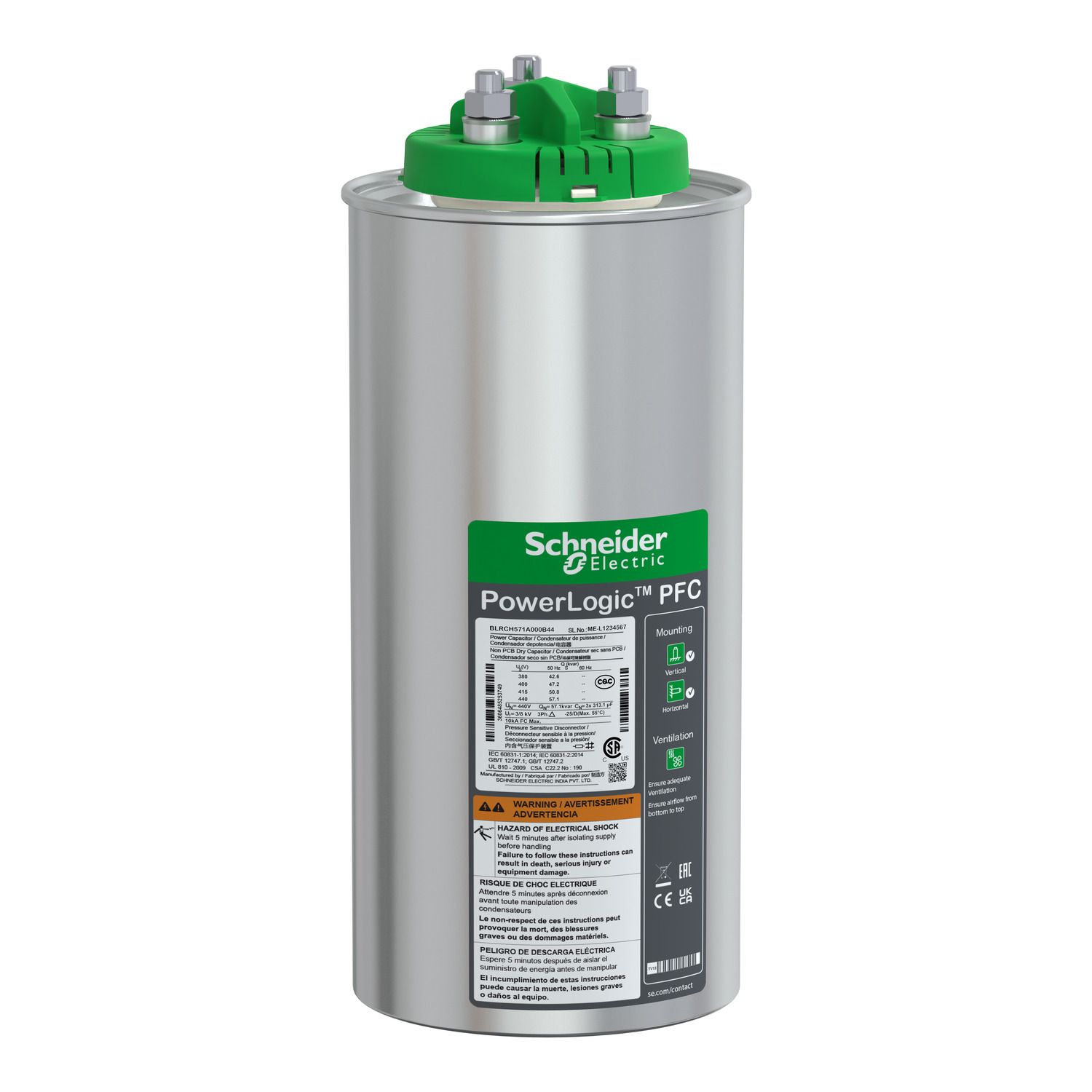

Picture of heavy duty PowerLogic PFC Capacitor, 57.1/0 kvar - 440 V - 50/60Hz
SKU:

BLRCH571A000B44

heavy duty PowerLogic PFC Capacitor, 57.1/0 kvar - 440 V - 50/60Hz

$894.76
Available for Shipping : 05-Mar-2025
heavy duty PowerLogic PFC Capacitor, 57.1/0 kvar - 440 V - 50/60Hz
  • Low voltage PFC Capacitor for stringent operating conditions
  • Heavy Duty application with higher non-linear loads
  • Best in class performance, safety and reliability
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
End of life manual
Instruction sheet
Product environmental
Declaration of conformity
Product Page Link
Product Data Sheet
VarPlus Can capacitor are a reliable and flexible solution for power factor correction in stringent operating conditions. These capacitors are particularly used for higher voltage disturbances or when a few non-linear loads are present. The rated current of the capacitors must be in increased in order to cope with the circulation of the harmonic current. This capacitor provides a rated output power of 57.1 kVar at , 50 Hz. Fastening assured by a ClampTite terminal. This component meet the standards IEC 60831-1 and IEC 60831-2. The case product weight is 5.3 kg.

Products specifications

Attribute name Attribute value
Main
Rated voltage 440-440 V AC 50/60 Hz
[Imp] maximum permanent current 1.8 x In
Maximum permissible voltage 1.1 x Un (8 hours over 24 hours)
Network harmonic content <= 20 %
Series name HDuty
Range PowerLogic
Product name PowerLogic PFC Capacitor
Product or component type heavy duty capacitor
Range of product PowerLogic
Reactive power rating 57.1 kvar 50 Hz
Network frequency 50/60 Hz
Complementary
Service life in hours 130000 h
Mounting mode upright/horizontal
Power losses < 0.5 W/kVAr
Connections - terminals stud terminals
Type of installation indoor installation
Net weight 5.3 kg
Dielectric losses < 0.2 W/kvar
Voltage test >= 660 V - 6 kV AC between terminal and container for 10 s, <= 660 V - 3 kV AC between terminal and container for 10 s, 2.15 x Un AC between terminals for 10 s
Impregnation material biodegradable, non-PCB dry PUR resin
Maximum switching operation per year 7000
Capacitance tolerance - 5 % to 10 %
Dielectric material metallized polypropylene film with Zn/Al alloy, special resistivity & profile, special edge (wave cut)
Inrush current 250 x In
Diameter 136 mm
Height 321 mm
Environment
Operating altitude 2000 m
Relative humidity 95-95 %
IP degree of protection IP00
Temperature class D
Ambient air temperature for operation -25-55 °C
Standards IEC 60831-1, IEC 60831-2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 37 cm
Package 1 Width 18 cm
Package 1 Length 18 cm
Package 1 Weight 5.163 kg
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 74 cm
Package 2 Width 60 cm
Package 2 Length 80 cm
Package 2 Weight 61.956 kg
Unit Type of Package 3 3
Number of Units in Package 3 12
Package 3 Height 74 cm
Package 3 Width 60 cm
Package 3 Length 80 cm
Package 3 Weight 61.956 kg
