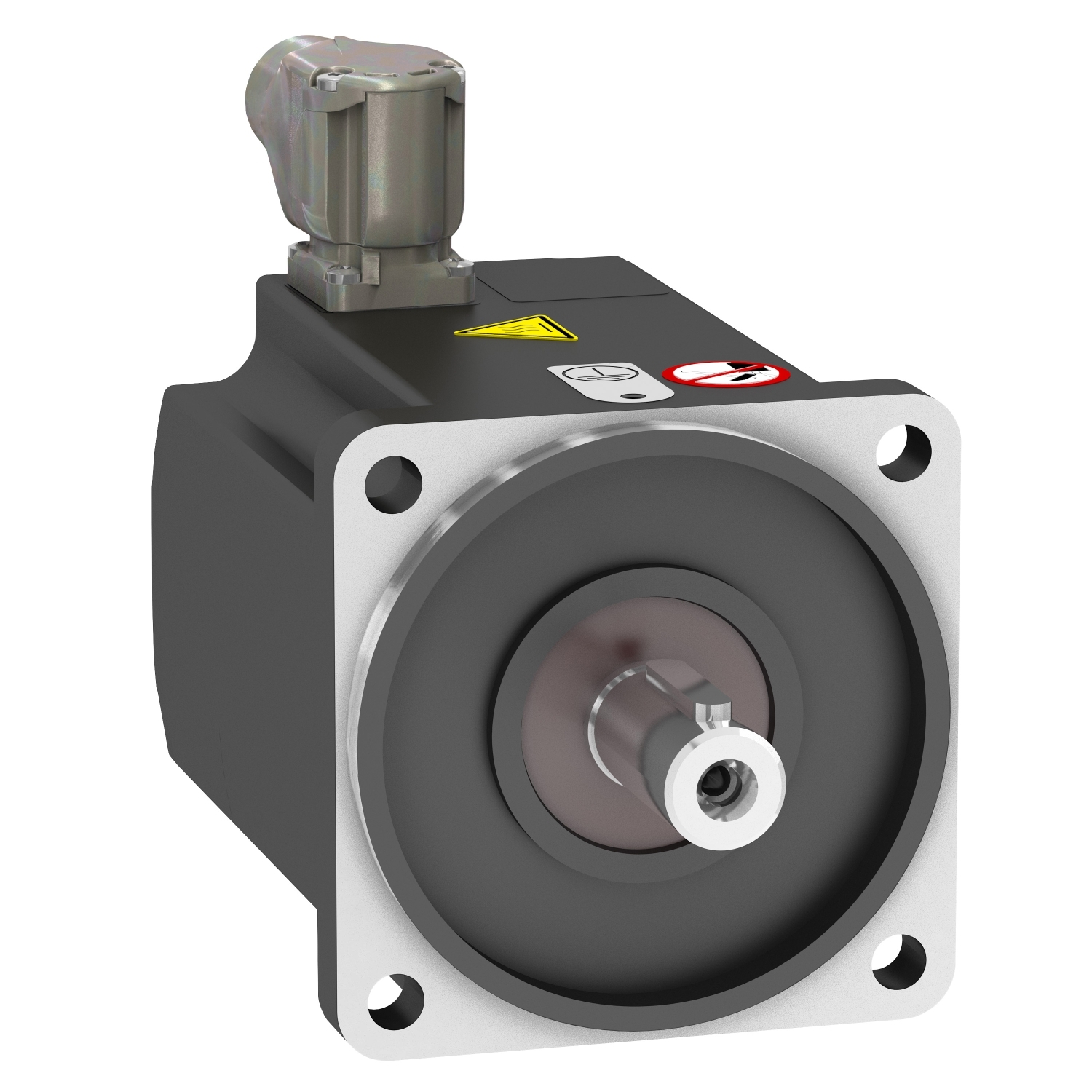

Picture of synchronous motor - BMP - 230 VAC - 0.75 kW - IP65 - IEC
SKU:

BMP1001R3NA2A

synchronous motor - BMP - 230 VAC - 0.75 kW - IP65 - IEC

$1,582.68 INC GST
Available for Shipping : 12-May-2026
synchronous motor - BMP - 230 VAC - 0.75 kW - IP65 - IEC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-May-2026
Declaration of conformity
User guide
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name BMP
Nominal torque 2.39 N.m with drive ATV320 at 0.75 kW 200 V single phase, 2.39 N.m with drive ATV32 at 0.75 kW 200 V single phase
Electrical connection rotatable right-angled connector
Nominal speed 3000 rpm with drive ATV320 at 0.75 kW 200 V single phase, 3000 rpm with drive ATV32 at 0.75 kW 200 V single phase
Shaft end keyed
IP degree of protection IP67 with IP67 kit, IP65 standard
Nominal output power 750 W with drive ATV320 at 0.75 kW 200 V single phase, 750 W with drive ATV32 at 0.75 kW 200 V single phase
Product or component type synchronous motor
Holding brake without
Mounting support international standard flange
Maximum mechanical speed 3600 rpm
Product compatibility variable speed drive ATV320 at 0.75 kW 200...240 V single phase, variable speed drive ATV32 at 0.75 kW 200 V single phase
Complementary
Torque constant 0.884 N.m/A at 40 °C
Nominal operating frequency 250 Hz with drive ATV320 at 0.75 kW 200 V single phase, 250 Hz with drive ATV32 at 0.75 kW 200 V single phase
Range compatibility Altivar Machine ATV320, Altivar 32
Stator resistance 1.28 Ohm at 40 °C
Maximum operating frequency 300 Hz with drive ATV320 at 0.75 kW 200 V single phase, 300 Hz with drive ATV32 at 0.75 kW 200 V single phase
Type of cooling natural convection
Mounting holes diameter 9 mm
Minimum operating frequency 25 Hz with drive ATV320 at 0.75 kW 200 V single phase, 25 Hz with drive ATV32 at 0.75 kW 200 V single phase
Shaft diameter 19 mm
Key width 6 mm
Number of mounting holes 4
[Us] rated supply voltage 230 V
Motor flange size 100 mm
Stator inductance 3.54 mH for d-axis winding at 40 °C, 4.08 mH for q-axis winding at 40 °C
Centring collar diameter 95 mm
Net weight 3.34 kg
Maximum current Irms 7.2 A with drive ATV320 at 0.75 kW 200 V single phase, 7.2 A with drive ATV32 at 0.75 kW 200 V single phase
Length 128.6 mm
Network number of phases single phase
Shaft length 40 mm
Centring collar depth 3.5 mm
Maximum axial force Fa 0.2 x Fr
Number of motor poles 5
Rotor inertia 3.19 kg.cm²
Number of motor stacks 1
Maximum radial force Fr 570 N at 4000 rpm, 630 N at 3000 rpm, 720 N at 2000 rpm, 900 N at 1000 rpm
Circle diameter of the mounting holes 115-115 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 19.000 cm
Package 1 Width 22.000 cm
Package 1 Length 39.500 cm
Package 1 Weight 4.476 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 75.000 cm
Package 2 Width 80.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 28.504 kg
