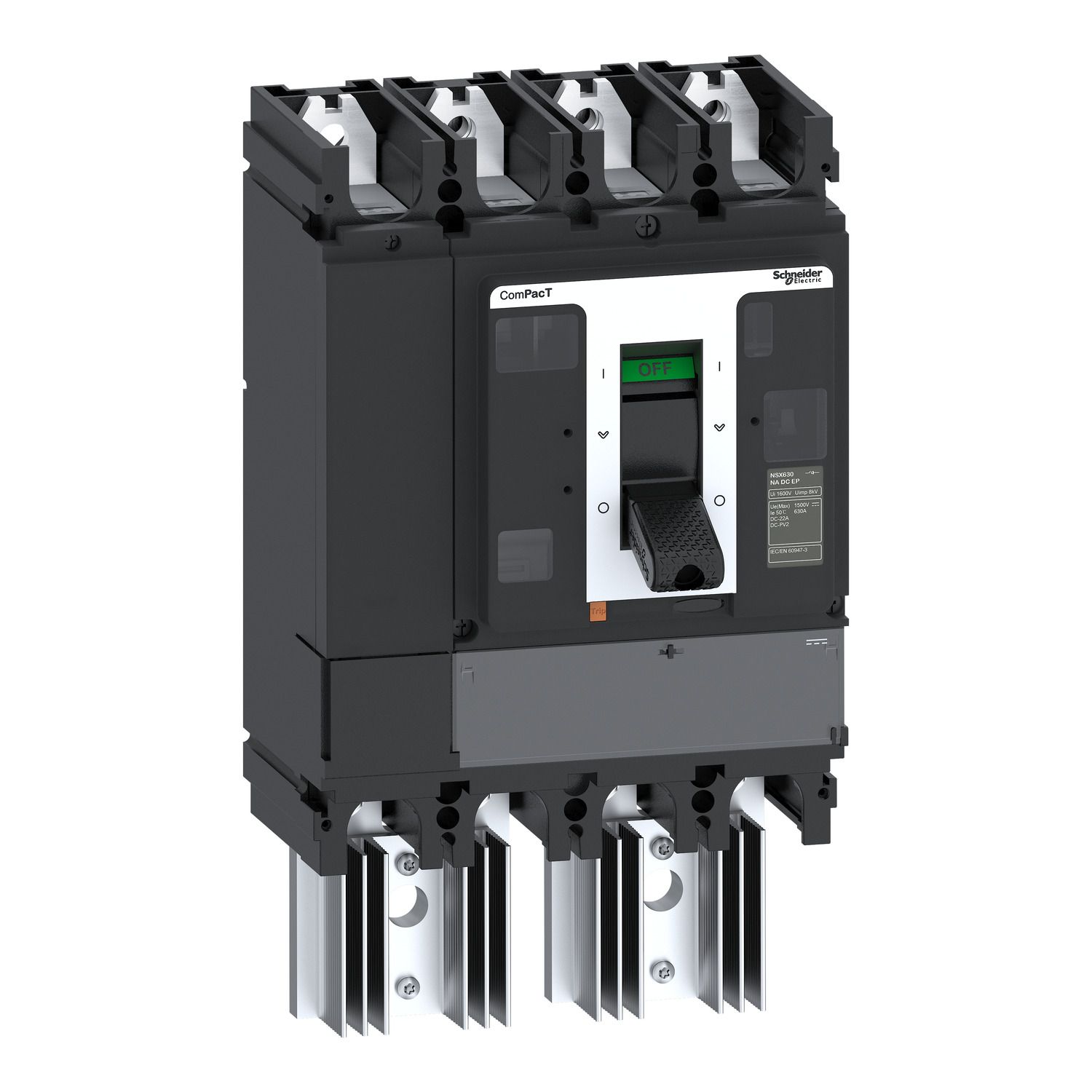

Picture of Switch disconnector ComPacT NSX630NA DC EP, 4 poles, fixed, 320A rating, 1500V
SKU:

C634320D3S

Switch disconnector ComPacT NSX630NA DC EP, 4 poles, fixed, 320A rating, 1500V

$4,259.47
Available for Shipping : 21-Jan-2025
Product Selector
Switch disconnector ComPacT NSX630NA DC EP, 4 poles, fixed, 320A rating, 1500V
  • ComPacT NSX DC EP (Enhanced Performance) is designed for voltages from 1100VDC to 1500VDC
  • ComPacT NSX DC EP is dedicated to photovoltaic and marine applications
  • ComPacT NSX DC EP offers 8 current ratings (100A;125A;160A;200A;250A;320A;400A;500A)
  • The rated short-time withstand current Icw is 7.56kA/1s
  • With heatsinks supplied as standard, the circuit breaker is optimized.
  • ComPacT NSX DC EP allows to save space in the enclosure
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
End of life manual
Product environmental
Instruction sheet
Product Page Link
Product Data Sheet
ComPacT NSX 250NA DC PV is a 4 poles switch disconnector designed to optimize space and breaking capacity. It's an optimal choice for photovoltaic applications. It is used to control and isolate electrical distribution circuits. It requires an upstream protection. The operational current is 320 A at 1500 VDC. The operational voltage is 1500 VDC. It is compliant with international standard EN/IEC 60947.

Products specifications

Attribute name Attribute value
Main
Device short name NSX250 DC EP
Device application marine application, photovoltaic
[Icw] rated short-time withstand current 7.56 kA during 1 s
[Uimp] rated impulse withstand voltage 8 kV
[Ie] rated operational current DC-PV2: 320 A DC 1500 V, DC-22A: 320 A DC 1500 V
Suitability for isolation yes conforming to EN/IEC 60947-3
Mounting mode fixed
Control type toggle
Range ComPacT new generation
[Ith] conventional free air thermal current 320 A at 40 °C
Range of product ComPacT NSX250/630 DC EP
[Ue] rated operational voltage 1500 V DC
Poles description 4P
[Ui] rated insulation voltage 1600 V DC
[Icm] rated short-circuit making capacity 7.56 kA switch-disconnector alone
Utilisation category DC-PV2, DC-22A
Product name ComPacT NSX DC EP
Product or component type switch disconnector
Visible break no
Breaking capacity code NA
Network type DC
Contact position indicator yes
[In] rated current 320 A
Complementary
Compatibility code NSX320
Electrical durability 3000 cycles 1500 V DC In
Upside connection front
Downside connection front
Connection pitch 45 mm
Height 255 mm
Depth 110 mm
Width 185 mm
Mechanical durability 8000 cycles
Net weight 8.1 kg
Mounting support backplate
Standards EN/IEC 60947-3, EN/IEC 60947-1
Product certifications CCC, CE
Environment
Ambient air temperature for storage -50-85 °C
Pollution degree 3 conforming to IEC 60664-1
IP degree of protection IP40 conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
IK degree of protection IK07 conforming to IEC 62262
Electrical shock protection class class II
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 15.0 cm
Package 1 Width 20.0 cm
Package 1 Length 30.0 cm
Package 1 Weight 8.13 kg
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 75.0 cm
Package 2 Width 60.0 cm
Package 2 Length 80.0 cm
Package 2 Weight 74.34 kg
