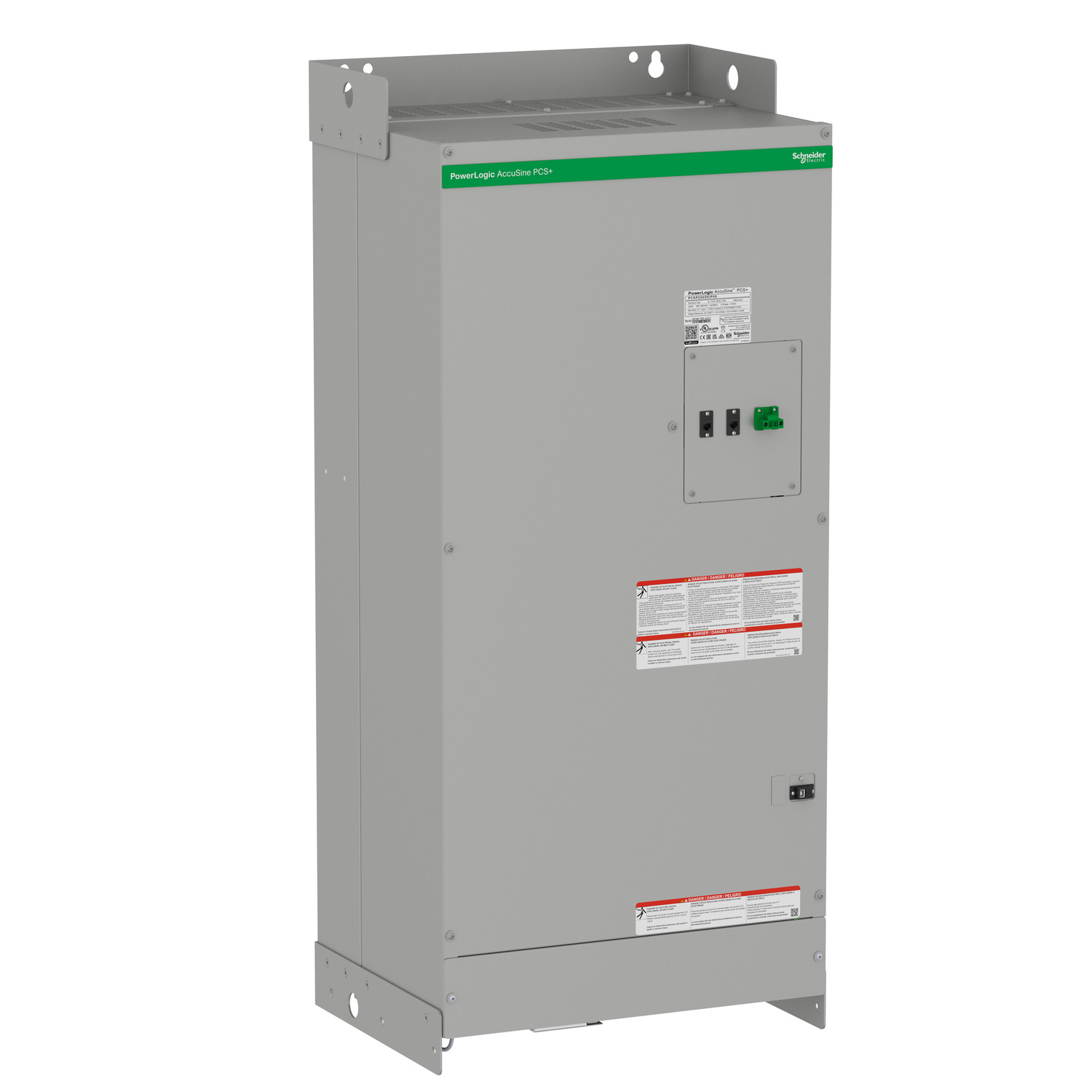

Picture of Electronic VAR control - 200 A 380..480 V AC - IP00 enclosure
SKU:

EVCP200D5IP00

Electronic VAR control - 200 A 380..480 V AC - IP00 enclosure

Please Contact Sales to buy this Product. click here
Electronic VAR control - 200 A 380..480 V AC - IP00 enclosure
  • Synthesize a current waveform to cancel load induced poor power factor
  • Current balancing by measuring negative sequence current and injecting the inverse
  • Flicker control is provided by rapid detection and injection of reactive current
  • Prevent network overload or rapid voltage deviations
Be the first to review this product
Manufacturer: Square D
Estimated Delivery Date: 02-Mar-2025
Instruction sheet
User guide
Product Page Link
Product Data Sheet
This hardware is an active power correction solution, from AccuSine familly, to help stabilize electrical networks by providing swift power factor correction and load balancing. It is specifically designed for harsh electrical conditions, for heavy industrial applications including mission critical environments. This version is UL Type OPEN, or ingress protection IP00, and can be connected on Low Voltage networks rated 380 Volt to 480 Volt. It is specified for a standard Root Mean Square output current rating of 200 Amps. The enclosure is wall mounted, allow cable entry from bottom and is delivered in RAL7035 light grey. This active power filter which achieves above standards performance is certified to CE, UL, IBC 2015 AC156, EAC, RCM. And is designed to IEC 62477-1, IEC 61000-6-2, IEC 61000-6-4, IEC 61439-1, UL508 and IEEE 519-2014. Up to 10 units of different ratings can be paralleled, to achieve a maximum VAR injection of 2500 kVar either leading or lagging per current transformer set. Frame exterior dimensions are 582 millimetres in width, 438 millimetres in depth, 1323 millimetres in height and product weight 171 kg.

Products specifications

Attribute nameAttribute value
Main
RangeAccuSine
Product nameAccuSine PFV+
Product or component typeelectronic VAR controller
Range of productAccuSine
Complementary
Wiring mode3 or 4 wires
Maximum permissible voltage1.1 x Un
Location of connectionbottom
Protection typewithout protection
Poles description3P
Nominal output current200 A
Enclosure mountingwall mounted
Network frequency50/60 Hz +/- 3 % auto-sensing
Function availablerear plenum with forced ventilation for high heat flow
Electromagnetic compatibilityconducted EMC, class A conforming to EN 61000-6-4
Mounting locationindoor
Operating modepower factor correction, volt-var support, mains current balancing
Network rated voltage380-480 V AC
Reactive power rating166 kvar 480 V AC 50/60 Hz
Accessibility for operationfront
Environment
IP degree of protectionIP00
Depth438 mm
Width582 mm
Colourlight grey (RAL 7035)
Operating altitude<= 1000 m 1 % per 100 m
Ambient air temperature for storage-20-60 °C
Relative humidity0-95 %
Impregnation materialconformal coated
Net weight175 kg
Environmental characteristicstorage: 3S3 conforming to IEC 60721-3-3, storage: 3C3 conforming to IEC 60721-3-3, operating: 3S2 conforming to IEC 60721-3-3, operating: 3C2 conforming to IEC 60721-3-3
Ambient air temperature for operation0-50 °C maximum with current derating of 2 % per °C, 0-40 °C
StandardsUL 60947-1, CSA C22.2 No 60947-1-07, UL 508, EN 60439-1, CSA C22.2 No 14, EN 61000-6-4
Height1323 mm
Product certificationsRCM, DNV-GL, CE, ABS, cULus
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height70.5 cm
Package 1 Width73.7 cm
Package 1 Length173.3 cm
Package 1 Weight226.0 kg
