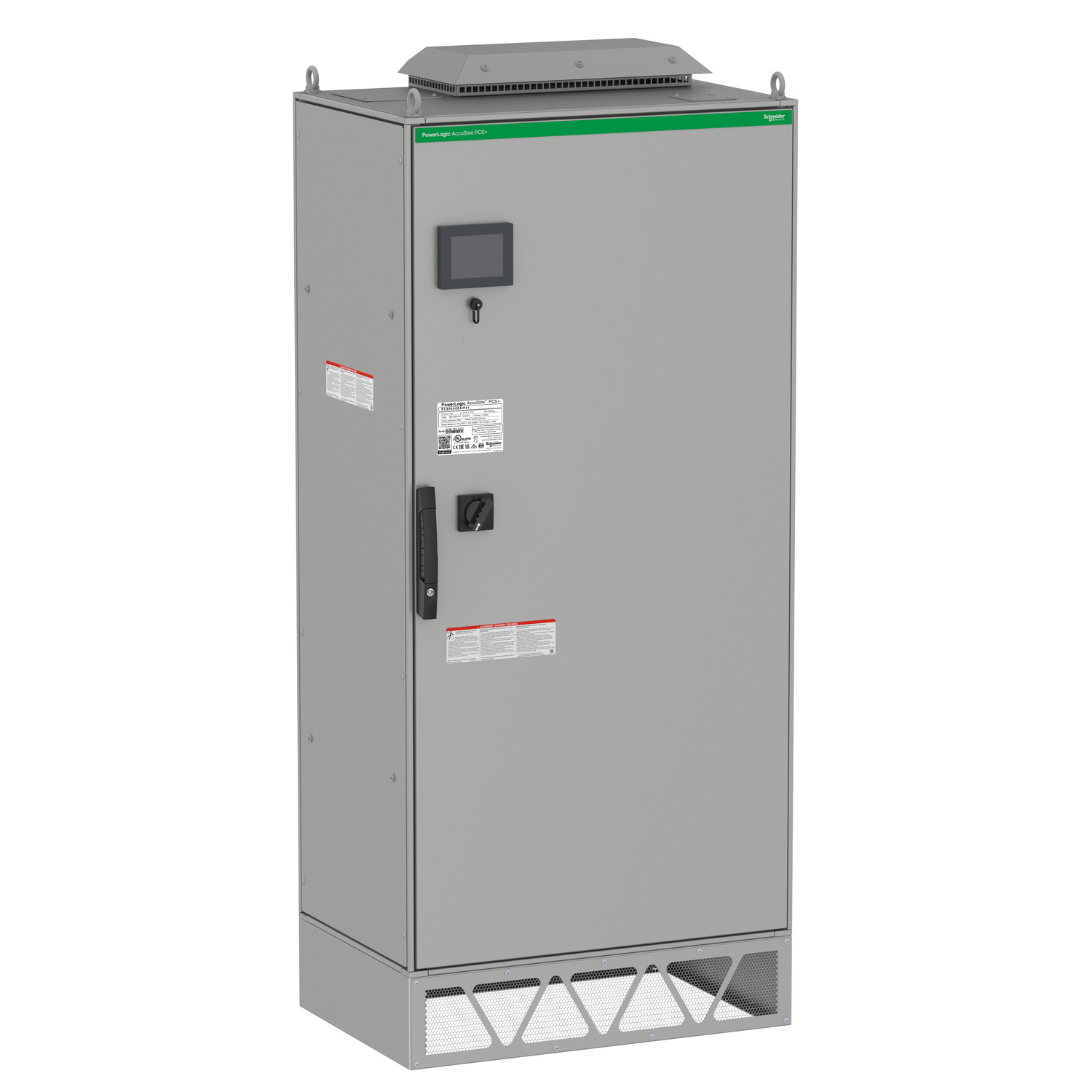

Picture of Electronic VAR control - 300 A 380..480 V AC - IP31 enclosure
SKU:

EVCP300D5IP31

Electronic VAR control - 300 A 380..480 V AC - IP31 enclosure

$91,554.08
Available for Shipping : 03-Apr-2025
Electronic VAR control - 300 A 380..480 V AC - IP31 enclosure
Be the first to review this product
Manufacturer: Square D
CAD
User guide
Instruction sheet
Product Page Link
Product Data Sheet
This hardware is an active power correction solution, from AccuSine familly, to help stabilize electrical networks by providing swift power factor correction and load balancing. It is specifically designed for harsh electrical conditions, for heavy industrial applications including mission critical environments. This version is ingress protection IP31, and can be connected on Low Voltage networks rated 380 Volt to 480 Volt. It is specified for a standard Root Mean Square output current rating of 300 Amps. The enclosure is floor standing, allow cable entry from top or bottom and is delivered in RAL7035 light grey. This active power filter which achieves above standards performance is certified to CE, UL, IBC 2015 AC156, EAC, RCM. And is designed to IEC 62477-1, IEC 61000-6-2, IEC 61000-6-4, IEC 61439-1, UL508 and IEEE 519-2014. Up to 10 units of different ratings can be paralleled, to achieve a maximum VAR injection of 2500 kVar either leading or lagging per current transformer set. Frame exterior dimensions are 900 millimetres in width, 600 millimetres in depth, 2100 millimetres in height and product weight 422 kg.

Products specifications

Attribute name Attribute value
Main
Range AccuSine
Product name AccuSine PFV+
Product or component type electronic VAR controller
Range of product AccuSine
Complementary
Wiring mode 3 or 4 wires
Maximum permissible voltage 1.1 x Un
Location of connection top or bottom
Protection type circuit breaker protection
Poles description 3P
Nominal output current 300 A
Enclosure mounting floor-standing
Network frequency 50/60 Hz +/- 3 % auto-sensing
Function available rear plenum with forced ventilation for high heat flow
Electromagnetic compatibility conducted EMC, class A conforming to EN 61000-6-4
Control type door-interlocked with rotary handle
Mounting location indoor
Operating mode power factor correction, volt-var support, mains current balancing
Network rated voltage 380-480 V AC
Breaking capacity 200 kA
Reactive power rating 249 kvar 480 V AC 50/60 Hz
Accessibility for operation front
Environment
IP degree of protection IP31
Depth 600 mm
Width 900 mm
Colour light grey (RAL 7035)
Operating altitude <= 1000 m 1 % per 100 m
Ambient air temperature for storage -20-60 °C
Relative humidity 0-95 %
Impregnation material conformal coated
Net weight 400 kg
Environmental characteristic storage: 3S3 conforming to IEC 60721-3-3, storage: 3C3 conforming to IEC 60721-3-3, operating: 3S2 conforming to IEC 60721-3-3, operating: 3C2 conforming to IEC 60721-3-3
Ambient air temperature for operation 0-50 °C maximum with current derating of 2 % per °C, 0-40 °C
Standards CSA C22.2 No 14, UL 508, UL 60947-1, EN 61000-6-4, CSA C22.2 No 60947-1-07, EN 60439-1
Height 2100 mm
Product certifications cULus, RCM, CE, ABS
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 233.1 cm
Package 1 Width 119.4 cm
Package 1 Length 119.4 cm
Package 1 Weight 513.0 kg
