SKU:

EY56P315

Easy56, Plug, 3 Pin, 15A, 250V

$21.24

Qty:

Available for Shipping : 24-Nov-2024

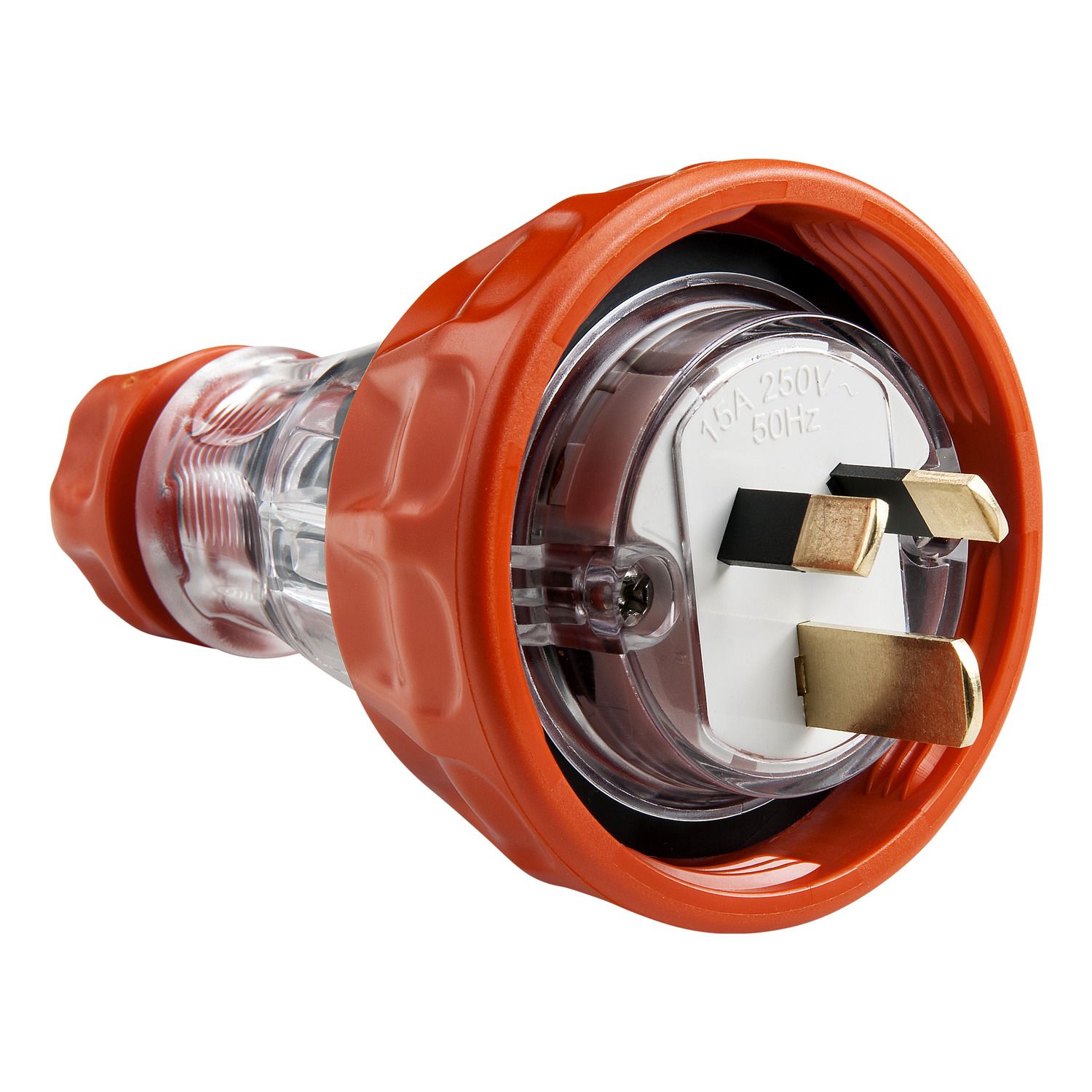

Easy56, Plug, 3 Pin, 15A, 250V

Manufacturer: Schneider Electric

Instruction sheet

Product environmental

Declaration of conformity

Catalogue

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Device short name	EY56P315
Plug, socket category	low voltage
Poles description	1P + N + E
Product name	Easy56
Product or component type	plug
Outlet standard deviation	Australian/New Zealand
Shape of pin	flat
Pin number	3 pins
Complementary
[Ue] rated operational voltage	250 V
Cable outer diameter	7.4-10.6 mm
Depth	112.5 mm
Market segment	small commercial, industry, utility
Width	67 mm
Colour	body: clear, plug: orange (RAL 2004)
[In] rated current	15 A
Cable entry	cable gland
Material	polycarbonate: housing
Cable cross section	1.5-1.5 mm²
Wire stripping length	12-34 mm
Thread type	M20
Net weight	0.107 kg
Plug, socket, control station shape	straight
Contacts material	pins: brass
Network type	AC
Height	67 mm
Connections - terminals	screw terminals
Targeted country	New Zealand, Australia
Network frequency	50 Hz
Environment
Quality labels	RCM
Ambient air temperature for storage	-25-75 °C
IP degree of protection	IP66 conforming to AS 60529
Standards	AS/NZS 3112
Ambient air temperature for operation	-25-75 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	6.8 cm
Package 1 Width	8.1 cm
Package 1 Length	11.2 cm
Package 1 Weight	112 g
