SKU:

EY56P420

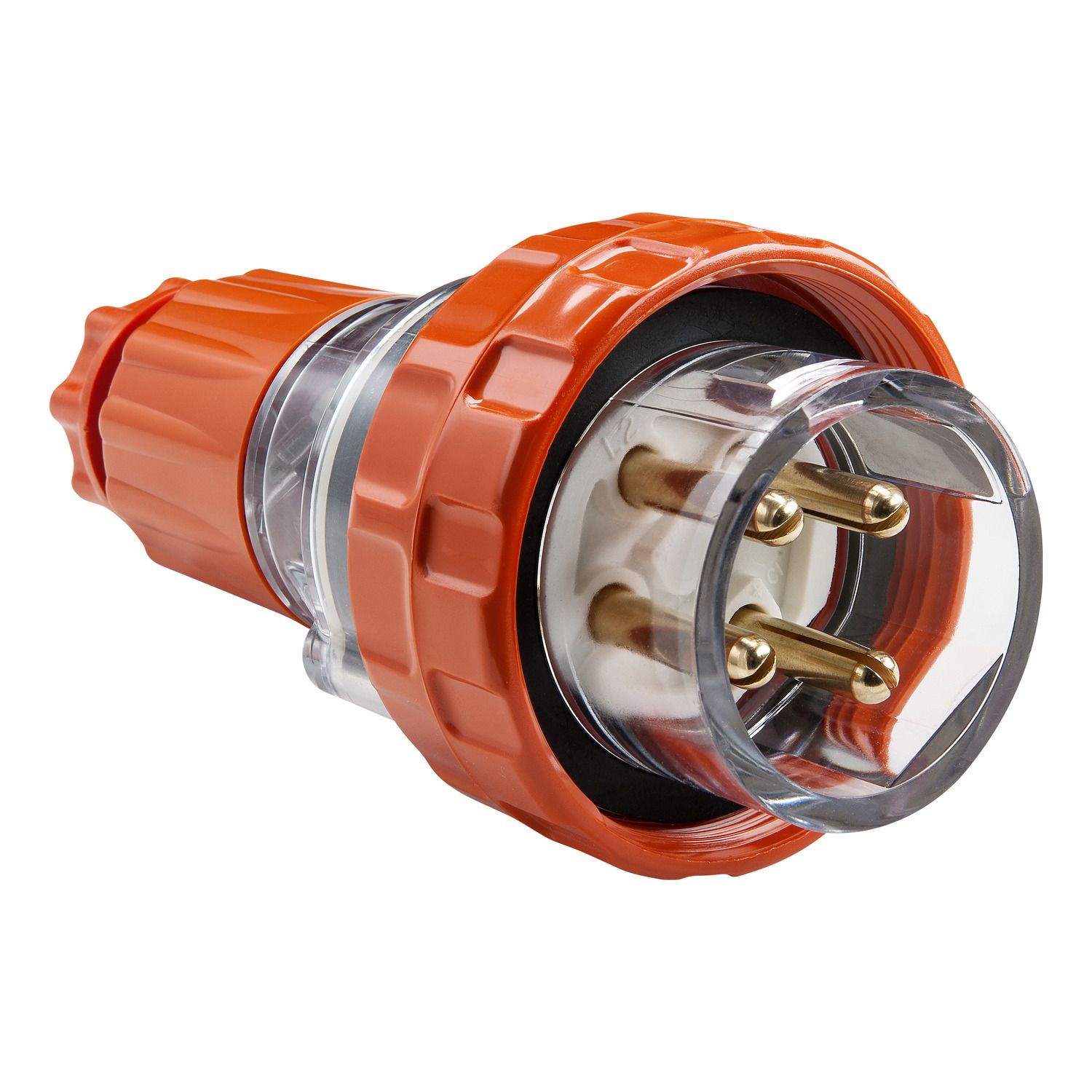

Easy56, Plug, 4 Pin, 20A, 500V

$44.08

Qty:

Available for Shipping : 24-Nov-2024

Easy56, Plug, 4 Pin, 20A, 500V

Manufacturer: Schneider Electric

Declaration of conformity

Instruction sheet

Catalogue

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Device short name	EY56P420
Plug, socket category	low voltage
Poles description	3P + E
Product name	Easy56
Product or component type	plug
Outlet standard deviation	Australian/New Zealand
Shape of pin	tubular
Pin number	4 pins
Complementary
[Ue] rated operational voltage	500 V
Cable outer diameter	7-16 mm
Depth	152 mm
Market segment	industry, small commercial, utility
Width	78 mm
Colour	body: clear, plug: orange (RAL 2004)
[In] rated current	20 A
Cable entry	cable gland
Material	polycarbonate: housing
Cable cross section	1-4 mm²
Wire stripping length	10-35 mm
Net weight	0.298 kg
Plug, socket, control station shape	straight
Contacts material	pins: brass
Network type	AC
Height	78 mm
Connections - terminals	screw terminals
Targeted country	Australia, New Zealand
Network frequency	50 Hz
Environment
Ambient air temperature for storage	-25-75 °C
IP degree of protection	IP66 conforming to AS 60529
Standards	AS/NZS 3123
Ambient air temperature for operation	-25-75 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	8.2 cm
Package 1 Width	9.4 cm
Package 1 Length	17.6 cm
Package 1 Weight	286 g
Unit Type of Package 2	2
Number of Units in Package 2	20
Package 2 Height	218 cm
Package 2 Width	360 cm
Package 2 Length	442 cm
Package 2 Weight	7.548 kg
