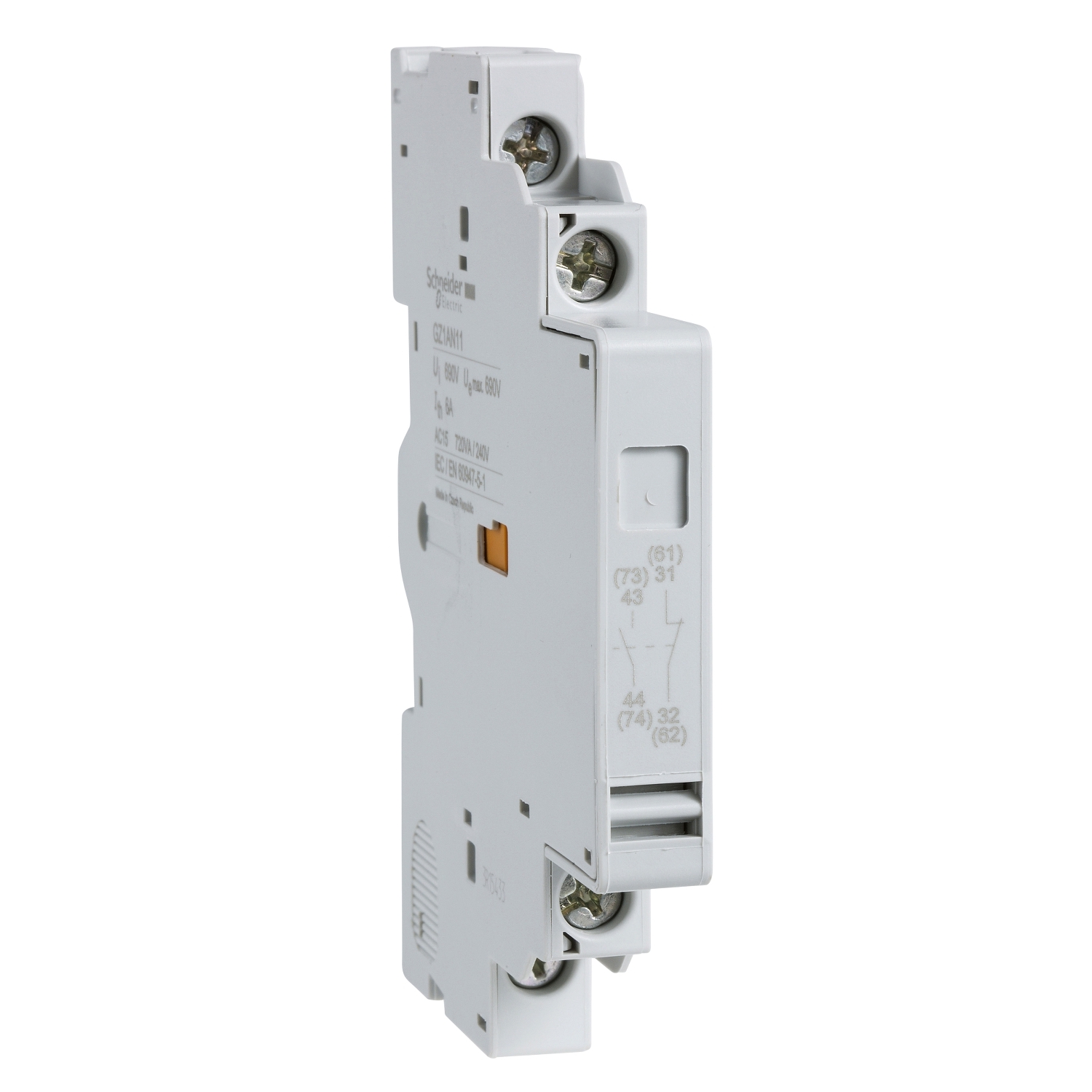

Picture of Auxiliary contact block,Easy TeSys Power,1NO+1NC,mounted on left hand side
SKU:

GZ1AN11

Auxiliary contact block,Easy TeSys Power,1NO+1NC,mounted on left hand side

Please Contact Sales to buy this Product. click here
Auxiliary contact block,Easy TeSys Power,1NO+1NC,mounted on left hand side
  • Meet the need for more control contact for Easy TeSys TVS GZ1
  • Easy choice for simple applications
  • Digital customer experience for technical documents
  • Easier to install and operate
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Product environmental
Catalogue
End of life manual
Instruction sheet
Product Page Link
Product Data Sheet
EasyPact TVS instantaneous auxiliary contact block for circuit breaker GZ1E. It provides 1NO+1NC contacts (NC mirror certified) rated up to 10A 690V AC, connection by screw clamp terminals. Clip-on left side mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC) and Green Premium compliant (RoHS/REACh).

Products specifications

Attribute nameAttribute value
Main
Device short nameGZ1AN
RangeEasy TeSys
Connections - terminalsscrew clamp terminals 1 cable(s) 0.75-1.5 mm²flexible with cable end, screw clamp terminals 2 cable(s) 0.75-1.5 mm²flexible with cable end, screw clamp terminals 2 cable(s) 0.75-2.5 mm²flexible without cable end, screw clamp terminals 1 cable(s) 0.75-2.5 mm²flexible without cable end, screw clamp terminals 2 cable(s) 1-2.5 mm²solid, screw clamp terminals 1 cable(s) 1-2.5 mm²solid
Product or component typeauxiliary contact block
Range of productEasy TeSys Power
Complementary
Rated operational power in W240 W at 48 V DC-13 - electrical durability: 70000 cycles, 180 W at 60 V DC-13 - electrical durability: 70000 cycles, 140 W at 24 V DC-13 - electrical durability: 70000 cycles, 140 W at 110 V DC-13 - electrical durability: 70000 cycles, 120 W at 240 V DC-13 - electrical durability: 70000 cycles
Auxiliary contacts operationinstantaneous 1 NO + 1 NC
Depth66 mm
Width9.3 mm
Compatibility codeGZ1AN
Mechanical durability100000 cycles
Rated operational power in VA850 VA at 380-415 V AC-15 - electrical durability: 70000 cycles, 720 VA at 230-240 V AC-15 - electrical durability: 70000 cycles, 650 VA at 440-440 V AC-15 - electrical durability: 70000 cycles, 500 VA at 500-500 V AC-15 - electrical durability: 70000 cycles, 500 VA at 110-127 V AC-15 - electrical durability: 70000 cycles, 400 VA at 690-690 V AC-15 - electrical durability: 70000 cycles, 300 VA at 48-48 V AC-15 - electrical durability: 70000 cycles
Minimum switching voltage17 V
[Ui] rated insulation voltage690 V conforming to IEC 60947-1
Pole contact composition1 NO + 1 NC
Mounting locationleft side
Net weight0.05 kg
Protection typegG fuse 10 A
Range compatibilityEasyPact EasyPact TVS GZ1E circuit breaker
[Ue] rated operational voltage24...240 V DC, 48...690 V AC
[Ith] conventional free air thermal current6 A
Height89 mm
Minimum switching current5 mA
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height1.500 cm
Package 1 Width6.500 cm
Package 1 Length8.500 cm
Package 1 Weight43.300 g
Unit Type of Package 22
Number of Units in Package 210
Package 2 Height9.500 cm
Package 2 Width9.500 cm
Package 2 Length15.000 cm
Package 2 Weight488.000 g
Unit Type of Package 33
Number of Units in Package 360
Package 3 Height15.000 cm
Package 3 Width30.000 cm
Package 3 Length40.000 cm
Package 3 Weight3.156 kg
Unit Type of Package 44
Number of Units in Package 4960
Package 4 Height75.000 cm
Package 4 Width80.000 cm
Package 4 Length60.000 cm
Package 4 Weight58.496 kg
