Picture of IIoT Edge Box Core, Harmony iPC, eMMC DC Linux
SKU:

HMIBSCEA53D1L01

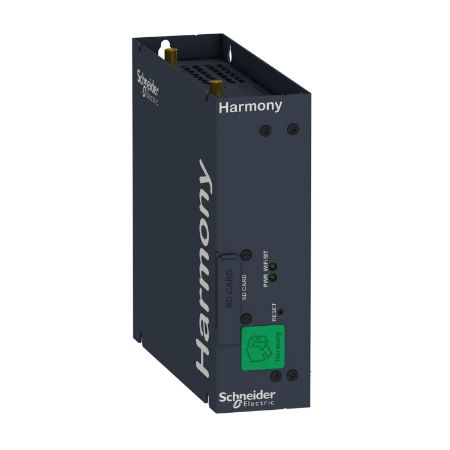

IIoT Edge Box Core, Harmony iPC, eMMC DC Linux

Please Contact Sales to buy this Product. click here
IIoT Edge Box Core, Harmony iPC, eMMC DC Linux
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 11-Apr-2025
User guide
Product environmental
End of life manual
Declaration of conformity
Product Page Link
Product Data Sheet

Products specifications

Attribute nameAttribute value
Main
Operating systemLinux Yocto (Linux Kernel 4.4.38), Linux Yocto (BitBake branch 1.30.0), Linux Yocto (Linux Yocto project Krogoth 2.1)
Device short nameIIoT Edge Box Core
Processor nameARM Cortex-A53 quad core 1.2 GHz Qualcomm Snapdragon 410
Software packageNode-RED and system nodes default IIoT Wiring
Range of productHarmony iPC
Range compatibilityHMIYBIN2AIM21 Interface M.2 2x Analog Input 0-10V/4-20mA, HMIYMIN8AI1 Interface Mini PCIe 8x Analog Input 0-10V, HMIYMIN4GEU1 Interface Mini PCIe 4G EU for iPC, HMIYMIN4GUS1 Interface Mini PCIe 4G US for iPC
Accessory / separate part destinationCelullar 4G and analog Inputs
Product or component typeIIoT Edge Box Core
Complementary
Data storage equipment8 GB eMMC (soldered)
Type of coolingfanless
Display resolution1920 x 1080 pixels at 60 Hz
Number of slots available for expansion1.0 slot(s) for M.2 (not for storage), 1.0 slot(s) for mini PCIe
Free slots1 SD card SD 3.0, max raw transfer rate 104 MBps . Supports SD,SDHC,SDXC (Standard 32 mm x 24 mm)
Supply voltage limits12-24 V
Depth46 mm
Watchdog timer1-255 ms
Control typeresettable
Height150 mm
Electrical connectionconnector, connector type: SMA - location: top, screw connector, connector type: pin, 1 way, circuit application: ground - location: bottom
Width157 mm
Communication network type1.0 WCN3620 Bluetooth 4.1, 1.0 WCN3620 Wi-Fi 2.4 GHz conforming to IEEE 802.11 b/g/n
Integrated connection typeTPM connector Ver 2.0 for cyber security - hardware encryption TPM module HMIYMINATPM201 to be installed/default installed on motherboard, USB 2.0 port with 2.0 USB type A, transmission rate: 480 Mbit/s on bottom, COM1 serial link for battery backup with 1 male SUB-D 9 RS232/422/485 non-isolated, Ethernet with 2 RJ45 SMSC LAN7500, transmission rate: 10/100/1000 Mbps on bottom IEEE 1588 not supported, HDMI for For configuration only with 1 on bottom
Memory description1 GB RAM LPDDR3 internal (not expandable)
Mounting locationwall mounting, flat mounting, book mounting
Net weight1 kg
Main typeIIoT Edge Box Core
Cyber secured bootSecure password boot
Number of slots1 slot(s) for M.2 not for storage, , 1 slot(s) for mini PCI Express full-size with optional interface plate,
Connector type1.0 GPIO Pin, 8 pins bottom(Software utility provided)
Inrush current0.43 A
[Us] rated supply voltage100...240 V AC power supply, 24 V DC power supply
Power consumption in W16 W
Environment
Relative humidity10-95 % non-condensing conforming to EN/IEC 60068-2-30
Ambient air temperature for storage-20-60 °C conforming to IEC 60068-2-14, -20-60 °C conforming to IEC 60068-2-2
Directives2006/95/EC - low voltage directive, 2004/108/EC - electromagnetic compatibility
IP degree of protectionIP40 conforming to IEC 60529
Electromagnetic compatibilityconducted and radiated emissions class A conforming to EN 55022, disturbing field emission class A conforming to EN 55011, immunity to high frequency interference conforming to IEC 61000-4
Product certificationsANATEL, FAC, TELEC, SRRC, IC, FCC RF, RED, EAC, RCM, CCC, UL 60950 for IT equipments, cULus, CE
StandardsUL 60950,  FCC part 15, EN 61131-2, EN 61000-6-4, class A group 1 EN 55011
Ambient air temperature for operation0-45 °C flat mounting on mini PCIe, 0-45 °C on mini PCIe, 0-50 °C flat mounting, 0-50 °C (by default) conforming to EN/IEC 60068-2-2
Operating altitude2000 m conforming to EN/IEC 60664-1
Quality labelsCE
Vibration resistance2 gn (f = 5-500 Hz) eMMC
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height8.5 cm
Package 1 Width22 cm
Package 1 Length32 cm
Package 1 Weight1.364 kg
Unit Type of Package 22
Number of Units in Package 26
Package 2 Height30 cm
Package 2 Width40 cm
Package 2 Length60 cm
Package 2 Weight8.9 kg
Unit Type of Package 33
Number of Units in Package 372
Package 3 Height80 cm
Package 3 Width105 cm
Package 3 Length125 cm
Package 3 Weight123.208 kg
