HMIG3U

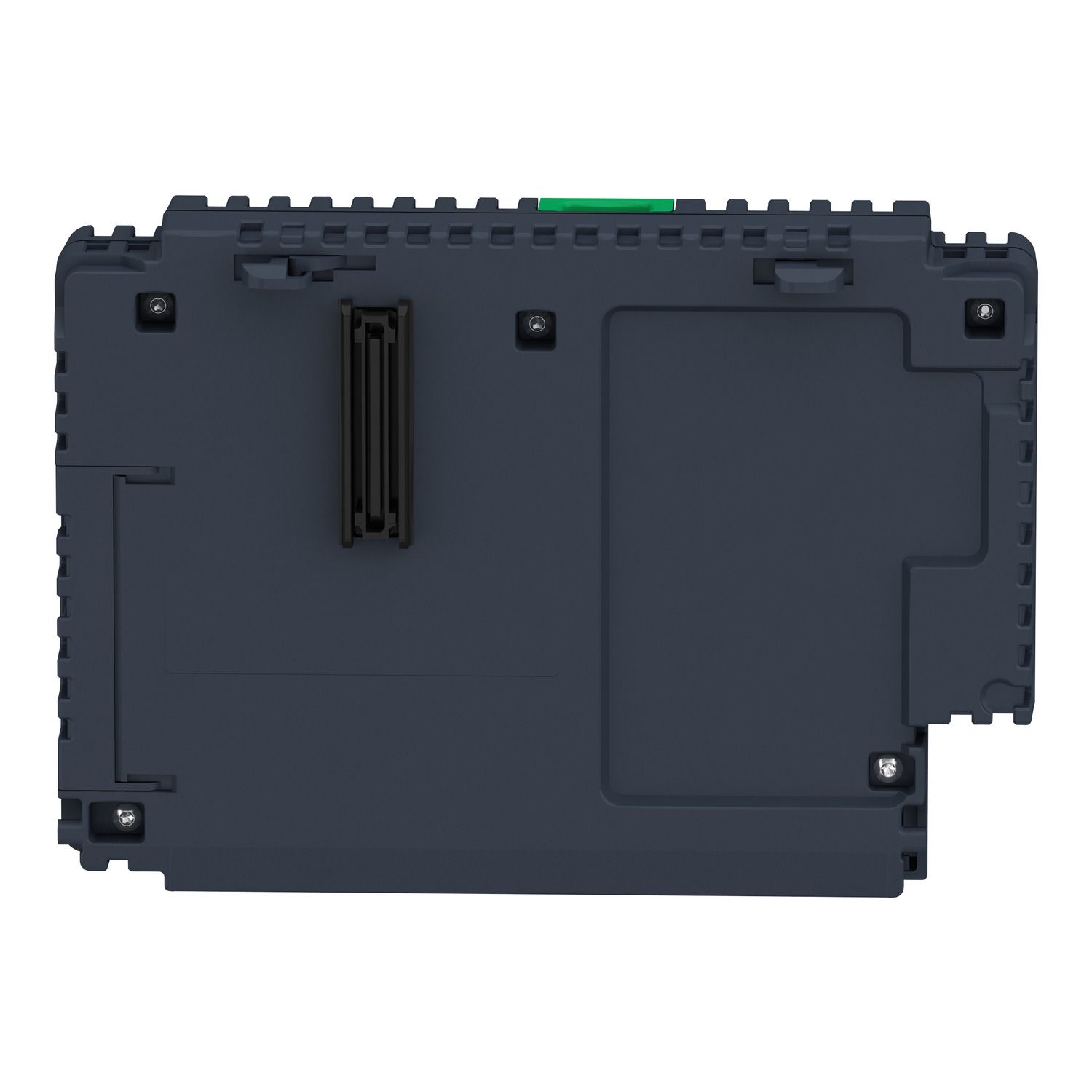

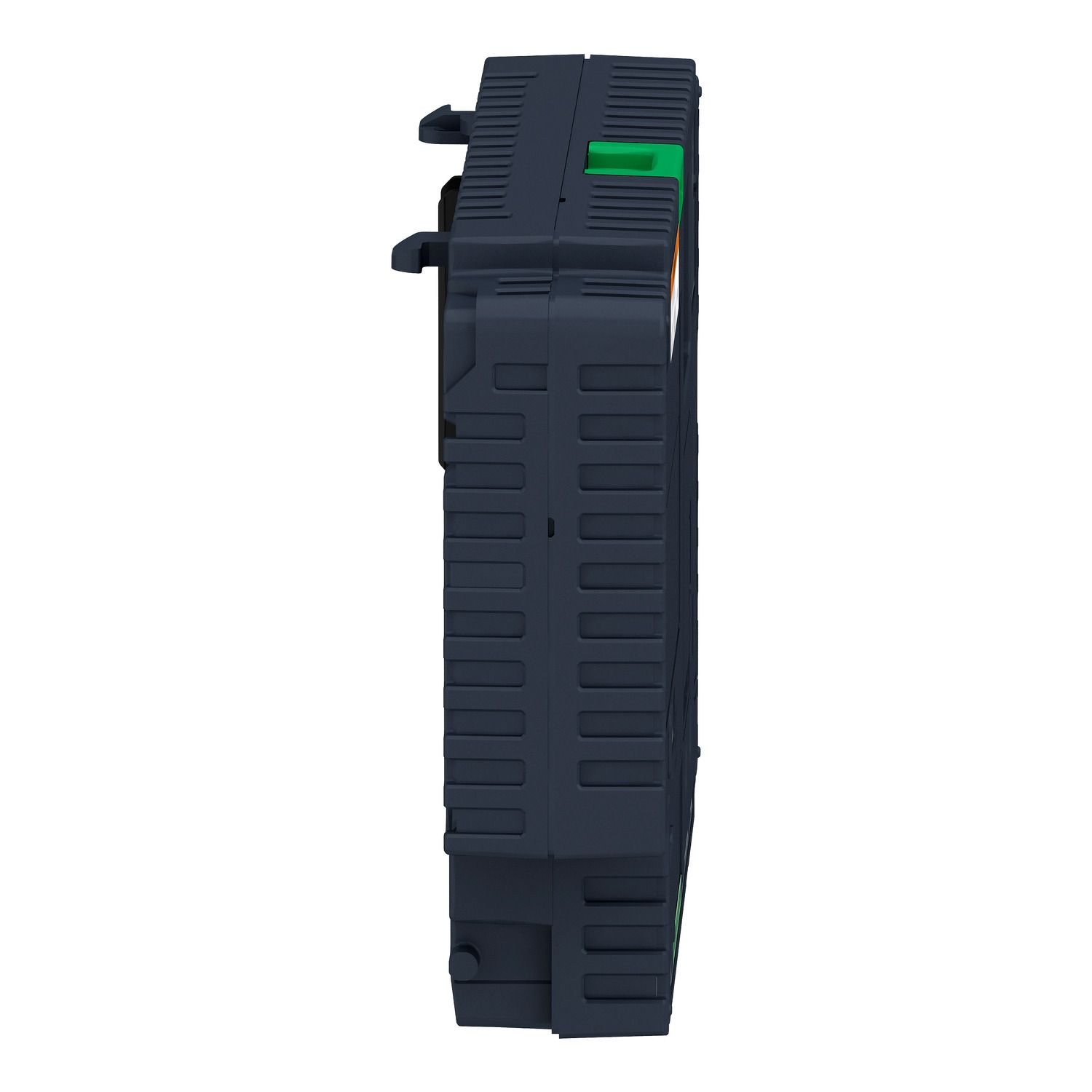

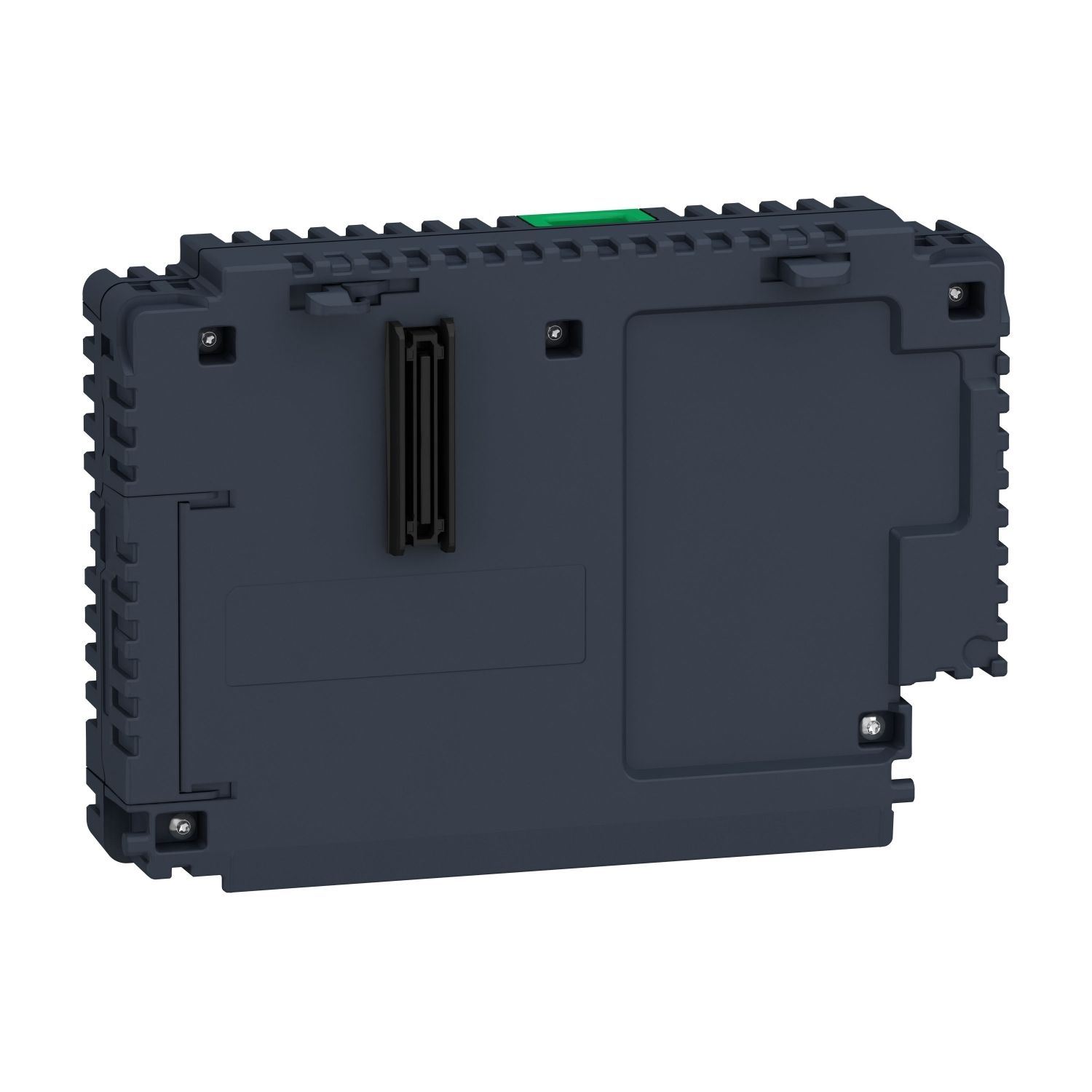

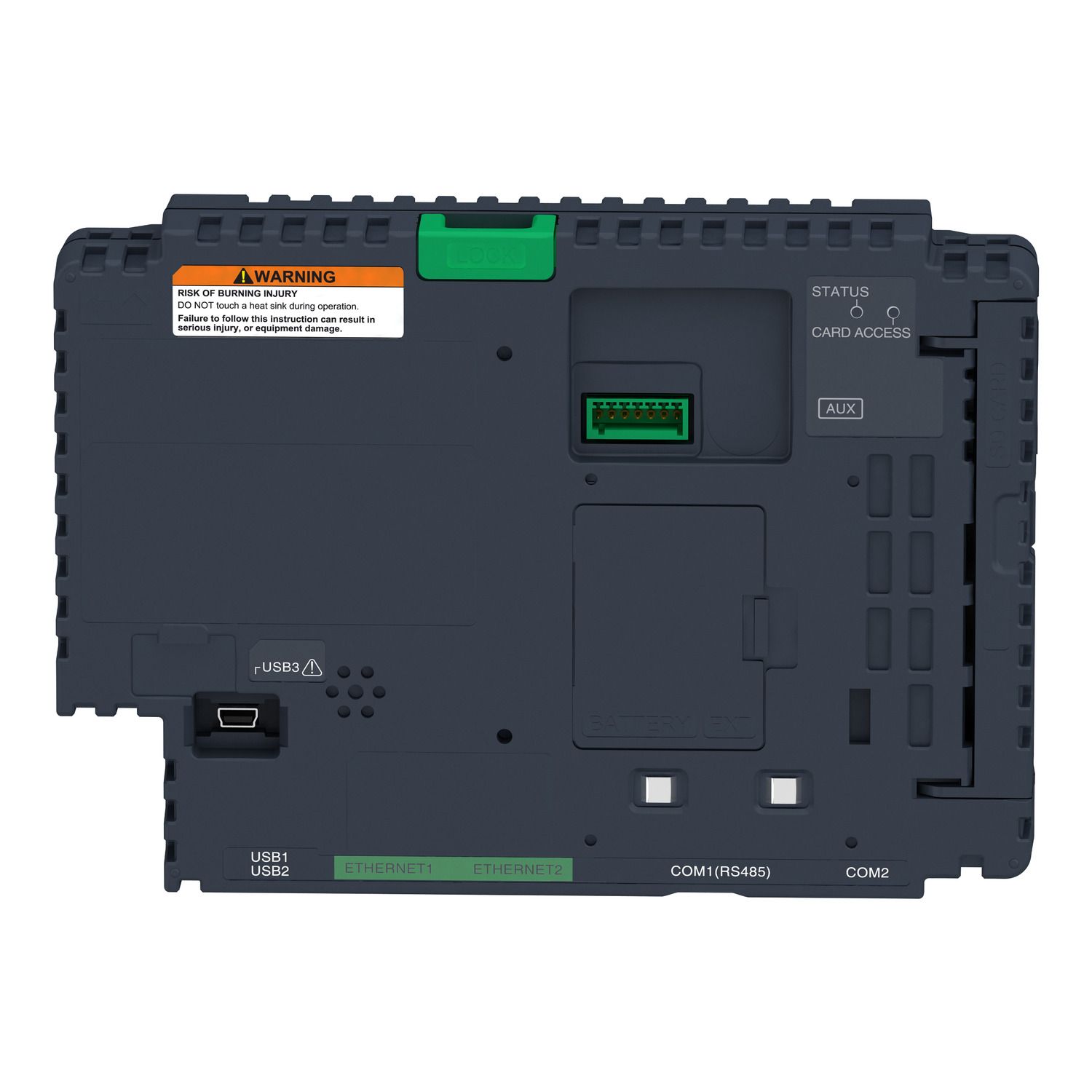

base unit, Harmony GTU, premium box, 1GB SD card

$2,128.14 INC GST

Qty:

Available for Shipping : 29-Jan-2025

Product Selector

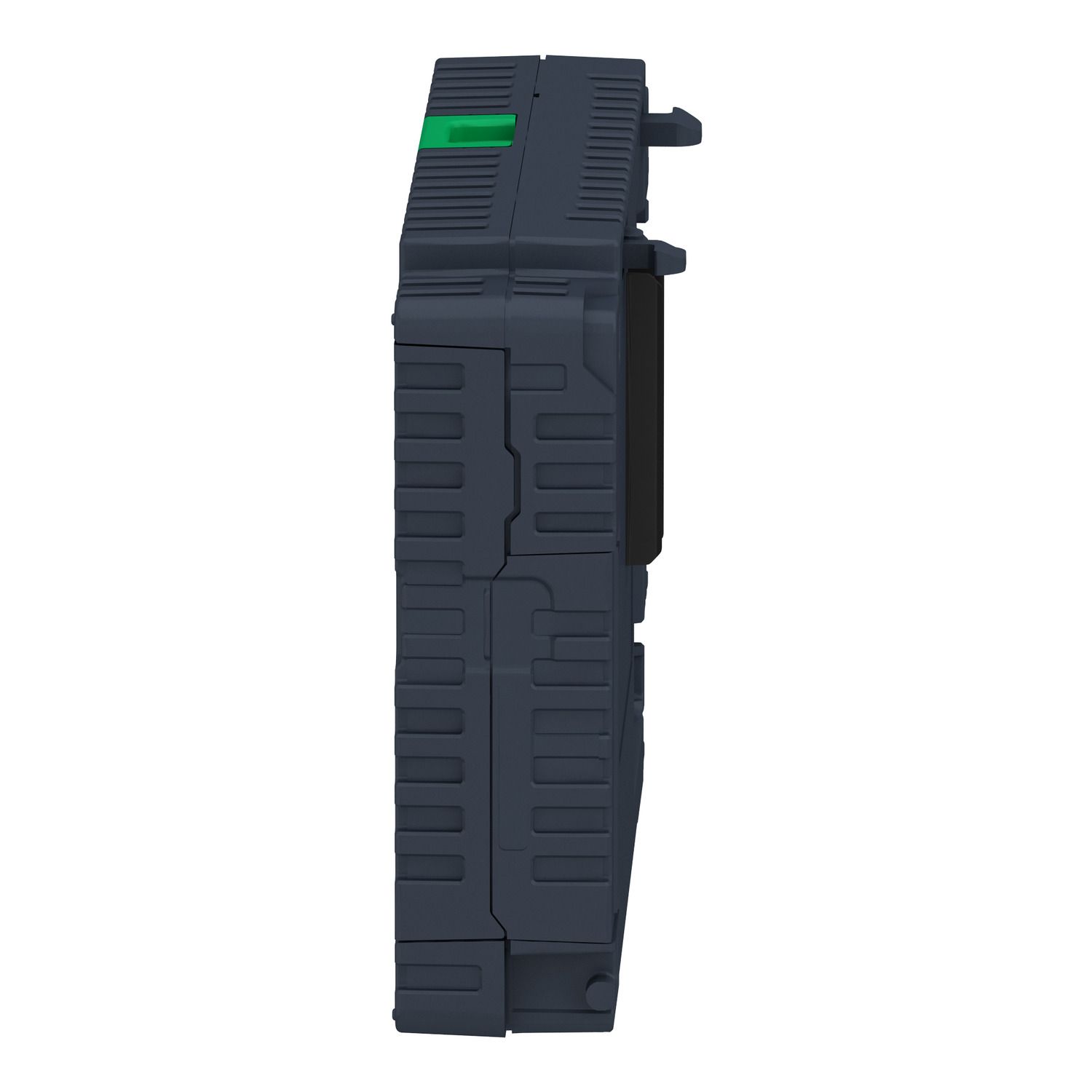

base unit, Harmony GTU, premium box, 1GB SD card

Be the first to review this product

Manufacturer: Schneider Electric

Brochure

Quick start guide

User guide

Declaration of conformity

Product environmental

End of life manual

Instruction sheet

Catalogue

Product Page Link

Product Data Sheet

This Magelis GTU premium box module has 256MB of RAM, a RISC CPU, 2 SD card slots, including a 1GB pre-installed card. It also has 2 host + 1 mini-B USB ports, 1 RS232C/RS422/RS485 port, 1 RS485 port and 1 Ethernet TCP/IP port. This universal premium box is designed for building advanced HMI systems together with Magellis universal GTU panels. It also offers a LED power indicator and a lock button to attach the box module and display. It has high performance RISC CPU for low latency display and automation. Its RS485 and Ethernet ports, ideal to supervise and control complex systems and machines.

Products specifications

Attribute name	Attribute value
Main
Device short name	Premium Box
Range of product	Harmony GTU
Range compatibility	Harmony GTU
Product or component type	base unit
[Us] rated supply voltage	12...24 V DC power supply
Complementary
Operating system	Harmony
Data storage equipment	1 GB SD card
Type of cooling	natural convection
Processor name	CPU RISC 600 MHz
Depth	45 mm
Communication port protocol	Uni-Telway, Modbus TCP/IP, Modbus
Software package	Vijeo Designer run time
Height	131 mm
Width	188 mm
Port Ethernet	10BASE-T/100BASE-TX/1000BASE-T
Integrated connection type	USB 2.0 port mini B USB, USB 2.0 port with 2 USB type A, expansion unit fieldbus card, auxiliary port terminal block, COM2 serial link SUB-D 9 RS232C/RS422/RS485, transmission rate: 187.5 kbit/s, COM2 serial link SUB-D 9 RS232C/RS422/RS485, transmission rate: 110...115200 bit/s, COM1 serial link RJ45 RS485, transmission rate: 187.5 kbit/s, COM1 serial link RJ45 RS485, transmission rate: 110...115200 bit/s, Ethernet TCP/IP with 2 RJ45
Memory description	512 KB NVRAM backup memory, 256 MB RAM internal (2 x 13 mm board)
Net weight	0.9 kg
Environment
Relative humidity	10-90 % non-condensing
Ambient air temperature for storage	-20-60 °C
Pollution degree	2 conforming to IEC 61131-2 ed.3
Electromagnetic compatibility	electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
Product certifications	UKEX, UKCA, RINA, LR, DNV, CCS, BV, ABS, EAC, cUL, KC, GL, RCM, IEC-Ex, ATEX, cULus, CE
Standards	IEC 61132-2, class I division 2 CSA C22.2 No 213, UL 508, ANSI/ISA 12-12-01, CSA C22.2 No 142
Ambient air temperature for operation	0-60 °C
Operating altitude	2000 m
Vibration resistance	9.8 m/s² (f = 9-150 Hz) conforming to IEC 61131-2, 3.5 mm constant amplitude (f = 5-9 Hz) conforming to IEC 61131-2
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	14.267 cm
Package 1 Width	21.441 cm
Package 1 Length	26.48 cm
Package 1 Weight	1.26 kg
Unit Type of Package 2	2
Number of Units in Package 2	4
Package 2 Height	30 cm
Package 2 Width	40 cm
Package 2 Length	60 cm
Package 2 Weight	5762 g
Unit Type of Package 3	3
Number of Units in Package 3	48
Package 3 Height	95 cm
Package 3 Width	80 cm
Package 3 Length	120 cm
Package 3 Weight	78144 g
