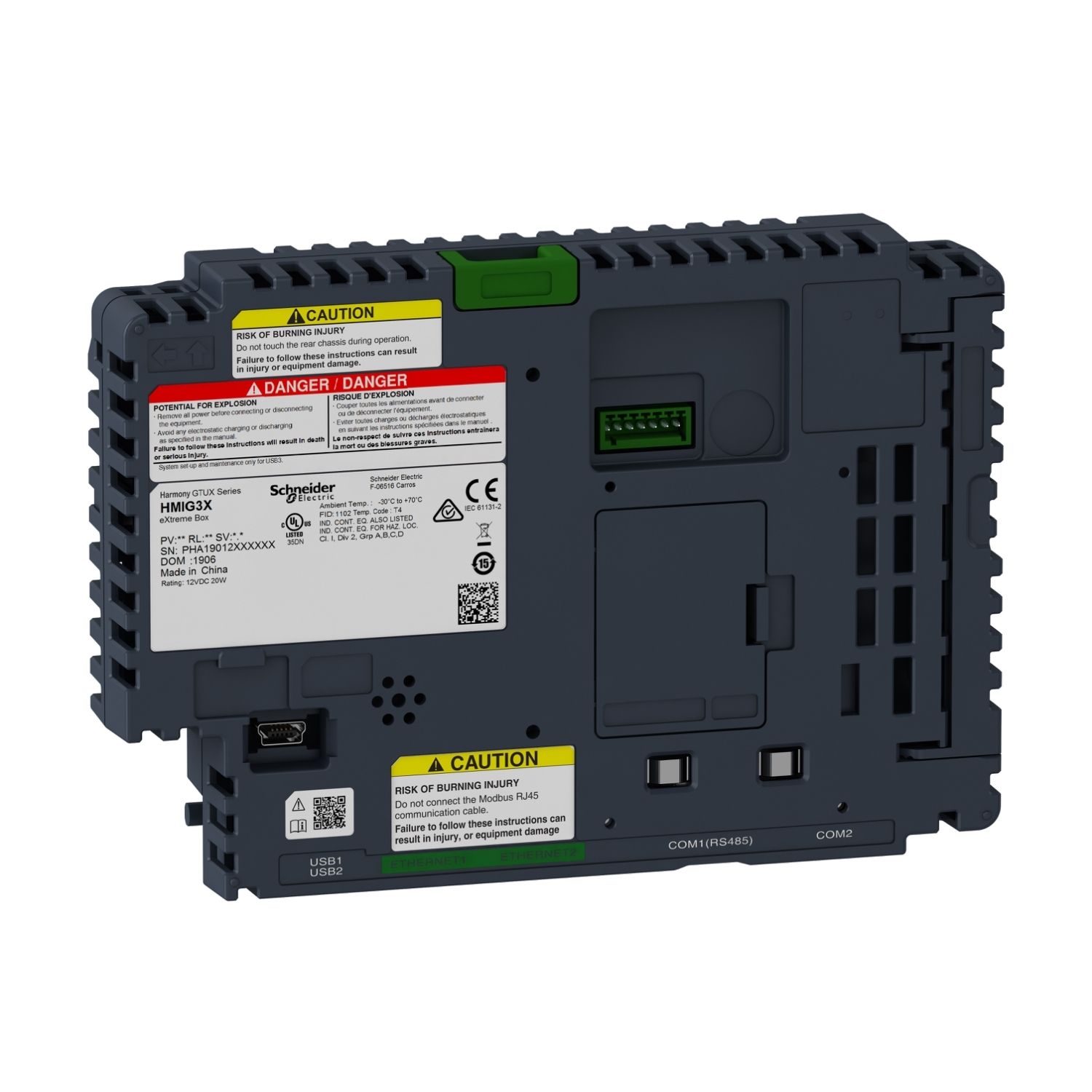

Picture of Base unit, Harmony GTUX, Serie eXtreme Box Outdoor use, Rugged, Coated
SKU:

HMIG3X

Base unit, Harmony GTUX, Serie eXtreme Box Outdoor use, Rugged, Coated

$2,326.58
Available for Shipping : 24-Nov-2024
Base unit, Harmony GTUX, Serie eXtreme Box Outdoor use, Rugged, Coated
  • Modularly designed robust terminal suitable for harsh outdoor environments
  • High brightness and UV protection to direct sunlight
  • Protection against water and dust, and supports a wide range of temperatures
  • Ideal choice for direct outdoor operation in O&G, WWW, and MMM segments
  • Enhanced asset performance for more efficient operation and maintenance of capital assets
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Quick start guide
Product environmental
Catalogue
Instruction sheet
Declaration of conformity
End of life manual
Product Page Link
Product Data Sheet
This product is part of the Harmony GTUX range, an offer of eXtreme Box modules. These eXtreme outdoor Box modules are a high-performance range of HMIs that are ideal for harsh outdoor environments. It is designed with backup memory of NVRAM 512kB, system memory of 1GB, and internal RAM of 256MB. It offers atmospheric resistance with partial conformal coating. It comes with 2x Ethernet TCP/IP protocol and can operate between temperature range of -30 to 70 °C. This product works at a power consumption of 29W and a rated voltage from 12V to 24V DC. Its dimensions are 188mm (width) x 131mm (height) x 45mm (depth) and weighs 0.9 kg. It is compatible with HMIDT35X, HMIDT65X, HMIDT75X displays. It is CE certified and conforms to UL 61010, UL 121201, CSA C22.2 No 213, CSA C22.2 No 61010-1, IEC 61132-2 standards. Harmony GTUX provides powerful visualization and control in extreme environment fully integrated into EcoStruxure Machine Expert software.

Products specifications

Attribute name Attribute value
Main
Device short name eXtreme Box
Range of product Harmony GTUX
Product or component type base unit
[Us] rated supply voltage 12 V DC power supply
Power consumption in W 20.0 W
Complementary
Operating system Harmony
Data storage equipment 1 GB SD card
Type of cooling natural convection
Processor name CPU RISC 600 MHz
Software package EcoStruxure Operator Terminal Expert, Vijeo Designer run time
Height 131 mm
Depth 45 mm
Width 188 mm
Integrated connection type USB 2.0 port mini B USB, USB 2.0 port with 2 USB type A, expansion unit fieldbus card, auxiliary port terminal block, COM2 serial link SUB-D 9 RS232C/RS422/RS485, transmission rate: 187.5 kbit/s, COM2 serial link SUB-D 9 RS232C/RS422/RS485, transmission rate: 110...115200 bit/s, COM1 serial link RJ45 RS485, transmission rate: 187.5 kbit/s, COM1 serial link RJ45 RS485, transmission rate: 110...115200 bit/s, Ethernet TCP/IP with 2 RJ45 10 BASE-T/100 BASE-TX/1000 BASE-T
Communication port protocol Uni-Telway, Modbus serial, Modbus TCP/IP
Memory description 512 KB NVRAM backup memory, 256 MB RAM internal (2 x 13 mm board)
Net weight 0.9 kg
Number of slots 2 slot(s) for SD card
Environment
Resistance to fast transients 2 kV (power ports) conforming to IEC 61000-4-4, 1 kV (signal ports) conforming to IEC 61000-4-4
Resistance to electrostatic discharge 8 kV air discharge conforming to EN/IEC 61000-4-2 level 3, 6 kV contact discharge conforming to EN/IEC 61000-4-2 level 3
Relative humidity 10-90 % non-condensing
Environmental characteristic corrosive gas free
Ambient air temperature for storage -30-70 °C
Pollution degree 2 conforming to EN 61131-2 Ed.3
Electromagnetic compatibility electrostatic discharge immunity test conforming to EN/IEC 61000-4-2 level 3
Standards IEC 61132-2,  CSA C22.2 No 61010-1, CSA C22.2 No 213, UL 121201,  UL 61010
Ambient air temperature for operation -30-70 °C
Operating altitude 2000 m
Vibration resistance 19.6 m/s² (f = 9-150 Hz) conforming to EN/IEC 61131-2, 7 mm (f = 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to EN/IEC 61131-2
Shock resistance 392 m/s² (X, Y, Z directions for 3 times) conforming to EN/IEC 61131-2
Product certifications UKEX, UKCA, CSA, UL, IEC-Ex, ATEX zone 2/22, EAC, RCM, KC, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.1 cm
Package 1 Width 21 cm
Package 1 Length 26 cm
Package 1 Weight 1214.5 g
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 30 cm
Package 2 Width 40 cm
Package 2 Length 60 cm
Package 2 Weight 5762 g
Unit Type of Package 3 3
Number of Units in Package 3 48
Package 3 Height 80 cm
Package 3 Width 120 cm
Package 3 Length 110 cm
Package 3 Weight 78144 g
