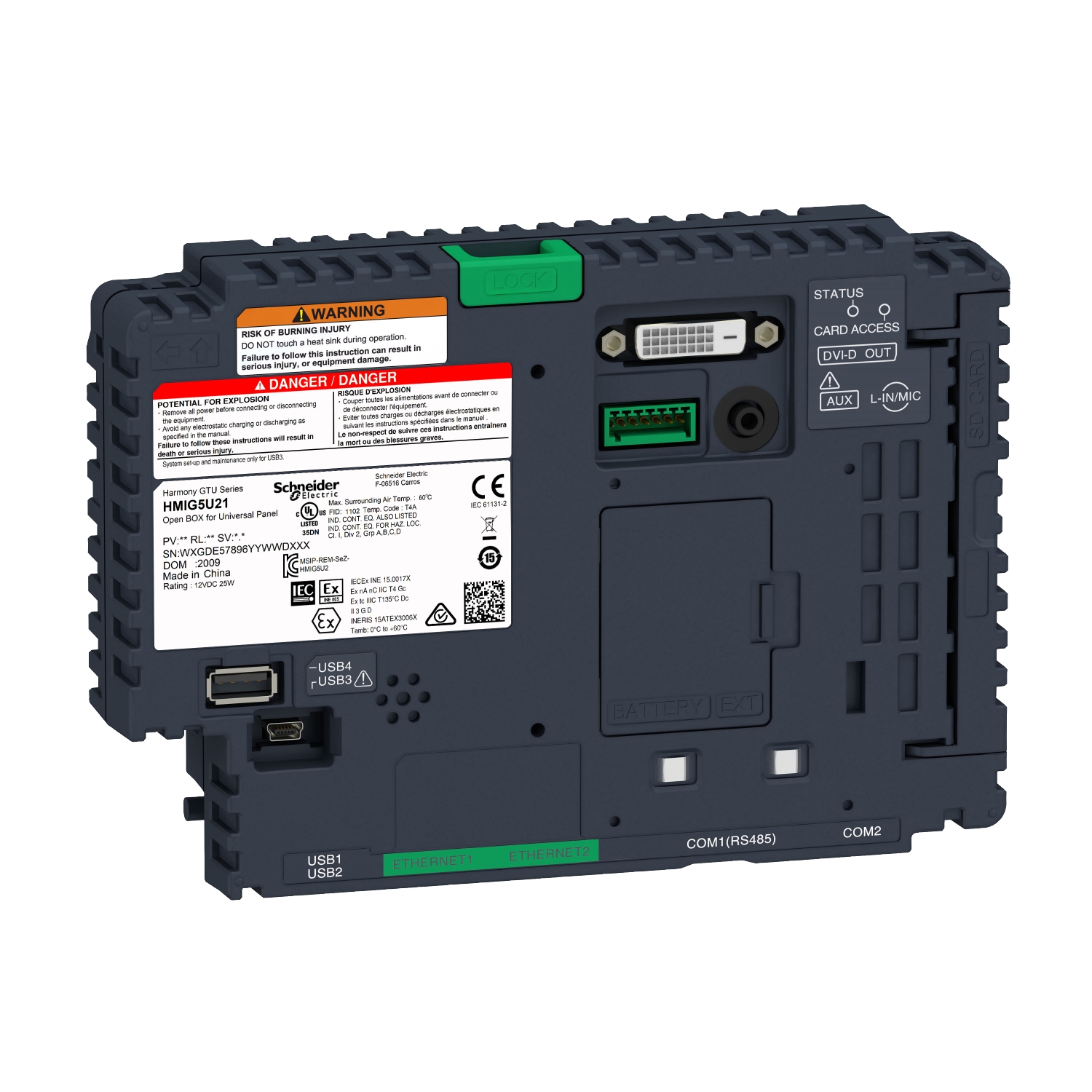

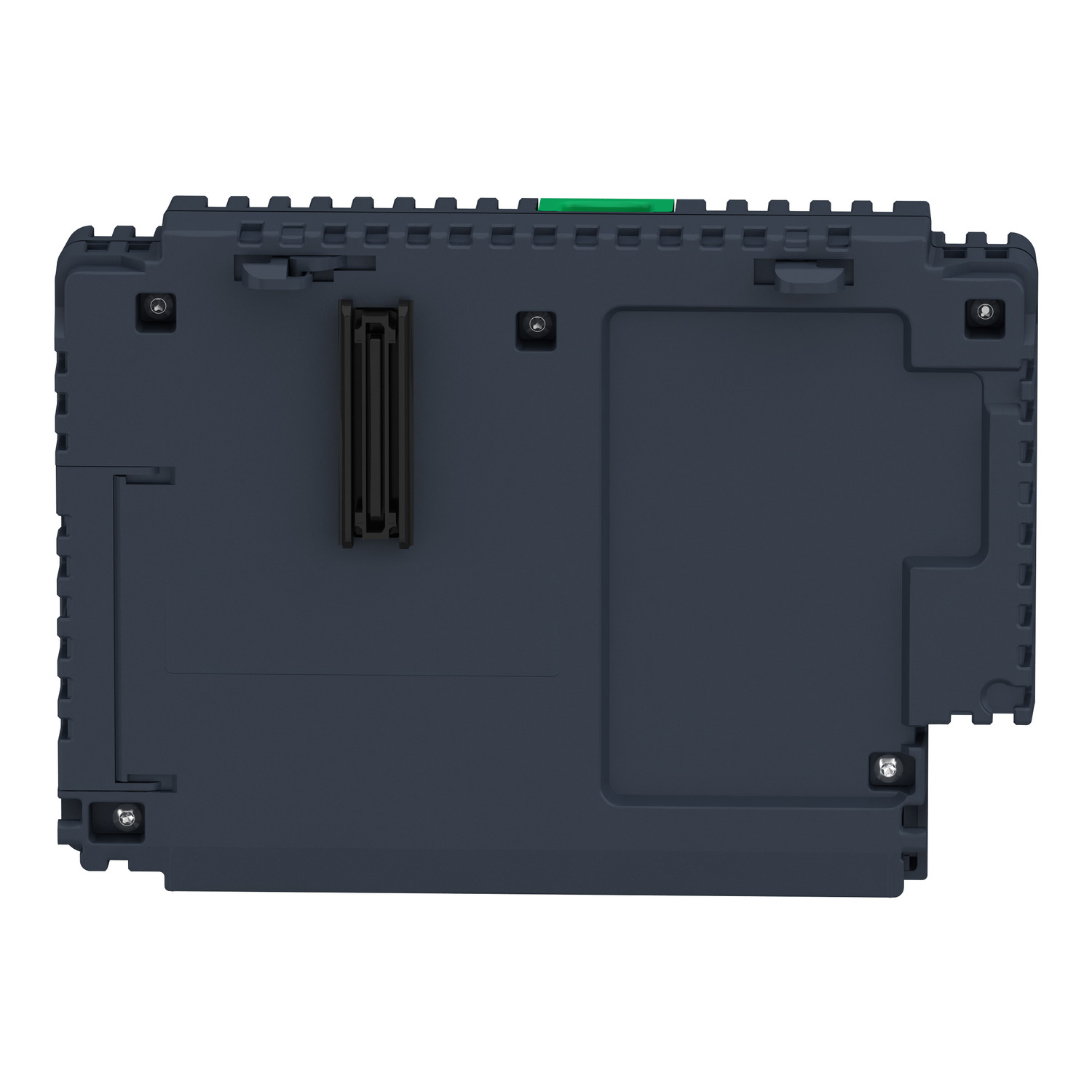

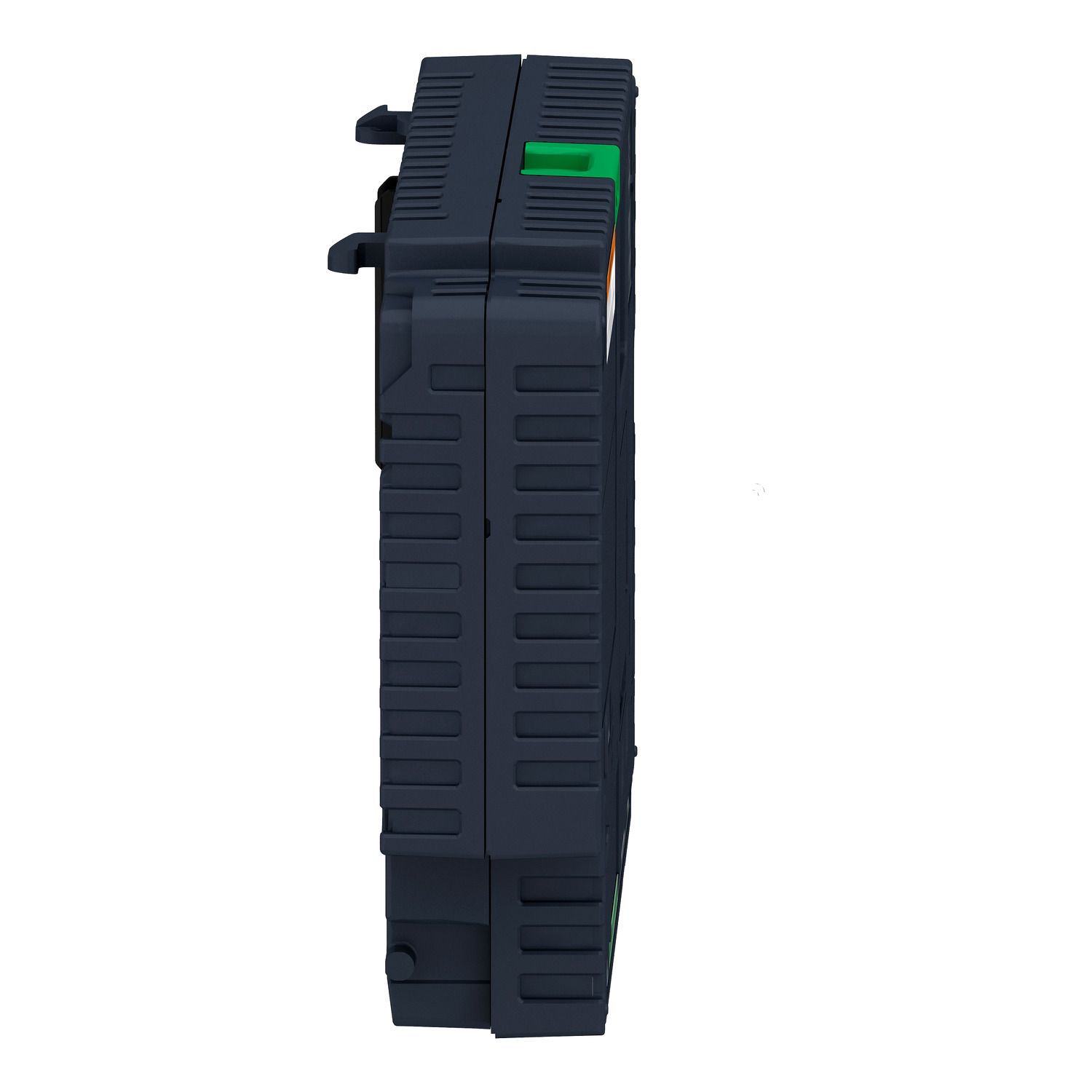

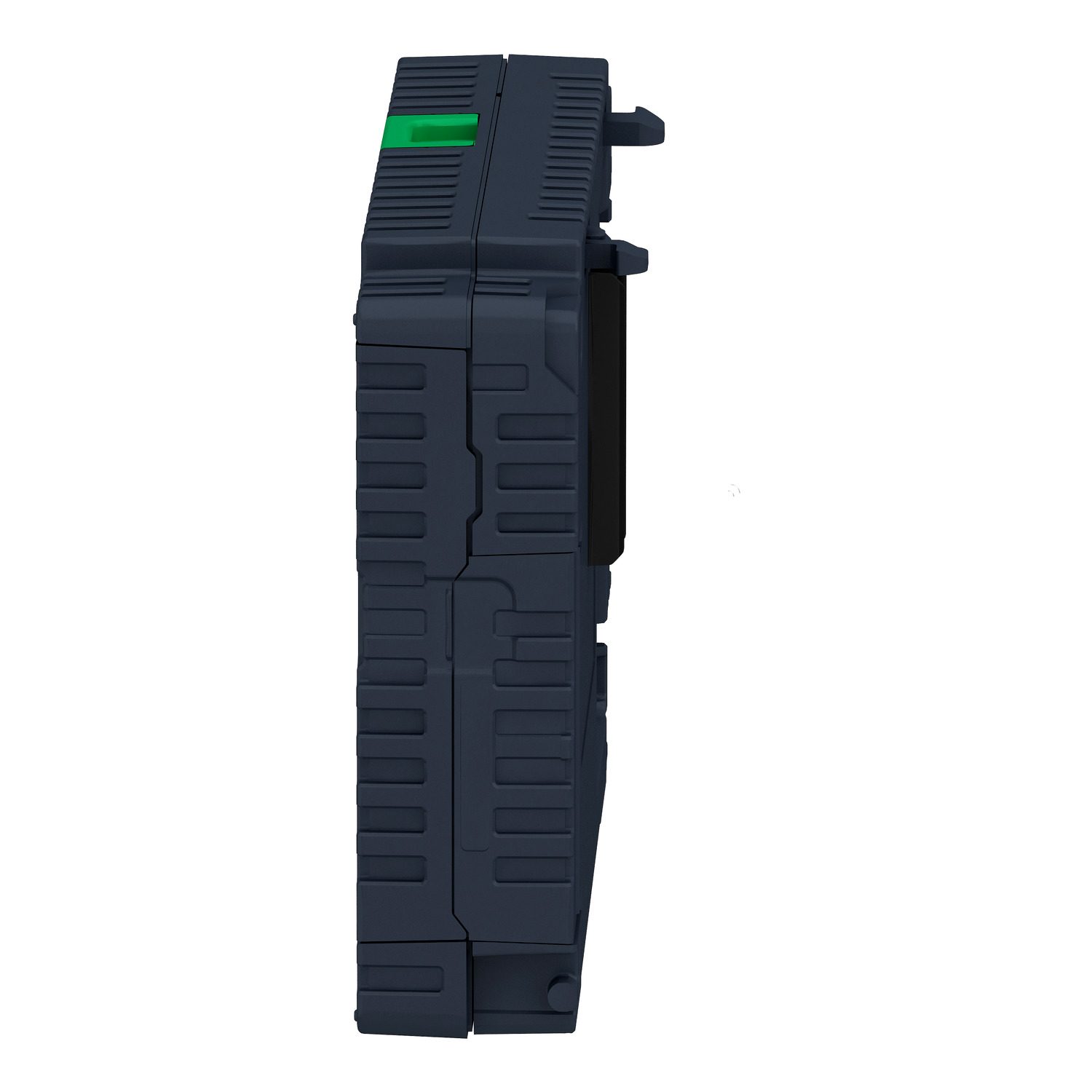

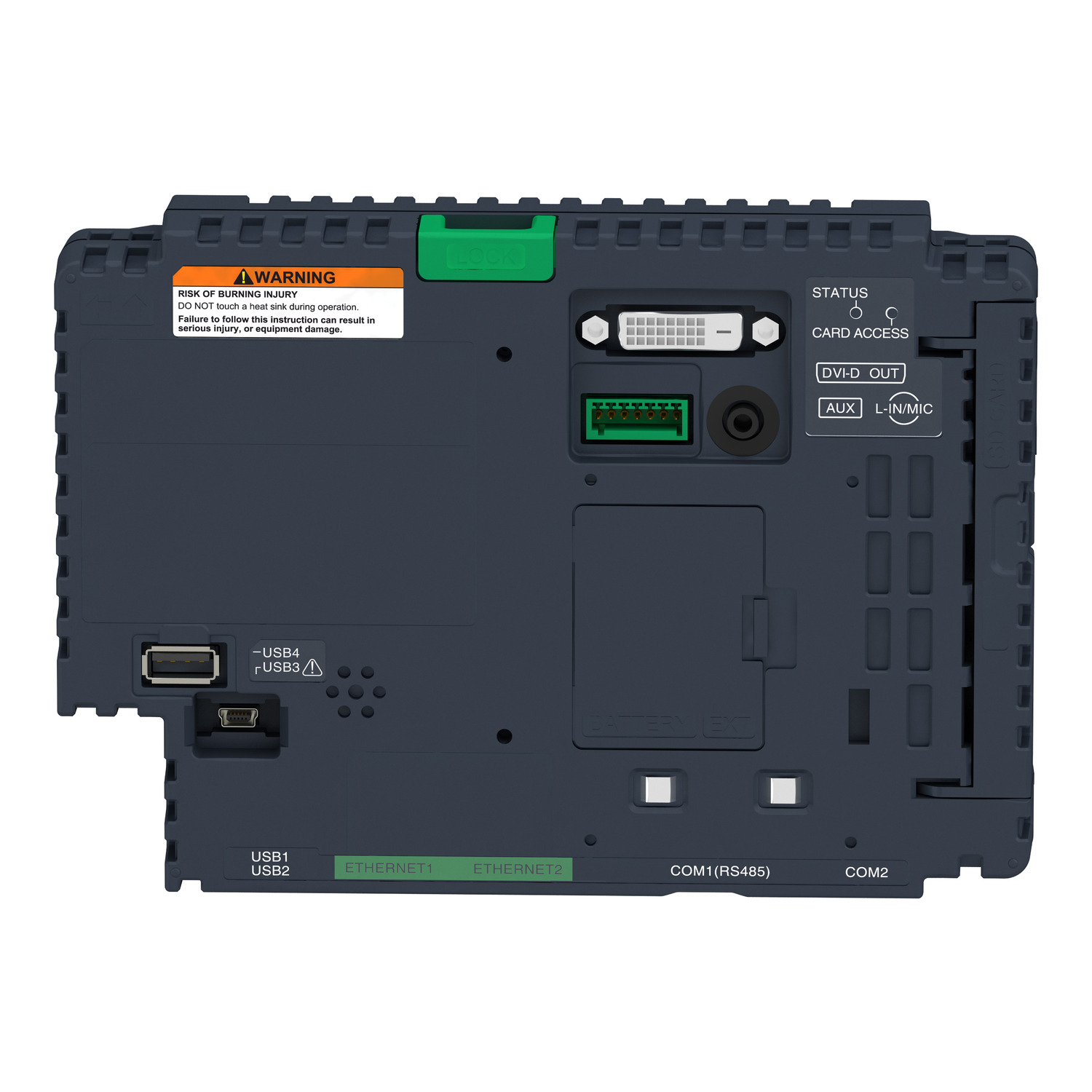

Picture of base unit, Harmony GTU, Open BOX Windows 10, Universal Panel, without HMI software installed
SKU:

HMIG5U21

base unit, Harmony GTU, Open BOX Windows 10, Universal Panel, without HMI software installed

Please Contact Sales to buy this Product. click here
Product Selector
base unit, Harmony GTU, Open BOX Windows 10, Universal Panel, without HMI software installed
  • Pre-installed with Windows 10 IoT Enterprise 32-bit
  • Supports Internet Explorer V11.0 Web browser, Edge Web browser, Windows Media Player, Framework.Net 4
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 07-Nov-2024
User guide
Quick start guide
Declaration of conformity
Product environmental
End of life manual
Catalogue
Product Page Link
Product Data Sheet
This product is part of the Harmony GTU range, an offer of High performance IoT-ready modular HMI panels from 7 inch to 19 inch (Width) screen. The open box features Intel X86 1.33GHz processor and 32GB CFast card data storage, suits for universal panel. It is designed with backup memory of NVRAM 512kB and internal memory of RAM 4GB. This open box supports Windows 10 IoT Enterprise 2019 LTSC 32bit operating system. It is equipped with 10BASE-T/100BASE-TX/1000BASE-T Ethernet port. Communication port protocols are Modbus, Modbus TCP/IP and Uni-Telway. Its dimensions are 188mm (width) x 45mm (depth) x 131mm (height) and weighs 0.9kg. This product is not installed with HMI software. This product is certified by ATEX, IECEx, CE, CULus, IEC, CUL, DNV-GL, RCM and EAC. It meets CSA C22.2 No 142, ANSI/ISA 12-12-01, UL 508, Class I division 2 CSA C22.2 No 213 and IEC 61132-2 standards. Harmony GTU (formerly known as Magelis GTU) are universal panels that include smartphone-like interface and Wireless technology. They offer unmatched comfort of use with no compromise on performance and openness.

Products specifications

Attribute nameAttribute value
Main
Device short nameOpen Box
Range of productHarmony GTU
Range compatibilityHarmony GTU
Product or component typebase unit
[Us] rated supply voltage12...24 V DC power supply
Complementary
Operating systemWindows 10 IoT Enterprise 32bit
Data storage equipment32 GB CFast card
Type of coolingnatural convection
Realtime clockbuilt-in
Processor nameIntel X86 1.33 GHz
Depth45 mm
Communication port protocolUni-Telway, Modbus TCP/IP, Modbus
Software packagemultimedia player, .NET framework 4.0, Internet Explorer
Height131 mm
Width188 mm
Port Ethernet10BASE-T/100BASE-TX/1000BASE-T
Integrated connection typeUSB 2.0 port with 3 USB type A, microphone mini-jack, DVI-D video port DVI-D, USB 2.0 port mini B USB, auxiliary port terminal block, COM2 serial link SUB-D 9 RS232C/RS422/RS485, transmission rate: 110...115200 bit/s, COM1 serial link RJ45 RS485, transmission rate: 110...115200 bit/s, Ethernet TCP/IP with 2 RJ45
Memory description4 GB RAM internal, 512 KB NVRAM backup memory
Local signallingLED, multi-colour for status
Net weight0.9 kg
Number of slots2 slot(s) for Cfast card, 1 slot(s) for SD card
Environment
Relative humidity10-90 % non-condensing
Ambient air temperature for storage-20-60 °C
Pollution degree2 conforming to EN 61131-2 Ed.3
Electromagnetic compatibilityelectrostatic discharge immunity test level 3 conforming to EN/IEC 61000-4-2
Product certificationsUKEX, UKCA, EAC, cUL, KC, DNV-GL, RCM, IEC-Ex, ATEX, cULus, CE
StandardsIEC 61132-2, class I division 2 CSA C22.2 No 213, UL 508, ANSI/ISA 12-12-01, CSA C22.2 No 142
Ambient air temperature for operation0-60 °C
Vibration resistance9.8 m/s² (f = 9-150 Hz) conforming to EN/IEC 61131-2
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height13.500 cm
Package 1 Width21.000 cm
Package 1 Length26.000 cm
Package 1 Weight1.215 kg
Unit Type of Package 22
Number of Units in Package 24
Package 2 Height30.000 cm
Package 2 Width40.000 cm
Package 2 Length60.000 cm
Package 2 Weight6.042 kg
Unit Type of Package 33
Number of Units in Package 316
Package 3 Height45.000 cm
Package 3 Width80.000 cm
Package 3 Length120.000 cm
Package 3 Weight36.168 kg
