SKU:

HMIGTO1300

advanced touchscreen panel, Harmony GTO, 320 x 240pixels QVGA, 3.5inch TFT, 64MB

$1,260.88

Qty:

Available for Shipping : 01-Jan-2025

Product Selector

advanced touchscreen panel, Harmony GTO, 320 x 240pixels QVGA, 3.5inch TFT, 64MB

Be the first to review this product

Manufacturer: Schneider Electric

Instruction sheet

CAD

Declaration of conformity

End of life manual

Product environmental

Catalogue

User guide

Product Page Link

Product Data Sheet

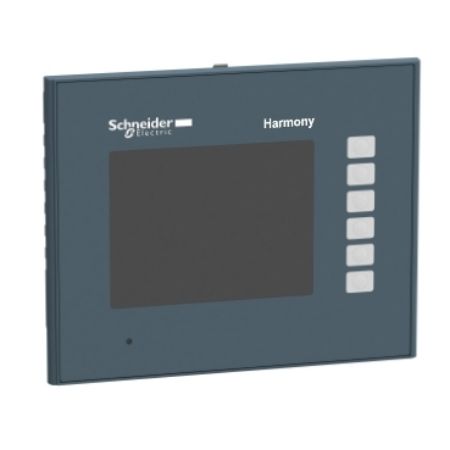

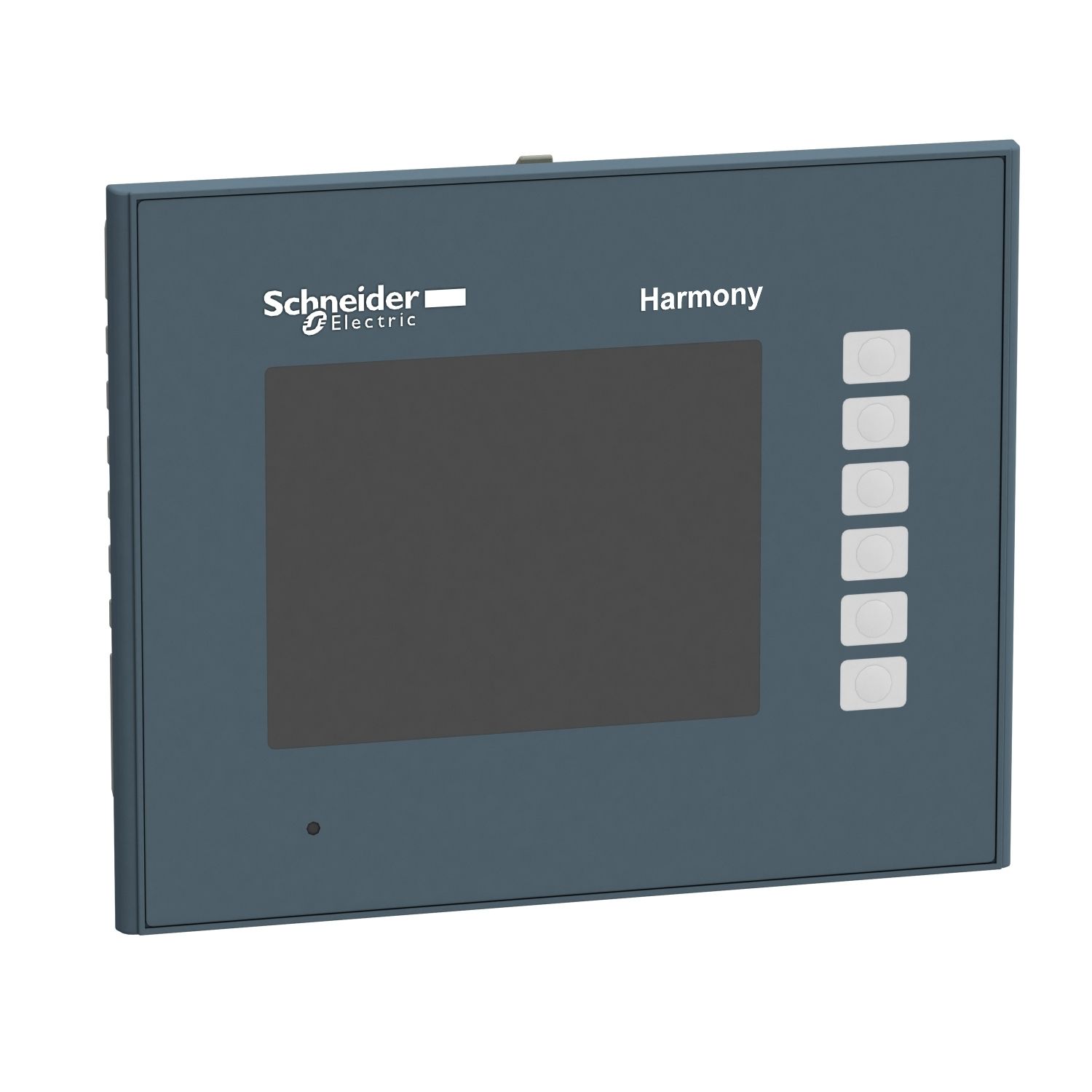

This Magelis GTO IP65 touchscreen operator interface (HMI) is supplied with 24V DC, has a 3.5" color TFT LCD display, 320 x 240 pixels (QVGA), 6 function keys and 64MB EPROM. It also has 1 host + 1 mini-B USB ports, 1 RS232C port and 1 RS485 port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. Its RS485 host port makes it ideal to supervise and control simple systems and machines. It is easily programmable with Vijeo Designer, with almost not coding needed.

Products specifications

Attribute name	Attribute value
Main
Display colour	65536 colours
Display size	3.5 inch
Range of product	Harmony GTO
Control button type	6 operation defined using Vijeo Designer push-button key F1...F6
Operating system	Harmony
Product or component type	advanced touchscreen panel
Battery type	lithium battery for internal RAM, autonomy: 100 days, charging time = 5 day(s), battery life = 10 year(s)
Supply	external source
Complementary
Memory description	flash EPROM, 64 MB
Character font	Taiwanese (traditional Chinese), Korean, Japanese (ANK, Kanji), ASCII (European characters), Chinese (simplified Chinese)
Downloadable protocols	Siemens Simatic third party protocols, Rockwell Automation Allen-Bradley third party protocols, Omron Sysmac third party protocols, Mitsubishi Melsec third party protocols, Schneider Electric Modicon FIPWAY, Schneider Electric Modicon Modbus Plus, Schneider Electric Modicon Uni-TE, Schneider Electric Modicon Modbus
Display type	backlit colour TFT LCD
Product mounting	flush mounting
Touch panel	resistive film, 1000000 cycles
Type of cooling	natural convection
Supply voltage limits	19.2-28.8 V
Backlight lifespan	50000 hours white at 25 °C
Fixing mode	by 4 screw clamps
Brightness	16 levels - control by software, 16 levels - control by touch panel
Software designation	Vijeo Designer configuration software >= V6.1
Touch sensitive zone	1024 x 1024
Height	106 mm
Data backed up	128 kB internal RAM (SRAM)
[Us] rated supply voltage	24 V DC
Maximum power consumption in W	9.6 W, 4.3 W when backlight is dimmed, 4.2 W when backlight is OFF, 5.2 W when power is not supplied to external devices
Depth	42 mm
Front material	PPT
Width	132 mm
Enclosure material	PPT
Integrated connection type	USB 2.0 type mini B, USB 2.0 type A, COM2 serial link RJ45, interface: RS485, transmission rate: 187.5 kbps compatible with Siemens MPI, COM2 serial link RJ45, interface: RS485, transmission rate: 2400...115200 bps, COM1 serial link SUB-D 9, interface: RS232C, transmission rate: 2400...115200 bps
Local signalling	status LED clear, faded for power supply (OFF), status LED red, steady for power supply (ON), status LED orange, flashing for software starting up, status LED green, steady for operating, status LED green, steady for offline
Net weight	0.4 kg
Terminal type	touchscreen display
Display resolution	320 x 240 pixels QVGA
Inrush current	30 A
Environment
Resistance to electrostatic discharge	6 kV contact discharge conforming to IEC 61000-4-2 level 3
Relative humidity	10-90 % without condensation
Ambient air temperature for storage	-20-60 °C
IP degree of protection	IP65 (front panel) conforming to IEC 60529, IP20 (rear panel) conforming to IEC 60529
Shock resistance	147 m/s² 3 chocks in each direction X, Y and Z conforming to IEC 61131-2
Ambient air temperature for operation	0-50 °C
Operating altitude	< 2000 m
NEMA degree of protection	NEMA 4X front panel (indoor use)
Vibration resistance	3.5 mm (f = 5-9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - conforming to IEC 61131-2, 9.8 m/s² (f = 9-150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - conforming to IEC 61131-2
Standards	IEC 61000-6-2, IEC 61131-2, UL 508
Product certifications	UKEX, UKCA, KCC, CE, cULus, C-Tick
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	12.500 cm
Package 1 Width	18.200 cm
Package 1 Length	21.500 cm
Package 1 Weight	707.000 g
Unit Type of Package 2	2
Number of Units in Package 2	4
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	3.670 kg
