SKU:

HMIGTO2315

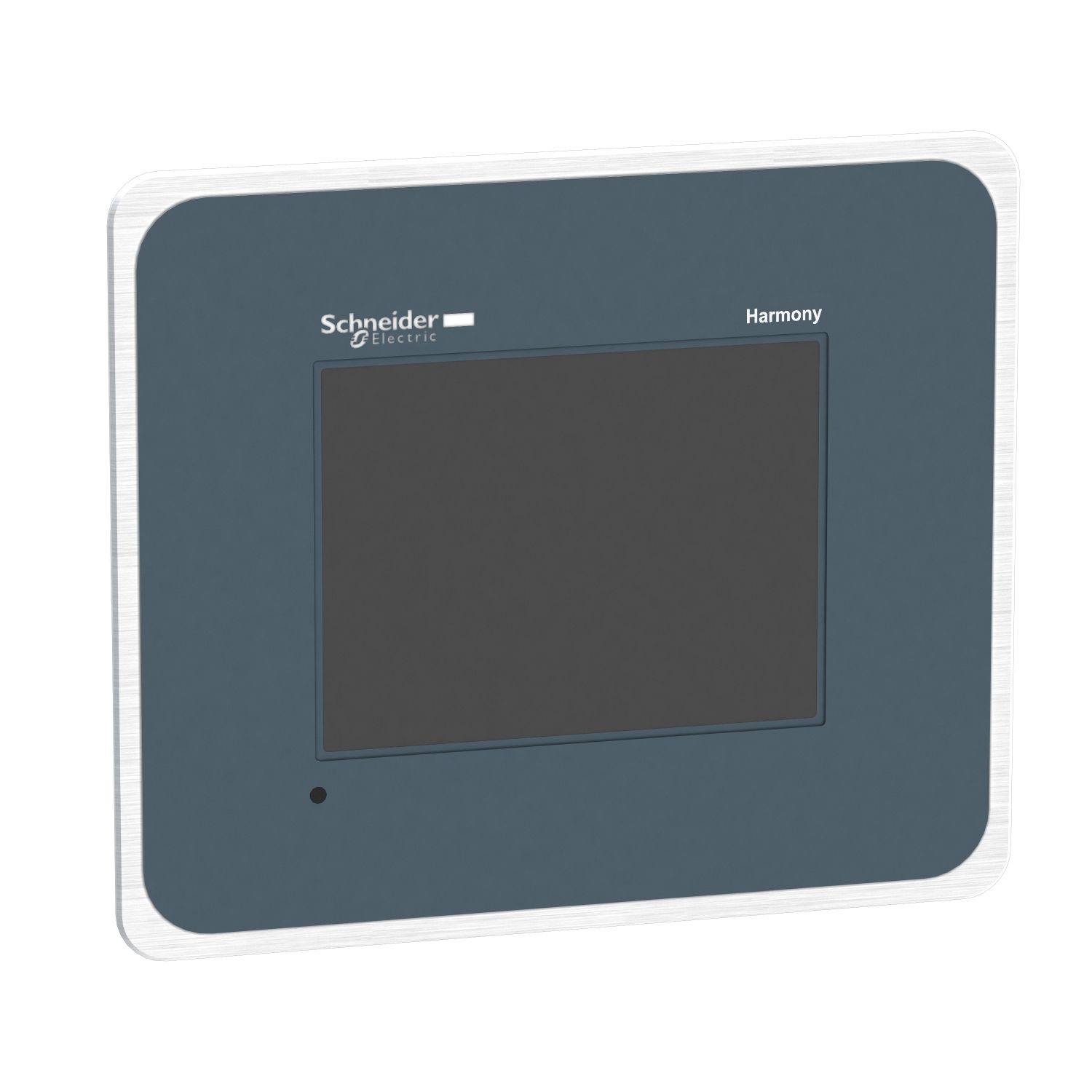

Advanced touchscreen panel, Harmony GTO, stainless 320 x 240 pixels QVGA, 5.7" TFT, 96 MB

$3,676.10 INC GST

Qty:

Available for Shipping : 26-Feb-2025

Product Selector

Advanced touchscreen panel, Harmony GTO, stainless 320 x 240 pixels QVGA, 5.7" TFT, 96 MB

Be the first to review this product

Manufacturer: Schneider Electric

Instruction sheet

End of life manual

User guide

CAD

Declaration of conformity

Product environmental

Catalogue

Product Page Link

Product Data Sheet

This Magelis GTO IP66K touchscreen operator interface (HMI) is supplied with 24V DC, has a 5.7" color TFT LCD display with a stainless steel frame, 320 x 240 pixels (QVGA) and 96MB EPROM. It also has 1 host + 1 mini-B USB ports, 1 RS232C port and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. Its RS485 host port makes it ideal to supervise and control simple systems and machines. It is easily programmable with Vijeo Designer, with almost not coding needed.

Products specifications

Attribute name	Attribute value
Main
Display colour	65536 colours
Provided equipment	1 protective cover
Display size	5.7 inch
Range of product	Harmony GTO
Operating system	Harmony
Product or component type	advanced touchscreen panel
Battery type	lithium battery for internal RAM, autonomy: 100 days, charging time = 5 day(s), battery life = 10 year(s)
Supply	external source
Complementary
Memory description	flash EPROM, 96 MB
Character font	Korean, ASCII, Chinese (simplified Chinese), Japanese (ANK, Kanji), Taiwanese (traditional Chinese)
Data storage equipment	SDHC card, <= 32 GB, SD card, <= 32 GB
Downloadable protocols	Schneider Electric Modicon Modbus TCP, Siemens Simatic third party protocols, Rockwell Automation Allen-Bradley third party protocols, Omron Sysmac third party protocols, Mitsubishi Melsec third party protocols, Schneider Electric Modicon FIPWAY, Schneider Electric Modicon Modbus Plus, Schneider Electric Modicon Uni-TE, Schneider Electric Modicon Modbus
Display type	backlit colour TFT LCD
Product mounting	flush mounting
Touch panel	resistive film, 1000000 cycles
Type of cooling	natural convection
Supply voltage limits	19.2-28.8 V
Backlight lifespan	50000 hours white at 25 °C
Fixing mode	by 4 L brackets, by 8 nuts
Brightness	16 levels - control by software, 16 levels - control by touch panel
Software designation	Vijeo Designer configuration software >= V6.1
Touch sensitive zone	1024 x 1024
Height	181 mm
Data backed up	512 KB internal RAM (SRAM)
[Us] rated supply voltage	24 V DC
Maximum power consumption in W	10.5 W, 5 W when backlight is dimmed, 4.5 W when backlight is OFF, 6.5 W when power is not supplied to external devices
Depth	59.5 mm
Front material	stainless steel 304
Width	213.5 mm
Enclosure material	PPT
Integrated connection type	USB 2.0 type mini B, USB 2.0 type A, Ethernet RJ45, interface: IEEE 802.3, Ethernet RJ45, interface: 10BASE-T/100BASE-TX, COM2 serial link RJ45, interface: RS485, transmission rate: 187.5 kbps compatible with Siemens MPI, COM2 serial link RJ45, interface: RS485, transmission rate: 2400...115200 bps, COM1 serial link SUB-D 9, interface: RS232C, transmission rate: 2400...115200 bps
Local signalling	SD card LED green, faded for card is not inserted or is not being accessed, SD card LED green, steady for card is inserted, COM2 LED yellow, faded for no data transmission, COM2 LED yellow, steady for data is being transmitted, status LED clear, faded for power supply (OFF), status LED red, steady for power supply (ON), status LED orange, flashing for software starting up, status LED green, steady for operating, status LED green, steady for offline
Net weight	1.2 kg
Terminal type	touchscreen display
Display resolution	320 x 240 pixels QVGA
Inrush current	30 A
Environment
Resistance to electrostatic discharge	6 kV contact discharge conforming to IEC 61000-4-2 level 3
Relative humidity	10-90 % without condensation
Ambient air temperature for storage	-20-60 °C
IP degree of protection	IP66K (front panel) conforming to DIN 40050-9, IP66K (front panel) conforming to IEC 60529, IP20 (rear panel) conforming to IEC 60529
Shock resistance	147 m/s² 3 chocks in each direction X, Y and Z conforming to IEC 61131-2
Ambient air temperature for operation	0-55 °C
Operating altitude	< 2000 m
NEMA degree of protection	NEMA 4X front panel (indoor use)
Vibration resistance	1 gn (f = 9-150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - conforming to IEC 61131-2, 3.5 mm (f = 5-9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - conforming to IEC 61131-2
Standards	IEC 61131-2, UL 508, IEC 61000-6-2
Product certifications	UKEX, UKCA, C-Tick, cULus, CE, KCC
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	14.500 cm
Package 1 Width	27.000 cm
Package 1 Length	30.500 cm
Package 1 Weight	1.823 kg
Unit Type of Package 2	2
Number of Units in Package 2	8
Package 2 Height	75.000 cm
Package 2 Width	60.000 cm
Package 2 Length	80.000 cm
Package 2 Weight	24.000 kg
