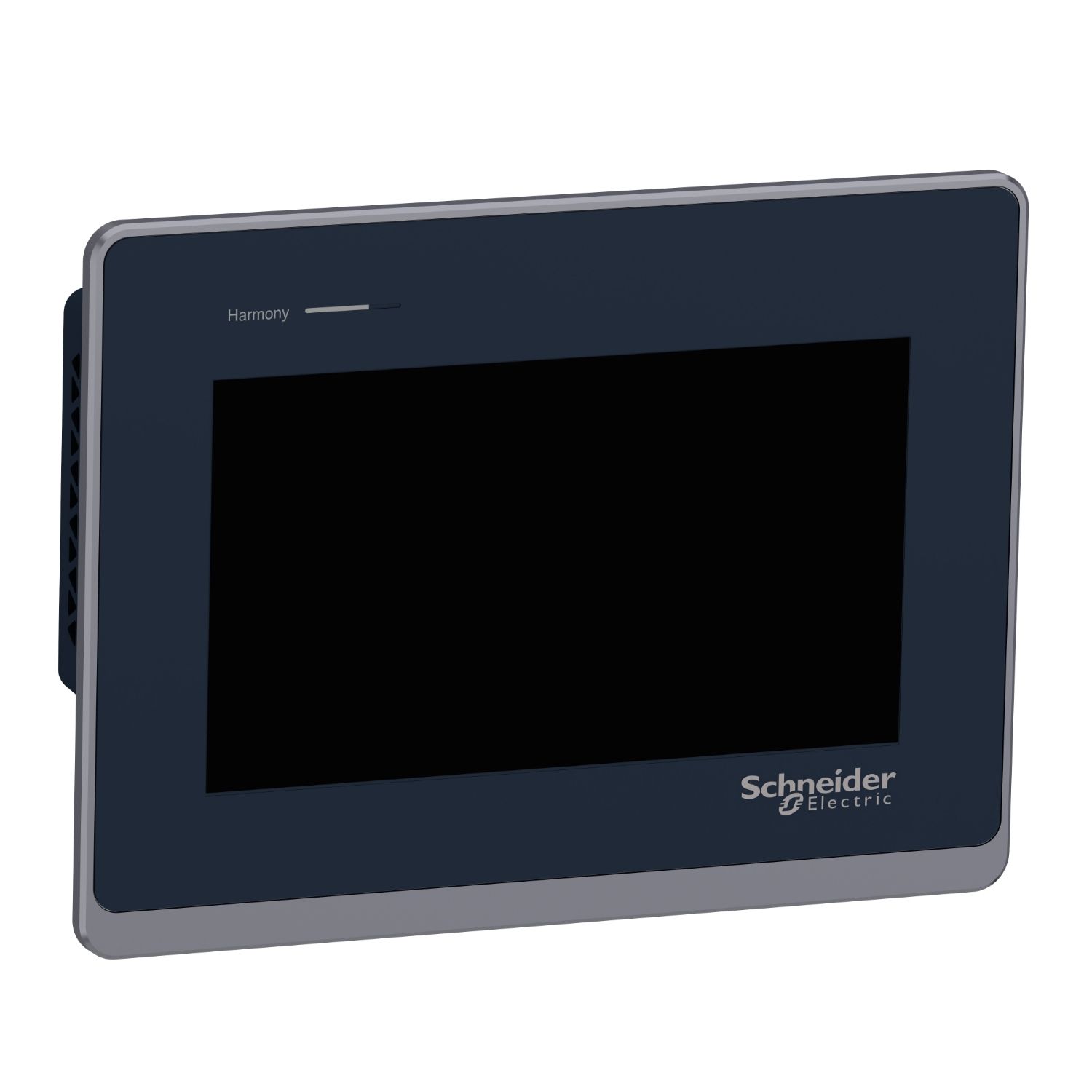

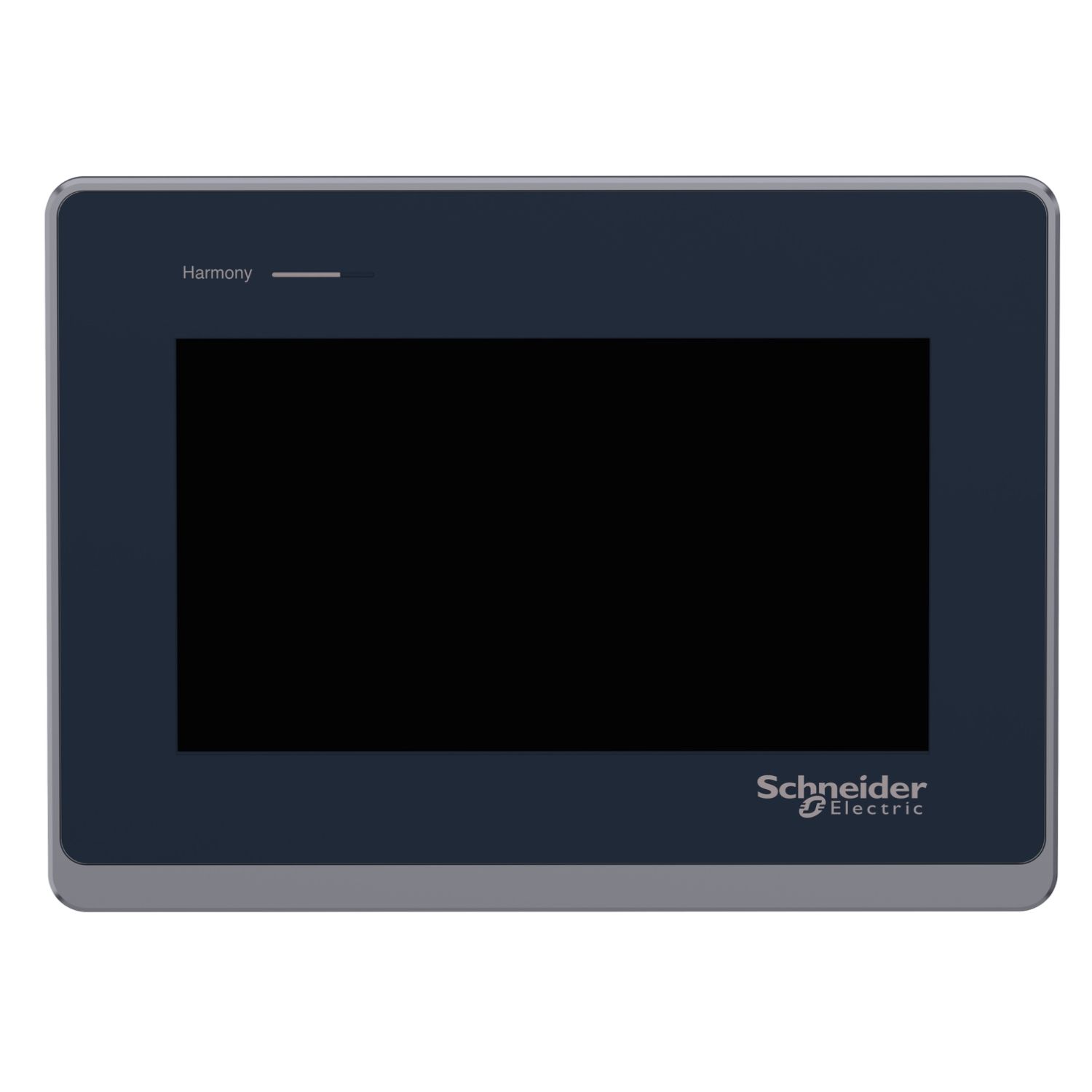

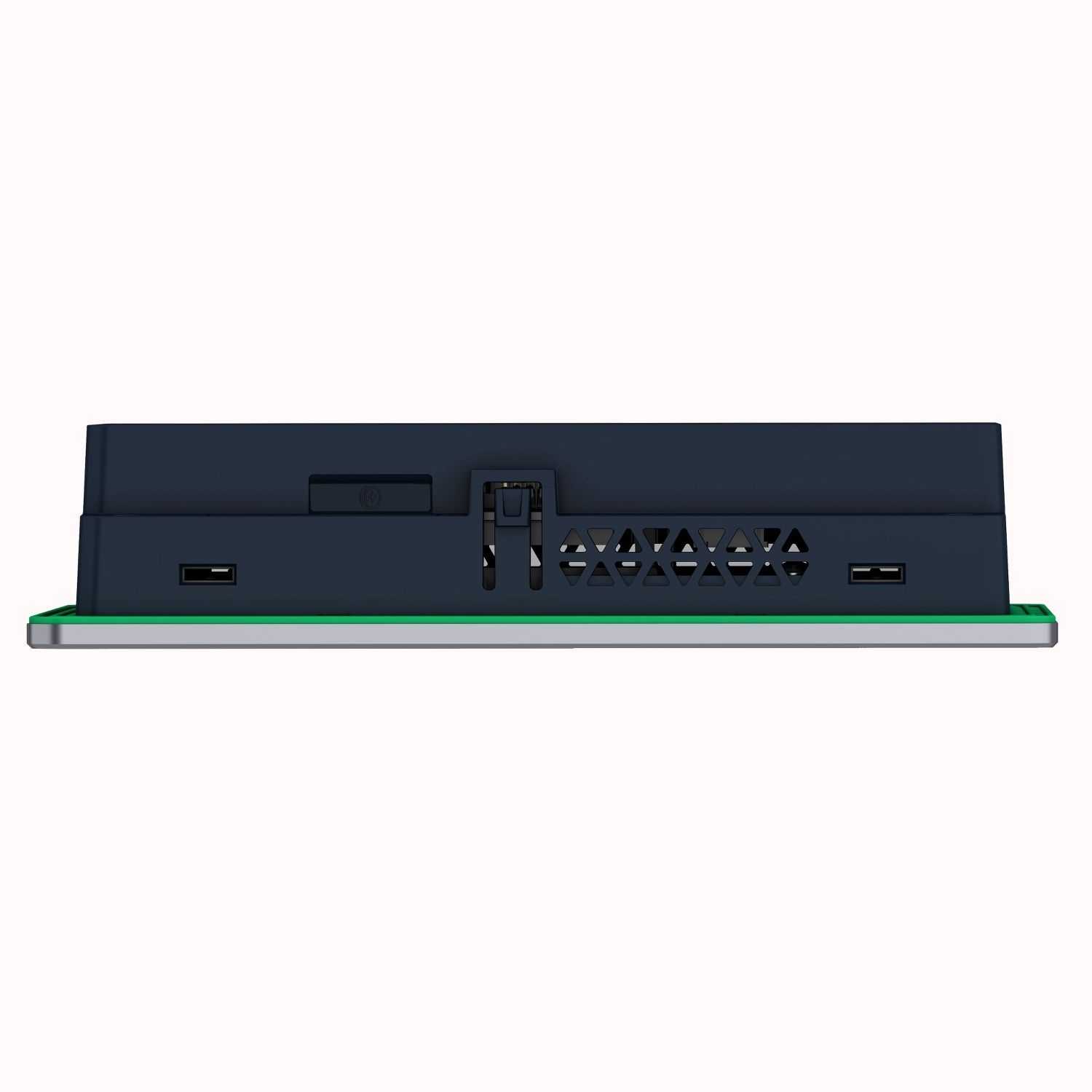

Picture of touch panel screen, Harmony ST6, 7inch wide display, 2COM, 2Ethernet, USB host and device, 24V DC
SKU:

HMIST6400

touch panel screen, Harmony ST6, 7inch wide display, 2COM, 2Ethernet, USB host and device, 24V DC

$1,334.78
Available for Shipping : 05-Dec-2024
Product Selector
touch panel screen, Harmony ST6, 7inch wide display, 2COM, 2Ethernet, USB host and device, 24V DC
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Catalogue
Declaration of conformity
Product environmental
End of life manual
Instruction sheet
Product Page Link
Product Data Sheet
This Basic HMI panel belongs to the Schneider Electric Harmony ST6 range. This single touch resistive HMI is made of alluminium front panel with a multi-color status indicator showing the various operating modes. This HMI interface is 7 inch wide with 16 million colors and 800 x 480 pixel resolution (WVGA). It is powered by EcoStruxure Operator Terminal Expert software for intuitive user experience. It has a 800 MHz ARM Cortex-A8 CPU, 1 GB device memory, 128 MB user data memory, and 512 KB backup memory. This HMI ST6 supports 2x Ethernet port, COM1 (RS-232C), COM2 (RS-485), 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port. Its dimensions are 208mm (width) x 153mm (height) x 45mm (depth) and weighs 0.80Kg. This is intended for indsutries like packaging, food & beverage, textile, HVAC equipment, and compressors, and also for end users looking for maintenance of their Web devices. It conforms to standards like EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 and certifications like CSA, CE, China RoHS, KC, REACH. This range is designed to meet the needs of simple machine operators for good visualization, connectivity, cybersecurity with EcoStruxure Secure Connect Advisor, and cost effective equipment. The various degree of protection are IP65F, Type 1, Type 4X (indoor use only), Type 13 (on the front panel when properly installed in an enclosure).

Products specifications

Attribute name Attribute value
Main
Processor name ARM Cortex-A8
Range of product Harmony ST6
Product or component type touch panel screen
Complementary
Memory description 512 KB backup memory, 128 MB user data memory, 1 GB device memory
Character font Taiwanese (traditional Chinese), Korean, Katakana, Japanese (ANK, Kanji), Chinese (simplified Chinese), ASCII (European characters), ASCII
Display type colour TFT LCD
Display colour 16 million colours
Downloadable protocols third party protocols, Uni-TE, Modbus
Display size 7 inch
Backlight lifespan 50000 hours with white
Fixing mode by 4 screws conforming to IEC 61000-6-2, by 4 screws conforming to IEC 61131-2, by 4 screws, mounting on 1.6...5 mm thick panel conforming to UL 61010-2-201
Processor frequency 800 MHz
Marking CE
Power consumption in W 9 W
Software package EcoStruxure Operator Terminal Expert
Height 153 mm
Depth 45 mm
Realtime clock built-in 10...90 % RH, built-in 0...50 °C
Front material aluminium
Width 208 mm
Port Ethernet 10/100BASE
Enclosure material PC

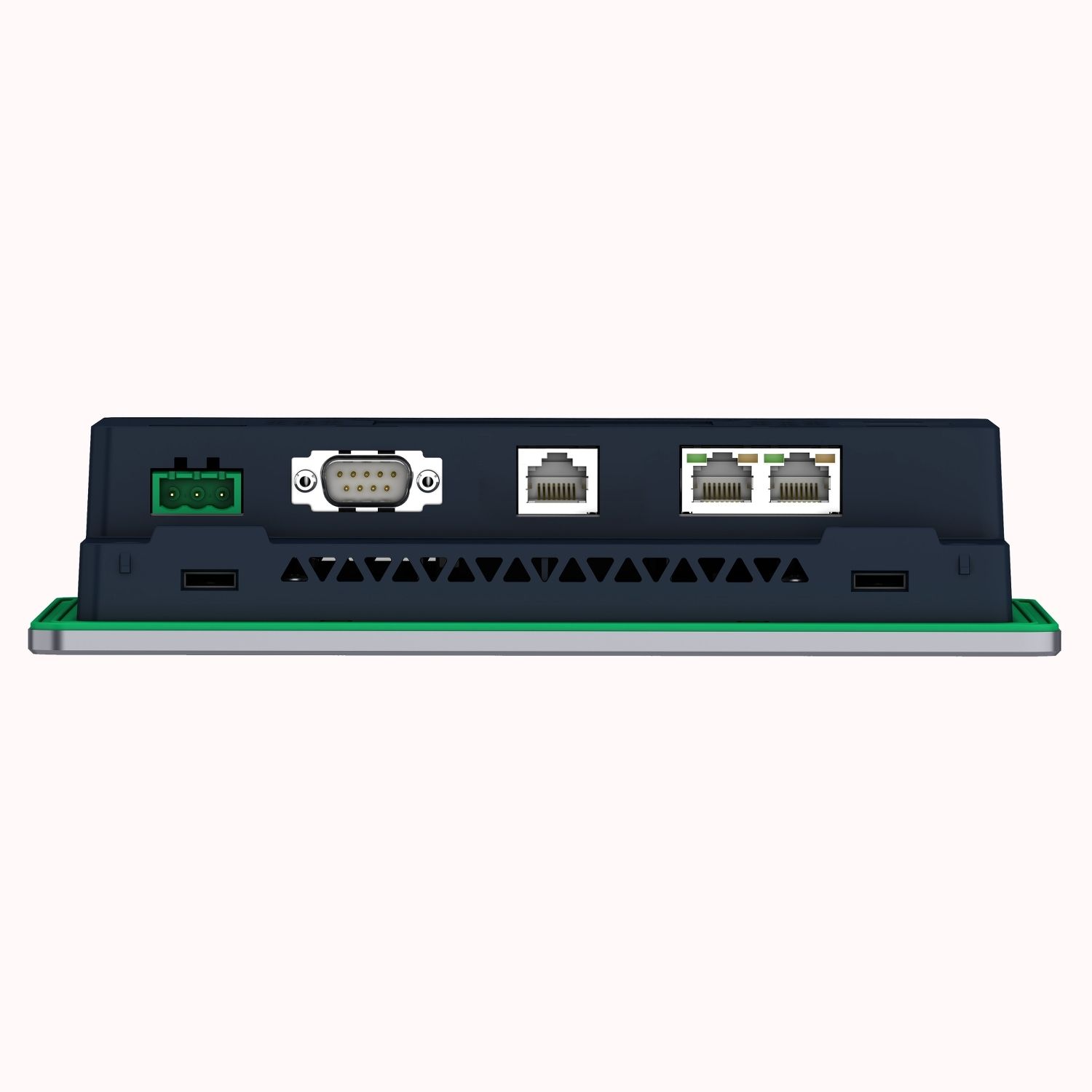

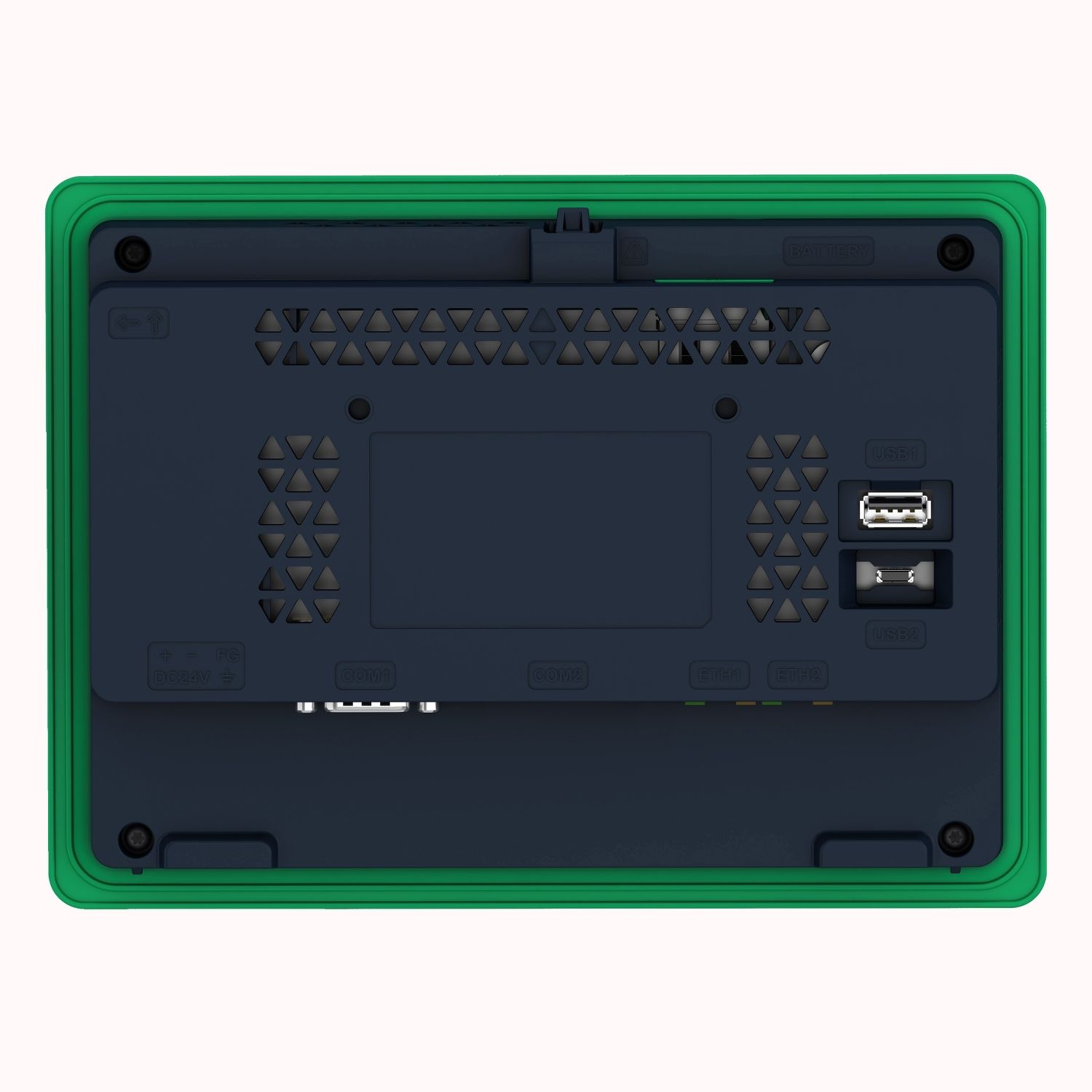

Integrated connection type 2 Ethernet, 1 USB 2.0 type micro B, 1 USB 2.0 type Abottom,  COM2 serial link (rate: 2400...187500 bps)back, 1 COM2 serial link - female RJ45 - RS485 (rate: 2400...115200 bps)back, 1 COM1 serial link - 1 SUB-D 9-pin female - RS232C (rate: 2400...115200 bps)bottom
Local signalling status LED red, off for power supply (OFF), status LED red, flashing for operating, status LED red, steady for power supply (ON), status LED orange, flashing for software starting up, status LED green, faded for stand-by, status LED green, flashing for operating, status LED green, steady for operating, status LED green, steady for offline
Touch panel single touch analogue resistive
Net weight 0.8 kg
Display resolution 800 x 480 pixels WVGA
Supply external supply
Cut-out dimensions 190 x 135 mm panel cut dimension
Inrush current 30 A
Brightness 16 levels
Number of pages 200 application pages
[Us] rated supply voltage 24 V DC (+/- 20 %)
Product brand Siemens Simatic, Rockwell Automation Allen-Bradley, Omron Sysmac, Mitsubishi Melsec, Schneider Electric Modicon
Environment
Relative humidity 10-90 % non-condensing
Ambient air temperature for storage -20-60 °C
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
IP degree of protection IP65 (front panel) conforming to IEC 61131-2, IP20 (rear panel) conforming to IEC 61131-2
Electromagnetic compatibility electrostatic discharge immunity test - test level: 8 kV (air discharge), electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3, electrical fast transient/burst immunity test - test level: 1 kV (signal ports), electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4
Immunity to microbreaks 5 ms
Ambient air temperature for operation 0-50 °C
Operating altitude 2000 m
NEMA degree of protection NEMA 13 front panel (in enclosure), NEMA 4 front panel (indoor use)
Shock resistance 147 m/s² for 11 ms (X, Y, Z directions for 3 times) conforming to IEC 61131-2
Vibration resistance 9.8 m/s² (f = 9-150 Hz), +/- 3.5 mm (f = 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 61131-2
Standards CSA C22.2 No 61010-2-201, UL 61010-2-201, IEC 61131-2, IEC 61000-6-2, IEC 61000-6-4
Product certifications UKCA, CE, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.200 cm
Package 1 Width 17.500 cm
Package 1 Length 27.000 cm
Package 1 Weight 1.014 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 6.457 kg

Related products

Picture of Professional buildtime license, EcoStruxure Operator Terminal Expert, version 3.x, single, 1 station, permanent, digital

Professional buildtime license, EcoStruxure Operator Terminal Expert, version 3.x, single, 1 station, permanent, digital

HMIPELCZLSPAZZ
$1,377.70
View Detail
Picture of Runtime license, EcoStruxure Operator Terminal Expert, version 3.x, single, 1 station, permanent, digital

Runtime license, EcoStruxure Operator Terminal Expert, version 3.x, single, 1 station, permanent, digital

HMIRTWCZLSPAZZ
$539.45
View Detail

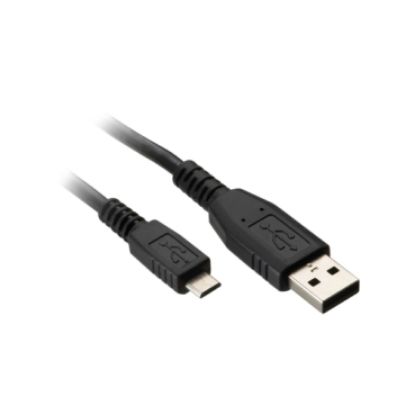

Picture of Harmony ST6, USB transfer cable
