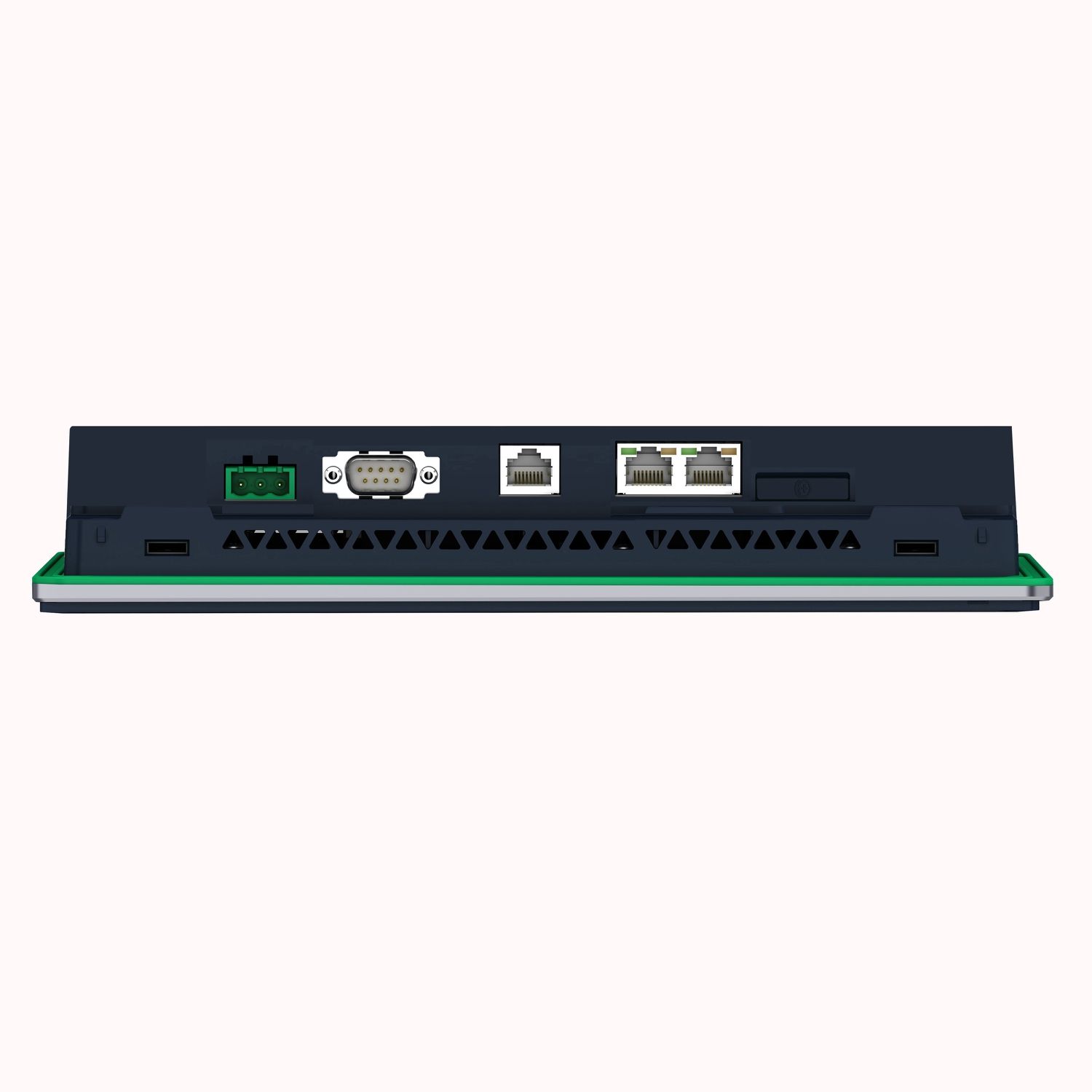

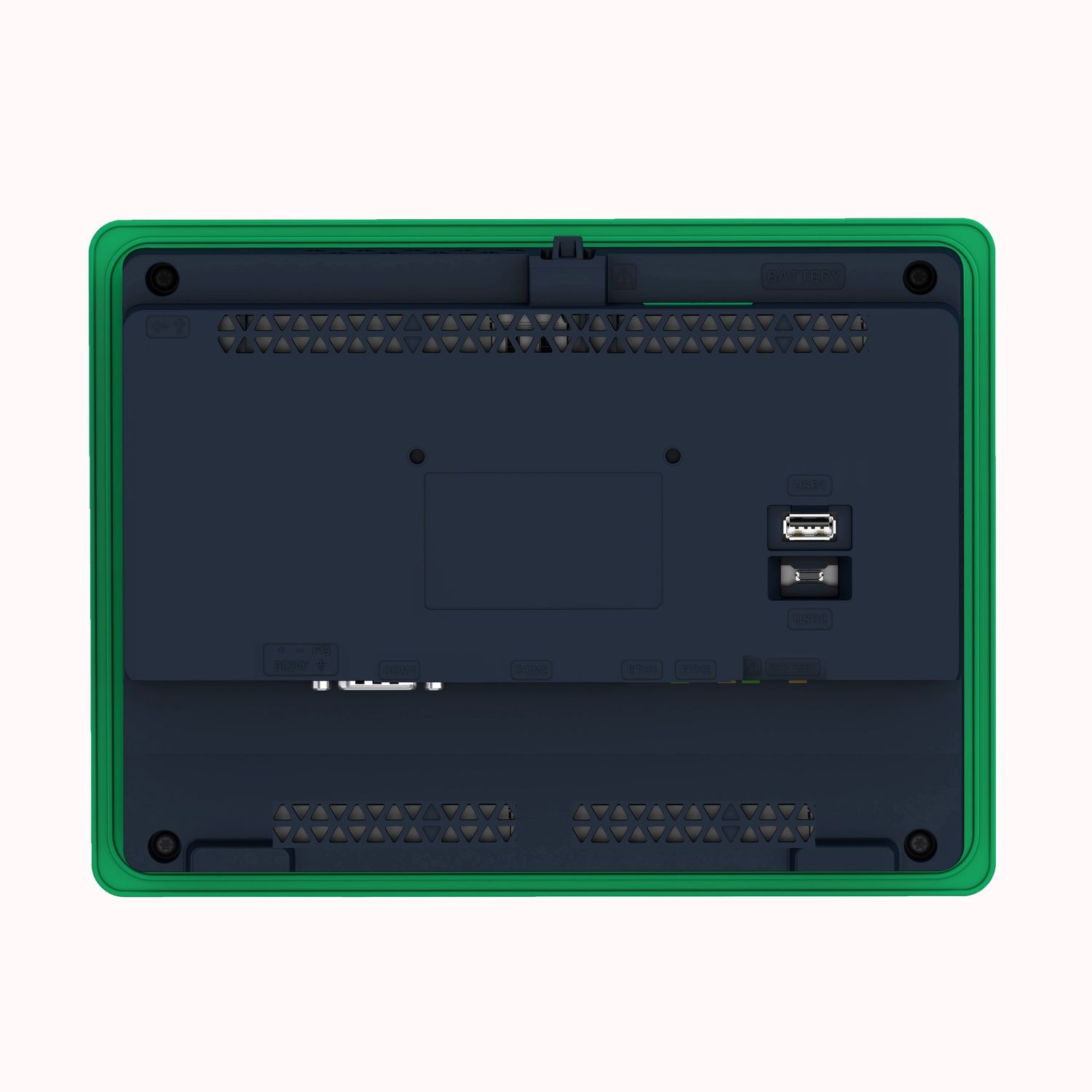

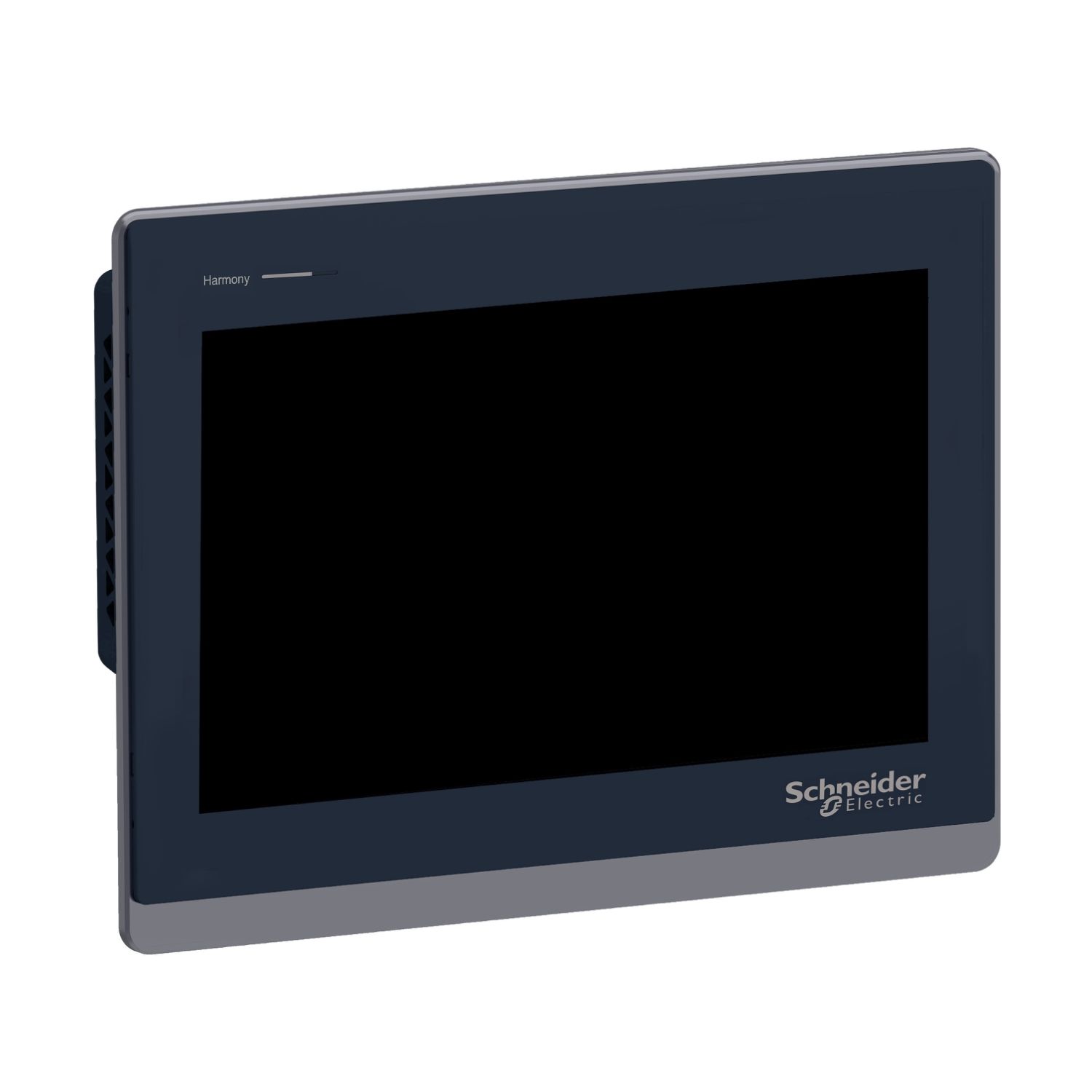

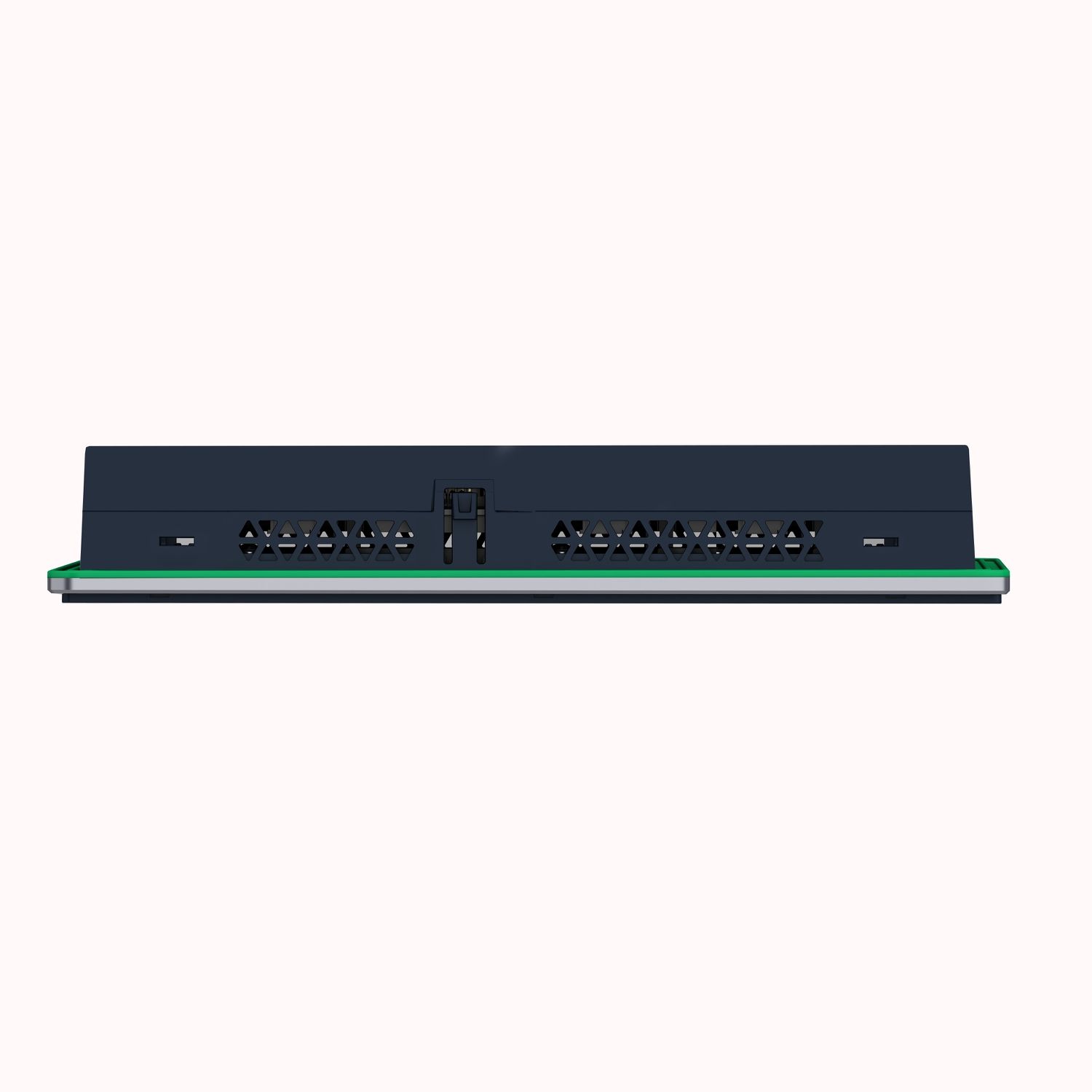

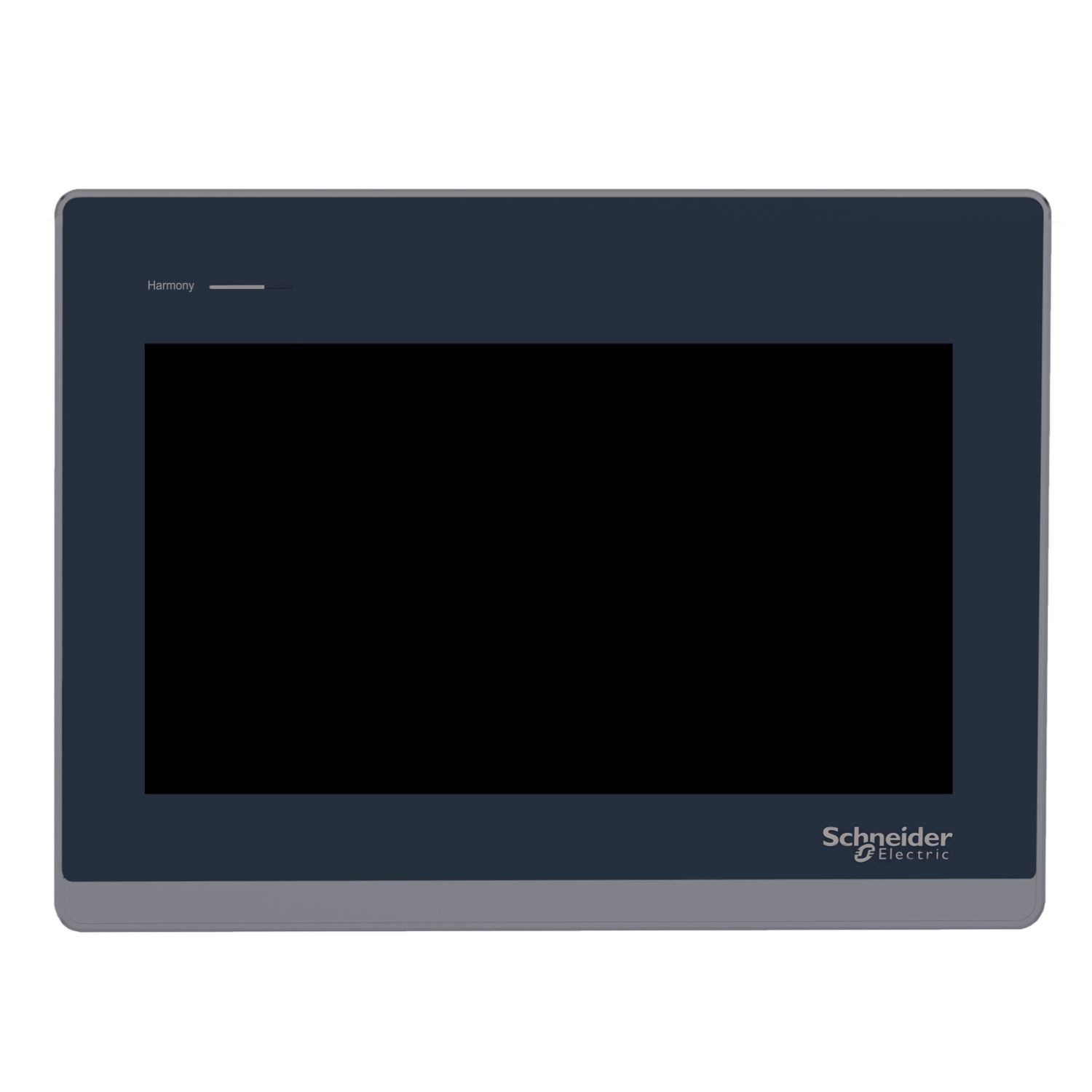

Picture of touch panel screen, Harmony ST6, 10inch wide display, 2COM, 2Ethernet, USB host and device, 24V DC
SKU:

HMIST6500

touch panel screen, Harmony ST6, 10inch wide display, 2COM, 2Ethernet, USB host and device, 24V DC

Please Contact Sales to buy this Product. click here
Product Selector
touch panel screen, Harmony ST6, 10inch wide display, 2COM, 2Ethernet, USB host and device, 24V DC
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
User guide
Declaration of conformity
Product environmental
End of life manual
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet
This Basic HMI panel belongs to the Schneider Electric Harmony ST6 range. This single touch resistive HMI is made of alluminium front panel with a multi-color status indicator showing the various operating modes. This HMI interface is 10.1 inch wide with 16 million colors and 1024 x 600 pixel resolution (SVGA). It is powered by EcoStruxure Operator Terminal Expert software for intuitive user experience. It has a 800 MHz ARM Cortex-A8 CPU, 1 GB device memory, 128 MB user data memory, and 512 KB backup memory. This HMI ST6 supports 2x Ethernet port, COM1 (RS-232C), COM2 (RS-485), 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port. Its dimensions are 273mm (width) x 203mm (height) x 47mm (depth) and weighs 1.30Kg. This is intended for indsutries like packaging, food & beverage, textile, HVAC equipment, and compressors, and also for end users looking for maintenance of their Web devices. It conforms to standards like EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 and certifications like CSA, CE, China RoHS, KC, REACH. This range is designed to meet the needs of simple machine operators for good visualization, connectivity, cybersecurity with EcoStruxure Secure Connect Advisor, and cost effective equipment. The various degree of protection are IP65F, Type 1, Type 4X (indoor use only), Type 13 (on the front panel when properly installed in an enclosure).

Products specifications

Attribute nameAttribute value
Main
Processor nameARM Cortex-A8
Range of productHarmony ST6
Product or component typetouch panel screen
Complementary
Memory description128 MB user data memory, 512 KB backup memory, 1 GB device memory
Character fontTaiwanese (traditional Chinese), Korean, Katakana, Japanese (ANK, Kanji), Chinese (simplified Chinese), ASCII (European characters), ASCII
Display typecolour TFT LCD
Display colour16 million colours
Downloadable protocolsthird party protocols, Uni-TE, Modbus
Display size10 inch
Backlight lifespan50000 hours with white
Fixing modeby 4 screws conforming to IEC 61000-6-2, by 4 screws conforming to IEC 61131-2, by 4 screws, mounting on 1.6...5 mm thick panel conforming to UL 61010-2-201
Processor frequency800 MHz
MarkingCE
Power consumption in W12.6 W
Software packageEcoStruxure Operator Terminal Expert
Height203 mm
Depth47 mm
Realtime clockbuilt-in 10...90 % RH, built-in 0...50 °C
Front materialaluminium
Width273 mm
Port Ethernet10/100BASE
Enclosure materialPC
Integrated connection type2 Ethernet, 1 USB 2.0 type micro B, 1 USB 2.0 type Abottom,  COM2 serial link (rate: 2400...187500 bps)back, 1 COM2 serial link - female RJ45 - RS485 (rate: 2400...115200 bps)back, 1 COM1 serial link - 1 SUB-D 9-pin female - RS232C (rate: 2400...115200 bps)bottom
Local signallingstatus LED red, off for power supply (OFF), status LED red, flashing for operating, status LED red, steady for power supply (ON), status LED orange, flashing for software starting up, status LED green, faded for stand-by, status LED green, flashing for operating, status LED green, steady for operating, status LED green, steady for offline
Touch panelsingle touch analogue resistive
Net weight1.3 kg
Display resolution1024 x 600 pixels WSVGA
Supplyexternal supply
Cut-out dimensions255 x 185 mm panel cut dimension
Inrush current30 A
Brightness16 levels
Number of pages200 application pages
[Us] rated supply voltage24 V DC (+/- 20 %)
Product brandSiemens Simatic, Rockwell Automation Allen-Bradley, Omron Sysmac, Mitsubishi Melsec, Schneider Electric Modicon
Environment
Relative humidity10-90 % non-condensing
Ambient air temperature for storage-20-60 °C
Directives2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
IP degree of protectionIP65 (front panel) conforming to IEC 61131-2, IP20 (rear panel) conforming to IEC 61131-2
Electromagnetic compatibilityelectrostatic discharge immunity test - test level: 8 kV (air discharge), electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3, electrical fast transient/burst immunity test - test level: 1 kV (signal ports), electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4
Immunity to microbreaks10 ms
Ambient air temperature for operation0-50 °C
Operating altitude2000 m
NEMA degree of protectionNEMA 13 front panel (in enclosure), NEMA 4 front panel (indoor use)
Shock resistance147 m/s² for 11 ms (X, Y, Z directions for 3 times) conforming to IEC 61131-2
Vibration resistance9.8 m/s² (f = 9-150 Hz), +/- 3.5 mm (f = 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 61131-2
StandardsCSA C22.2 No 61010-2-201, UL 61010-2-201, IEC 61131-2, IEC 61000-6-2, IEC 61000-6-4
Product certificationsUKCA, CE, CSA
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height12.500 cm
Package 1 Width28.000 cm
Package 1 Length34.500 cm
Package 1 Weight1.825 kg
Unit Type of Package 22
Number of Units in Package 24
Package 2 Height30.000 cm
Package 2 Width40.000 cm
Package 2 Length60.000 cm
Package 2 Weight8.300 kg
