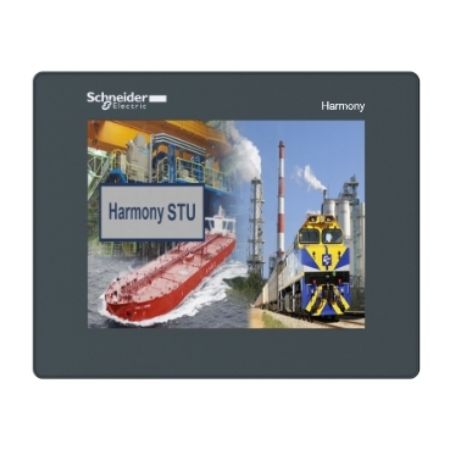

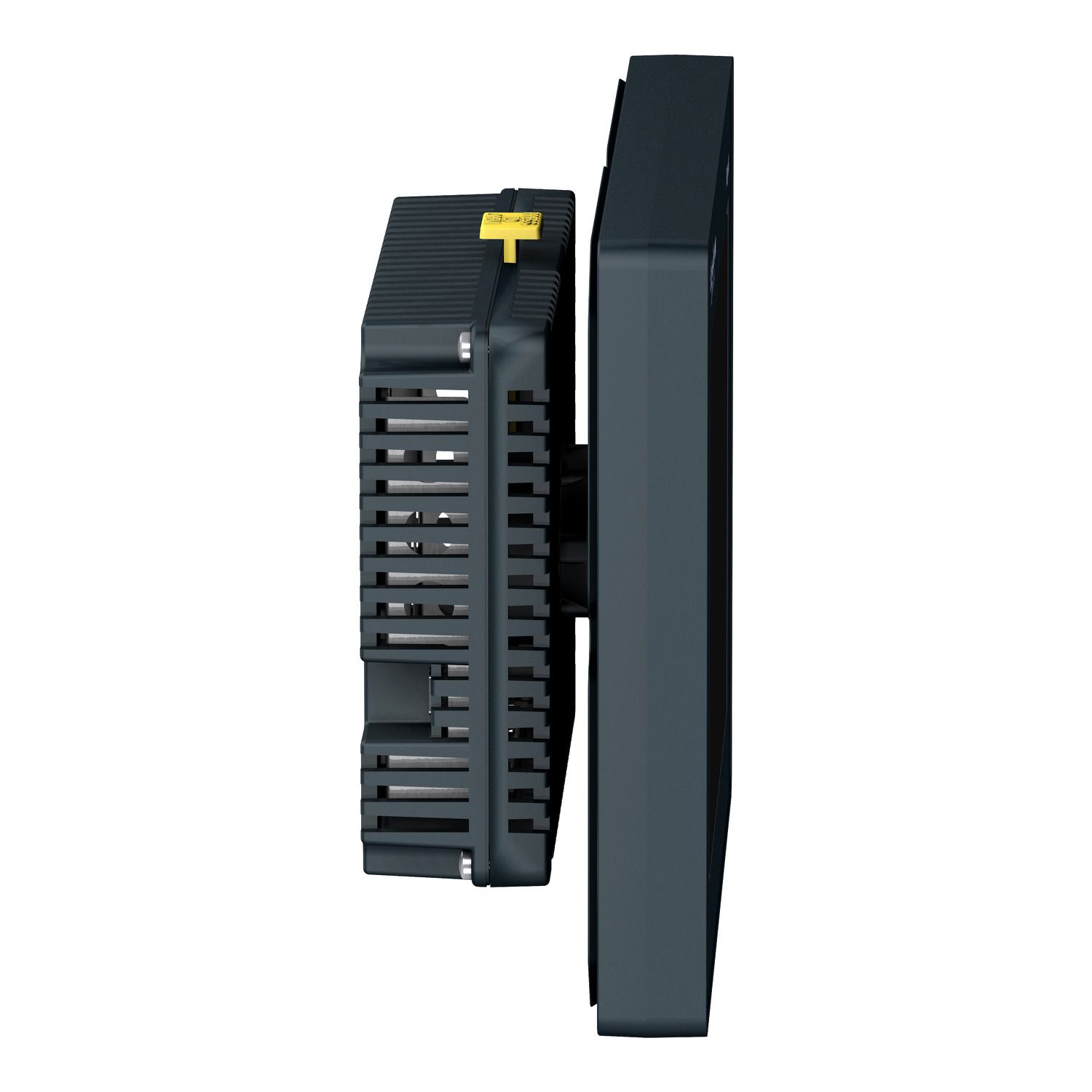

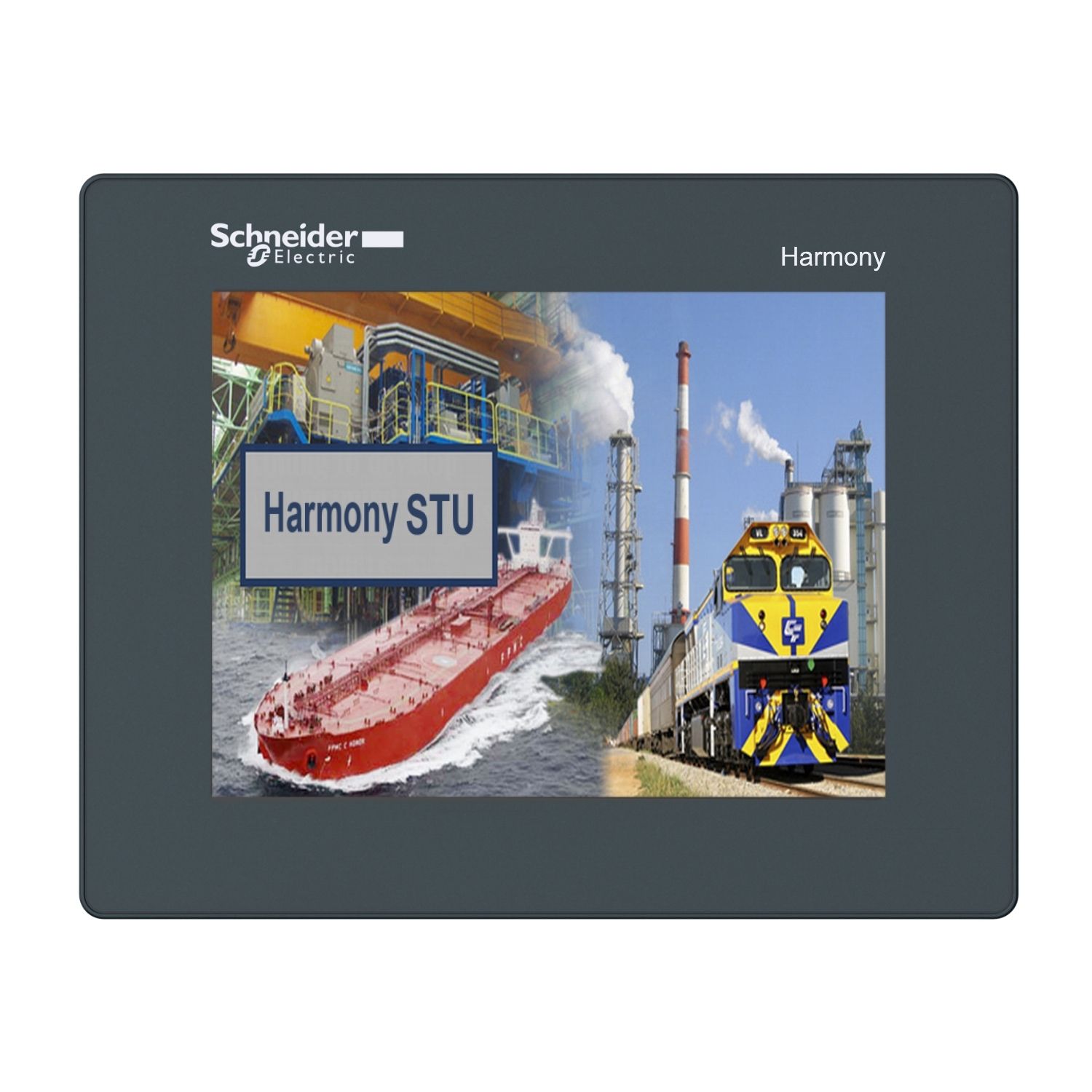

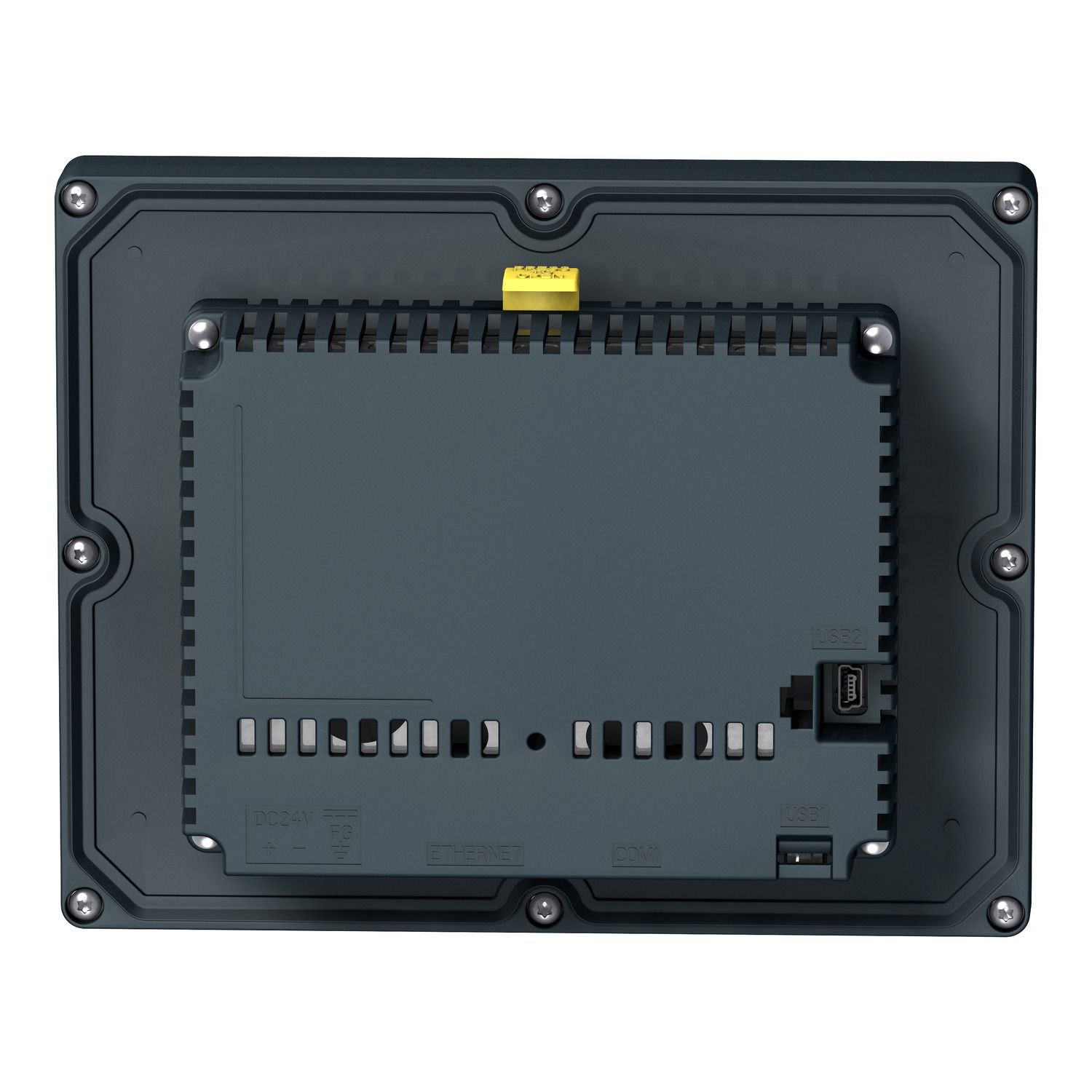

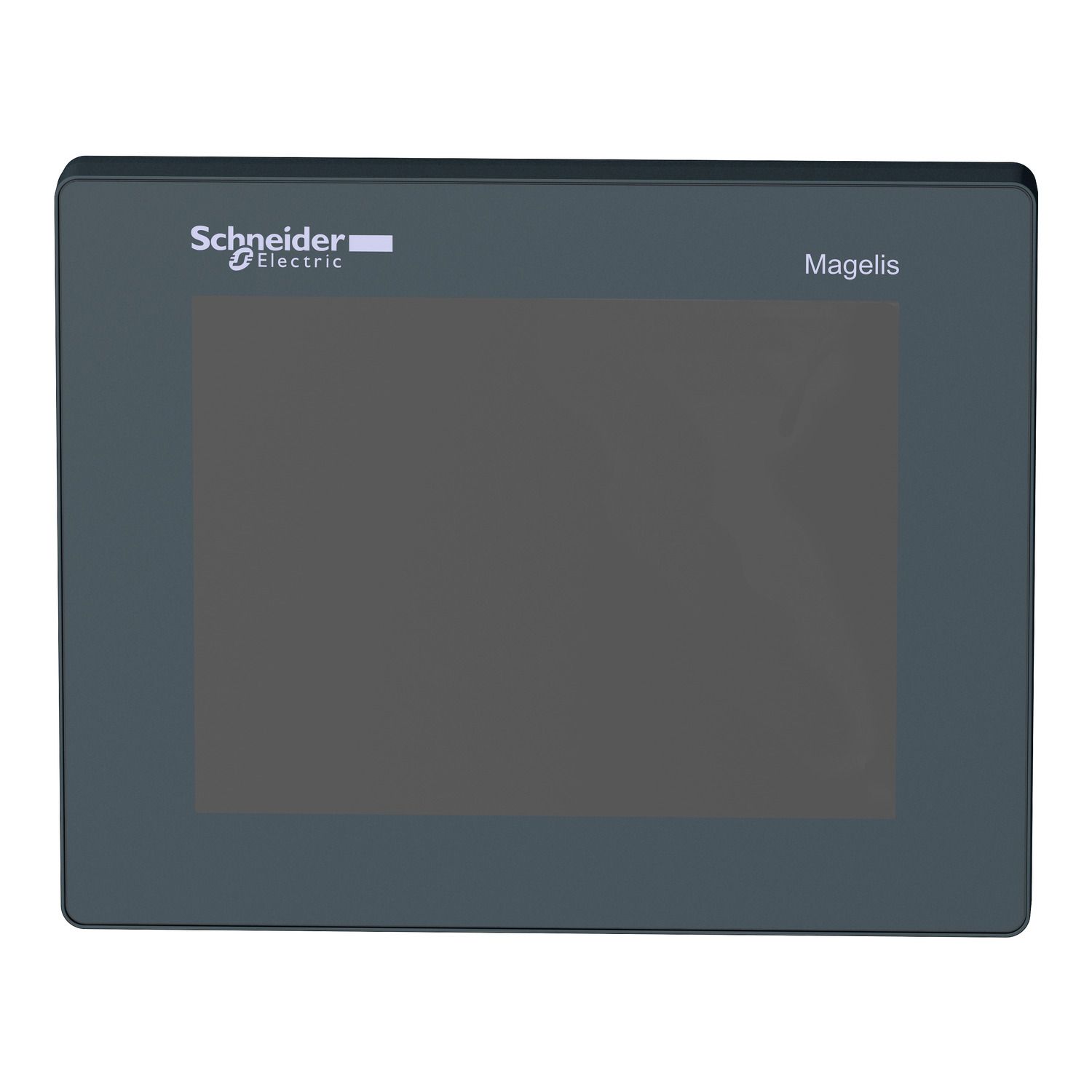

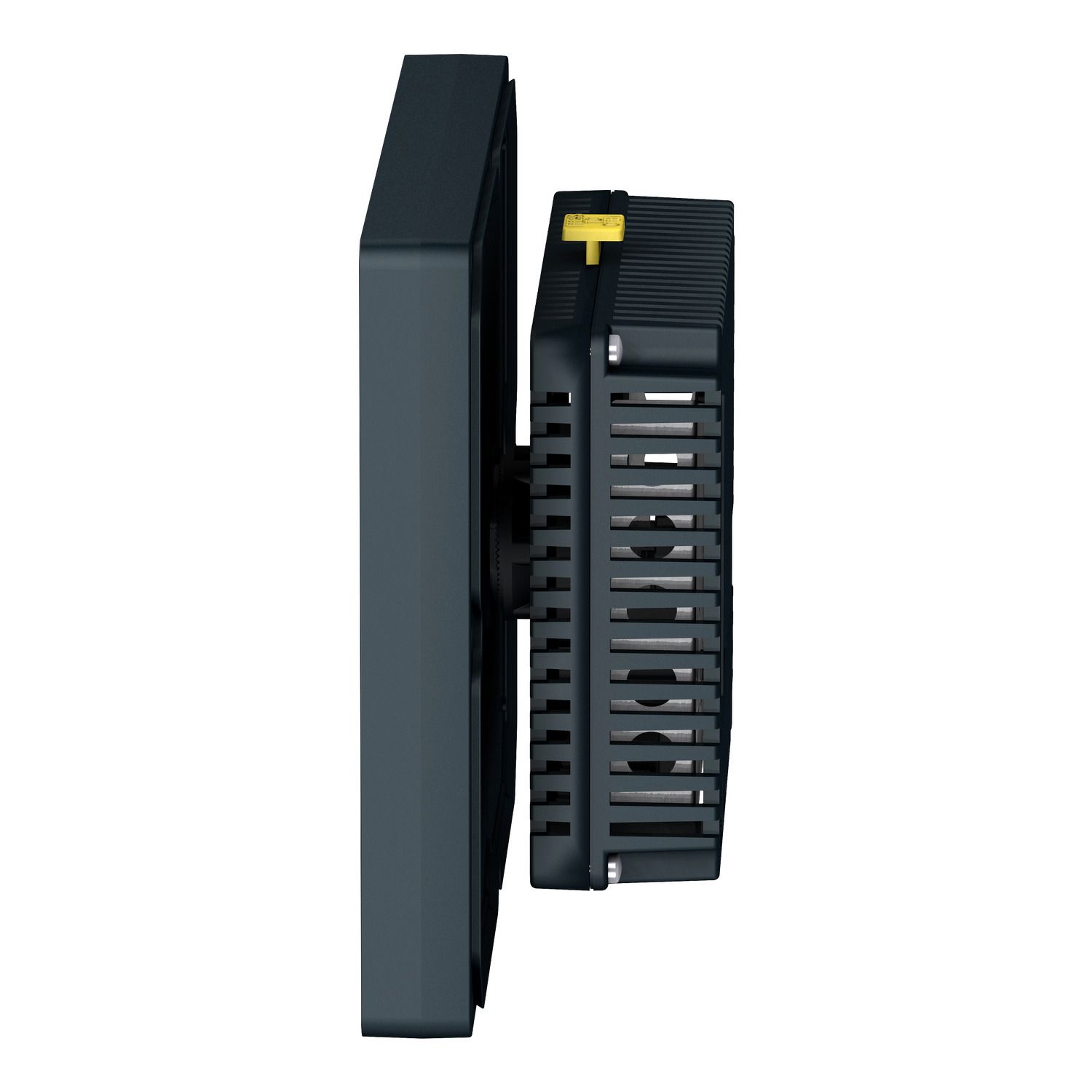

Picture of Harmony STO & STU, Touch panel screen, 5''7 Color
SKU:

HMISTU855

Harmony STO & STU, Touch panel screen, 5''7 Color

$1,200.00
Product Selector
Harmony STO & STU, Touch panel screen, 5''7 Color
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Instruction sheet
User guide
System user guide
Catalogue
End of life manual
Declaration of conformity
Product environmental
Product Page Link
Product Data Sheet
This Magelis STU small touchscreen operator interface (HMI) is supplied with 24V DC, has a 5.7" color TFT LCD display with, 320 x 240 pixels (QVGA) and 32MB EPROM. It also has 1 host + 1 mini-B USB ports, 1 RS232C / RS485 port and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays graphic pages with monochrome screen. Thanks to its fixing with a 22mm diameter hole, no panel rectangular cut-out is required. Its RS485 host port makes it ideal to supervise and control simple systems and machines.

Products specifications

Attribute nameAttribute value
Main
Processor nameCPU ARM9
Software designationVijeo Designer
Operating systemHarmony
Range of productHarmony STO & STU
Product or component typetouch panel screen
Complementary
Memory descriptionback up of data 64 kB, application memory 16 MB
Character fontKorean, ASCII, Chinese (simplified Chinese), Japanese (ANK, Kanji), Taiwanese (traditional Chinese)
Display typeQVGA TFT colour touchscreen
Display colour65536 colours
Display size5.7 inch
Supply voltage limits20.4-28.8 V
Processor frequency333 MHz
Height129.15 mm
[Us] rated supply voltage24 V DC
Enclosure materialPC/PBT and PAA
Integrated connection type1 Ethernet - RJ45,  power supply - removable screw terminal block,  COM1 serial link - female RJ45 - RS232C/RS485 (rate: <= 115.2 kbits/s), 1 USB 2.0 type A, 1 USB 2.0 type mini B
Supplyexternal source
Realtime clockaccess to the PLC real-time clock
Downloadable protocolsModbus, third party protocols, Modbus TCP/IP, Uni-TE
Backlight lifespan50000 hours
Fixing modeØ 22 mm hole
MarkingCE, with Schneider logo
Power consumption in W6.8 W
Depth56.5 mm
Width163 mm
Touch panelanalogue
Display resolution320 x 240 pixels QVGA
Inrush current30 A
Brightness16 levels
Number of pageslimited by internal memory capacity
Environment
Relative humidity0-85 % without condensation
Ambient air temperature for storage-20-60 °C
Immunity to microbreaks7 ms
Operating altitude<= 2000 m
NEMA degree of protectionNEMA 4X front panel (indoor use)
Product certificationsUKCA, Marine, cULus, C-Tick, UL class 1 Div2 T4A ou T5
IP degree of protectionIP65 (front panel) conforming to IEC 60529, IP20 (rear panel) conforming to IEC 60529
Resistance to electromagnetic fields10 V/m conforming to IEC 61000-4-3
Ambient air temperature for operation0-50 °C
Vibration resistance1 gn (f = 9-150 Hz) conforming to IEC 60068-2-6, +/- 3.5 mm (f = 5-9 Hz) conforming to IEC 60068-2-6
Shock resistance15 gn for 11 ms conforming to IEC 60068-2-27
StandardsUL 508, IEC 61131-2, IEC 61000-6-2, FCC Class A, UL 1604
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height7.000 cm
Package 1 Width18.000 cm
Package 1 Length27.000 cm
Package 1 Weight869.000 g
Unit Type of Package 22
Number of Units in Package 28
Package 2 Height30.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight7.315 kg
Unit Type of Package 33
Number of Units in Package 3192
Package 3 Height130.000 cm
Package 3 Width80.000 cm
Package 3 Length120.000 cm
Package 3 Weight187.560 kg

Related products

Picture of connecting cable, Modicon M340, USB, PC or terminal, for processor, 1.8m

connecting cable, Modicon M340, USB, PC or terminal, for processor, 1.8m

BMXXCAUSBH018
Please Contact Sales to buy this Product. click here
View Detail
Picture of Vijeo Designer 6.2 RT Intelligent Data Services license extension

Vijeo Designer 6.2 RT Intelligent Data Services license extension

VJDSNTRCKV62M
Please Contact Sales to buy this Product. click here
View Detail
Picture of Pack Vijeo Designer 6.2 RT Intelligent Data Services report print

Pack Vijeo Designer 6.2 RT Intelligent Data Services report print

VJDSNTRPKV62M
Please Contact Sales to buy this Product. click here
View Detail
Picture of Vijeo Designer 6.2 RT Intelligent Data Services report printing

Vijeo Designer 6.2 RT Intelligent Data Services report printing

VJDSNTRPRV62M
Please Contact Sales to buy this Product. click here
View Detail

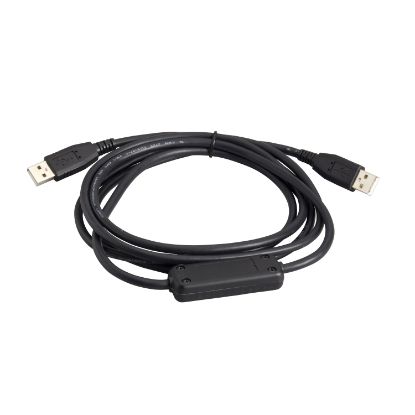

Picture of application transfer cable between terminal and PC - 2 m
