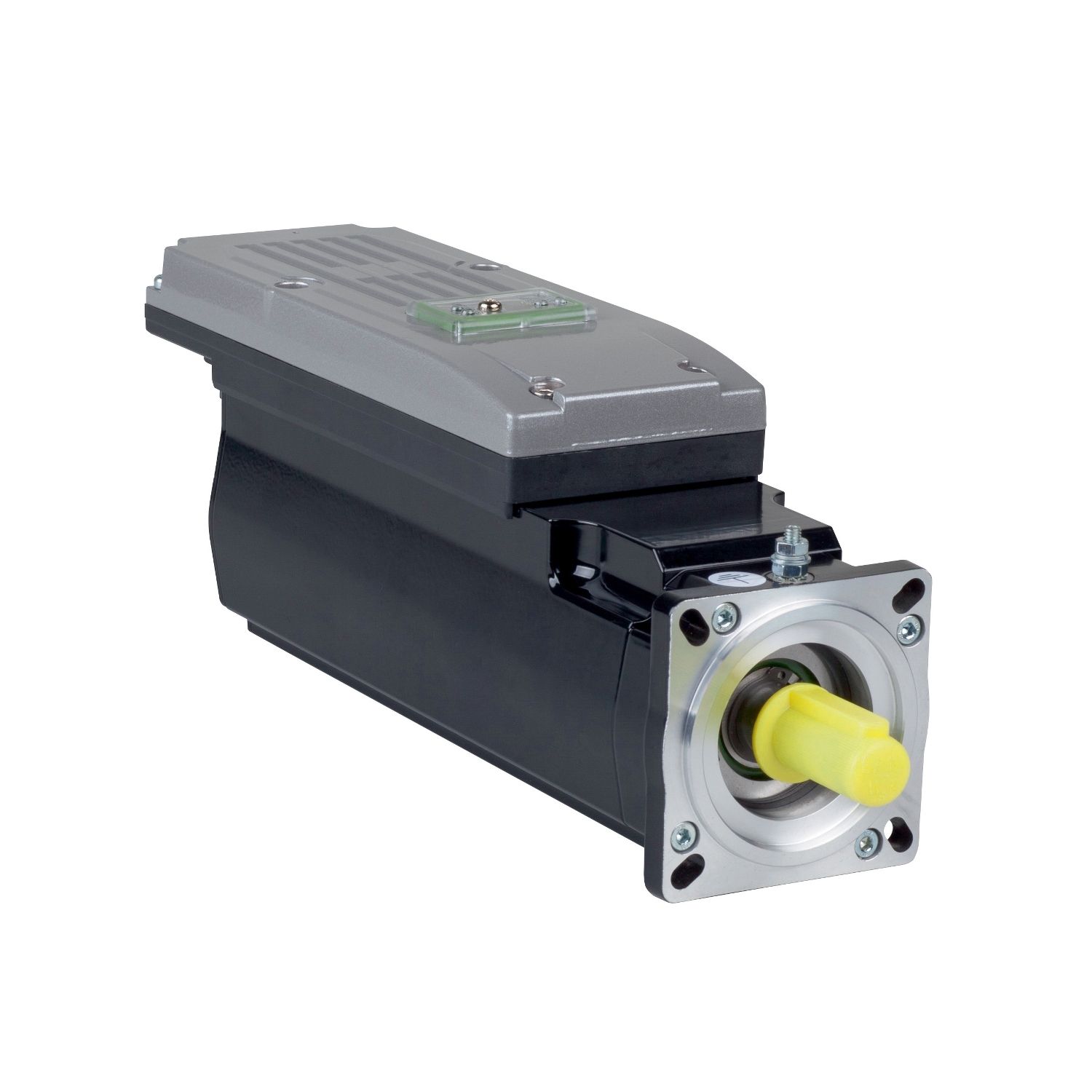

Picture of integrated servo motor- 2.2 Nm- 6000 rpm- keyed shaft- multiturn-with brake-IP65
SKU:

ILM0703P32F0000

integrated servo motor- 2.2 Nm- 6000 rpm- keyed shaft- multiturn-with brake-IP65

$7,467.24 INC GST
Available for Shipping : 12-May-2026
integrated servo motor- 2.2 Nm- 6000 rpm- keyed shaft- multiturn-with brake-IP65
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-May-2026
Declaration of conformity
End of life manual
Product environmental
Catalogue
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name ILM
Range of product PacDrive 3
Product or component type servo motor integrated drive
Complementary
Peak stall torque 8.7 N.m
Nominal speed 6000 rpm
Type of cooling natural convection
Number of mounting holes 4
[Us] rated supply voltage 250...700 V
Motor flange size 70 mm
Maximum current Irms 12 A
Stator inductance 6.5 mH at 120 °C for Ph/N, 13 mH at 20 °C for Ph/Ph
Speed feedback resolution 128 periods
Centring collar depth 2.5 mm
Back emf constant 49 V/krpm at 20 °C
Continuous stall torque 2.2 N.m
Maximum radial force Fr 400 N at 6000 rpm, 430 N at 5000 rpm, 460 N at 4000 rpm, 510 N at 3000 rpm, 580 N at 2000 rpm, 730 N at 1000 rpm
Circle diameter of the mounting holes 82 mm
Torque constant 0.76 N.m/A at 120 °C
Continuous stall current 3 A
[In] rated current 1.5 A
Stator resistance 1.88 Ohm at 120 °C for Ph/N, 2.7 Ohm at 20 °C for Ph/Ph
Feedback type absolute multiturn SinCos Hiperface
Shaft end keyed
Mounting holes diameter 5.5 mm
Shaft diameter 14 mm
Key width 20 mm
Centring collar diameter 60 mm
Net weight 4.7 kg
Length 293 mm
Nominal output power 720 W
Shaft length 30 mm
Second shaft without second shaft end
Holding brake with
Maximum axial force Fa 0.2 x Fr
Number of motor poles 6
Rotor inertia 0.88 kg.cm²
Number of motor stacks 3
Nominal torque 1.15 N.m
Mounting support international standard flange
Holding torque 3 N.m holding brake
Environment
IP degree of protection IP65
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 26.0 cm
Package 1 Width 20.0 cm
Package 1 Length 59.0 cm
Package 1 Weight 5.2 kg
