SKU:

IMT39086

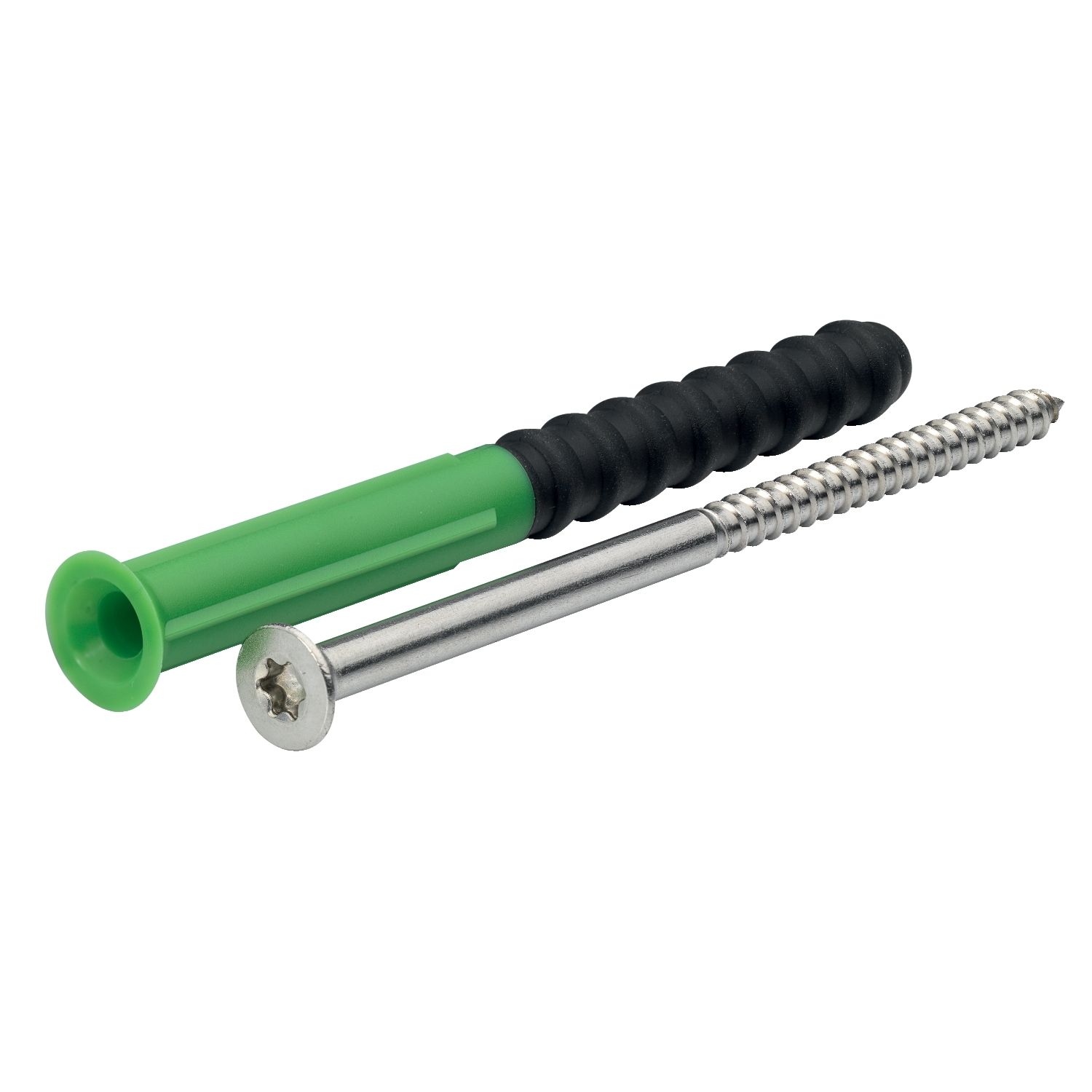

Thorsman installation material, nail plug, with 115 mm screw, TPH-10x110, set of 20

$11.42 INC GST

This product has a minimum quantity of 20

Qty:

Available for Shipping : 21-Apr-2026

Thorsman installation material, nail plug, with 115 mm screw, TPH-10x110, set of 20

Manufacturer: Schneider Electric

Delivery date: 21-Apr-2026

Catalog

Brochure

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Screw length	115 mm
Minimum drilling depth	120 mm
Device short name	TPH
Provided equipment	screw
Product or component type	nail plug
Drilling diameter	10 mm
Range of product	Thorsman
Complementary
Colour tint	green/black
Length	110 mm
Thickness	0-50 mm fixture
Material	plug: PA + TPR, screw: acid-proof stainless steel
Practical load capacity	shear: 0.3 kN for concrete C25 2.5 ), shear: 0.3 kN for low density concrete 500 and expanded clay 2.5 ), pull-out load: 0.8 kN for concrete C25 3 ), pull-out load: 0.6 kN for low density concrete 500 and expanded clay 3 )
Atmospheric-corrosivity category	C5-M
Diameter	10 mm
Ambient air temperature for operation	-20-60 °C
Environment
Quantity per set	set of 20
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	3.600 cm
Package 1 Width	15.200 cm
Package 1 Length	21.400 cm
Package 1 Weight	28.800 g
Unit Type of Package 2	2
Number of Units in Package 2	440
Package 2 Height	29.800 cm
Package 2 Width	39.800 cm
Package 2 Length	29.400 cm
Package 2 Weight	17600.000 kg
Unit Type of Package 3	3
Number of Units in Package 3	10560
Package 3 Height	80.000 cm
Package 3 Width	90.000 cm
Package 3 Length	120.000 cm
Package 3 Weight	422400.000 kg
