K150B001UP

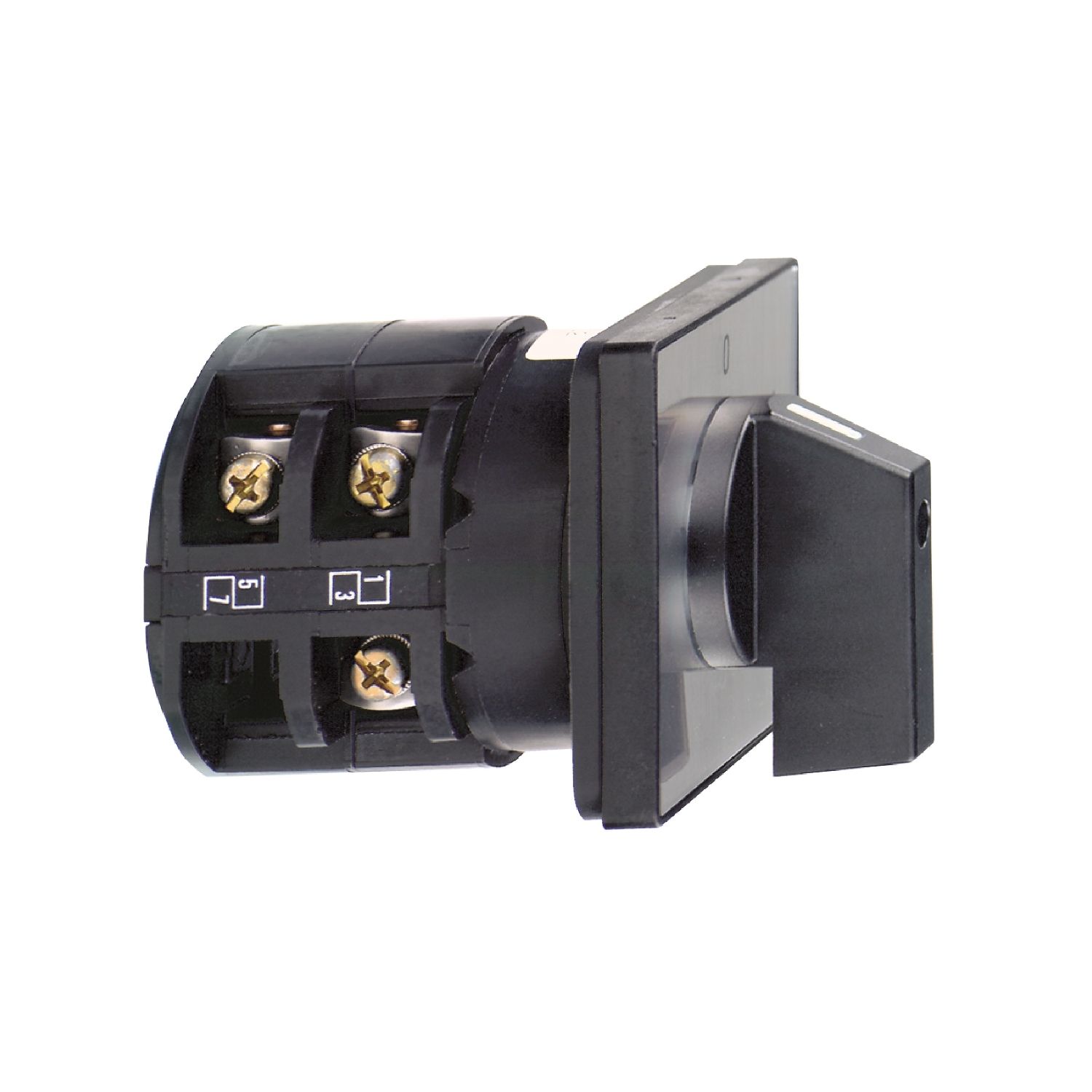

Cam changeover switch, Harmony K, front mounting, plastic, 1 poles, position 0, 60°, 150A, 88x88mm, marked 1/0/2

$852.10
Available for Shipping : 10-Dec-2024
Cam changeover switch, Harmony K, front mounting, plastic, 1 poles, position 0, 60°, 150A, 88x88mm, marked 1/0/2
Manufacturer: Schneider Electric

Products specifications

Attribute name Attribute value
Main
Off position with Off position
Return without
Rotary handle padlocking without
Poles description 1P
Cam switch head type with front plate 88 x 88 mm
Switching positions left: 0° - 300°, right: 0° - 60°
Mounting location front
Type of operator handle
Component name K150
Cam switch function changeover switch
[Ith] conventional free air thermal current 150 A
Product or component type complete cam switch
IP degree of protection IP40 conforming to IEC 60529
Presentation of legend with metallic legend, 1 - 0 - 2 black marking
Fixing mode 4 holes
Range of product Harmony K
Complementary
Switching capacity in mA 50000 mA DC at 90 V 3 contact(s) for inductive load (T = 50 ms), 50000 mA DC at 60 V 2 contact(s) for inductive load (T = 50 ms), 50000 mA DC at 30 V 1 contact(s) for inductive load (T = 50 ms), 150000 mA DC at 95 V 2 contact(s) for resistive load (T = 1 ms), 150000 mA DC at 70 V 3 contact(s) for resistive load (T = 1 ms), 150000 mA DC at 70 V 3 contact(s) for inductive load (T = 50 ms), 150000 mA DC at 48 V 2 contact(s) for resistive load (T = 1 ms), 150000 mA DC at 48 V 2 contact(s) for inductive load (T = 50 ms), 150000 mA DC at 48 V 1 contact(s) for resistive load (T = 1 ms), 150000 mA DC at 24 V 1 contact(s) for resistive load (T = 1 ms), 150000 mA DC at 24 V 1 contact(s) for inductive load (T = 50 ms), 150000 mA DC at 140 V 3 contact(s) for resistive load (T = 1 ms)
Compatibility code K15
Mechanical durability 300000 cycles
Contact operation slow-break
Tightening torque 2.5 N.m
Positive opening with
[Ui] rated insulation voltage 690 V (pollution degree 3) conforming to IEC 60947-1
Short-circuit current 25000 A
Electrical connection captive screw clamp terminals solid, clamping capacity: 1 x 70 mm², captive screw clamp terminals flexible, clamping capacity: 1 x 50 mm²
Switching angle 60 °
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 947-1, 6 kV conforming to EN 947-1
Net weight 0.79 kg
Short-circuit protection 200 A cartridge fuse, type gG
Environment
Protective treatment TC
Overvoltage category class II conforming to NF C 20-030, class II conforming to IEC 60536
Ambient air temperature for storage -40-70 °C
Standards IEC 60947-3
Product certifications cULus 120 V 7.5 hp 1 phase, cULus 480 V 40 hp 3 phases, cULus 240 V 25 hp 3 phases, cULus 240 V 15 hp 1 phase
Ambient air temperature for operation -25-55 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.0 cm
Package 1 Width 10.0 cm
Package 1 Length 17.0 cm
Package 1 Weight 626.0 g
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.664 kg
