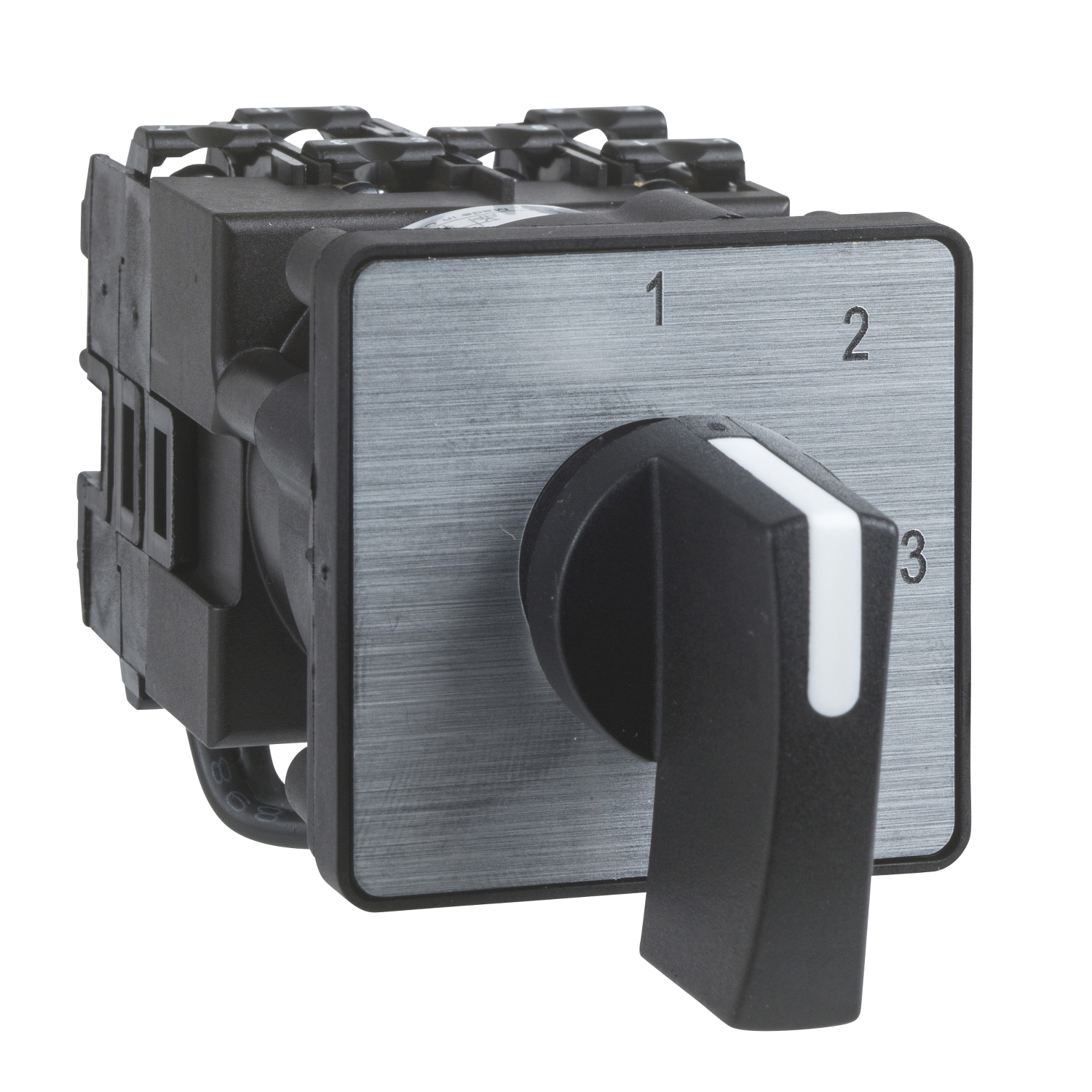

Picture of Cam changeover switch, Harmony K, multifixing, plastic, 2 poles, position 0, 45°, 20A, 45x45mm, metallic legend, marked 2/0/1, 35mm black handle
SKU:

K2D002ULH

Cam changeover switch, Harmony K, multifixing, plastic, 2 poles, position 0, 45°, 20A, 45x45mm, metallic legend, marked 2/0/1, 35mm black handle

$134.32
Cam changeover switch, Harmony K, multifixing, plastic, 2 poles, position 0, 45°, 20A, 45x45mm, metallic legend, marked 2/0/1, 35mm black handle
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 25-Oct-2024
Catalogue
Instruction sheet
Product environmental
Declaration of conformity
Product Page Link
Product Data Sheet
This Harmony K2 complete cam switch/selector switch has 2 poles (2P). It also has a rating of 20A, a screw clamp mounting mode and a metallic color with black marking. It has "2 - 0 - 1" marking to indicate the position of the switch. This metal head complete cam switch/selector switch is designed to meet most industrial and process control application thanks to a compact size, an easy integration with 16mm and 22mm diameter units and has several selection functions. It has a 45 degree between its switching positions.

Products specifications

Attribute nameAttribute value
Main
Off positionwith Off position
Returnwithout
Rotary handle padlockingwithout
Poles description2P
Product mountingfront mounting
Cam switch head typewith front plate 45 x 45 mm
Switching positionsright: 0° - 45°, left: 0° - 315°
Type of operatorblack handle, length = 35 mm
Component nameK2
Cam switch functionchangeover switch
[Ith] conventional free air thermal current20 A
Product or component typecomplete cam switch
IP degree of protectionIP40 conforming to IEC 60529
Presentation of legendwith metallic legend, 2 - 0 - 1 black marking
Fixing modemultifixing
Range of productHarmony K
Complementary
CAD overall depth87 mm
CAD overall width45 mm
Compatibility codeK2D
Mechanical durability1000000 cycles
Contact operationslow-break
Positive openingwith
[Ui] rated insulation voltage690 V (pollution degree 3) conforming to IEC 60947-1
Short-circuit current10000 A
Maximum operating rate8.333 cyc/mn AC-15, 2.5 cyc/mn AC-3, 2.5 cyc/mn AC-23, 2.5 cyc/mn AC-21
Electrical durability600000 cycles AC-21, 600000 cycles AC-15, 200000 cycles AC-3, 200000 cycles AC-23
Electrical connectioncaptive screw clamp terminals solid, clamping capacity: 1 x 2.5 mm², captive screw clamp terminals flexible, clamping capacity: 2 x 1.5 mm²
Switching angle45 °
CAD overall height45 mm
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 947-1, 4 kV in isolating function
Net weight0.14 kg
[Ithe] conventional enclosed thermal current16 A
Short-circuit protection20 A cartridge fuse, type gG
Environment
Protective treatmentTC
Electrical shock protection classclass II, class II conforming to IEC 536
Ambient air temperature for storage-40-70 °C
StandardsCENELEC EN 50013, IEC 60947-5-1 for control circuit, IEC 60947-3 for power circuit
Product certificationsUL 240 V 1 hp 3 phases, CSA 240 V 1 hp 1 phase, UL 240 V 0.33 hp 1 phase 2 pole(s), CSA 240 V 3 hp 3 phases 2 pole(s)
Shock resistance30 gn conforming to IEC 68-2-27
Vibration resistance5 gn conforming to IEC 68-2-6 (f = 10-150 Hz)
Ambient air temperature for operation-25-55 °C
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height6.500 cm
Package 1 Width6.500 cm
Package 1 Length11.000 cm
Package 1 Weight155.300 g
Unit Type of Package 22
Number of Units in Package 210
Package 2 Height15.000 cm
Package 2 Width15.000 cm
Package 2 Length40.000 cm
Package 2 Weight1.698 kg
Unit Type of Package 33
Number of Units in Package 3320
Package 3 Height75.000 cm
Package 3 Width80.000 cm
Package 3 Length60.000 cm
Package 3 Weight62.320 kg
