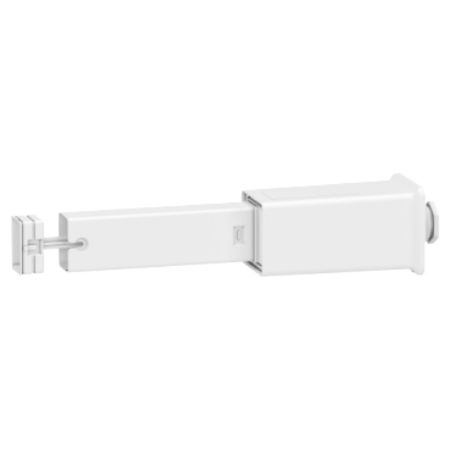

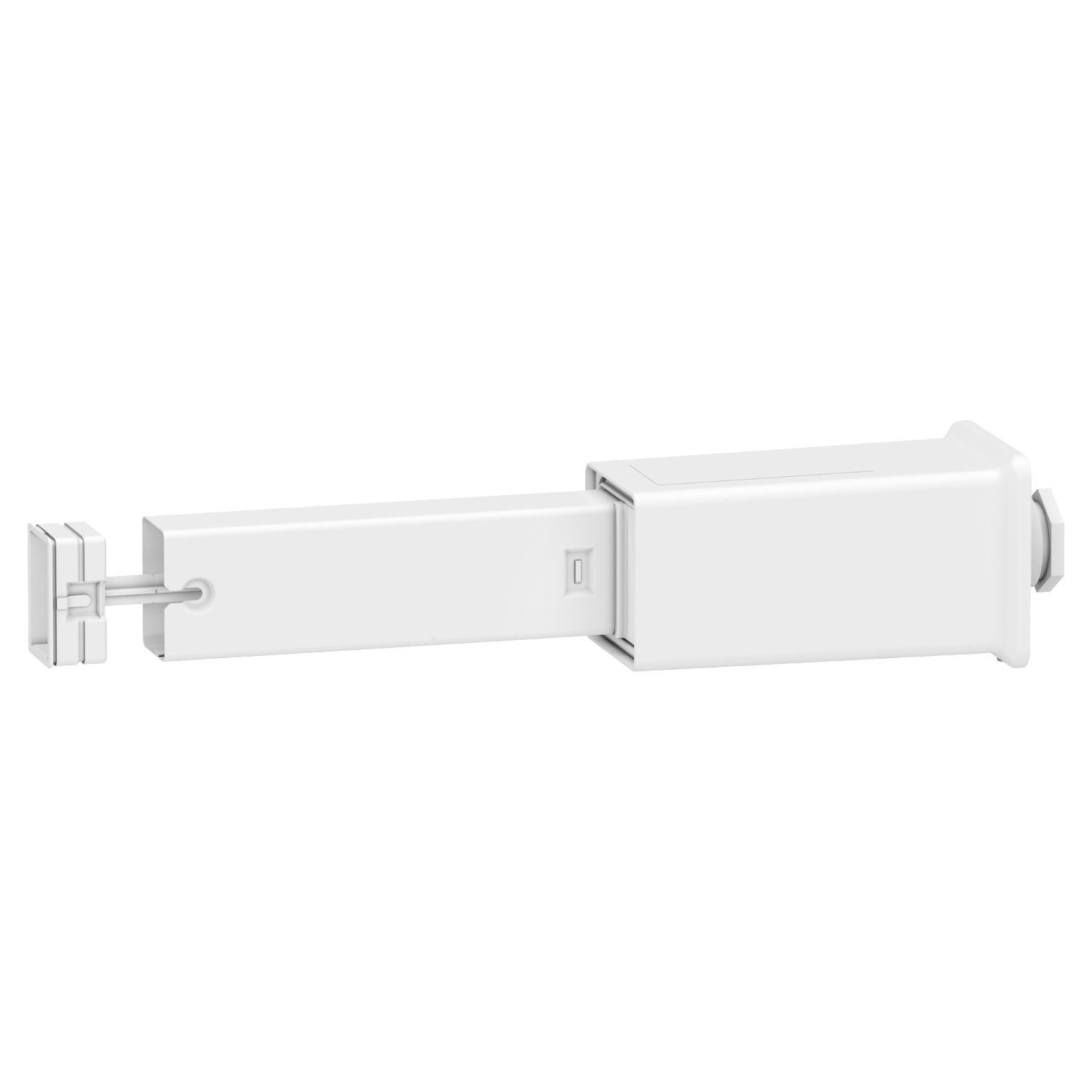

Picture of End feed unit, Canalis KBA, 25/40A, right mounting, 1 circuit, compatible DALI, white RAL9003
SKU:

KBA40ABD4W

End feed unit, Canalis KBA, 25/40A, right mounting, 1 circuit, compatible DALI, white RAL9003

$66.72
End feed unit, Canalis KBA, 25/40A, right mounting, 1 circuit, compatible DALI, white RAL9003
  • Compatible range for lighting systems in small and medium height buildings
  • Modular and upgradeable system
  • Fast and easy mounting solution
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • High protection index IP 55 for all types of buildings
  • Compliant with DALI and KNX communication protocols
  • Dismantled, re-used and entirely recyclable
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 08-Jan-2025
Product environmental
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet
This is a feed unit for Canalis KBA busbar trunking. Canalis KBA is designed for lighting and power socket distribution. The rated operational current is 40A at 35°C. The rated operational voltage is from 230VAC to 400VAC 50/60Hz. This element is clipped on the right end of the line, and end cover is provided and should be clipped on the opposite side of the line. It receives power cables with 10 mm² cross section and a maximum diameter of 19 mm (PG 21). It embeds 1 electrical circuit with 3L+N+PE polarity. It provides IP55 protection conforming to IEC 60529 standard, which guarantees trunking protection against splashes and dust. It provides IK06 protection conforming to IEC 62262 standard against external mechanical impacts. The length is 300mm, and the section is 78.5mm x 75.5mm. It is made off RAL 9003 white lacquered sheet steel. Canalis KBA is compliant with IEC/EN 61439-6 standard. It is non flame propagating as per the recommendations of IEC 60332-3 standard. All the insulating and plastic materials are halogen free and have enhanced fire withstand capabilities (IEC 60695-2).

Products specifications

Attribute nameAttribute value
Main
[Ue] rated operational voltage230...400 V
Device short nameKBA
Colourwhite (RAL 9003)
Protection typewithout protection
Communication port protocolDALI
[Ie] rated operational current25 A, 40 A
Busbar trunking polarityL + N + PE, 3L + N + PE
Control typecommunicating
RangeCanalis
Materialaluminium
Number of circuits1
Product or component typefeed unit
Product compatibilityCanalis KBA busbar trunking 25-40 A
Offer typecontrol system, classic
Range of productCanalis
Complementary
Depth75.5 mm
Width320 mm
Provided equipmentend cover
Mounting modeby screws
Mounting locationright
Net weight500 g
Mounting supportbusbar
Connections - terminalsterminal block - Pg 21 - screw clamp connector for 10-10 mm²
StandardsIEC 61439-6
Height78.5 mm
Environment
IP degree of protectionIP55 conforming to IEC 60529
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height8.000 cm
Package 1 Width8.000 cm
Package 1 Length39.500 cm
Package 1 Weight805.000 g
Unit Type of Package 22
Number of Units in Package 28
Package 2 Height30.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight6.840 kg
Unit Type of Package 33
Number of Units in Package 364
Package 3 Height75.000 cm
Package 3 Width60.000 cm
Package 3 Length80.000 cm
Package 3 Weight61.720 kg
