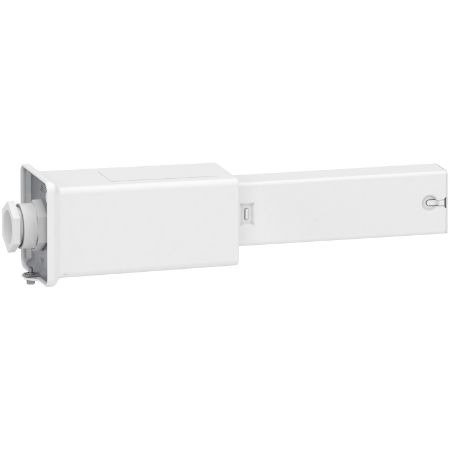

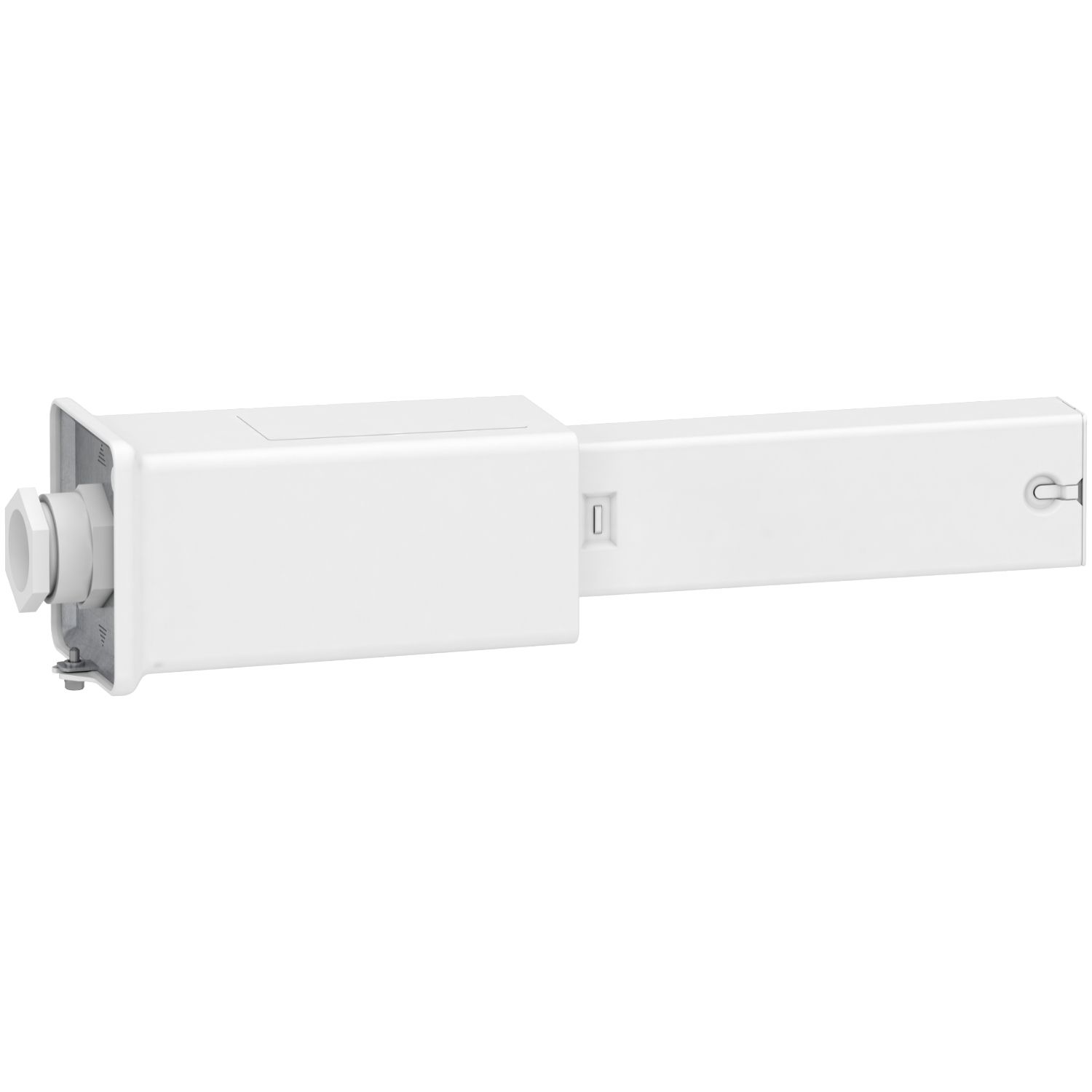

Picture of End feed unit, Canalis KBA, 25/40A, left mounting, 1 circuit, compatible DALI, white RAL9003
SKU:

KBA40ABG4W

End feed unit, Canalis KBA, 25/40A, left mounting, 1 circuit, compatible DALI, white RAL9003

$68.22
Available for Shipping : 24-Nov-2024
End feed unit, Canalis KBA, 25/40A, left mounting, 1 circuit, compatible DALI, white RAL9003
  • Compatible range for lighting systems in small and medium height buildings
  • Modular and upgradeable system
  • Fast and easy mounting solution
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • High protection index IP 55 for all types of buildings
  • Compliant with DALI and KNX communication protocols
  • Dismantled, re-used and entirely recyclable
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet
This is a feed unit for Canalis KBA busbar trunking. Canalis KBA is designed for lighting and power socket distribution. The rated operational current is 40A at 35°C. The rated operational voltage is from 230VAC to 400VAC 50/60Hz. This element is clipped on the left end of the line, and end cover is provided and should be clipped on the opposite side of the line. It receives power cables with 10 mm² cross section and a maximum diameter of 19 mm (PG 21). It embeds 1 electrical circuit with 3L+N+PE polarity. It provides IP55 protection conforming to IEC 60529 standard, which guarantees trunking protection against splashes and dust. It provides IK06 protection conforming to IEC 62262 standard against external mechanical impacts. The length is 300mm, and the section is 78.5mm x 75.5mm. It is made off RAL 9003 white lacquered sheet steel. Canalis KBA is compliant with IEC/EN 61439-6 standard. It is non flame propagating as per the recommendations of IEC 60332-3 standard. All the insulating and plastic materials are halogen free and have enhanced fire withstand capabilities (IEC 60695-2).

Products specifications

Attribute name Attribute value
Main
[Ue] rated operational voltage 230...400 V
Device short name KBA
Colour white (RAL 9003)
Protection type without protection
Communication port protocol DALI
[Ie] rated operational current 25 A, 40 A
Busbar trunking polarity L + N + PE, 3L + N + PE
Control type communicating
Range Canalis
Material aluminium
Number of circuits 1
Product or component type feed unit
Product compatibility Canalis KBA busbar trunking 25-40 A
Offer type control system, classic
Range of product Canalis
Complementary
Depth 75.5 mm
Width 300 mm
Provided equipment end cover
Mounting mode by screws
Mounting location left
Net weight 400 g
Mounting support busbar
Connections - terminals terminal block - Pg 21 - screw clamp connector for 10-10 mm²
Standards IEC 61439-6
Height 78.5 mm
Environment
IP degree of protection IP55 conforming to IEC 60529
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.5 cm
Package 1 Width 7.5 cm
Package 1 Length 37 cm
Package 1 Weight 450 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 7 kg
Unit Type of Package 3 3
Number of Units in Package 3 120
Package 3 Height 75 cm
Package 3 Width 60 cm
Package 3 Length 80 cm
Package 3 Weight 63 kg
