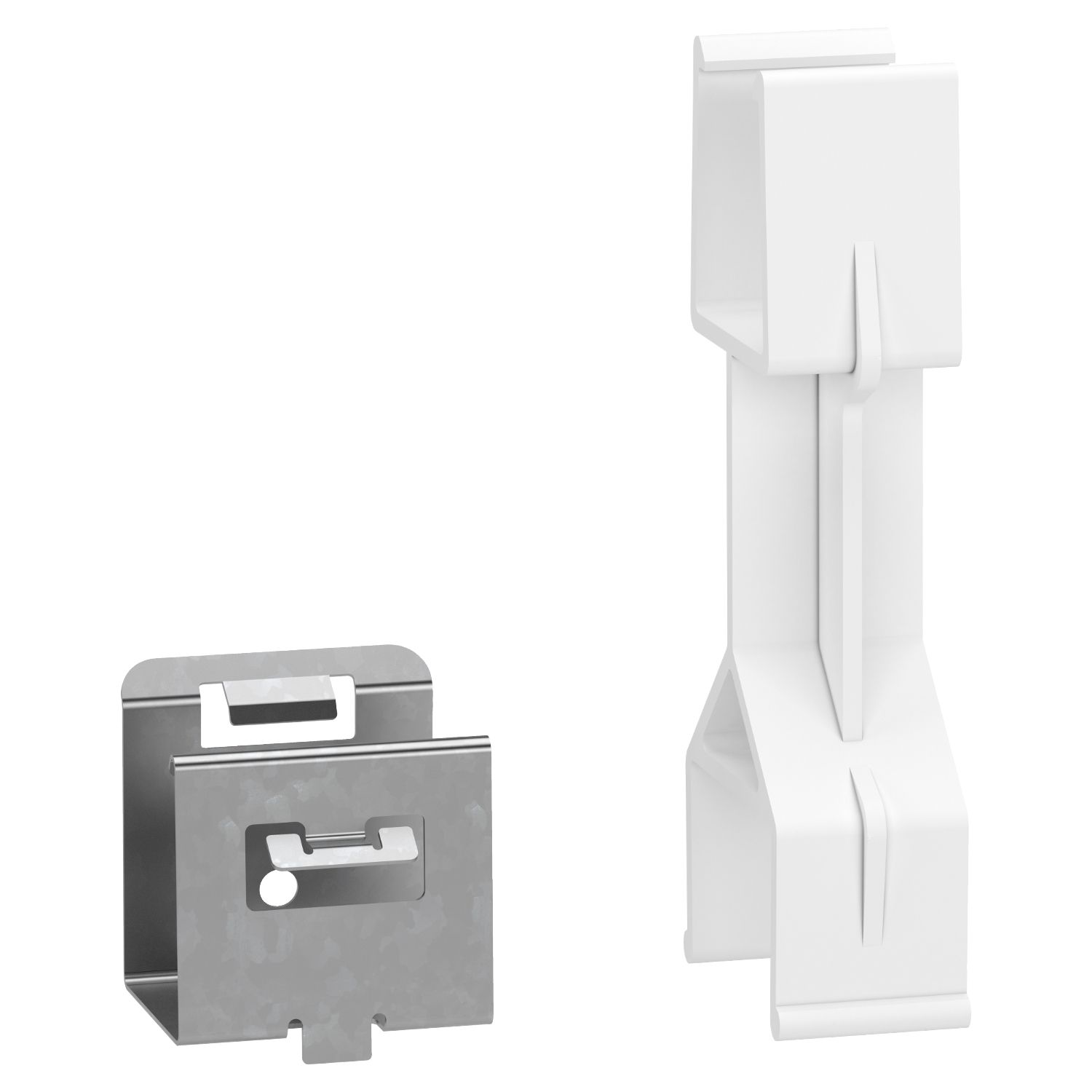

Picture of Cable duct support kit, Canalis KBA, 25/40A, cable duct support with intermediate support
SKU:

KBA40ZFG2

Cable duct support kit, Canalis KBA, 25/40A, cable duct support with intermediate support

$8.84 INC GST
Available for Shipping : 17-May-2026
Cable duct support kit, Canalis KBA, 25/40A, cable duct support with intermediate support
  • Compatible range for lighting systems in small and medium height buildings
  • Modular and upgradeable system
  • Fast and easy mounting solution
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • High protection index IP 55 for all types of buildings
  • Compliant with DALI and KNX communication protocols
  • Dismantled, re-used and entirely recyclable
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 17-May-2026
Catalog
Instruction sheet
Environmental Disclosure
Product Page Link
Product Data Sheet
This is a cable duct support with intermediate support for Canalis KBA busbar trunking. Canalis KBA is designed for lighting and power socket distribution. Used for Canalis KBA busbar trunking with 40A rated operational current at 35°C. The maximum recommended distance between fixing is 3m. Sold in lots of 10 units.

Products specifications

Attribute name Attribute value
Main
Product compatibility KBA
Quantity per set set of 10
Range Canalis
Product or component type support
Range of product Canalis
Complementary
Depth 30 mm
Width 25 mm
Mounting mode by clips
Mounting location on trunking
Net weight 0.2 kg
Accessory / separate part category adaptation
Mounting support busbar
Height 97.5 mm
Environment
Standards IEC 60439-2, IEC 61439-6
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.000 cm
Package 1 Width 3.700 cm
Package 1 Length 9.800 cm
Package 1 Weight 26.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 8.000 cm
Package 2 Width 15.000 cm
Package 2 Length 24.000 cm
Package 2 Weight 760.000 g
Unit Type of Package 3 3
Number of Units in Package 3 100
Package 3 Height 29.500 cm
Package 3 Width 29.500 cm
Package 3 Length 39.500 cm
Package 3 Weight 8.000 kg
Unit Type of Package 4 4
Number of Units in Package 4 1300
Package 4 Height 80.000 cm
Package 4 Width 80.000 cm
Package 4 Length 120.000 cm
Package 4 Weight 116.000 kg
