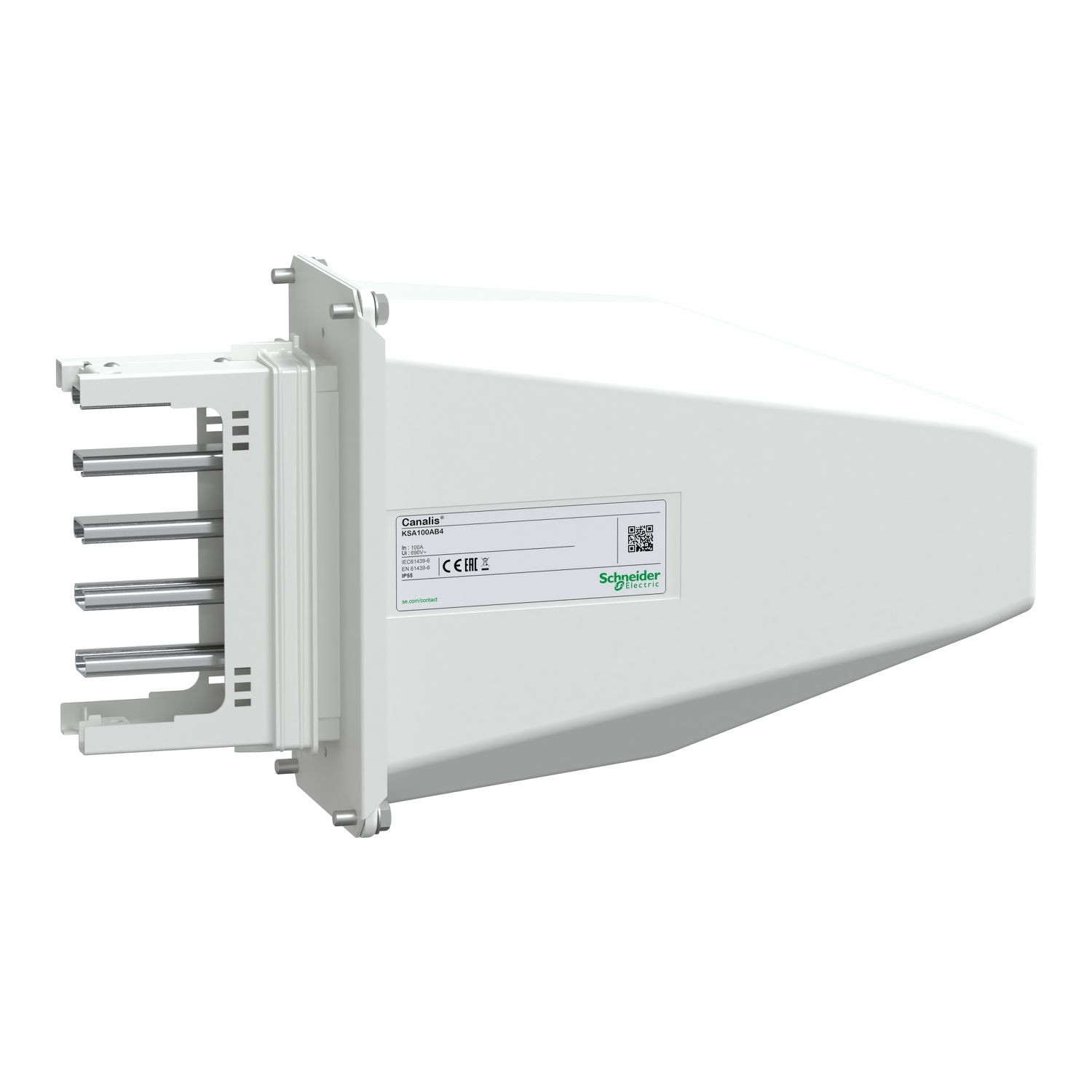

Picture of End feed unit, Canalis KSA100, aluminium, 100A, right or left mounting, without line protection, 3L+N+PE, white RAL9001
SKU:

KSA100AB4

End feed unit, Canalis KSA100, aluminium, 100A, right or left mounting, without line protection, 3L+N+PE, white RAL9001

$369.72 INC GST
Available for Shipping : 28-Aug-2025
End feed unit, Canalis KSA100, aluminium, 100A, right or left mounting, without line protection, 3L+N+PE, white RAL9001
  • Busbar trunking system for power distribution from 100A up to 1000A
  • Flexible, scalable, modular and upgradeable system
  • Easy selection process
  • Quick, light and easy mounting solution
  • High protection degree IP55 for all types of buildings
  • Fool proof system avoids unit being installed or removed under load
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • Sustainable by being reusable, recyclable and reduces line losses by 20%
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet
Canalis feed-unit for KSA. The rated operational voltage is from 230VAC to 690VAC. The rated operational current is 100A. The bar material of feed-unit is aluminium with white RAL 9001 surface treatment. Busbar mounting by screws with right/left mounting location, connection by terminal block. Designed with 1 circuit allowing. It provides IP55 protection which conforming to IEC 60529 standard. IK08 conforms to IEC 62262. It is compliant with both IEC 60439-2 and IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH).

Products specifications

Attribute name Attribute value
Main
[Ue] rated operational voltage 230...690 V
Device short name KSA
Colour white (RAL 9001)
Protection type without protection
[Ie] rated operational current 100 A
Busbar trunking polarity 3L + N + PE
Control type without
Range Canalis
Material aluminium
Number of circuits 1
Product name KS
Product or component type feed unit
Product compatibility Canalis KSA busbar trunking 100-250 A
Offer type rising main, classic
Range of product Canalis
Complementary
Depth 112 mm
Width 390 mm
Provided equipment end cover
Body material plastic
Mounting mode by screws
Mounting location left, right
Net weight 1.8 kg
Mounting support busbar
Connections - terminals terminal block for 16-16 mm² rigid, terminal block for 16-16 mm² flexible
Standards IEC 61439-6, IEC 61439-1
Height 212 mm
Environment
IP degree of protection IP55 conforming to IEC 60529
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 12.500 cm
Package 1 Width 22.000 cm
Package 1 Length 39.000 cm
Package 1 Weight 2.015 kg
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 89.500 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 66.565 kg
