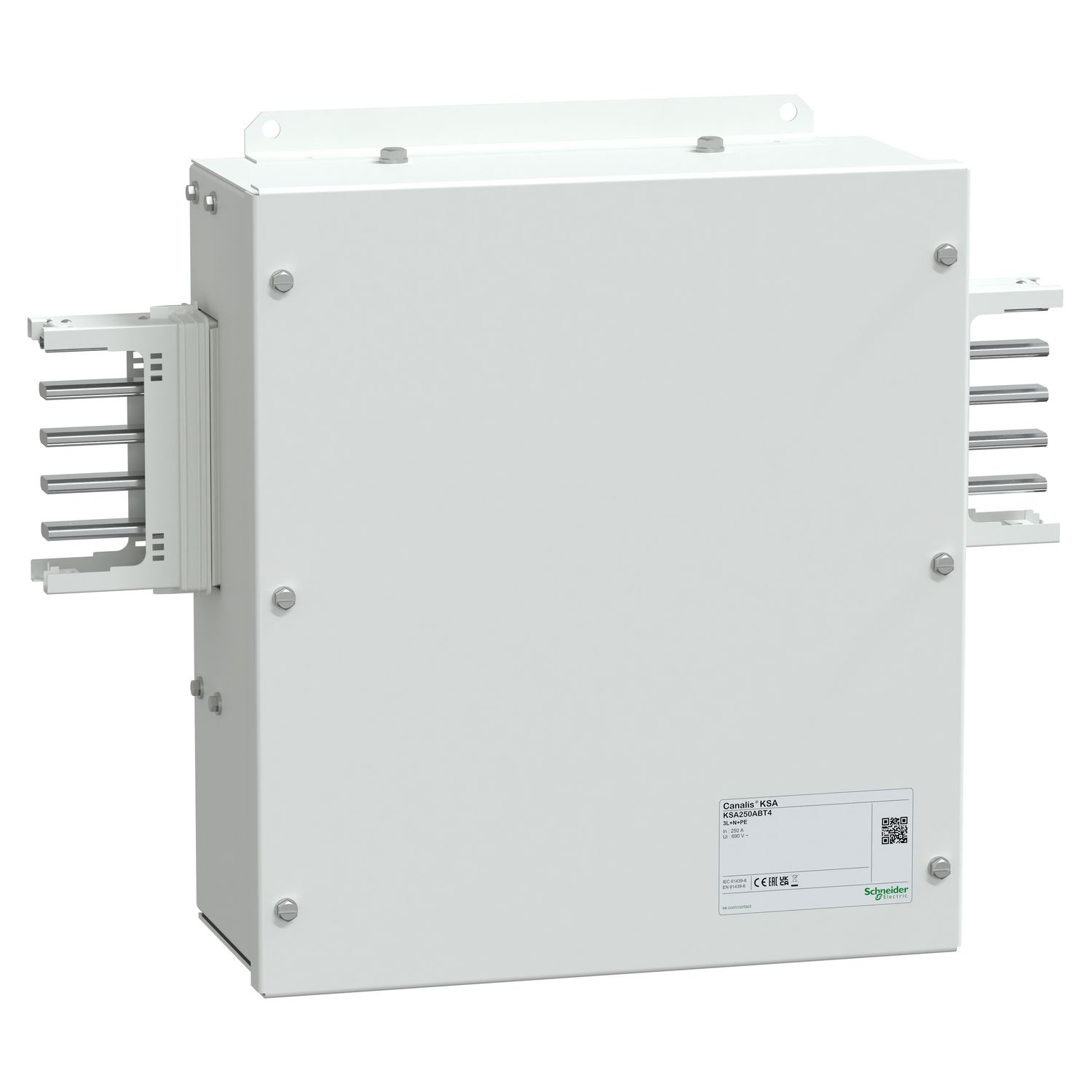

Picture of Central feed unit, Canalis KSA250, aluminium, 100/160/250A, central mounting, without line protection, 3L+N+PE, RAL9001
SKU:

KSA250ABT4

Central feed unit, Canalis KSA250, aluminium, 100/160/250A, central mounting, without line protection, 3L+N+PE, RAL9001

$1,294.48
Available for Shipping : 27-Feb-2025
Central feed unit, Canalis KSA250, aluminium, 100/160/250A, central mounting, without line protection, 3L+N+PE, RAL9001
  • Busbar trunking system for power distribution from 100A up to 1000A
  • Flexible, scalable, modular and upgradeable system
  • Easy selection process
  • Quick, light and easy mounting solution
  • High protection degree IP55 for all types of buildings
  • Fool proof system avoids unit being installed or removed under load
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • Sustainable by being reusable, recyclable and reduces line losses by 20%
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet
Canalis feed-unit for KSA. It is compatible with FL21 gland plate. The rated operational voltage is from 230VAC to 690VAC. The rated operational current is 100A, 160A and 250A. The bar material of feed-unit is aluminium with white RAL 9001 surface treatment. Busbar mounting by screws with central mounting location, connection by Lug terminals. Designed with 1 circuit allowing. It provides IP55 protection which conforming to IEC 60529 standard. IK08 conforms to IEC 62262. It is compliant with both IEC 60439-2 and IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH).

Products specifications

Attribute name Attribute value
Main
[Ue] rated operational voltage 230...690 V
Device short name KSA
Colour white (RAL 9001)
Protection type without protection
[Ie] rated operational current 250 A
Busbar trunking polarity 3L + N + PE
Control type without
Range Canalis
Material aluminium
Number of circuits 1
Product name KS
Product or component type feed unit
Product compatibility Canalis KSA busbar trunking 100-250 A
Offer type classic
Range of product Canalis
Complementary
Depth 173.5 mm
Width 585 mm
Provided equipment end cover
Body material metal
Mounting mode by screws
Mounting location central
Net weight 13 kg
Mounting support busbar
Connections - terminals lug for 240-240 mm² rigid, lug for 240-240 mm² flexible
Standards IEC 61439-6, IEC 61439-1
Height 436 mm
Environment
IP degree of protection IP55 conforming to IEC 60529
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 20.500 cm
Package 1 Width 48.000 cm
Package 1 Length 63.300 cm
Package 1 Weight 13.700 kg
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 82.000 cm
Package 2 Width 80.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 74.900 kg
