SKU:

KSA630DZE43A

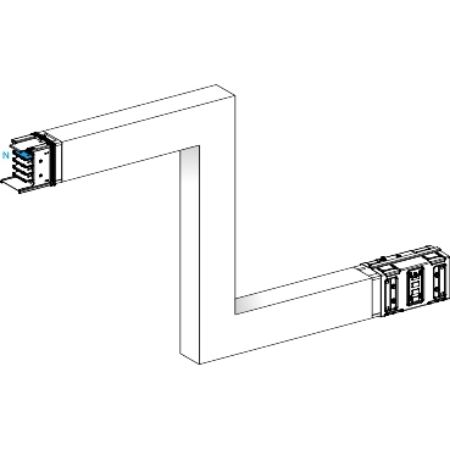

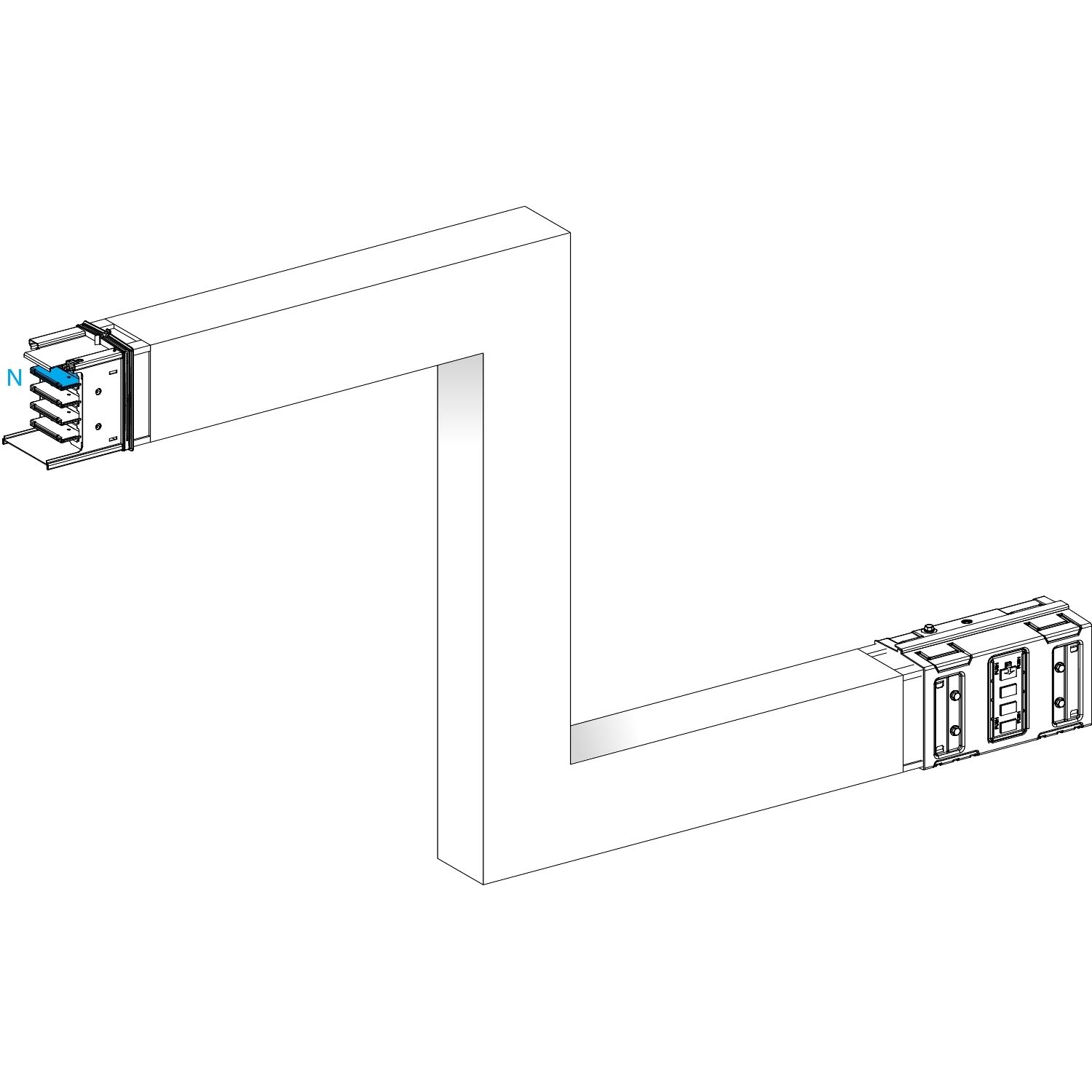

Zed, Canalis KSA630, aluminium, 500/630A, all sides made to measure, upward/downward, 3L+N+PE, white RAL9001

$3,487.44 INC GST

Qty:

Available for Shipping : 09-Apr-2026

Zed, Canalis KSA630, aluminium, 500/630A, all sides made to measure, upward/downward, 3L+N+PE, white RAL9001

Manufacturer: Schneider Electric

Delivery date: 09-Apr-2026

Environmental Disclosure

Instruction sheet

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
[Ue] rated operational voltage	230...690 V
Device short name	KSA
Device application	change direction
Colour	white (RAL 9001)
Operating angle	90 °
[Ie] rated operational current	630 A at 35 °C
Busbar description	standard on made to measure (per side)
Dimension type	made to measure
Busbar trunking polarity	3L + N + PE
IP degree of protection	IP55 conforming to IEC 60529
Range	Canalis
Material	aluminium
Direction change type	direction 2 : edgewise to straight - , direction 1 : edgewise to downward - neutral to up, direction 1 : edgewise to upward - neutral to left
Product name	KS
Product or component type	zed elbow
Product compatibility	Canalis KSA busbar trunking 500-1000 A
Length	290-800 mm for side C, 200-800 mm for side B, 290-800 mm for side A
Offer type	advanced
Range of product	Canalis
Network frequency	50/60 Hz
Complementary
Depth	146 mm
Width	113 mm
Electrical connection	lubricated sliding contact
Mounting mode	by screws
Mounting location	on trunking
Standards	IEC 61439-6, IEC 61439-1
Environment
IK degree of protection	IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	14.000 cm
Package 1 Width	36.000 cm
Package 1 Length	143.000 cm
Package 1 Weight	18.619 kg
Unit Type of Package 2	2
Number of Units in Package 2	5
Package 2 Height	90.000 cm
Package 2 Width	60.000 cm
Package 2 Length	200.000 cm
Package 2 Weight	114.695 kg
