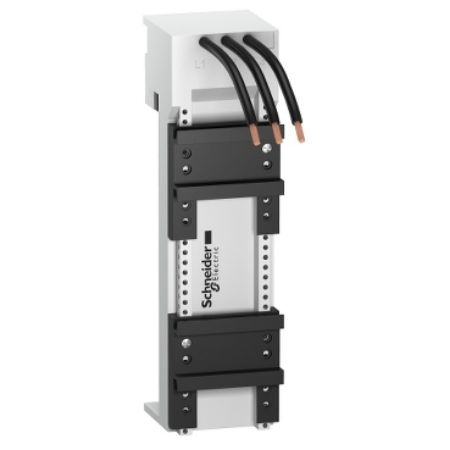

Picture of mounting plate LA9Z 1x3P 32A - 54x200x63mm for GV2LE/P/ME+LC1D
SKU:

LA9ZA32442

mounting plate LA9Z 1x3P 32A - 54x200x63mm for GV2LE/P/ME+LC1D

$77.94
Available for Shipping : 24-Nov-2024
mounting plate LA9Z 1x3P 32A - 54x200x63mm for GV2LE/P/ME+LC1D
  • Done with grey surface treatment
  • It is compatible with 3 Poles TeSys
  • Devices can be powered anywhere within the panel
  • A straightforward layout that allows quick and simplified extensions and upgrades
  • Connection everywhere without drilling
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name LA9Z
Quantity per set set of 4
Number of ways 1 way
Range Linergy
Product name BZ
Product or component type adaptors for busbar systems
Range of product TeSys
Complementary
Product compatibility GV2ME, GV2LE, GV2P, LC1D
Depth 63 mm
Range compatibility Spacial, TeSys D, TeSys GV2, Prisma Pack, Prisma PH, Prisma P, Prisma G
Width 54 mm
Colour grey
Poles description 3P
[Ui] rated insulation voltage 690 V
Permissible current 32 A
Cable cross section 6-6 mm² - AWG 10
Height 200 mm
Busbar pitch 60 mm
Environment
IP degree of protection IP20 conforming to IEC 60529
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 12.5 cm
Package 1 Width 18 cm
Package 1 Length 22 cm
Package 1 Weight 351 g
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 12.5 cm
Package 2 Width 18 cm
Package 2 Length 22 cm
Package 2 Weight 1.406 kg
Unit Type of Package 3 3
Number of Units in Package 3 16
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 5.866 kg
