SKU:

LA9ZX01243

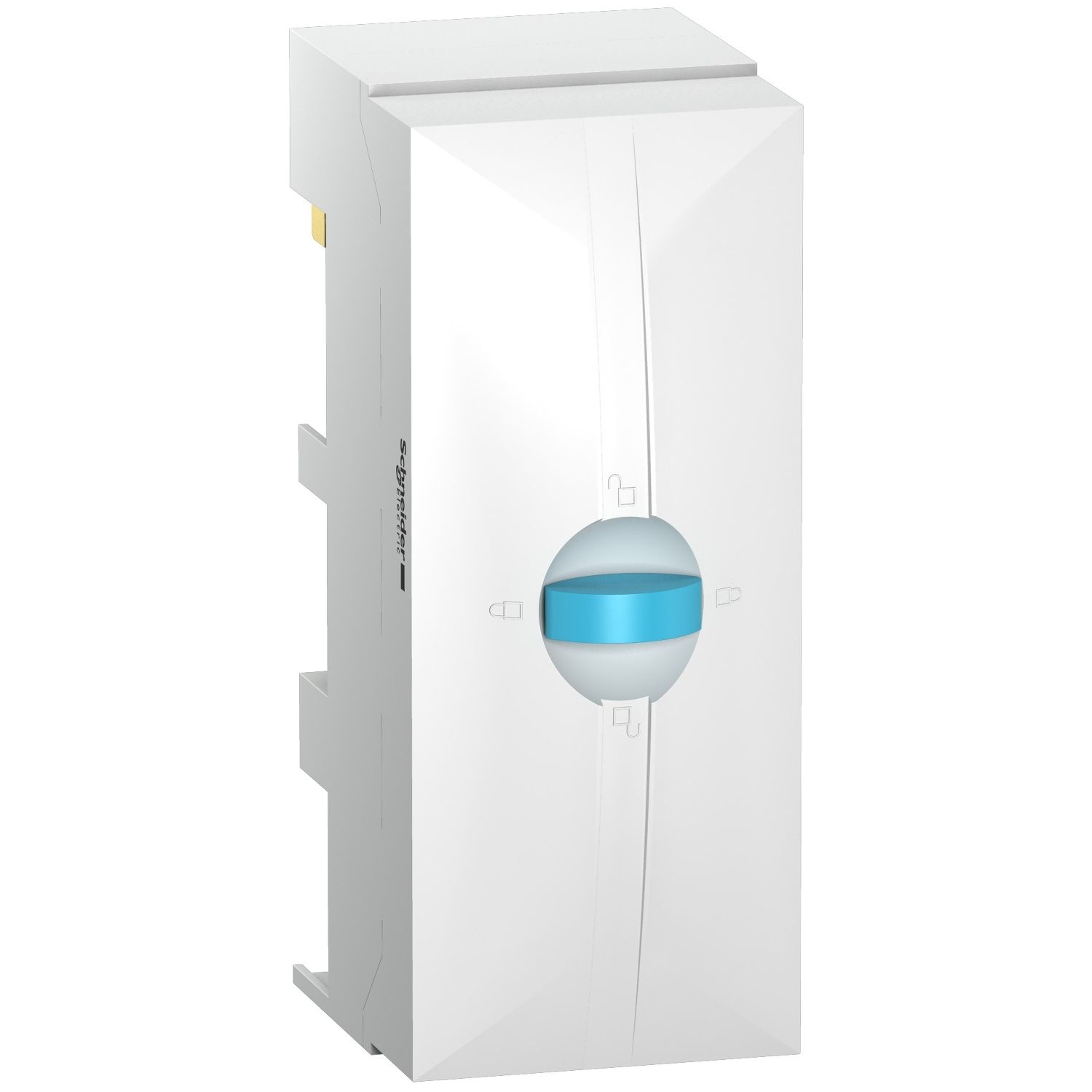

Adaptors for busbar systems, Linergy BZ, Connectors Plate 3P, 120mm2, IEC/Ul For 60 Interaxis Busbar

$92.42

Qty:

Available for Shipping : 03-Dec-2024

Adaptors for busbar systems, Linergy BZ, Connectors Plate 3P, 120mm2, IEC/Ul For 60 Interaxis Busbar

Manufacturer: Schneider Electric

Product environmental

Catalogue

Instruction sheet

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Device short name	LA9Z
Quantity per set	set of 1
Product or component type	connection kit
Range of product	TeSys, PowerPact multistandard
Complementary
Depth	80 mm
Width	70 mm
Colour	grey
Poles description	3P
[Ie] rated operational current	440 A
Cable cross section	35-120 mm²
[Ui] rated insulation voltage	690 V
Mounting mode	rail
Provided equipment	cover, mounting plate
Height	200 mm
Busbar pitch	60 mm
Environment
IP degree of protection	IP20
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	13.300 cm
Package 1 Width	11.200 cm
Package 1 Length	20.500 cm
Package 1 Weight	534.000 g
Unit Type of Package 2	2
Number of Units in Package 2	6
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	3.780 kg
Unit Type of Package 3	3
Number of Units in Package 3	48
Package 3 Height	75.000 cm
Package 3 Width	60.000 cm
Package 3 Length	80.000 cm
Package 3 Weight	38.996 kg
