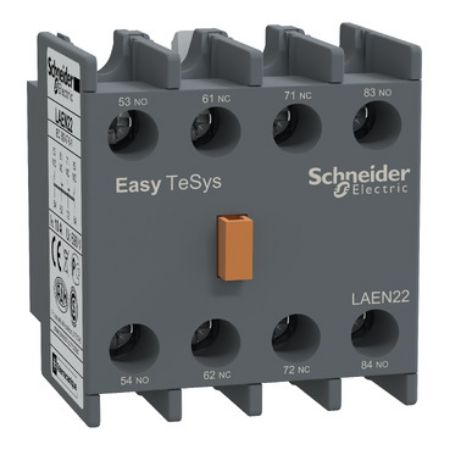

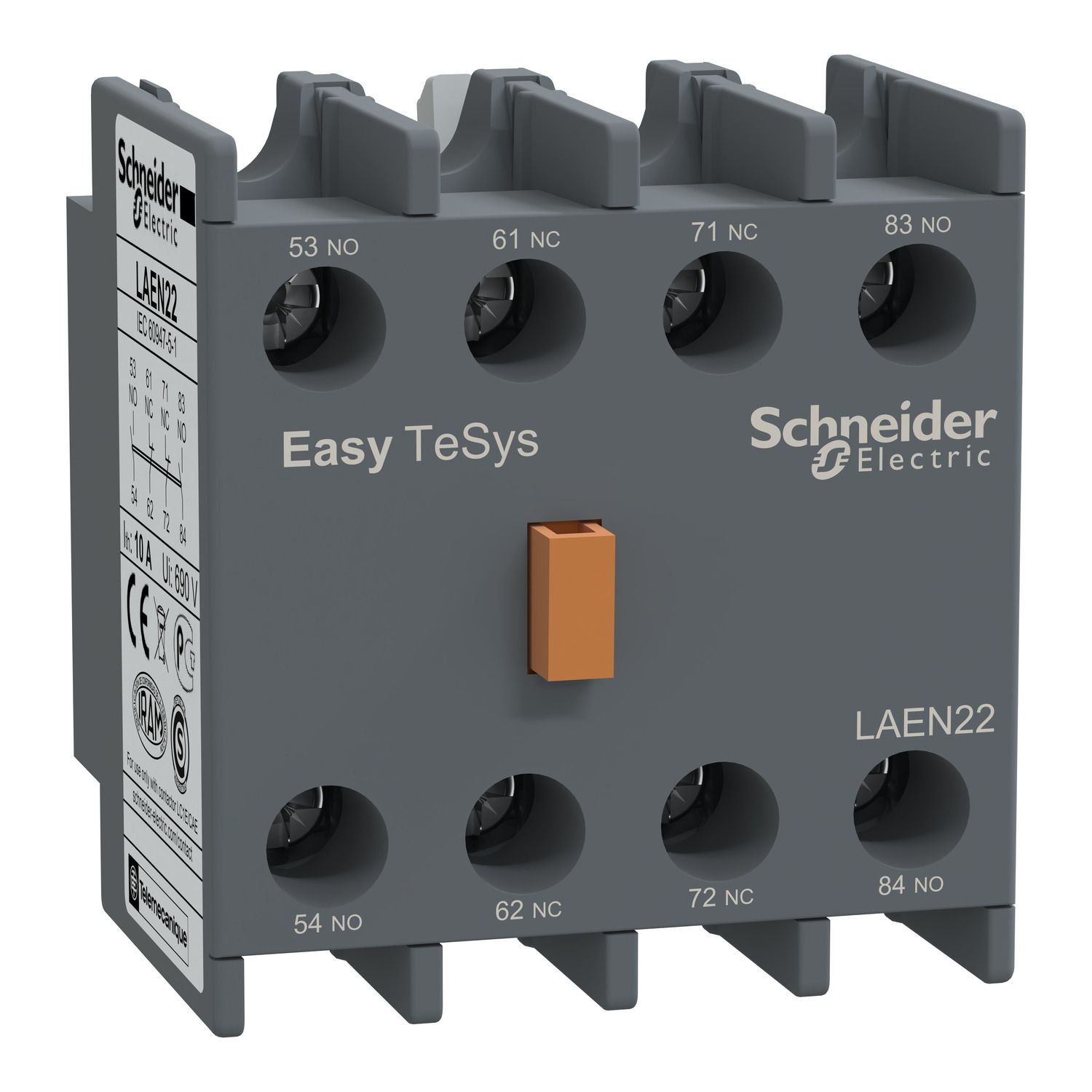

Picture of Auxiliary contact block,Easy TeSys Control,2NO+2NC,for LC1E/CAE
SKU:

LAEN22

Auxiliary contact block,Easy TeSys Control,2NO+2NC,for LC1E/CAE

Please Contact Sales to buy this Product. click here
Auxiliary contact block,Easy TeSys Control,2NO+2NC,for LC1E/CAE
  • Meet the need for more control contact for Easy TeSys TVS contactor and control relay
  • Easy choice for simple applications
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
CAD
Catalogue
Product environmental
Instruction sheet
Product Page Link
Product Data Sheet
Add-on auxiliary contact block for EasyPact TVS LC1E contactors. It provides 2NO+2NC instantaneous contacts rated up to 10A 690V AC, connected by screw clamps terminals. It can be used in safety applications thanks to its NC certified mirror contacts. Easy to mount on front by clip-on, it procures high reliability and durability. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach).

Products specifications

Attribute nameAttribute value
Main
Device short nameLAEN
Device applicationsignalling
Colourgrey (RAL 7011)
RangeEasy TeSys
Range of productEasy TeSys Control
Product or component typeauxiliary contact block
Complementary
[Icw] rated short-time withstand current140 A - 100 ms, 120 A - 500 ms, 100 A - 1 s
Auxiliary contacts operationinstantaneous
Mechanical durability10 Mcycles
Irms rated making capacity140 A AC conforming to IEC 60947-5-1
Protection typegG fuse 10 A
[Ith] conventional free air thermal current8 A (at 60 °C)
Switching voltage17 V
[Ui] rated insulation voltage690 V - for control circuit conforming to IEC 60947-5-1
Connections - terminalscontrol circuit: screw clamp terminals 2 2.5-2.5 mm² - external diameter: 6 mm - cable stiffness: solid or flexible without cable end, control circuit: screw clamp terminals 2 2.5-2.5 mm² - external diameter: 6 mm - cable stiffness: solid or flexible with cable end, control circuit: screw clamp terminals 1 1-1 mm² - external diameter: 6 mm - cable stiffness: solid or flexible without cable end, control circuit: screw clamp terminals 1 1-1 mm² - external diameter: 6 mm - cable stiffness: solid or flexible with cable end
Pole contact composition2 NO + 2 NC
Mounting locationfront
Net weight0.06 kg
Insulation resistance> 10 MOhm
Range compatibilityEasyPact EasyPact TVS LC1E
[Ue] rated operational voltage<= 690 V
Minimum switching current5 mA
Non-overlap time1.5 ms on de-energisation no overlap between NC and NO contact, 1.5 ms on energisation no overlap between NC and NO contact
Environment
Protective treatmentTH conforming to IEC 60068
Environmental characteristicstandard environment
Ambient air temperature for storage-60-80 °C
IP degree of protectionIP20 conforming to IEC 60529
Ambient air temperature for operation-5-55 °C
Operating altitude3000 m without derating
StandardsIEC 60947-5-1
Product certificationsGOST
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height4.3 cm
Package 1 Width6.9 cm
Package 1 Length7.2 cm
Package 1 Weight61.0 g
Unit Type of Package 22
Number of Units in Package 272
Package 2 Height15.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight4.71 kg
