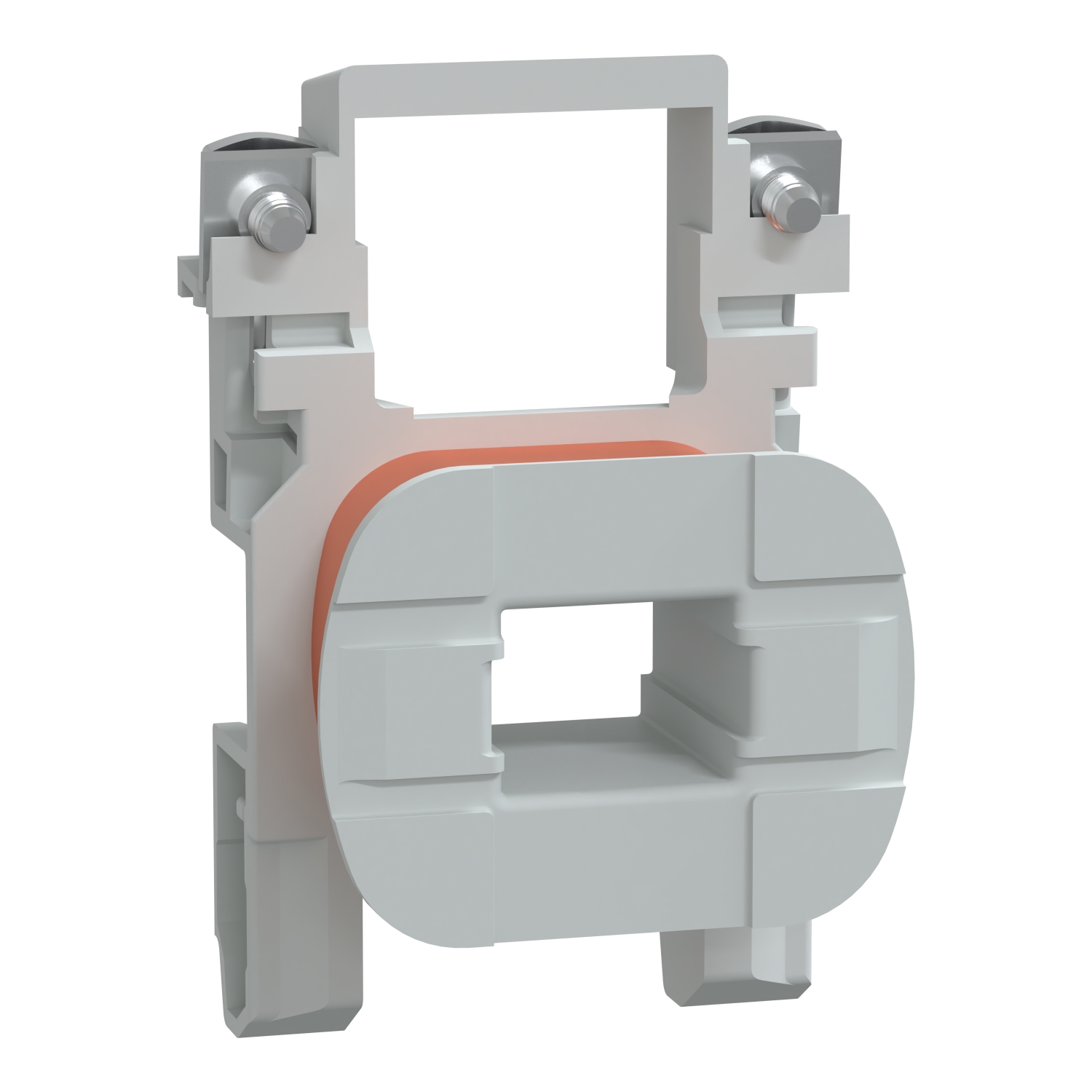

Picture of Contactor coil,Easy TeSys Control,415V AC,50Hz,spare part for LC1E06...25
SKU:

LAEX12N5

Contactor coil,Easy TeSys Control,415V AC,50Hz,spare part for LC1E06...25

$27.26 INC GST
Available for Shipping : 28-May-2026
Contactor coil,Easy TeSys Control,415V AC,50Hz,spare part for LC1E06...25
  • Stable performance: can operate on networks with harmonic numbers within 7
  • Green Premium compliant
  • Reliable performance under high temperature up to 55°C
  • Easier to install.
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 28-May-2026
Circularity Profile
CAD
Instruction sheet
Environmental Disclosure
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name LAEX
Product compatibility LC1E25
Inductance of closed circuit 62.8 H
Range Easy TeSys
Product or component type contactor coil
Control circuit type AC at 50 Hz standard
Range of product Easy TeSys Control
[Uc] control circuit voltage 415 V AC 50 Hz
Average resistance 1690 Ohm at 20 °C
Complementary
Hold-in power consumption in VA 7-7 VA 50 Hz cos phi 0.3 (at 20 °C)
Inrush power in VA 70-70 VA 50 Hz cos phi 0.75 (at 20 °C)
Control circuit voltage limits operational: 0.85...1.1 Uc at 50 Hz (at <55 °C)
Environment
Net weight 0.067 kg
Ambient air temperature for operation -5-55 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.8 cm
Package 1 Width 6.5 cm
Package 1 Length 8 cm
Package 1 Weight 95 g

Related products

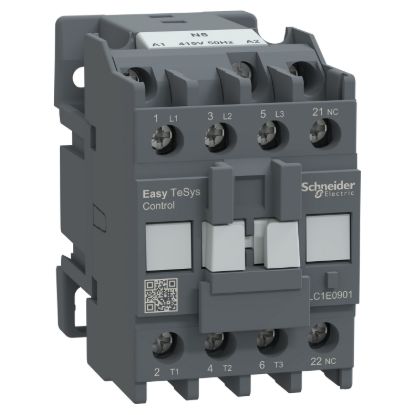

Picture of Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,9A,415V AC coil,50Hz,1NC auxiliary contact

Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,9A,415V AC coil,50Hz,1NC auxiliary contact

LC1E0901N5
$26.68 INC GST
View Detail
Picture of Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,9A,415V AC coil,50Hz,1NO auxiliary contact

Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,9A,415V AC coil,50Hz,1NO auxiliary contact

LC1E0910N5
$26.68 INC GST
View Detail
Picture of Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,18A,415V AC coil,50Hz,1NC auxiliary contact

Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,18A,415V AC coil,50Hz,1NC auxiliary contact

LC1E1801N5
$39.96 INC GST
View Detail
Picture of Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,18A,415V AC coil,50Hz,1NO auxiliary contact

Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,18A,415V AC coil,50Hz,1NO auxiliary contact

LC1E1810N5
$39.96 INC GST
View Detail

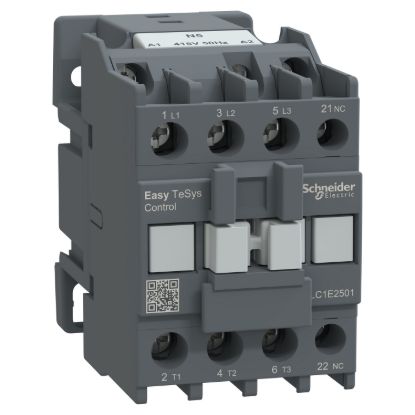

Picture of Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,25A,415V AC coil,50Hz,1NC auxiliary contact
