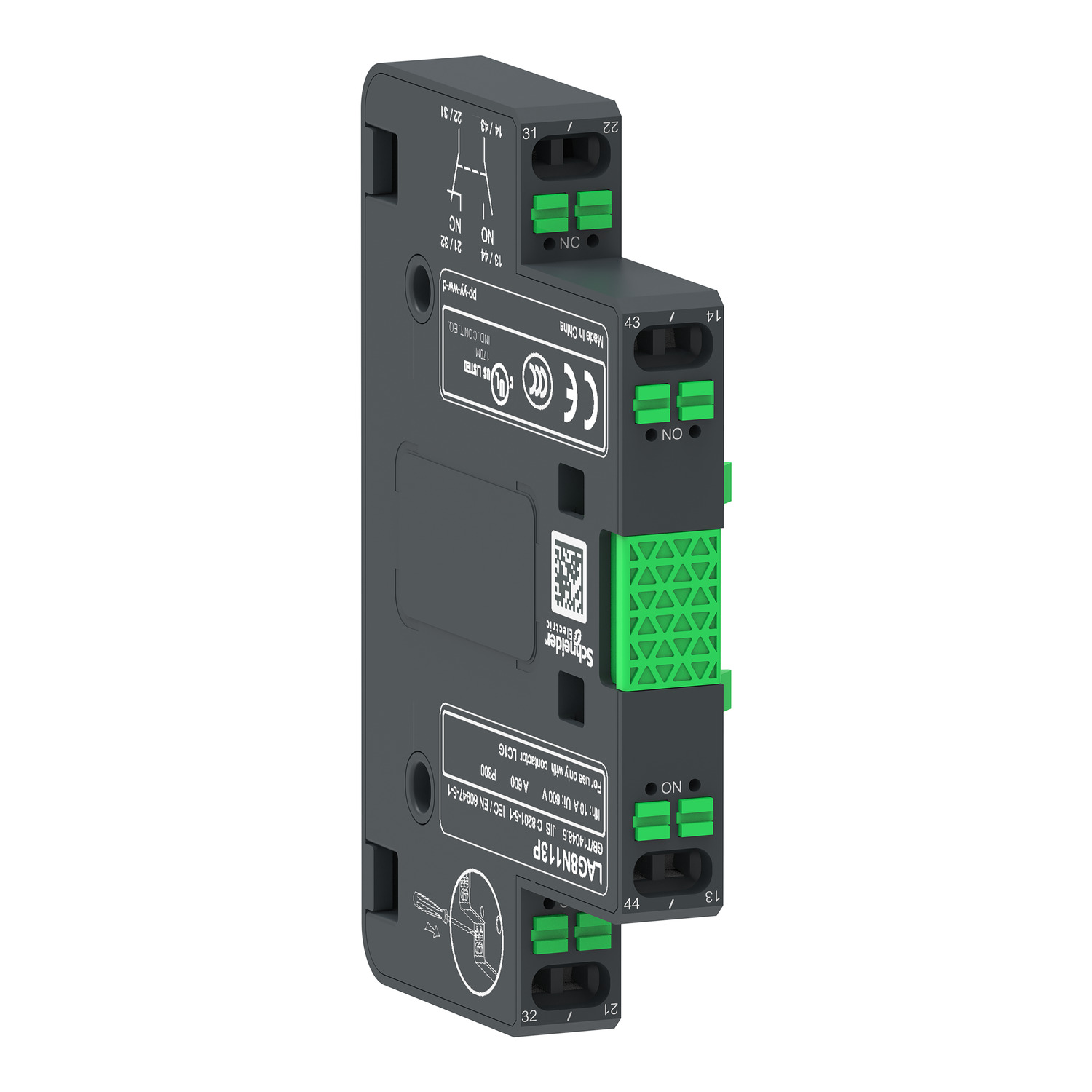

Picture of Auxiliary contact block,TeSys Giga contactor,1NO + 1NC,lateral face side mounting,push-in terminals L1/R1
SKU:

LAG8N113P

Auxiliary contact block,TeSys Giga contactor,1NO + 1NC,lateral face side mounting,push-in terminals L1/R1

Please Contact Sales to buy this Product. click here
Auxiliary contact block,TeSys Giga contactor,1NO + 1NC,lateral face side mounting,push-in terminals L1/R1
  • Max 4NO+4NC auxiliary contacts options provide flexibility to address your various control circuit needs
  • Choice of screw/spring connection for control terminals provides flexibility, and reduced assembly/installation time
  • Compatible with the whole range of LC1G contactors, simple to select, choose means less inventory
  • Default NC aux contact are mechanically linked mirror contacts to ensure safety chain
  • Highly reliable and suitable for 17V 1mA to address more challenging specific control applications
  • Designed to meet needs of demanding applications built-in with advanced features and functionalities
  • Unique QR code, quick access to complete product data, technical video, anti-fake checking and instruction sheet
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Instruction sheet
Product environmental
Catalogue
Declaration of conformity
End of life manual
User guide
Product Page Link
Product Data Sheet
These accessories are auxiliary contact block 1NO+1NC for TeSys Giga contactors. Highly reliable and suitable for 17V 1mA to address more challenging specific control applications. It is designed to side mounting by spring terminals R1/L1. It provides IP20 protection conforming to IEC 60529. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).

Products specifications

Attribute nameAttribute value
Main
Device short nameLAG8N
Auxiliary contacts operationinstantaneous
Pole contact composition1 NO + 1 NC
RangeTeSys
Connections - terminalsscrew clamp terminals0.75-2.5 mm²flexible with cable end, screw clamp terminals0.75-2.5 mm²solid stranded without cable end
Product or component typeauxiliary contact block
Range compatibilityTeSys G LC1G
Range of productTeSys G
Complementary
Depth84.8 mm
Width15.4 mm
Mechanical durability8 Mcycles
Minimum switching voltage17 V
[Ui] rated insulation voltage500 V - certifications UL, 500 V - certifications CSA, 500 V conforming to IEC 60947-5-1
Mounting locationside
Net weight0.05 kg
Irms rated making capacity250 A DC conforming to IEC 60947-5-1, 140 A AC conforming to IEC 60947-5-1
Insulation resistance> 10 MOhm
Protection typegG fuse 10 A
[Ue] rated operational voltage500 V AC 25...400 Hz
[Ith] conventional free air thermal current10 A (at 60 °C)
Height55.8 mm
Minimum switching current1 mA
Permissible short-time rating140 A 60 °C 100 ms, 120 A 60 °C 500 ms, 100 A 60 °C 1 s
Non-overlap time1.5 ms on energisation no overlap between NC and NO contact, 1.5 ms on de-energisation no overlap between NC and NO contact
Environment
Operating altitude3000 m
Protective treatmentTH
Ambient air temperature for storage-60-80 °C
IP degree of protectionIP20 conforming to IEC 60529
StandardsGB 14048.5, CSA C22.2 No 60947-5-1, UL 60947-5-1, EN/IEC 60947-5-1
Ambient air temperature for operation-25-60 °C
Product certificationsEAC, EU-RO-MR by DNV-GL, UKCA, CE, cULus, CCC, CB Scheme
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height3.5 cm
Package 1 Width6.8 cm
Package 1 Length9.5 cm
Package 1 Weight57.0 g
Unit Type of Package 22
Number of Units in Package 264
Package 2 Height15.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight3.979 kg
