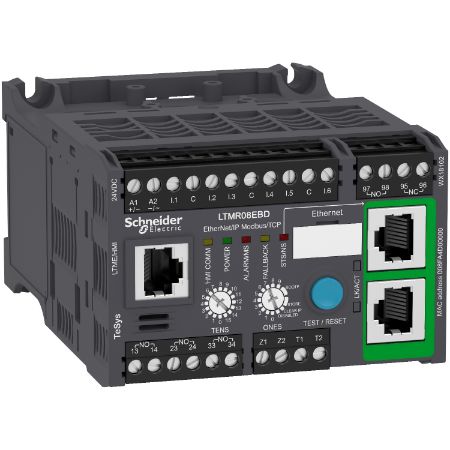

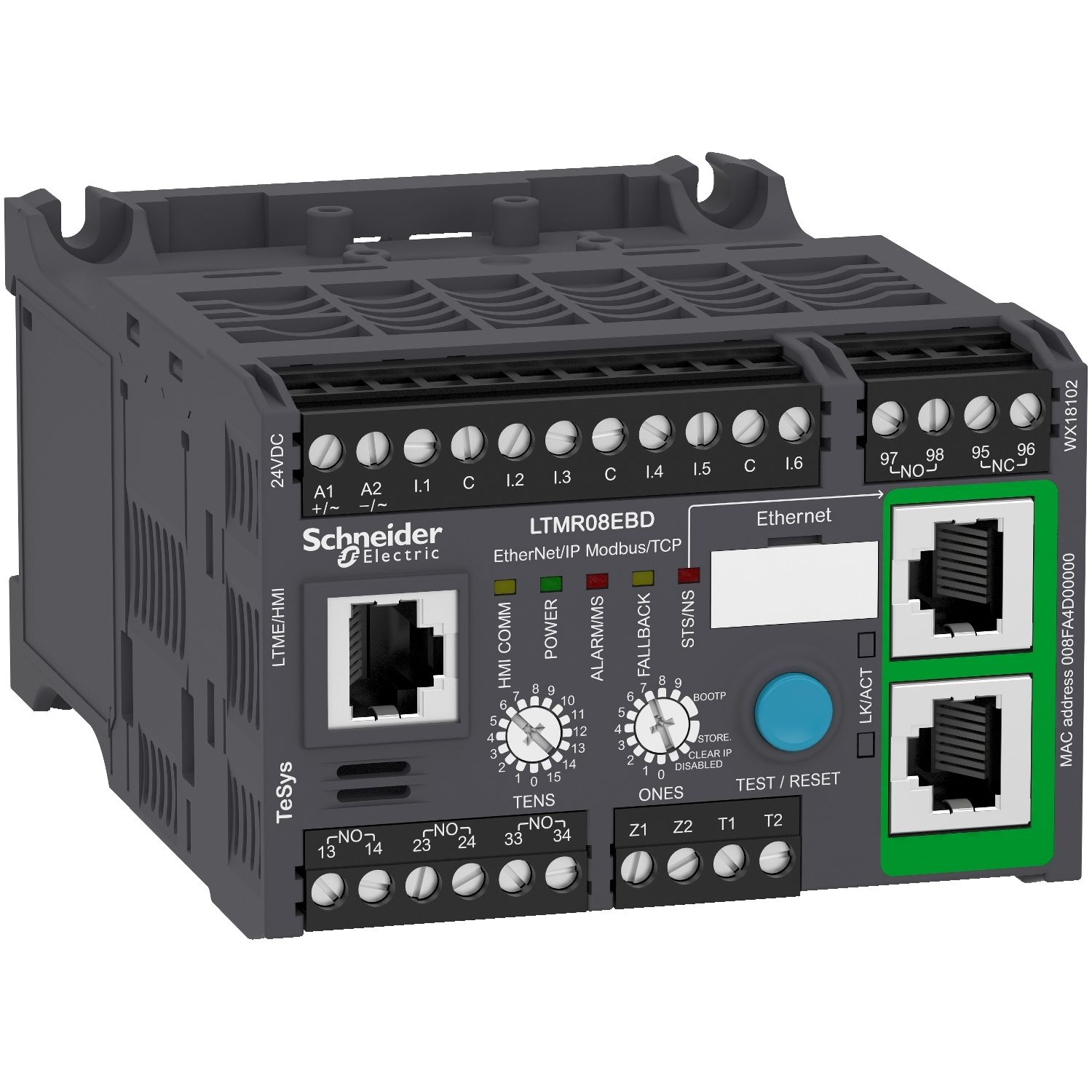

Picture of Motor controller, TeSys T, Motor Management, Ethernet/IP, Modbus/TCP, 6 logic inputs, 3 logic outputs, 0.4 to 8A, 24VDC
SKU:

LTMR08EBD

Motor controller, TeSys T, Motor Management, Ethernet/IP, Modbus/TCP, 6 logic inputs, 3 logic outputs, 0.4 to 8A, 24VDC

$2,289.22
Available for Shipping : 24-Nov-2024
Motor controller, TeSys T, Motor Management, Ethernet/IP, Modbus/TCP, 6 logic inputs, 3 logic outputs, 0.4 to 8A, 24VDC
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
User guide
End of life manual
Product environmental
Catalogue
Declaration of conformity
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name LTMR
Device application equipment monitoring and control
Supply voltage limits 20.4-26.24 V DC
Bus type Ethernet IEEE 802.3 interface, addressing 0...159, transmission rate 10...100 Mbit/s, RJ45 with 2 shielded twisted pairs
Communication port protocol Modbus TCP/EtherNet/IP
[Us] rated supply voltage 24 V DC
Current consumption 56...127 mA
Range TeSys
Measurement current 0.4-8 A
Product name TeSys T
Product or component type motor controller
Complementary
Metering type imbalance current, phase current I1, I2, I3 RMS, earth-fault current, temperature, average current Iavg
Maximum operating frequency 2 Hz
Depth 122.5 mm
Tightening torque control circuit: 0.5-0.6 N.m flat screwdriver 3 mm
Overvoltage category III
Load current 5 A at 30 V DC for logic output, 5 A at 250 V AC for logic output
Width 91 mm
Web services web server
Protection type load fluctuation, thermal overload protection, overload (long time), power factor variation,  reverse polarity protection, phase unbalance, overload, thermal protection, earth-leakage protection, locked rotor, phase failure
Compatibility code LTMR
Short-circuit withstand 100 kA conforming to EN/IEC 60947-4-1
[Ui] rated insulation voltage 690 V conforming to UL 508, 690 V conforming to CSA C22.2 No 14, 690 V conforming to EN/IEC 60947-1
Current state 0 guaranteed logic input: < 5 V and <= 15 mA for 5 ms
Measurement accuracy 5 % active and reactive power, 1 % current, 0,02 temperature, +/- 30 min/year internal clock, 5 % earth fault current external measurement, 3 % power factor, 1 % voltage (100...830 V), 5...15 % earth fault current internal measurement
Electromagnetic compatibility control circuit: surges (serial mode), 1 kV, conforming to EN/IEC 61000-4-5, temperature sensor: surges (common mode), 1 kV, conforming to EN/IEC 61000-4-5, temperature sensor: surges (serial mode), 0.5 kV, conforming to EN/IEC 61000-4-5, conducted RF disturbances, 10 V, conforming to EN/IEC 61000-4-6, voltage dips and interruptions immunity test, 70 %, 500 ms, conforming to EN/IEC 61000-4-11, fast transients immunity test (on supply and relay outputs), level 4, 4 kV, conforming to EN/IEC 61000-4-4, fast transients immunity test (other circuits), level 3, 2 kV, conforming to EN/IEC 61000-4-4, radiated RF fields, 3, 10 V/m, conforming to EN/IEC 61000-4-3, relay outputs and supply: surges (common mode), 4 kV, conforming to EN/IEC 61000-4-5, relay outputs and supply: surges (serial mode), 2 kV, conforming to EN/IEC 61000-4-5, communication: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5, control circuit: surges (common mode), 1 kV, conforming to EN/IEC 61000-4-5, electrostatic discharge, 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2
Associated fuse rating 0.5 A gG for control circuit, 4 A gG for output
[Uimp] rated impulse withstand voltage 0.8 kV supply, inputs and outputs conforming to EN/IEC 60947-4-1, 0.8 kV communication circuit conforming to EN/IEC 60947-4-1, 6 kV current or voltage measurement circuit conforming to EN/IEC 60947-4-1
Net weight 0.53 kg
Current state 1 guaranteed logic input: < 15 V and 2...15 mA for 15 ms
Input current 7 mA
Connections - terminals control circuit: connector 2 cable(s) 0.2-1 mm² (AWG 24...AWG 14) solid without cable end, control circuit: connector 2 cable(s) 0.5-1.5 mm² (AWG 24...AWG 14) flexible without cable end, control circuit: connector 2 cable(s) 0.2-1.5 mm² (AWG 24...AWG 14) flexible without cable end, control circuit: connector 2 cable(s) 0.2-1 mm² (AWG 24...AWG 14) flexible with cable end, control circuit: connector 1 cable(s) 0.2-2.5 mm² (AWG 24...AWG 14) solid without cable end, control circuit: connector 1 cable(s) 0.25-2.5 mm² (AWG 24...AWG 14) flexible without cable end, control circuit: connector 1 cable(s) 0.2-2.5 mm² (AWG 24...AWG 14) flexible without cable end, control circuit: connector 1 cable(s) 0.25-2.5 mm² (AWG 24...AWG 14) flexible with cable end
Maximum operating rate 1800 cyc/h
Logic input number 6
Pollution degree 3
Network and machine diagnosis type motor control command recording, phase fault and earth fault trip counters, starting current and time, fault recording, trip history information, running hours counter/operating time, waiting time after overload tripping, trip context information, remaining operating time before overload tripping, event recording
Permissible power 30 W (DC-13), Ie = 1.25 A, 500000 cycles (output), 480 VA (AC-15), Ie = 2 A, 500000 cycles (output)
Connection pitch 5.08 mm
Height 61 mm
Contacts type and composition 3 NO, 1 NO + 1 NC fault signal
Environment
IP degree of protection IP20
Fire resistance 960 °C conforming to UL 94, 650 °C conforming to EN/IEC 60695-2-12
Operating altitude <= 2000 m without derating
Protective treatment TH conforming to EN/IEC 60068, 48 h conforming to EN/IEC 60070-2-11, 12 x 24 hour cycles conforming to EN/IEC 60068-2-30
Ambient air temperature for storage -40-80 °C
Standards IEC 60947-4-1, EN 60947-4-1, CSA C22.2 No 14, UL 508, IACS E10
Ambient air temperature for operation -20-60 °C
Mechanical robustness shocks half sine wave acceleration: 15 Gn for 11 ms conforming to EN/IEC 60068-2-27, vibrations plate mounted: 4 Gn, 5...300 Hz conforming to EN/IEC 60068-2-6, vibrations mounted on symmetrical rail: 1 Gn, 5...300 Hz conforming to EN/IEC 60068-2-6
Product certifications ATEX, LROS (Lloyds register of shipping), EAC, GL, DNV, KERI, BV, UL, RINA, RMRoS, CSA, NOM, C-Tick, ABS, CCC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.1 cm
Package 1 Width 10.0 cm
Package 1 Length 13.5 cm
Package 1 Weight 519.0 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 5.512 kg
