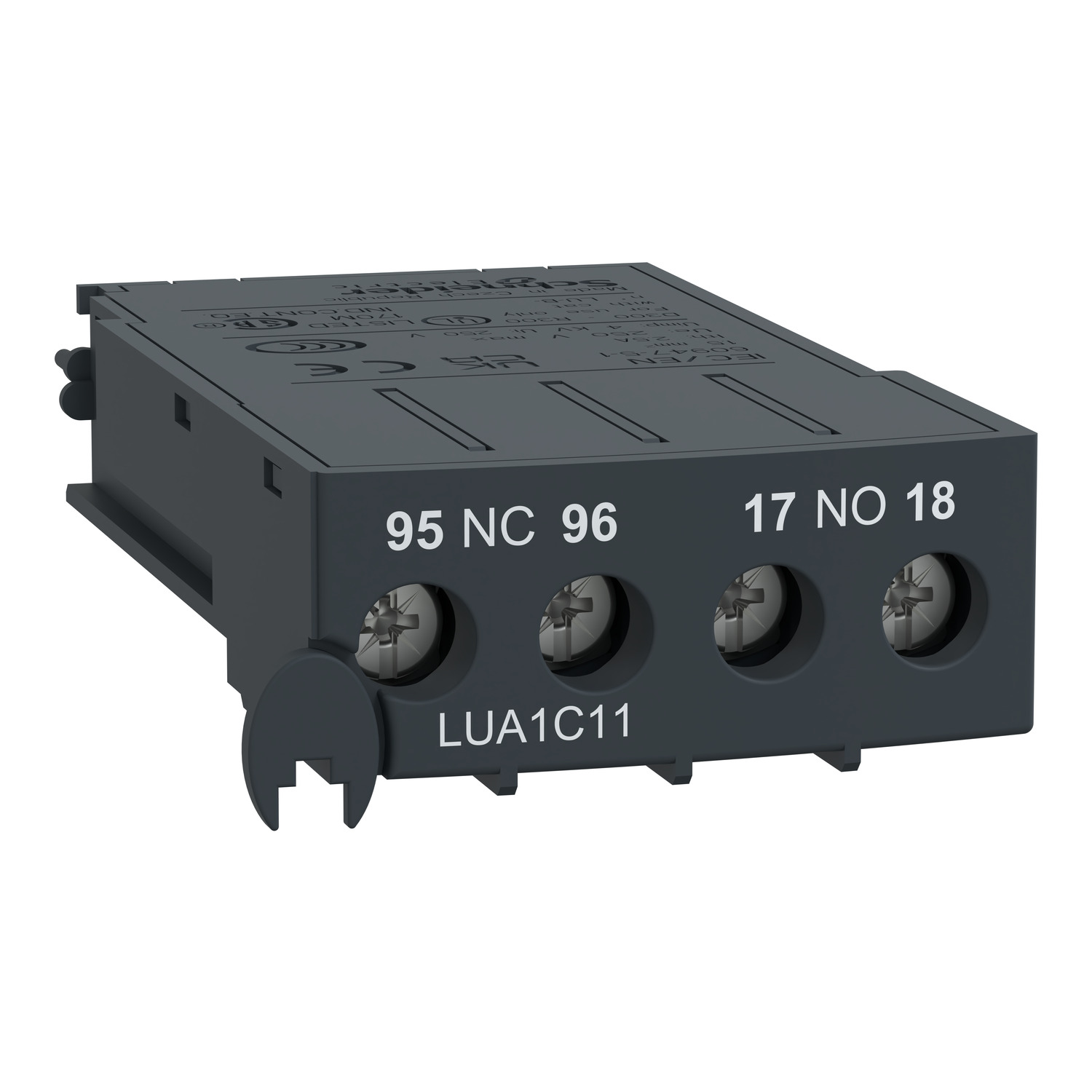

Picture of Auxiliary contact, TeSys Ultra, 1NO + 1NC, 0 to 250VAC/DC, for Fault signalling
SKU:

LUA1C11

Auxiliary contact, TeSys Ultra, 1NO + 1NC, 0 to 250VAC/DC, for Fault signalling

$62.10
Available for Shipping : 17-Nov-2024
Auxiliary contact, TeSys Ultra, 1NO + 1NC, 0 to 250VAC/DC, for Fault signalling
  • Auxiliary signaling contact block for TeSys U starter controllers
  • To be inserted in the provided location of the power base
  • Modular, plug & play structure helps you to perform quick maintenance
  • Direct access to detailed information for every motor starter of your installation
  • Advanced motor management system
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
User guide
Product environmental
Declaration of conformity
System user guide
Catalogue
Product Page Link
Product Data Sheet
TeSys U auxiliary signaling contact block for TeSys U starter controllers. It provides 1NO contact for open/close status (OF contact) and 1NC contact for tripping status (SD contact), rated up to 5A 250V AC/DC. To be inserted in the provided location of the power base. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LUA1
Range TeSys
Product or component type auxiliary contact
Range of product TeSys Ultra
Complementary
Minimum switching voltage 17 V
Compatibility code LUA1
Minimum switching current 5 mA
[Ui] rated insulation voltage 250 V conforming to UL, 250 V conforming to IEC 60947-5-1, 250 V conforming to CSA
Net weight 0.03 kg
Connections - terminals screw clamp terminals
[Ith] conventional free air thermal current 2.5 A
[Ue] rated operational voltage <= 250 V DC, <= 250 V AC
Auxiliary contact composition 1 NO + 1 NC
Signalling function indicating rotary knob in ready position, fault signalling
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.0 cm
Package 1 Width 6.0 cm
Package 1 Length 10.0 cm
Package 1 Weight 24 g
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 15 cm
Package 2 Width 15 cm
Package 2 Length 40 cm
Package 2 Weight 998 g
Unit Type of Package 3 3
Number of Units in Package 3 960
Package 3 Height 75.0 cm
Package 3 Width 60.0 cm
Package 3 Length 80.0 cm
Package 3 Weight 37.44 kg
